U-Line H-7575 Manual

H-7575
SUPER LOW PROFILE
PALLET TRUCK
MODEL
Capacity
H-7575 2,200 lbs.
WARNING! Operator must read and understand
instructions here and on truck prior to use.

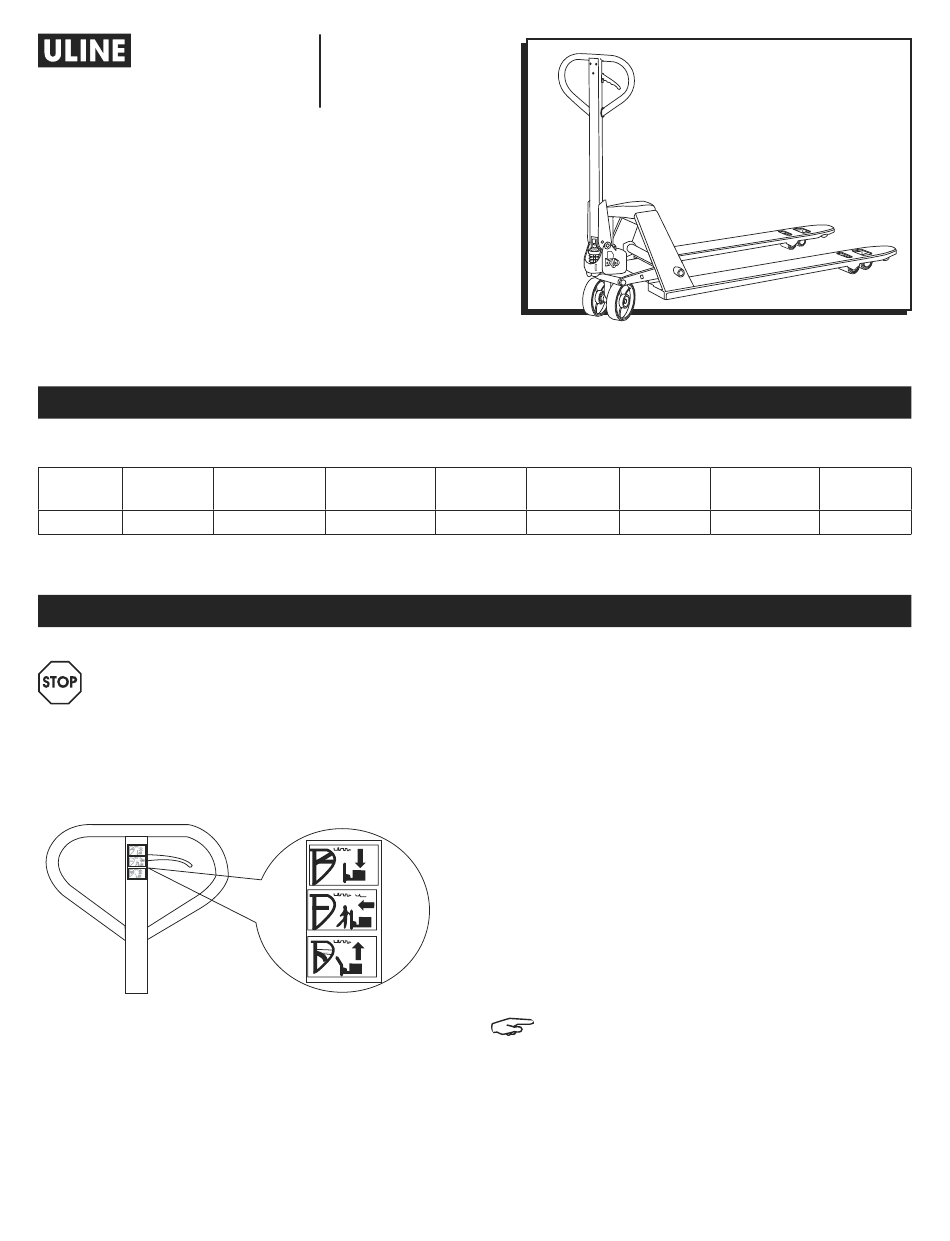

On the handle of the pallet truck, you will find the control
lever, which can be set in three positions. (See Figure 1)
Figure 1
- DOWN = to lower the forks
- NEUTRAL = to move the load
- UP = to raise the forks
PAGE 1 OF 9
1-800-295-5510
uline.com
TECHNICAL DATA
Max. Fork Min. Fork
Height Height
4.25" 1.38"
OPERATION
Overall
Fork Length
Fork Width
48" 27"
1. If the forks elevate while pumping in the NEUTRAL
position, turn the setting screw clockwise until
pumping the handle does not raise the forks and the
NEUTRAL position functions correctly.
2. If the forks descend while pumping in the NEUTRAL
position, turn the setting screw counterclockwise until
the forks do not lower.
3. If the forks do not descend when the control lever is
in the DOWN position, turn the setting screw clockwise
until raising the control lever lowers the forks. Then
check the NEUTRAL position as per steps 1 and 2.
4. If the forks do not lift while pumping in the UP position,
turn the setting screw counterclockwise until the forks
elevate while pumping in the UP position. Then check
the NEUTRAL and DOWN position as per steps 1, 2
and 3.
NOTE: When viewing the truck from the handle
side, the setting screw is located on the right
side of the pump above the right wheel. The
truck will lower faster or slower depending on
how far in or out the screw is adjusted.
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
Fork Wheel Steering Wheel
Diam. (Steel) Diam. (Steel)
1.25" 6"
Net Weight
175 lbs.
1224 IH-7575
