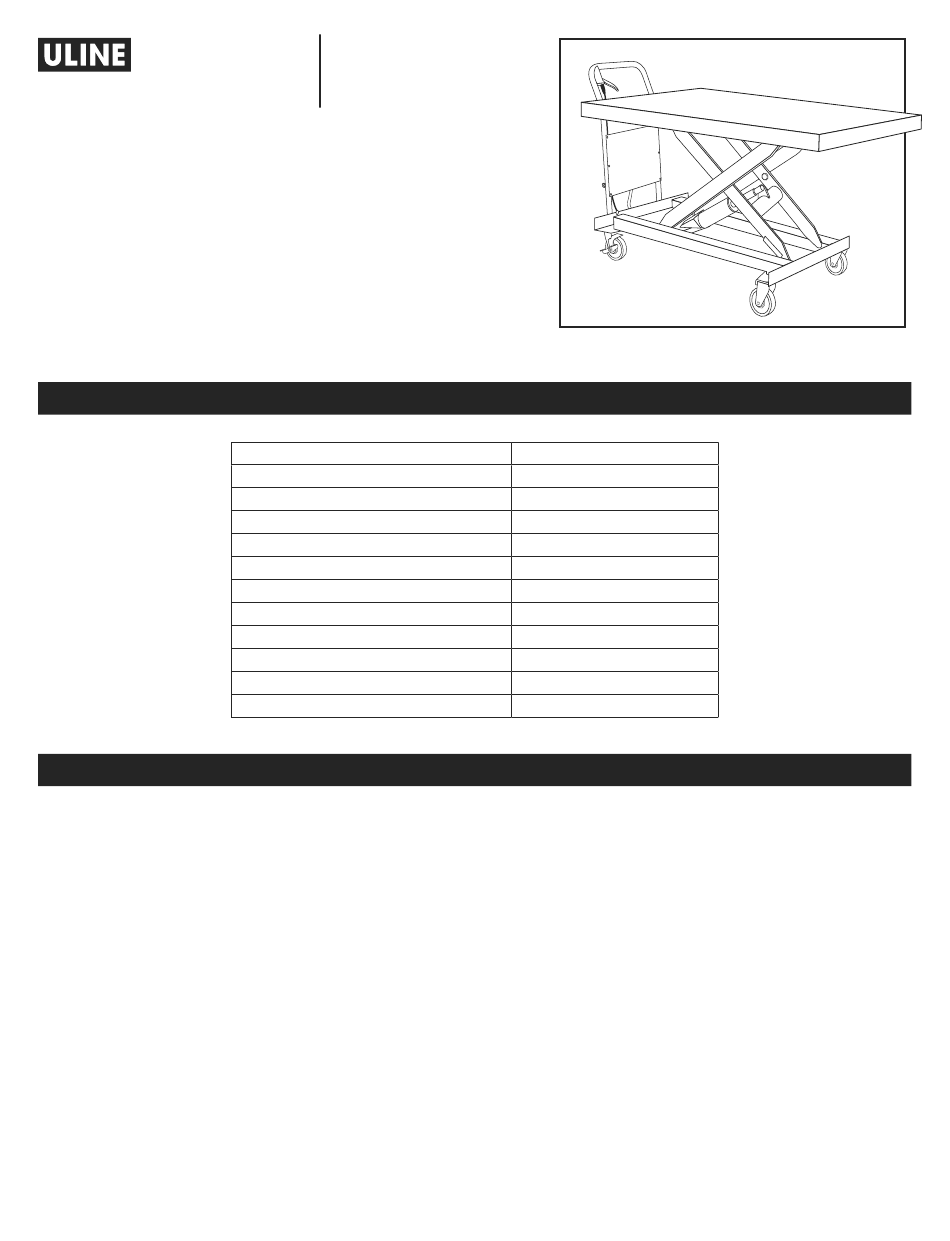

H-6754
MANUAL LIFT TABLE –
63 x 31½"
1.
Read all instructions carefully before operating the
lift table.
2. DO NOT overload the lift table and always operate
it within the rated load. Overloading will cause
damage to the lift table and the operator.
3. DO NOT stand or sit on the table to work.
4. DO NOT put hands or feet under the table when
lowering.
5. Apply the brakes while loading to prevent the table
from moving.
6. The load must be distributed uniformly across the
whole table.
7.
DO NOT load loose or unstable loads onto the table.
8. DO NOT leave the table loaded for extended
periods of time.
PAGE 1 OF 10
1-800-295-5510
uline.com
TECHNICAL INFORMATION
SPECIFICATIONS
Capacity
Height Raised
Height Lowered
Table Size
Total Height
Overall Length
Foot Pedal Cycles to Max Height
Wheel Diameter
Weight
Working Volume of Oil Cylinder
Oil Capacity
GENERAL INFORMATION
Pour le français, consulter les pages 7 à 10.
H-6754
1,100 lbs.
36"
12.5"
63 x 31.5 x 2"
39"
65"
40
5"
296 lbs.
200 ml
300 ml
9. DO NOT move the truck while lifting.
10. The table should only be used on flat solid surfaces.
11. Make sure not to overload the table when it is in
the raised position. The safety valve only works as
the table is lifted. Overloading in the raised position
may damage the table.
12. When loading and unloading goods in the raised
position, do not drag loads across the table.
This may cause offset loading and the table may
turn over.
13. When maintaining and repairing the table, the
stand bar should be used to support the fork arm in
order to prevent table from falling. There should not
be a load on table while maintaining and repairing
the table.
Para Español, vea páginas 4-6.
1124 IH-6754
