Nuna NORR Manual

Child Usage Requirements

This product is suitable for use with children who meet the following requirements:
Rearward Facing:
Child height 40cm-105cm/ Child weight≤18kg

Installation Mode		Installation	Recline Position
Baby mode	Child height 40cm–105cm/Child weight≤18kg		1-7

For Use with Base

1. According to the UN Regulation No.129/03, the Enhanced Child Restraint with base is a Universal ISOFIX Enhanced Child Restraint and should be fitted using the ISOFIX connections.
2. This is an "i-Size" Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual.
3. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

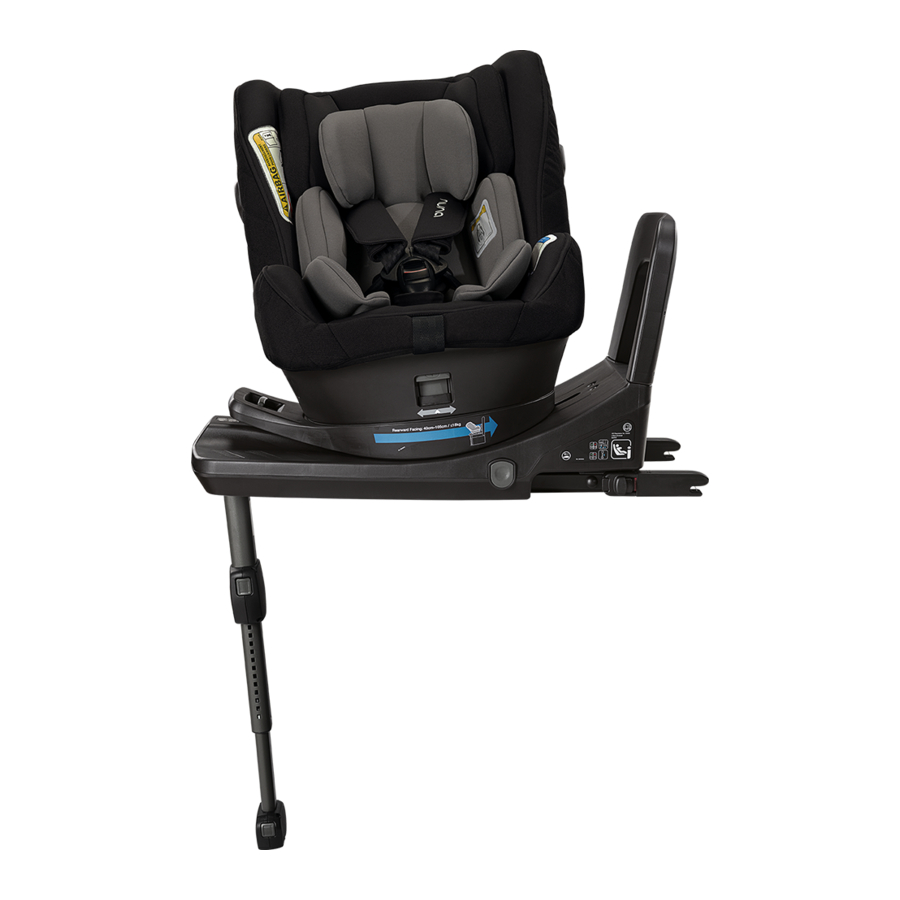

Parts List

1. Head Support
2. Infant Part
3. Seat Pad
4. Adjustment Webbing
5. Rotating Button
6. ISOFIX Adjustment Button
7. Load Leg Adjustment Button
8. Load Leg
9. Load Leg Adjustment Button
10. Recline Adjustment Button
11. Shoulder Strap
12. Rebound Bar
13. ISOFIX Connector
14. Head Support Adjustment Lever
15. Auto-engaging Side Impact
16. Load Leg Indicator
17. ISOFIX Guides
18. 2nd Seat Pad
19. Buckle holder

Product Use

DO NOT install this enhanced child restraint on vehicle seats that face sideways or rearward with respect to the moving direction of the vehicle. (1)-1
DO NOT use the rearward facing enhanced child restraint systems in seating positions where there is an active frontal airbag installed. Death or serious injury may occur. (1)-2 Please reference vehicle owner's manual for more information.
It is recommended to install this enhanced child restraint on the rear vehicle seat. (1)-3

This enhanced child restraint is suitable for vehicle seats with i-Size ISOFIX anchor points.

DO NOT install this enhanced child restraint on vehicle seats unstable during installation.

Installation

1. Unfold the load leg from the storage compartment.

2. Fit the ISOFIX guides into the ISOFIX anchor points. (4) The ISOFIX guides can protect the surface of the vehicle seat from being torn. They will also guide the ISOFIX connectors.

3. Press the ISOFIX adjustment button on either side of the base, then pull out the ISOFIX connectors.

4. Line up the ISOFIX connectors with the ISOFIX guides, and then click both ISOFIX connectors into the ISOFIX anchor points.

   Make sure that both ISOFIX connectors are securely attached to their ISOFIX anchor points. There should be two audible clicks and the colors of the indicators on the both ISOFIX connectors should be completely green. (6)-1
   Check to make sure the enhanced child restraint is securely installed by pulling on the both ISOFIX connectors.
5. There are 9 adjustable positions for ISOFIX. Press the ISOFIX release button and push the base back against the vehicle seat until tight.
6. After placing the enhanced child restraint on the vehicle seat, extend the load leg to floor. (7) The load leg indicator will show green when installed correctly, red means it is installed incorrectly. (7)-3

   The load leg has 24 positions. When the load leg indicator shows red this means the load leg is in the wrong position.
   Make sure the load leg is secure by pressing down on the front of the enhanced child restraint.
   To shorten the load leg, squeeze the load leg release button and pull the load leg upwards.
7. To remove the enhanced child restraint, press the ISOFIX adjustment button (5)-1 and pull the base away from the seat, then while squeezing the ISOFIX release button and secondary lock on the ISOFIX connectors remove from the vehicle.

8. Press the ISOFIX adjustment button to store the ISOFIX.


The completely assembled enhanced child restraint is shown as (10).

Use Auto-engaging Side Impact

Ensure the side impact shield is locked in the open position for maximum side impact safety.

1. Side impact shields are automatically activated when the harness buckle is moved back into position and the harness is tightened, both sides will be opened automatically.


   Please note that unfolding the side impact protection elements do NOT mean that the child is already restrained tight enough.
2. The side impact shield opposite the vehicle door can be closed to allow more seating space, if needed. The side closest to the vehicle exterior should always be in the open position.

3. The side impact shield can be manually opened as shown on (13).


Recline Adjustment

Squeeze the recline adjustment button (14)-1 to adjust the enhanced child restraint to the proper position. The recline angles are shown as (14).

Please recheck the load leg position after reclining.
There are 7 recline angles for baby mode.

Rearward Facing Mode Only

Rearward Facing
Child height 40cm-105cm/Child weight≤18kg
Recline position
Position 1-7

1. Press the rotating button to rotate the seat facing the rear of the vehicle.

   Please recline the seat to be in positions 3 through 7 for ease of rotation.
2. Rearward facing mode assembled as (16).

   The ISOFIX connectors must be attached and locked onto the ISOFIX anchor points. (16)-1
   The load leg must be installed correctly with green indicator. (16)-2

Height Adjustment for Head Support and Shoulder Harnesses

Check that shoulder harness straps are set at the proper height.
Squeeze the head support adjustment lever (17), while pulling up or down on the head support until it snaps into one of the 8 positions. The head support positions are shown as (18).

Shoulder harness straps must be at a height nearest to your childs shoulders (19), but not above the shoulder line (20).

If the shoulder harness straps are not at the proper height, the child might be ejected the enhanced child restraint if there is a crash.

Securing Child

Rotate the seat to the side to make it easier to put in or carry out the baby. (26) After the child is placed into the seat, check whether the shoulder harness straps are at proper height. Please rotate the seat backwards and lock it after fixing the baby.

1. While pressing the harness adjustment button located at the front of the enhanced child restraint, pull the two shoulder harness straps of the enhanced child restraint.

2. Unlock the buckle of the harnesses by pressing the red button.

3. Fix the buckles on the both sides of seat to make placing the baby more convenient.

4. Use Infant part.
   Infant part is for children's protection.


5. Place the child into the enhanced child restraint and lock the buckle. Please refer to (25).

6. Tighten the shoulder harness straps by pulling the adjustment webbing.

Make sure to tighten the harness properly and get rid of any belt slack. Too loose harnesses will reduce the safety performance of the seat.

Detach Soft Goods

1. Open the buckle (27), then remove the Infant part.

2. Open the snaps.

3. Detach the hook and loop fasteners to remove the shoulder belt cover.

4. Detach the snaps on the main seat pad behind shoulder harnesses.

5. Push the crotch strap through the crotch strap opening.

6. Place the shoulder harnesses behind the flap below the headrest.

7. Unfasten the elastic on the back of headrest to remove the head support soft goods.

8. Remove the soft goods.


To assemble winter and summer soft goods according to reversed steps above.

Cleaning and Maintenance

After removing the wedge from the infant part, please store it somewhere that the child cannot access it.
Please wash the bottom seat pad and the top seat cover with cold water under 30°C.
Do not iron the soft goods.
Do not bleach or dry clean the soft goods.
Do not use undiluted detergents, gasoline or other organic solvents to wash the enhanced child restraint. It may cause damage to the product.
Use only mild detergent, water and a soft cloth to clean the enhanced child restraint shell, handle and harness straps.
Do not twist the soft goods to dry with great force. It may leave the soft goods with wrinkles.
Please hang dry the soft goods in the shade.
Please remove the enhanced child restraint from the vehicle seat if not in use for a long period of time. Put the enhanced child restraint in a cool, dry place and somewhere your child can not access it.

Any load leg should be in contact with the vehicle floor and any straps restraining the child should be adjusted to the child's body. The straps should not be twisted.
After your child is placed in this enhanced child restraint, the safety harness must be used correctly. Ensure that any lap strap is worn low down, so that the pelvis is firmly engaged, shall be stressed.
Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.
Always secure child in enhanced child restraint, even on short trips, as this is when most accidents occur.
Children are not left in their enhanced child restraint system unattended.
Consult the distributor for issues concerning maintenance, repair and part replacement.
Correct Installation is only permitted by use of the ISOFIX connectors.
Do take care so that the rigid items and plastic parts of an enhanced child restraint system shall be so located and installed that they are not liable to become trapped by a moveable seat or in a door of the vehicle.
Frequently check the ISOFIX guides for dirt and clean them if necessary. Reliability can be effected by ingress of dirt, dust, food particles etc.
Must use the rebound bar.
Please keep this enhanced child restraint away from sunlight, otherwise it may be too hot for the child's skin. Always touch the enhanced child restraint before placing child in it.
Please check before you purchase this enhanced child restraint to make sure it can be installed properly in your vehicle.
Remove this enhanced child restraint from the vehicle seat when it is not in use for a long period of time or it is not in regular use.
This enhanced child restraint should be replaced when it has been subject to violent stresses in an accident. An accident can cause damage to it that you cannot see.
The enhanced child restraint system must be used with manufacturer supplied soft goods and accessory.
The soft goods is an integral part of the child restraint system in terms of its safety performance.
DO NOT use the rearward facing enhanced child restraint systems in seating positions where there is an active frontal airbag installed. Death or serious injury may occur.
DO NOT make any alterations or additions to the device without the approval of the type approval authority. The user should follow closely the installation instructions provided by the enhanced child restraint manufacturer.
DO NOT use this enhanced child restraint if it has damaged or missing parts.
DO NOT have your child in large/oversized clothes because this will prevent your child from being properly and securely fastened by the shoulder harness straps and the crotch strap between the legs.
DO NOT place any objects in the load leg area in front of your enhanced child restraint.
DO NOT use any load bearing contact points other than those described in the instructions and marked on the enhanced child restraint.
NEVER use a second-hand enhanced child restraint or an enhanced child restraint whose history you do not know because it may have structural damage that compromises your child's safety.
NEVER use ropes or any other substitutes to secure enhanced child restraint in vehicle or to secure child into enhanced child restraint.
The child restraint may not fit in all approved vehicles when used in one of these positions.
