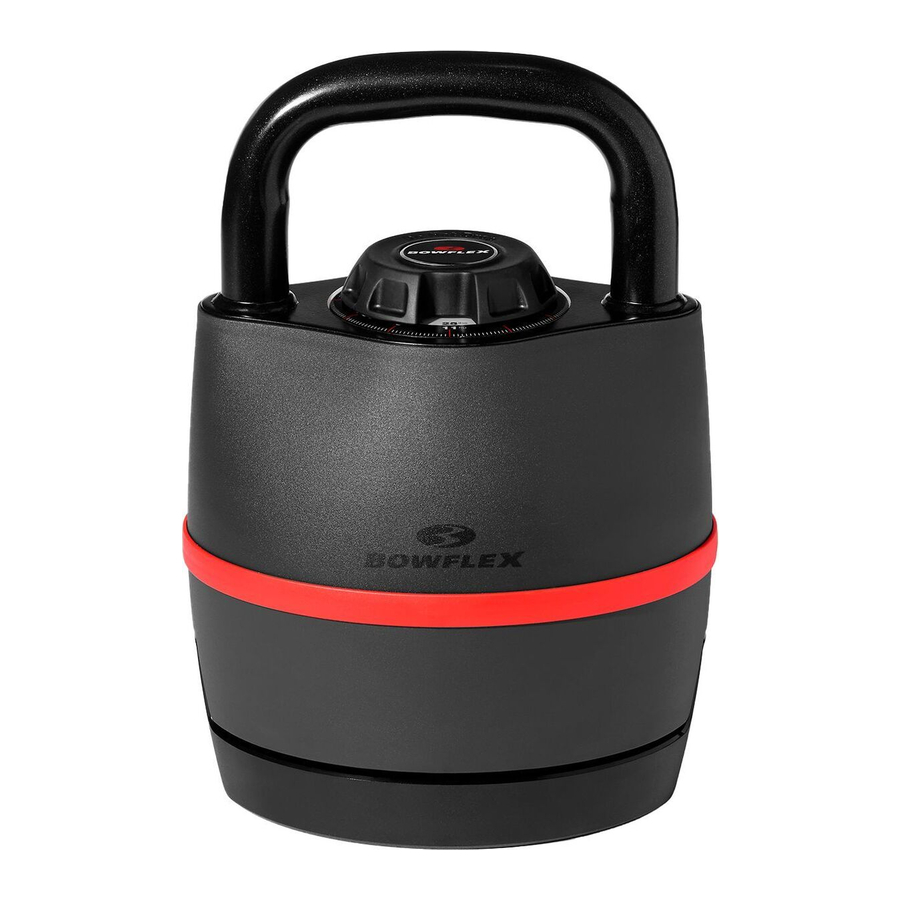

Bowflex SelectTech 840 Manual

Introduction

Congratulations on the your purchase of the Bowflex^™ SelectTech^™ Kettlebell. This innovative kettlebell is a versatile training tool that will help you reach your fitness goal. This product has been carefully engineered and manufactured to provide a wide array of weight options starting at 8 lbs (3.63 kg) and going all the way up to 40 lbs. (18.14 kg). In order to utilize this product to its fullest extent, it is critical that you read and fully understand this owner's manual prior to using the SelectTech^™ kettlebell.

Specifications

Dimensions: 22.4cm L x 17.8cm W x 31.8cm H (8.8" L x 7" W x 12.5" H)
Kettlebell Assembly Weight: 18.4 kg (40.5 lbs)

Features/Operation

1. Handle grip
2. Adjustment knob
3. Hull
4. Weight plates
   1. 4 lbs (1.81 kg)
   2. 8 lbs (3.63 kg)
   3. 5 lbs (2.27 kg)
   4. 10 lbs (4.54 kg)
   5. 5 lbs (2.27 kg)
5. Weight selector shaft
6. Base
7. Lift handles

Getting to know your Bowflex^™ SelectTech^™ Kettlebell

The Bowflex^™ SelectTech^™ 840 kettlebell is shipped fully assembled, one kettlebell to a box. After carefully removing the kettlebell from its box, there are some initial steps that should be taken to familiarize you with the function of the product, and to assure that all aspects of the kettlebell are performing according their specifications.
Do not drop the kettlebell. Dropping the kettlebell will damage the weight plates and/or the locking mechanism, and can cause the weight plates to disengage (drop) from the handle without warning. This can cause serious injury, and will void the warranty.

1. After removing the kettlebell from its protective packaging, inspect the product and packaging material for any damages.
2. Push down slightly on the handle assembly to make sure it is fully seated in the base. Rotate the adjustment knob several full rotations to make sure it turns freely in both directions. Make sure there is a click at each weight increment of the adjustment knob. This click will help you locate the proper alignment to select a given weight increment.
3. The weight increments range from 8 to 40 lbs (3.5kg to 18kg) on the weight selection dial. To properly select a given weight (20 lbs [9kg] for example), rotate the adjustment knob until the Weight Selection Window is aligned with that number (20) on the weight selection dial.
4. After confirming the proper rotational function of the adjustment knob, turn the adjustment knob so that the number 8 (3.5) shows in the center of the Weight Selection Window.

5. With the adjustment knob set to 8 (3.5), pull the handle straight up from the kettlebell. This will remove only the hull from the base, leaving all of the weight plates on the base (Fig. 2). The handle without plates represents the starting weight of 8 lbs (3.5 kg).

6. You may increase the selected weight by rotating the adjustment knob clockwise.
7. The kettlebell hull and weight plates are symmetrical. The handle is inserted with either end facing the user. The plates must be in the correct order to ensure that they are securely seated in the base.
   NOTICE: When you remove the kettlebell from the base or return it to the base, use a vertical motion, perpendicular to the base. Do not tilt the kettlebell or move it laterally (parallel to the base) until it is fully clear of the unselected weight plates. Do not change the order of the stacked weight plates.

To lift the kettlebell and base together, set the adjustment knob to the maximum weight selection and use the lift handles molded into the base assembly.
Do not lean on the kettlebell handle or use it to support your body weight, such as using it as a base to perform a push up. Doing so will damage the weight plates and/or the locking mechanisms, and can cause the weight plates to disengage (drop) from the handle without warning. This can cause serious injury, and will void the warranty.
There are 6 weight increments:

Note: Weight increments represent estimated values only. Exact values can vary due to manufacturing variances.

Understanding and testing the locking mechanism function

The Bowflex^™ SelectTech^™ Kettlebell features an exclusive locking mechanism designed to ensure proper and complete selection of the weight plates as well as to ensure weight plate retention during the workout.
Fully understand the function of this mechanism and do tests of the mechanism regularly to make sure it operates correctly.

Function
The locking mechanism provides two key functions:

1. The mechanism will only allow the adjustment knob to be rotated when the kettlebell handle is completely inserted and engaging the kettlebell base.
2. The mechanism is designed to lock the kettlebell handle to the bottom plate if the adjustment knob is not fully engaging the selected weight plates.

Purpose
The locking mechanism serves two important purposes:

1. The mechanism will prevent deselecting (dropping) weight plates from the kettlebell when it is NOT in the kettlebell base.
2. The mechanism will prevent partial selection of the weight plates in which the plates are not fully supported and the locking pin is not fully engaged.

Given the importance of this locking mechanism, it is critical that you understand how it operates, and periodically test it to make sure it is functioning correctly.

Testing proper locking mechanism function

1. With the kettlebell handle set in the kettlebell base, turn the adjustment knob to the number 8 (3.5). You will know you have fully and correctly selected the number when you feel the adjustment knob settle into a notch (known as a detent). You will also hear a slight, but audible, clicking noise that corresponds with the detent locations for each number.

2. You should be able to withdraw the handle from the base leaving all the weight plates behind.
3. With the handle removed from the base, grab the adjustment knob with your other hand and gently attempt to turn the knob. The knob should not rotate.
   Do not use too much force to try to turn the locked adjustment knob. Too much force can damage the locking mechanism.
4. After confirming the proper function of the locking mechanism as described above, return and fully insert the kettlebell handle back into the base assembly.
5. With the handle back in the base, try to turn the adjustment knob to a position that is between the numbers 8 and 12 (3.5 and 5.5). This represents an incomplete weight selection where the adjustment knob has not fully selected a weight and the knob is in-between the selection detents (clicks).
6. The selection knob should not stop and engage in this improper position. Without holding the adjustment knob, gently attempt to lift up on the handle to remove it from the base. If the adjustment knob stays in a position in-between selection detents when removing the handle from the base, do not use the kettlebell. This could result in dropping of plates.
7. Return the improperly selected adjustment knob to a full and proper weight selection and assure that the kettlebell handle can once again be removed.
8. Repeat this test for all weight selections.
9. Assure the entire kettlebell handle assembly is properly tightened. Do this by setting the adjustment knob to 8 pounds and removing the handle assembly from the base. Grab the adjustment knob and very slightly push and pull the knob toward and away from the handle grip. The knob should not exhibit free play and all of the selection discs should feel tightly connected.
10. You have now tested the function of the locking mechanism. We suggest you repeat this test monthly to make sure that the locking mechanism operates correctly.

If the kettlebell locking mechanism operates unsatisfactorily in the test procedure above, do the following:

1. Stop use of the product immediately until approved service is available.
2. Contact Customer Service (if inside US/Canada) or your local distributor (if outside US/Canada).

Maintenance

Exercises

For workout training videos for the Bowflex^™ SelectTech^™ Kettlebell, go to:
https://www.bowflex.com/kb
https://www.bowfex.ca/kb
https://global.bowflex.com/kb
Optional exercise bench and mat are available separately.
Additional products are available from Nautilus, Inc. at www.nautilusinc.com

Bowflex^™ SelectTech^™ Kettlebell maintenance

Equipment must be examined for damage and repairs before each use. The owner is responsible to perform routine testing of the locking mechanisms. Worn or damaged components must be replaced immediately or the equipment removed from service until the repair is made. Only manufacturer supplied components can be used to maintain and repair the equipment.
If at any time the Warning labels become loose, unreadable or dislodged, replace the labels. If purchased in US/Canada, contact Customer Service for replacement labels. If purchased outside US/Canada, contact your local distributor for them.
The Bowflex^™ SelectTech^™ Kettlebell is a very low maintenance product. However, there are steps that you should take to keep the product performing and looking its very best.

1. Should your SelectTech^™ Kettlebell handle assembly, plates or base become soiled you may clean them with a cloth lightly dampened with warm water and a small amount of mild soap. Wipe dry with a separate cloth.
2. The SelectTech^™ Kettlebell is internally lubricated and will not require further internal lubrication. The contact between weight plates and the selector mechanism is not lubricated but has naturally low friction. This generally will not require any lubrication. Should you feel it necessary to lubricate the selector mechanism, use only a silicon lubricant, preferably "food grade".

Do not use any solvents, harsh detergents, chemicals or bleach on this product − doing so may damage the materials, resulting in degradation of the product's performance or strength.
Do not attempt to disassemble the kettlebell handle or base assembly. These items are not designed to be user serviced. Doing so will void the manufacturers warranty. Contact Nautilus, Inc. or your local distributor for service.

Troubleshooting

Important Safety Instructions

This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Before using this equipment, obey the following warnings:
Read and understand the complete Owner's Manual. Keep Owner's Manual for future reference.
Read and understand all Warnings on this machine. If at any time the Warning stickers become loose, unreadable or dislodged, replace the labels. If purchased in US/Canada, contact Customer Service for replacement labels. If purchased outside US/Canada, contact your local distributor for them.

• Children must not be let on or near to this machine. Moving parts and other features of the machine can be dangerous to children.
• Not intended for use by anyone under 14 years of age.
• Consult a physician before starting an exercise program. Stop exercising if you feel pain or tightness in your chest, become short of breath, or feel faint. Contact your doctor before using the machine again.
• Inspect the kettlebell prior to each use. Do not use a kettlebell with worn or damaged parts. If purchased in US/ Canada, contact Customer Service for repair information. If purchased outside US/Canada, contact your local distributor for repair information.
• This machine is for home use only. Do not place or use the machine in a commercial or institutional setting. This includes gyms, corporations, work places, clubs, fitness centers and any public or private entity that has a machine for use by its members, customers, employees or affiliates.
• Periodically inspect and test the locking mechanism for correct function. Follow the test procedures included in this manual.
• Do not operate this machine outdoors or in moist or wet locations.
• Before you start your workout, make sure that your surroundings are free from possible interference and third parties. Your workout free space should be 0.6 m (24") more than the maximum reach of the exercise in all directions.
• Do not over exert yourself during exercise. Operate the machine in the manner described in this manual.
• Do not engage the locking mechanism and use the handle to try to lift the kettlebell and base together. To lift the kettlebell and base together, engage the locking mechanism and use the lift handles molded into the base assembly.
• Do not try to force the Adjustment Knob to turn when the Kettlebell has been removed from the Kettlebell base.
• Do not let the Kettlebell fall freely to the ground. Damage to the product and possible personal injury can occur.
• Do not let Kettlebells forcefully hit together during operation. Damage to the product and possible personal injury can occur.
• Do not lean on the Kettlebell handle or use Kettlebells to support your body weight, such as using them as a base to perform a push up. Damage to the product and possible personal injury can occur.
• Do not try to disassemble your Kettlebell handle, or base assembly. The product is not designed to be serviced by the customer. If purchased in US/Canada, contact Customer Service for repair information. If purchased outside US/ Canada, contact your local distributor for repair information.
• The Kettlebell is very heavy. Put the Kettlebell assembly directly on the floor for best support.

Safety Warning Labels and Serial Number
Record serial number in the Serial Number field at the beginning of this manual.

If purchased in US/Canada: To register your product warranty, go to: www.bowflex.com/register
Or call 1 (800) 605–3369.
If you have questions or problems with your product, please call 1 (800) 605–3369.
If purchased outside US/Canada: To register your product warranty, contact your local distributor.
For details regarding product warranty or if you have questions or problems with your product, please contact your local distributor. To find your local distributor, go to: www.nautilusinternational.com or www.nautilus.cn
