NexiGo 0593 Manual

If you have any problems p ease contact us at cs@nexigo.com at any time for further assistance. This product is covered by our generous 1-year manufacturer's warranty, please visit www.nexigo.com for more warranty information and register on www.nexigo.com/warranty for an EXTRA ONE-YEAR warranty.

Contact Info

Brand NexiGo

Website. www.nexigo.com

Manufacturer: Nexight INC

Email: cs@nexigo.com

Tel: +1(458)215-6088

Address: 11075 SW 11th St. Beaverton. OR 97005 US

Product Introduction

The P-5 multifunctional cooling stand is designed for P-5 consoles and Dualsense Controllers. The cooling system has two fans with an intelligent chip, which provides three levels of cooling solutions. The stand can also charge up to two controllers at the same time with the Type-C charging slots. It provides eleven P-5 game disc slots to keep your desk clean.

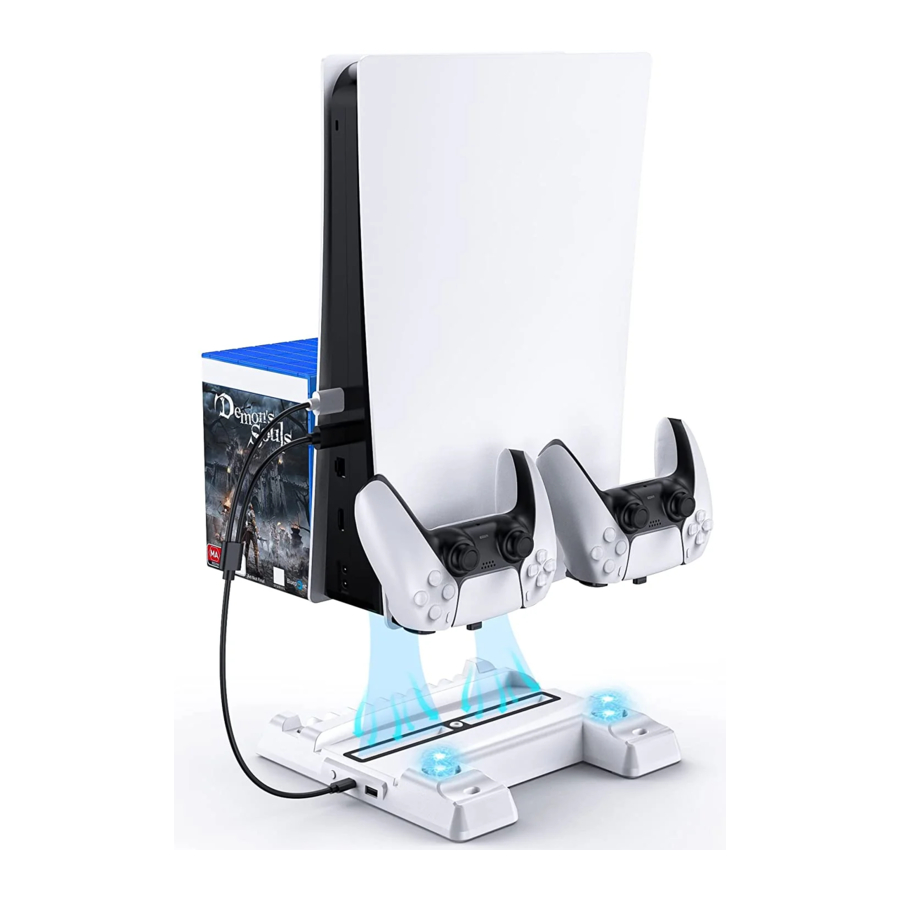

Product Image

How to use

Step 1
Fix the console on the NexiGo cooling stand

Step 2
Insert both the 2 USB-A plugs to the back of the P-5 console, insert the Type-C plug to the stand

Step 3
Take the Type-C adapter out from the storage slot, insert the Type-C adapter to the controller, and place it on the charging slot to get charge.

Product Features

1. The stand is compatible with both P-5 Console digital and disc versions: model number: CFI -1000A and CFI -1000B.
2. Two cooling fans speed up air circulation at the bottom of the P-5 console to achieve heat dissipation. The fan control button makes it easy to switch cooling speed: High-Mediurn-Low-Off. The power-off memory function remembers the last setting.
3. 11 disc slots on the back Of the stand make it convenient for users to place their 11 favorite game discs.
4. With the 2-in-1 connection cable, the stand can be powered from the two USB 3.0 ports on the back of the P-5 console and leave your front USB port clean and tidy for other purposes of use.
5. The stand can charge up to two controllers at the same time. The LED indicator Of the controller clearly shows the charging status
6. The USB 2.0 port on the left side Of the stand is mainly used to connect to external devices like P-5 headphones (NOT Compatible with USB 3.0 P-5 cameras) or other low load devices (the compatibility Of other USB 2.0 devices is not guaranteed). Please do not connect the USB 2.0 port to another device when controllers are being charged. The charging time may be affected since the power source is directly from the P-5 console.

Product Specifications

1. Type-C Input: SV3A (directly powered from the two USB 3.0 ports on the back Of the console through the included 2-in-1 USB cable).
2. Type-C Output: 5V500mA*2 means two charging ports).
3. USB 2.0 Port Output: 5V 1500mA (Max). (Note: Please do not use the USB 2.0 port to support an external high load device. This will affect the performance Of the controller charging slots)
4. Cooing Level is of the Built-in Fans: High Speed 7000±500 rev/min,
   Medium Speed: 6000±500 rev/min, Low speed: 5000±500 rev/min.
5. 5 Full charging time: Fully charge 2 controllers at once in about 4-4.5 hours.
6. Product Size: 9.25 x 9.06 x 1.18 inches (L x W x H).
7. Product Material: ABS plastic+ metal plate.
8. Accessories: 1 x 2-in-l USB 2.0 to Type-C Cable, 2 x Type-C Adapters, 1 x Fixing Screw.

Product Instructions

1. Place and fix the console on the NexiGo cooling stand with the fixing screw that comes with the package.(Please not to use the original fixing screw from the P-5 console)
2. Place the cooling stand on a desk, connect the stand and the console by inserting both the 2 USB-A plugs to the back of the P-5 console, insert the Type C plug to the stand.
   NOTE: Both Of the two USB 2.0 plugs must be inserted into the two USB 3.0 female ports on the back of the console at the same time. If either USB 2.0 plugs is unplugged, the following issues may arise: insufficient power supply, interruption of data transmission, output voltage below the required SV standard, abnormal charging, or an error message "Excessive external USB device" on the TV screen.
3. Remove the Type-C adapter from the controller and place it in the adapter storage slots on the left fright side Of the games disc slots on the back of this stand.
4. In order to maintain and maximize the lifespan of P-5 controllers, please do not remove controllers while they are being charged. When the battery level of the controller reaches 80% or above, if you remove the controller and put it back, the controller will not be charged due to the battery protection function, The dock will continue to charge only after the battery level of the controller falls below 80%.

Attention:

1. This product cannot be used and stored in a humid or high-temperature environment.
2. Please ONLY use the USB cable that comes with the package.
3. Please use this product in natural ventilation and keep it out from the dust.
4. Do not wipe the product with a wet cloth and any cleaning should be under power-off mode. Please do not use the product when is soaked, crashed, or damaged.
5. Please keep the product away from children under 12 years old.
