NexiGo 05100 Manual

If you have any problems please contact us at cs@nexigo.com at any time for further assistance. This product is covered by our industry leading 1-year manufacturer warranty. Please visit www.nexigo.com/warranty-information for warranty terms and conditions. Make sure to register your purchase at www.nexigo.com/warranty for a FREE additional 1-year warranty!

Contact Information

Brand: NexiGo

Website: www.nexigo.com

Manufacturer: Nexight INC

Email: cs@nexigo.com Tel: +1(458) 215-6088

Product Introduction

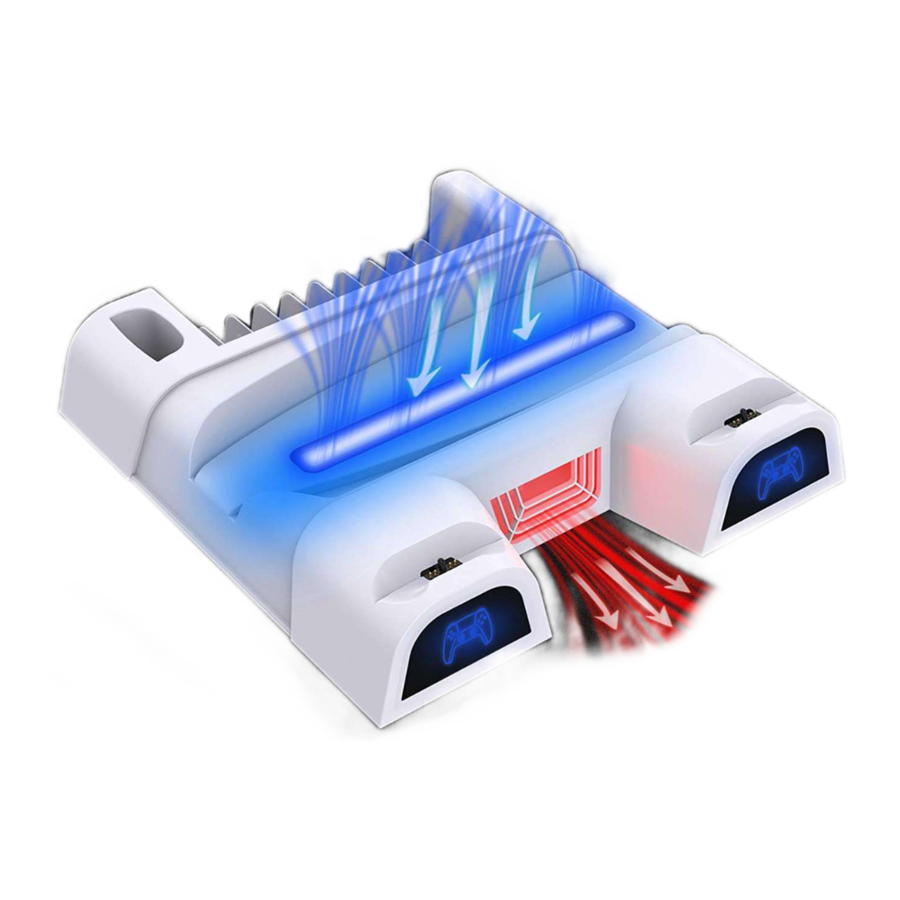

The NexiGo Multifunctional Cooling Stand for the P-5 console is designed to reduce the running temperature of the console, improving performance and prolonging the console's lifespan. It also can assist in increasing power efficiency and provide effective air circulation. The cooling stand comes with four different fan speeds for maximum cooling potential, high, medium, low, and off. Additionally, the stand provides two controller charging docks to charge original P-5 controllers. These charging docks have charging status indicators that show a red light while the controller is charging, which switches to a blue light when the controller is fully charged or on standby. There is a built-in fan speed LED light. Different fan speeds will display different colors of lights. Red light represents high speed. The orange and green light represent medium speed and low speed respectively. On the opposing side of the dock, ten storage slots are built into the stand for game cases to be stored in a neat and orderly fashion, alongside a slot to place your remote. Finally, the P-5 console can be directly affixed to this multifunctional stand with the provided screw, increasing stability and protecting it from scuffs or damage. Compatible with CFI-1000A and CFI-1000B P-5 consoles.

Product Overview

Specifications

• Rated Input Voltage / Current: DC 5V / 3A
• Rated Output Voltage / Current: 5V / 2A
• Charging Duration: 3 Hours approximately
• Fan Rotation Speed: Fast: 3200±320 rpm, Medium: 2500±350 rpm, Low: 2100±210 rpm

Package Includes

1 X Multifunctional Cooling Stand for the P-5

1 X Affixing Screw

1 X 2-in-1 USB 2.0 to Type-C Cable

Product Instructions

1. Affix the console to the NexiGo Multifunctional Cooling Stand by using the fixing screw. Attach it directly from the bottom of the console.
2. Plug both of the USB-A connectors into the back of the P-5 console and then insert the USB Type-C connector into the stand at the rear.
3. The Multifunctional Cooling Stand is now ready for use!
4. P-5 controllers can now be inserted into the controller chargers on the side of the cooling stand for charging.
5. The fan control switch on the back of the cooling stand controls the speed of the cooling fan, and can be toggled as needed between the speeds (high, medium, low, off).

Notes

• When this unit is not in use for long periods it is recommended that you unplug it from the power source.
• Ensure that this product has enough ventilation for general use, otherwise the additional airflow provided by the base will be insufficient.
• Only use on a flat, horizontal surface.
• DO NOT stick foreign objects into any of the openings on this unit. You may damage the unit.
• The dock is designed to be used with the provided 2-in-1 USB 2.0 to Type-C Cable and use of any other cables may cause damage to the product.
• Please use a dry cloth to clean the product. Do not clean the product with water or alcohol. When cleaning, please unplug the unit first.
• This product cannot be used and/or stored in high humidity conditions.
• To ensure longevity and lifespan of the fan, protect it from dust and do not place other consoles or objects on it; only place the P-5 console on it as intended.
• If the fan is inoperable but does not show signs of damage, please exercise the warranty or dispose of the item.
• If the fan is damaged, please exercise the warranty or dispose of the item. DO NOT attempt to open and repair it independently. Keep this product dry.
• Keep away from small children due to potential shock and cutting hazards.
