NexiGo 1526 Manual

Product Introduction

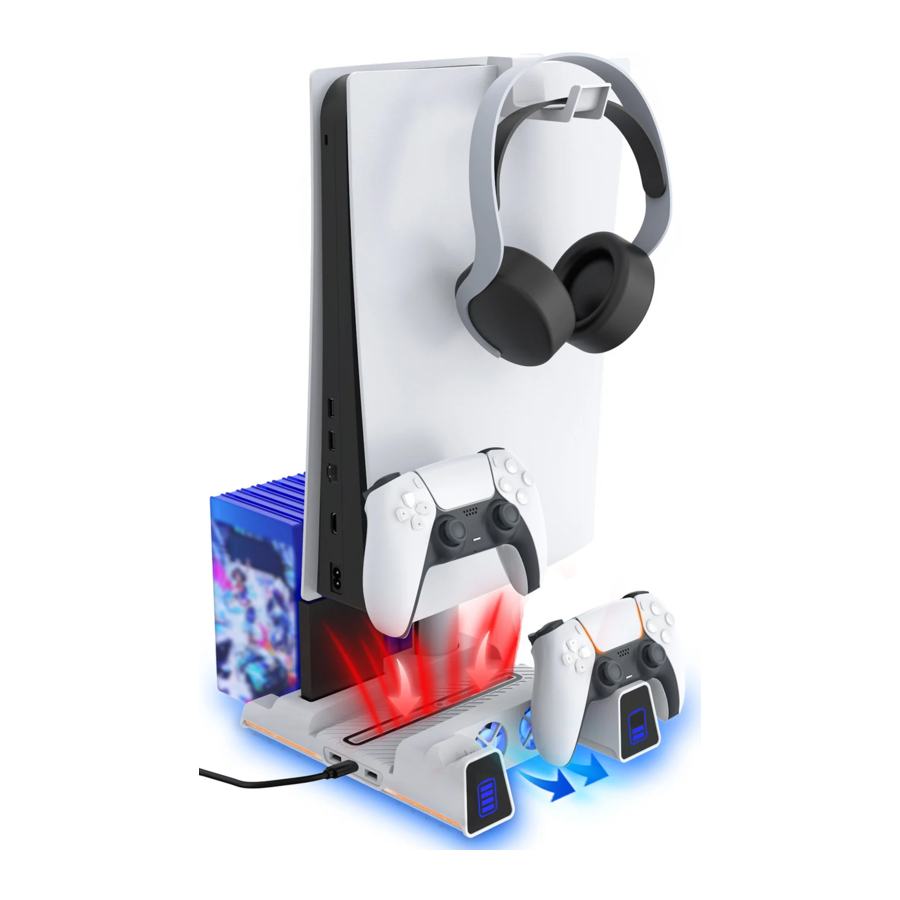

The NexiGo Multifunctional Cooling Stand for the P-5 console is designed to help reduce the operating temperature of the console as well as to provide you with a more convenient and comfortable gaming experience. This unit features RCB strip lights on both sides of the coo ing stand. There are several light modes you can switch between to highlight your unit and your accessories. Additionally, the stand also includes two controller charging docks to charge original P-5 controllers. Each charging dock has a battery charging icon indicator that will show the current controllers charging status. While the controller is charging, the battery icon indicator wil light up dynamically from bottom to top showing the controller is charging. When the controller is fully charged, the battery indicator will be fully lit and wil no longer show charging status. The built-in fans help improve cooling performance, prolonging the console's lifespan. The cooling stand has four different fan settings for maximum cooling potential: high, medium, low, and off. On the opposite side of the dock ten storage spaces are built into the stand for game cases to be stored in a neat and orderly fashion.
Next to this game case storage space are two openings designed for you to place your remote as well as an external hard drive. Finally, the P-5 console can be directly connected to the stand with the provided screw, increasing stability and protecting it from scuffs or damage. Compatible with CFI-1000A and CA-1000B P-5 consoles.

Product Overview

Function Description

Cooling fan: Twin high-speed fans enhance the cooling system of the P-5 to gently pull additional air through the console.
Fan speed switch: Used to adjust fan speed, switch between the different speeds quickly and easily. As you switch between the different fan speeds the fan lights will also brighten indicating the current speed.
Battery charging indicator: Each charging dock has a battery charging indicator that will show the current controller charging status. While the controller is charging, the battery icon indicator will light up dynamically from bottom to top showing the controller is charging. When the controller is fully charged, the battery indicator will be fully lit and will no longer show charging status.
LED strip light: Press the light mode switch to change the light mode among colorful flowing light mode, colorful breathing light mode, and steady blue light mode. When the unit is powered on and there is no controller on the charging bays, the LED strip lights will display a colorful flowing light pattern by default while the controller is charging, the LED strip lights will display an orange breathing light to indicate the controller is charging and will turn to a steady blue light after two charging controllers are fully charged.
Note: To maximize the lifespan of the P-5 controllers please do not remove the controllers while they are being charged. When the battery level of the controller reaches 80% or above. if you disconnect the controller from the charger and attempt to reconnect it again it will not be able to continue charging due to the battery protection features of the P-5 controller. The controller will continue to charge only after the battery level falls below 80%.

Installation Guide

Remove the screw from the package.
Attach the console onto the NexiGo Multifunctional Cooling Stand using the screw.
Insert the USB Type-C connector for the power cable into the stand at the rear and plug the power adapter into a power source.
Clean the surface of the P-5 console where you would like to place the headphone holder.
Attach the headphone holder to the P-5 console. Make sure to press firmly to ensure the headphone holder is securely attached.
The NexiGo Multifunctional Cooling Stand is now ready for use!

Specifications

Type-C Power nput: 5V/3A (directly powered by the included 5V/3A power adapter).
Controller Charging Port Output Voltage: DC 5V±0.1V.
Controller Charging Port Output Current: ≤ 1000mA at each charging port.
USB Output Port Voltage: DC 5V±0.1V.
USB Output Port Total Current: ≤ 800mA.
Note: It is not recommended to plug an item requiring greater than 800mA current load in the USB ports.
Number of Fans: 2
Charging Time: Fully charges two controllers simultaneously in approximately 3.5 hours.
Product Size: 10.08 x 8.54 x 2.24 inches
Product Material: ABS
Fan Speeds:
- High Speed: 4000±800 rev/min,
- Medium Speed: 3500±700 rev/min,
- Low Speed: 3000±600 rev/min.

Package Includes

1x Multifunctional Cooling Stand for the P-5
1x P-5 Connecting Screw
1x 5V/3A Power Adapter with USB Type-C Charging Cable
1x Headphone Holder Attachment
1 x User Manual

Notes

Only use the provided 5V/3A power adapter to power the unit. Using any other power adapter or cable may cause damage to the product.
When this unit is not in use or when docked controllers are fully charged, it is recommended that you unplug it from the power source.
Ensure that this product has enough ventilation for general use, otherwise the additional airflow provided by the base will be insufficient.
Only use on a flat, horizontal surface.
DO NOT stick foreign objects into any of the openings on this unit. You may damage the unit or cause harm to yourself.
Please use a lint-free dry cloth to clean the product. Do not clean the product with water or alcohol. Ensure the unit is unplugged before cleaning.
This product cannot be used and/or stored in high humidity conditions.
To ensure longevity and lifespan of the unit, protect it from dust and do not place other consoles or objects on it.
If the fan is inoperable but does not show signs of damage, please exercise the warranty or dispose of the item.
If the fan is damaged, please exercise the warranty or dispose of the item. DO NOT attempt to open and repair it independently.
Keep this product dry.
Keep away from small children due to potentia shock and cutting hazards.
