Nexigo Gripcon, NS43-D1 Crystal - Gaming Accessory Manual

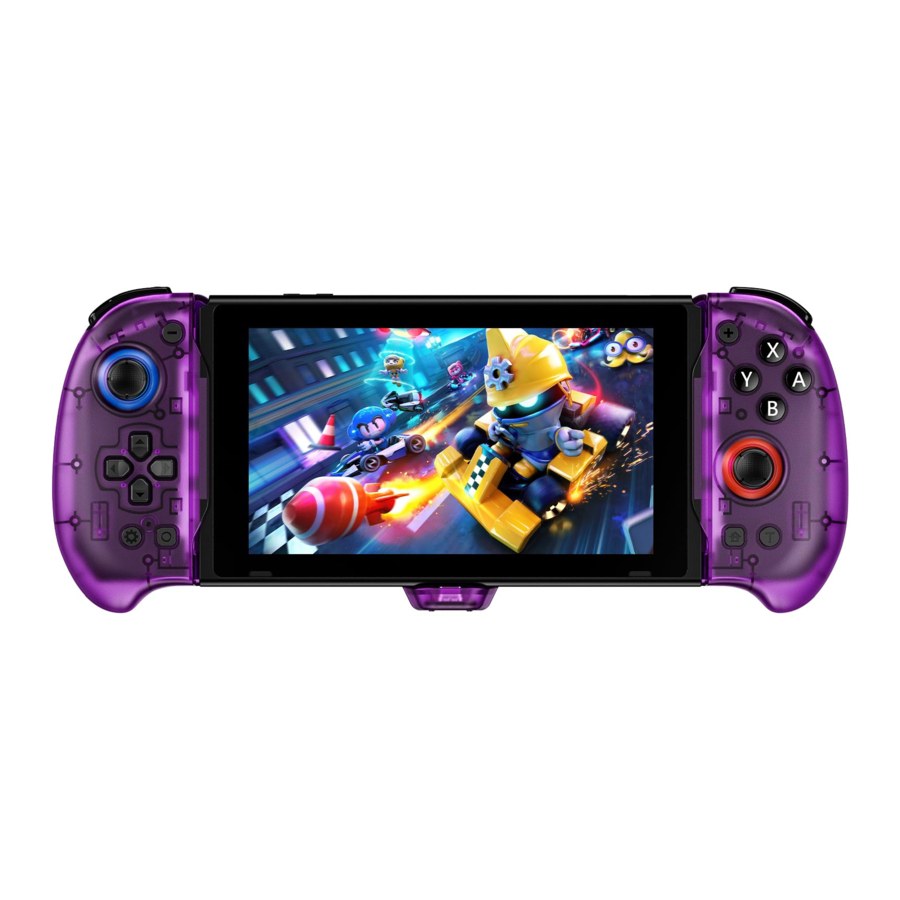

PRODUCT OVERVIEW

1. Button
2. + Button
3. Left Joystick / L3 Button
4. Right Joystick / R3 Button
5. D-pad
6. X / Y / A / B Buttons
7. Turbo Button
8. Lighting Button
9. Screenshot Button
10. Home Button
11. Type-C Connector

12. R Button
13. ZR Button
14. L Button
15. ZL Button

16. Right M Button (Mapping the MR button)
17. Left M Button (Mapping the ML button)
18. Haptic Feedback Strength +
19. Haptic Feedback Strength -
20. MR Button
21. ML Button
22. Type-C Charging Port

PACKAGE INCLUDES

1 x Controller for Switch / Switch OLED
1 x Type-C to Type-A Cable
1 x User Manual

SPECIFICATIONS

Rated Input: DC 5V 500mA
Working Temperature: 14℉ ~ 122℉ (-10℃ ~ 50℃)
Storage Temperature: -4℉ ~ 158℉(-20℃ ~ 70℃) 03

HOW TO CONNECT THE DEVICE TO MY SWITCH CONSOLE

1. Please enable the Pro Controller Wired Communication setting in the Switch / Switch OLED console itself. You can do this by going to System Settings > Controller and Sensors > Pro Controller Wired Communication. Set Pro Controller Wired Communication to On.

2. Slide the Switch / Switch OLED console into the controller and plug it into the USB-C port at the bottom. After you have done so, press the A button on the controller to connect it to the console.


HAPTIC FEEDBACK STRENGTH ADJUSTMENT

1. Press the Haptic Feedback Strength - button to decrease the haptic feedback vibration strength.
2. Press the Haptic Feedback Strength + button to increase the haptic feedback vibration strength.
3. After choosing a vibration level, the controller will vibrate at the chosen level for half a second to indicate that choice.
4. There are five adjustment levels for haptic feedback:
   • Off - Turns the vibration motors off completely. This can also be done in settings for many games.
   • 30% - The low-intensity setting. This provides slight feedback.
   • 50% - The medium-intensity setting. This provides moderate feedback.
   • 75% - The high-intensity setting. This setting provides noticeable feedback.
   • 100% - The maximum setting. This setting provides significant feedback.

HOW DO I ADJUST THE RGB LIGHTING

ADJUSTING THE LIGHT COLOR

Press the Lighting button to change the RGB light color between blue, red, green, yellow, cyan, orange purple, and pink, or shift through an array of different colors with RGB Cycling Mode.

ADJUSTING THE LIGHT MODE

Double click the Lighting button to change the light mode between Breathing Mode, RGB Cycling Mode, and lights off.

ADJUSTING THE BRIGHTNESS

Hold the Lighting button and press Up / Down button (on D-pad) at the same time to change the light brightness between: 25% / 50% / 75% / 100%.

HOW TO USE THE TURBO FUNCTION

Many of the buttons on this controller can be set to turbo functionality. The buttons capable of using the turbo function are: A / B / X / Y / L / R / ZL / ZR / D-pad.

SET OR CLEAR TURBO

Semi-auto Turbo Mode

Press the Turbo button and one of the above buttons to enable the semi-auto mode. In this mode, if you press and hold one of the A / B / X / Y / L / R / ZL / ZR / D-pad buttons, that input will trigger multiple times.

Full-auto Turbo Mode

Repeat the above step again to enable full-auto mode. Once the full-auto mode is activated, the button you assign will be fully automatic, meaning it will trigger repeatedly much faster than in semi-auto mode.

Disabling Turbo Mode

Repeat the above step for the third time to disable the turbo function on the corresponding button. Press and hold the Turbo button for 5 seconds to clear all saved turbo settings.

Note: Turbo settings will also be cleared after the controller is disconnected.

TURBO SPEED ADJUSTMENT

Hold the Turbo button and press the - / + button at the same time to decrease or increase the turbo speed.
There are three adjustment levels for the turbo speed: 5 times/second, 12 times/second, and 20 times/second.

MAPPING THE REAR BUTTONS

1. Many of the buttons on this controller can be mapped to the rear buttons. The mappable buttons are: A / B / X / Y / L / R / ZL / ZR / + / - / Left Joystick / Right Joystick / L3 / R3.
2. The rear buttons that you can map to are: ML / MR.
3. Press and hold either the Left or Right M button to enter mapping mode, and release the button to complete the mapping. Use the Left M button to map the ML button, and the Right M button to map the MR button.

HOW TO MAP THE BACK BUTTONS

MAPPING ONE BUTTON

Press and hold either the Left / Right M button and then press the mappable button you wish to map to it. The controller will vibrate for half a second to indicate that the mapping for the ML / MR button is complete (Please set the haptic feedback to a noticeable level).

MAPPING BUTTON COMBINATIONS

The ML / MR buttons support mapping up to 20 inputs (including time intervals) under a single button press. This means you can save entire button combos (such as a special move in a fighting game) to each of these buttons and execute them exactly as you input them, all with a single press. To do so, press and hold the Left / Right M button and then press the combination of the Mappable Buttons you wish to map. The controller will vibrate for half a second to indicate that the process was successful (Please set the haptic feedback to a noticeable level).

Note: Mapping settings will be cleared after being disconnected.

RESET THE DEVICE

Press and hold the Home button for ten seconds or head to the Change Grip / Order menu in the Nintendo Switch settings. The controller will power off and then reset itself. This process will remove the turbo settings and any button mappings that were previously saved.

SAFETY NOTES

• Only use the original Switch / Switch OLED power adapter to power the unit. Using any other power adapter or cable may cause damage to the product.
• To ensure the longevity and lifespan of the controller, please keep it clean and do not stack heavy objects on top of it.
• If the controller is inoperable but does not show signs of damage, please exercise the warranty or dispose of the item.
• Keep the controller away from children under three years of age due to potential safety hazards.
• Do not charge the controller using a frayed or damaged USB cable.
• Do not touch the device, power adapter, or USB cable with wet hands. Keep this product dry.
• Do not attempt to repair, disassemble, or modify the controller under any circumstance.
• Do not place the controller near high heat sources such as a space heater, fire, or in direct sunlight.

CONTACT INFORMATION

Website: www.nexigo.com
Manufacturer: Nexight INC
Email: cs@nexigo.com
Tel: +1(458) 215-6088
Address: 11075 SW 11th St, Beaverton, OR, 97005, US

Get in touch with FREE online services.
facebook.com/letsnexigo

Register to get EXTRA ONE YEAR warranty. Only valid in registering within 14 days of product delivery.
nexigo.com/warranty

If you have any problems, please contact us any time at cs@nexigo.com for further assistance.
