Instructions for:

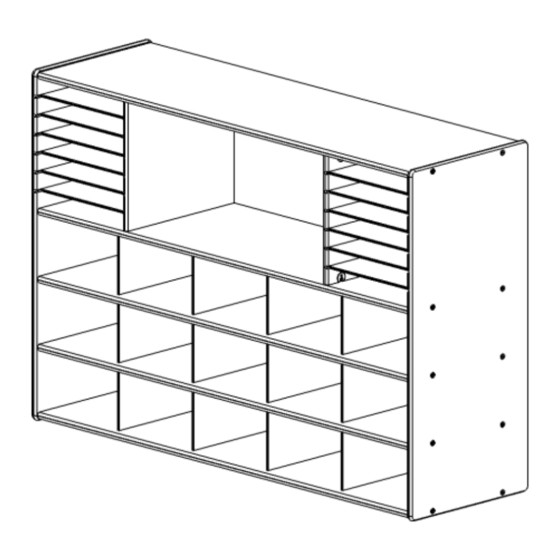

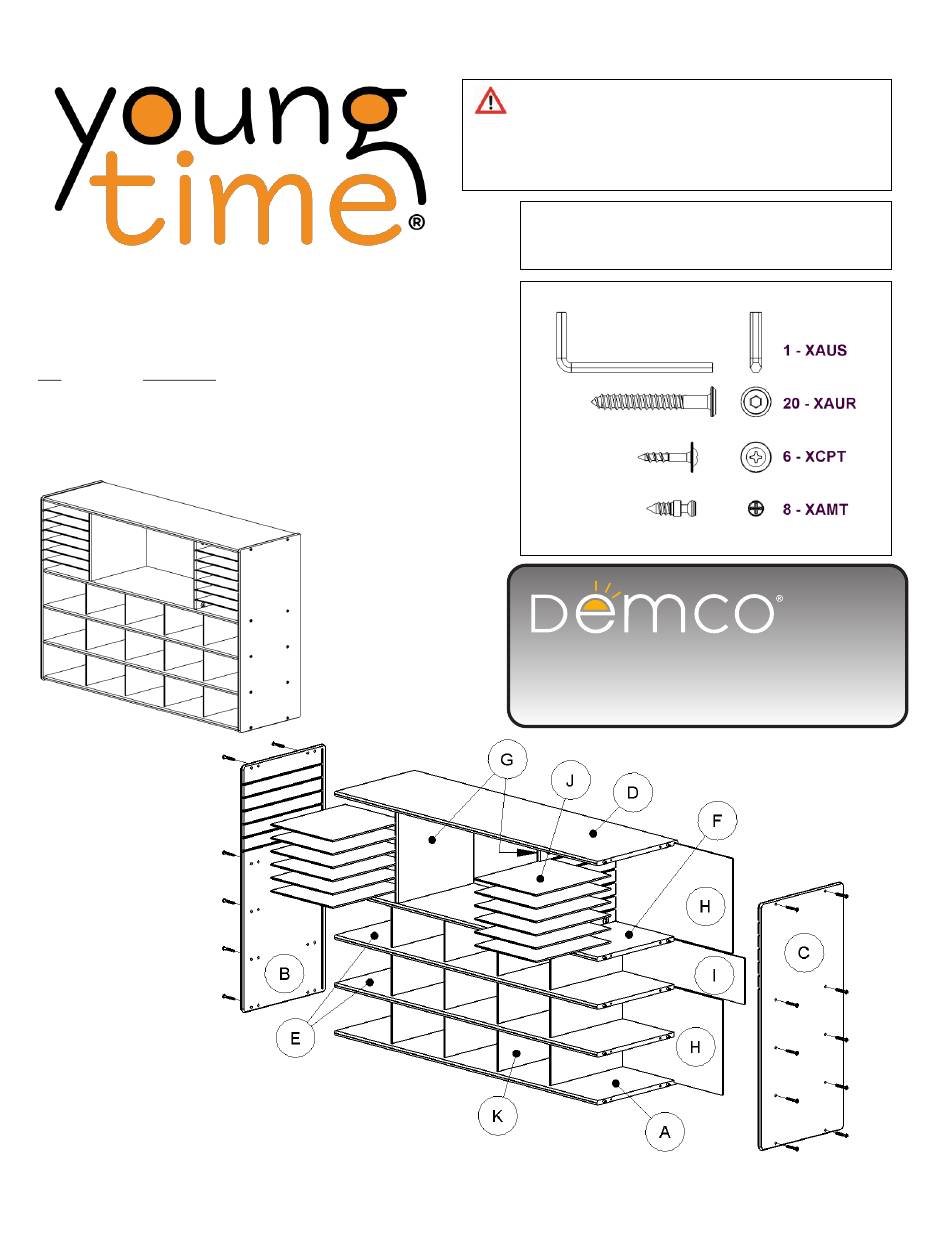

7030YT/7032YT Cubbie Sectional
Hardware Package HCJI
Qty
Description
(20) XAUR 2" Decorative Screw
(6) XCPT #8 X 0-7/8" Washerhead Screw
(8) XAMT Rafix Bolt
(1) XAUS 4mm Hex Wrench
Parts:
WARNING:
CHOKING HAZARD/SHARP POINTS- Assembly
hardware contains small parts and components
with sharp points. Adult assembly required.
Tools Required:
-4mm Hex Wrench (Provided)
-Medium Phillips Screwdriver
Hardware Included:
Find Jonti-Craft Young Time Children's Cubby Storage Units
@demco.com, search young time cubby
Call 800.962.4463 or email custserv@demco.com
Page 1 of 4
Not Actual Size
Advertisement
Related Manuals for Demco young time Cubbie Sectional 7030YT
Summary of Contents for Demco young time Cubbie Sectional 7030YT
- Page 1 (6) XCPT #8 X 0-7/8" Washerhead Screw (8) XAMT Rafix Bolt (1) XAUS 4mm Hex Wrench Not Actual Size Find Jonti-Craft Young Time Children's Cubby Storage Units @demco.com, search young time cubby Call 800.962.4463 or email custserv@demco.com Parts: Page 1 of 4...
- Page 2 Assembly Instructions: XAUR 1. Install Bottom- to LH Side- by aligning dowels. Ensure back grooves align. Secure with 2- Decorative Screws with 4mm Hex Wrench provided. 2. Install 2 Shelves- with rounded edge down (shelves have grooves on both sides). Secure with 4- XAUR Decorative Screws with 4mm Hex Wrench provided.
- Page 3 4. Install Top- and Shelf- with rounded edge down and grooves facing grooves of previously installed XAUR shelves. Secure with 4- Decorative Screws with 4mm Hex Wrench provided. XAUR 5. Align dowels with RH Side- . Secure with 10- Decorative Screws. 6.
- Page 4 XCPT 7. Locate predrilled holes in middle shelves and install 6- Washer head Screw with Phillips Driver. 8. Stand unit upright. Insert 2 Dividers- with rounded edges to the front and dados facing each Side. Carefully align Cam Locks in Dividers with Rafix Bolts and turn 8 Cam Locks ¼ turn clockwise with Phillips Driver to lock.
