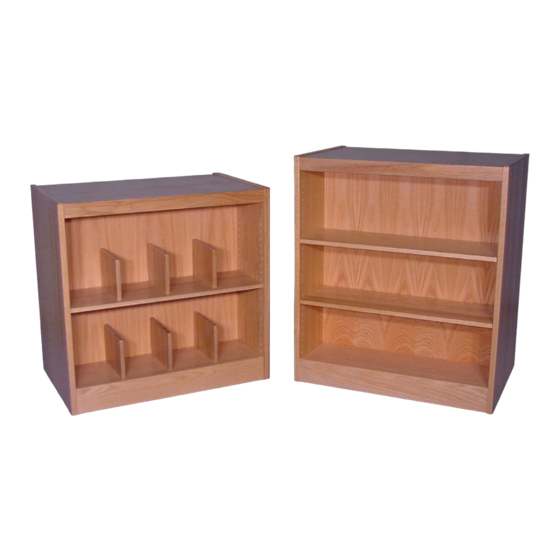

Demco LibraCraft Mobile Wood Shelving Assembly Instructions
*2-1/2" Screws are for screwing through the holes in the top frame blocks and into the upright panels
1.
Lay out top frame and uprights as
shown. Align top frame with upright side
edgeband.
3.
Turn unit onto top frame as shown
5.
...and down into the groove on the top frame.
2.
Fasten top frame to uprights as shown
Align top frame with upright top edgeband.
4.
Slide partition into groove of uprights...
Put casters on after frame is
fastened to uprights.
6.
Place Titan frame onto uprights as
shown. Align bolt holes, fasten securely.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Demco LibraCraft Mobile
Summary of Contents for Demco LibraCraft Mobile
- Page 1 Demco LibraCraft Mobile Wood Shelving Assembly Instructions *2-1/2” Screws are for screwing through the holes in the top frame blocks and into the upright panels Lay out top frame and uprights as Fasten top frame to uprights as shown shown. Align top frame with upright side Align top frame with upright top edgeband.
- Page 2 (8) 1"BOLTS W/SM WASHERS/LOCK WASHERS ON BOLT FIRST (FOR CARTS) ADDERS: (4) 5-1/2" W/WASHER AND T-NUT (FOR TOPS) (4) 2" W/SMALL WASHERS & LOCK WASHERS WITH NUT (FOR CARTS) Find Demco LibraCraft Mobile Wood Shelving @demco.com Search: Demco LibraCraft Mobile Wood Shelving Call 800.962.4463 or email custserv@demco.com...
