Demco Jonti-Craft 4688JC Instructions

Instructions for:
4688JC 4-Section Stackable Locking Lockers
(NOTE: If only one unit is being used no assembly is required)
Hardware Package HBVV
Qty Description
(3) XAFH 3" Drywall Screw
(4) XCND Lock Core with Key
(1) XBSU Master/Core Removal Key
(4) XADO 1/4" X 1-1/4" Trusshead Bolt

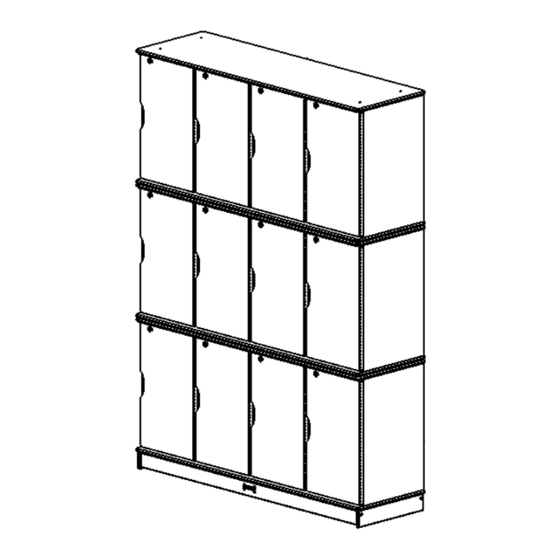

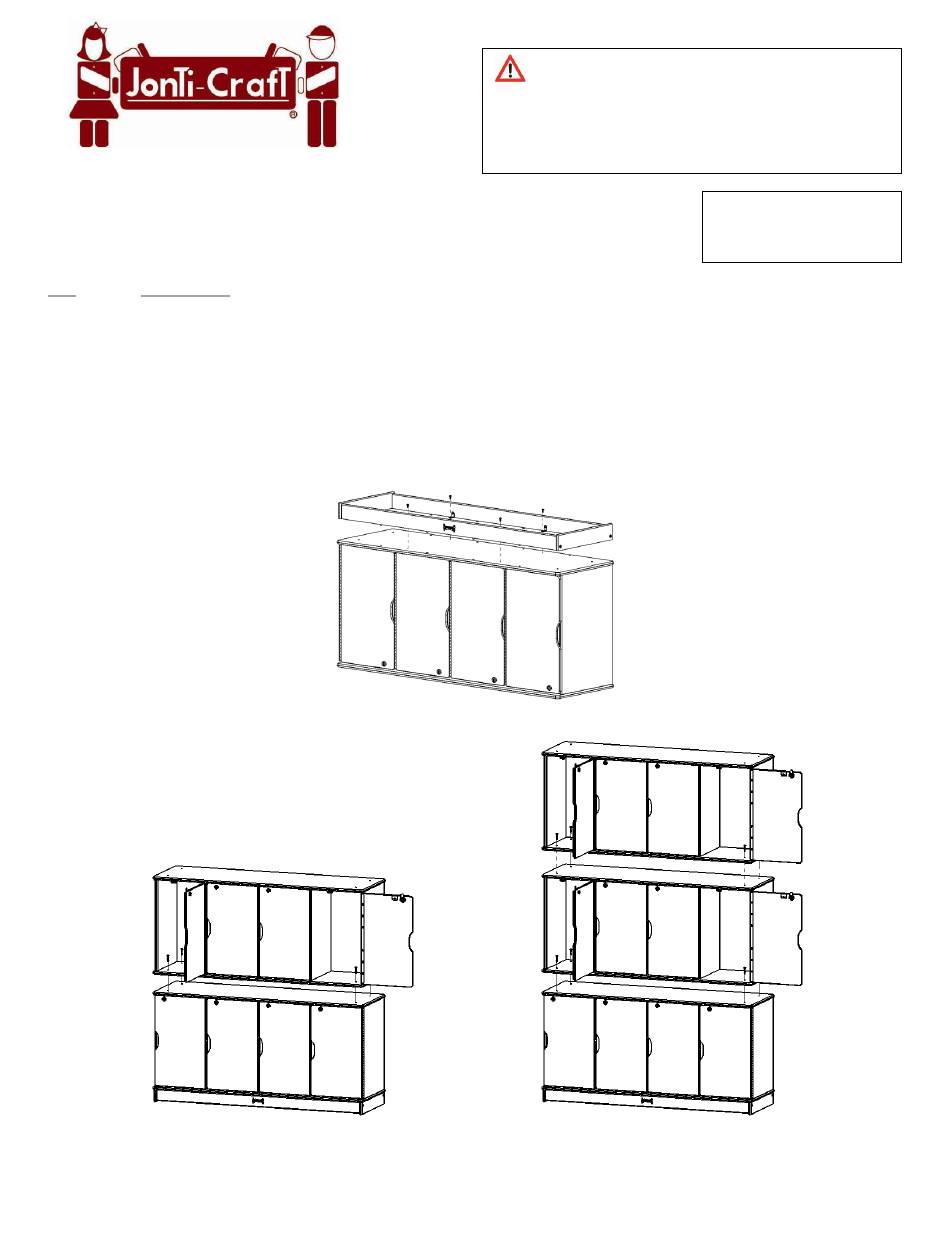

Assembly Instructions: For two or three units being attached together.
1. Wall mount bracket is required when stacking two or three units high and is only required on top unit
in stack.
2. Turn unit/s that are getting stacked upside down and remove the base from the unit by removing L-
brackets.
3. Stack unit/s on top of lower unit and bolt together with ¼" x 1 ¼" bolts through bottom of top unit
into top of bottom unit. Repeat for three units high.
4. Locate wall studs then attach wall-mounted bracket to the wall studs using three 3" drywall screws.
WARNING:
CHOKING HAZARD/SHARP POINTS- Assembly
hardware contains small parts and components
with sharp points.
Adult assembly required.
Page 1 of 2
Required Tools:
-Standard and Phillips
Screwdriver
