INSTALLATION GUIDE
ZEBRA SHADES
LIFT SYSTEMS: CONTINUOUS CORD LOOP + MOTORIZATION
The difficulty level of this installation is ranked at Level 2 - You got this!
If you have questions or get stuck, call our Customer Care Team at 888-685-1735, or email info@selectblindscanada.ca
EXPOSED ROLL BRACKETS
1.
MOUNTING THE BRACKETS

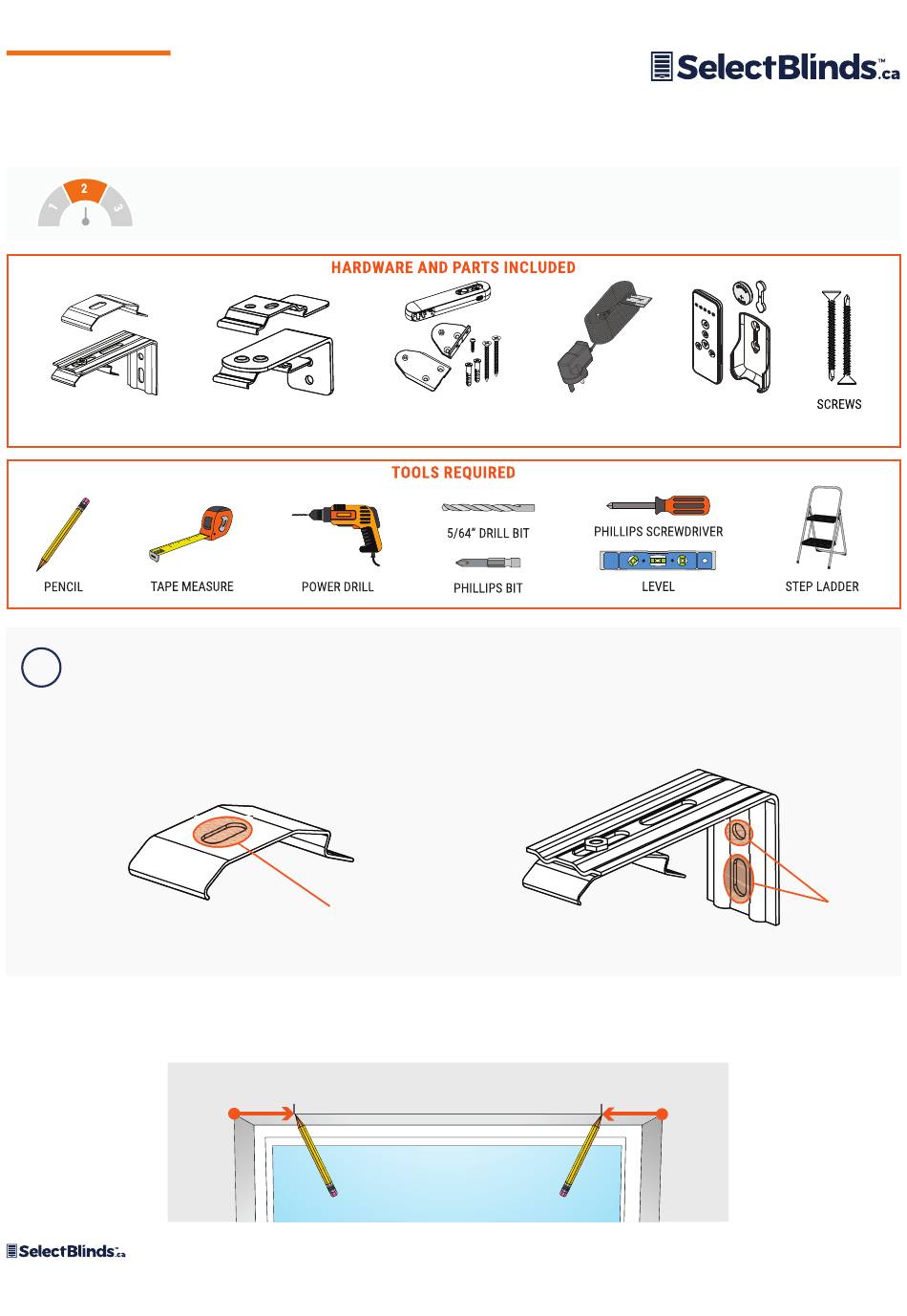

MOUNTING EXPOSED ROLL HEADRAIL BRACKETS
NOTE:
The zebra shade tube is pre-installed in the exposed roll headrail, which simply snaps onto the provided hardware. You will receive two or more
headrail brackets, depending on the width of your shade.
TOP
FRONT EDGE
FRONT LIP
INSIDE MOUNT EXPOSED ROLL HEADRAIL BRACKET
EXPOSED ROLL HEADRAIL - INSIDE MOUNT
1. At the top corners of the window, measure inward and mark with your pencil 2" - 4" from each side. If you have additional brackets, make
an additional mark for each one, evenly spaced between the outer marks.
CASSETTE BRACKETS
*The quantity of brackets you receive will depend on the width of your headrail
BACK EDGE
SCREW HOLE
RELEASE LIP
SCREW HOLE
2" - 4"
INSTALLATION GUIDE
TENSION DEVICE
BATTERY CHARGER
(Continuous Loop)
FRONT
OUTSIDE MOUNT EXPOSED ROLL HEADRAIL BRACKET
| ZEBRA SHADES
REMOTE & HOLDER
(Motorized)
(Motorized)
TOP
2" - 4"
JULY 23 2024
UPDATED
BACK
SCREW HOLES
1
