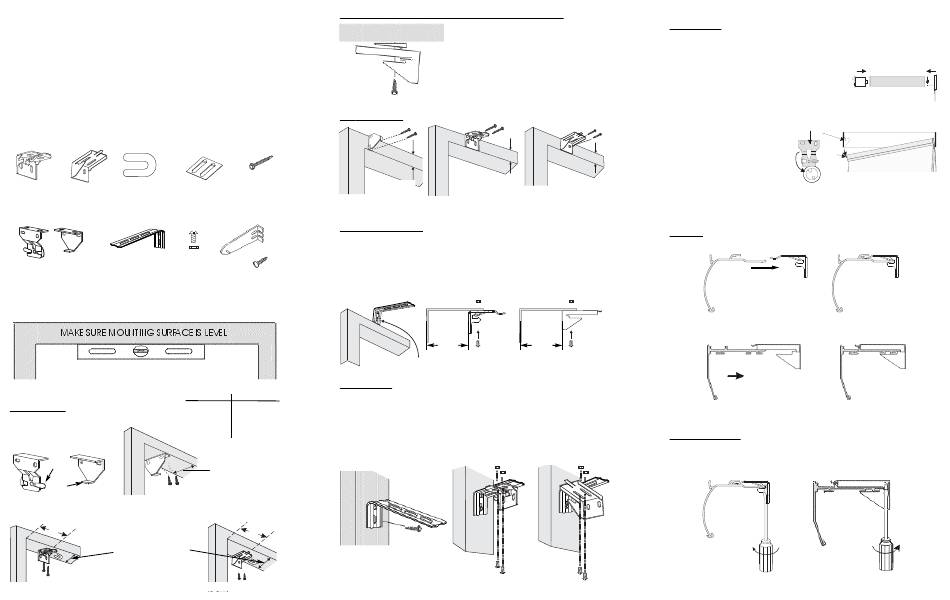

SelectBlinds Sheer Horizontal Window Shadings Installation Instructions

BASICS
Please take a moment to identify which headrail version you have and then follow
the appropriate instructions.
A few simple tools are required:
- Measuring tape
- Carpenters Level
- Power drill or Phillips head Screwdriver
- ¼" Hex head and/or Phillips driver bit
Additional fasteners other than those sent with your shading may be
required depending on the mounting surface. Wallboard and plaster
require the use of anchors such as expansion or toggle bolts. Brick,
tile or stone need special plugs and drill bits. Remember to always
pre-drill holes in wood to avoid splitting.
Ultra Sleek &
Deluxe
"U" Shim for
Wedge for Deluxe
Ultra Sleek Plus
Mounting Headrail bracket
Headrail Bracket
Mounting
Bracket
Bracket
Nut &
Headrail Extension &
Roller Mounting
Bolt
Side mount Bracket
Brackets for NO Headrail
Step 1. BRACKET INSTALLATION
If the headrail does not sit level, the fabric will not roll up
evenly which could damage the edges of the shading
fabric. Use shims if necessary to level brackets.
Shade width
Up to 40"
Inside Mount
>40" - 72"
>72" - 84"
No-Headrail
>84" - 114"
Control Side
End Plug Side
Bracket
Bracket
T-Hook
Foot
Ultra Sleek &
3/4" minimum for shallow
Ultra Sleek Plus
mount
2"
Minimum for flush inside mount
Ultra Sleek 3"
Ultra Sleek Plus 3 3/4"
Deluxe 3 3/4"
Use shims if necessary to ensure that the headrail is mounted level (included).
Fully Recessed Inside Mount (Deluxe Bracket Only)
Outside Mount
No-Headrail
1 1/4" Hex
Head
1 1/2" minimum surface
Bracket
Screw
Extension Brackets
Optional Extension Brackets are used to project the back of the
shading up to 2 1/2" from the mounting surface. Attach the Ultra
Sleek or Deluxe Mounting Bracket to the Extension Bracket with the
Hold Down Bracket
nut and bolt provided.
and screw
(optional)
Side Mount
# of Brackets
Measure from window sill up to desired mounting position on each
2
side of the window frame.
3
4 Brackets on each side of window frame as shown. Make sure to
5
confirm that headrail will sit perfectly level.
Brackets are installed and properly positioned, attach the Ultra Sleek
or Deluxe Mounting Brackets using the nuts and bolts provided.
1 1/2" minimum
Deluxe
2"
Position screw in center of slot
so you can adjust position of
bracket as necessary.
Low light gap wedges can be used to
reduce the top light gap when the shade is
mounted fully recessed. The wedge is
placed between the mounting surface and
the bracket with the tabs on the wedge
facing down and the thick end of the
wedge toward the back of the bracket.
Ultra Sleek &
Deluxe
Ultra Sleek Plus
3/4" minimum surface 3/4" minimum surface
(optional for headrail shades)
Ultra Sleek &
Deluxe
Ultra Sleek Plus
2 1/2" 2 1/2"
2" minimum surface required
(optional for headrail shades)
Mark position. Mount Side Mount
Once Side Mount
Ultra Sleek &
Deluxe
Ultra Sleek Plus
Step 2. HANGING THE SHADE
No-Headrail
Once the brackets are secured and level, the fabric roll can be
inserted. Make sure your hands are clean to avoid soiling the fabric.
While facing the inside of the shade, be
sure the clutch and roller end plug are
inserted into the roller. Hold the shade with
the bottom of the clutch facing the floor, and
the beaded cord hanging straight down.
Insert the foot of the control-
Support Bracket
side bracket into the slotted
center hole of the clutch. Set
Nub
nub of the end plug into the V
of the support bracket.
Rotate the T-hook on the
support bracket to engage
over the nub on the idler and
secure the fabric roll.
Headrail
Ultra Sleek & Ultra Sleek Plus
Push the rail back until
it is fully engaged.
Deluxe Rail
Push the rail back until
it is fully engaged.
Headrail Removal
To remove the shading, partially lower the shading and insert a flat
head screwdriver as shown. Twist the screwdriver until the headrail
disengages from the bracket.
Ultra Sleek &
Deluxe
Ultra Sleek Plus
Fig.15
