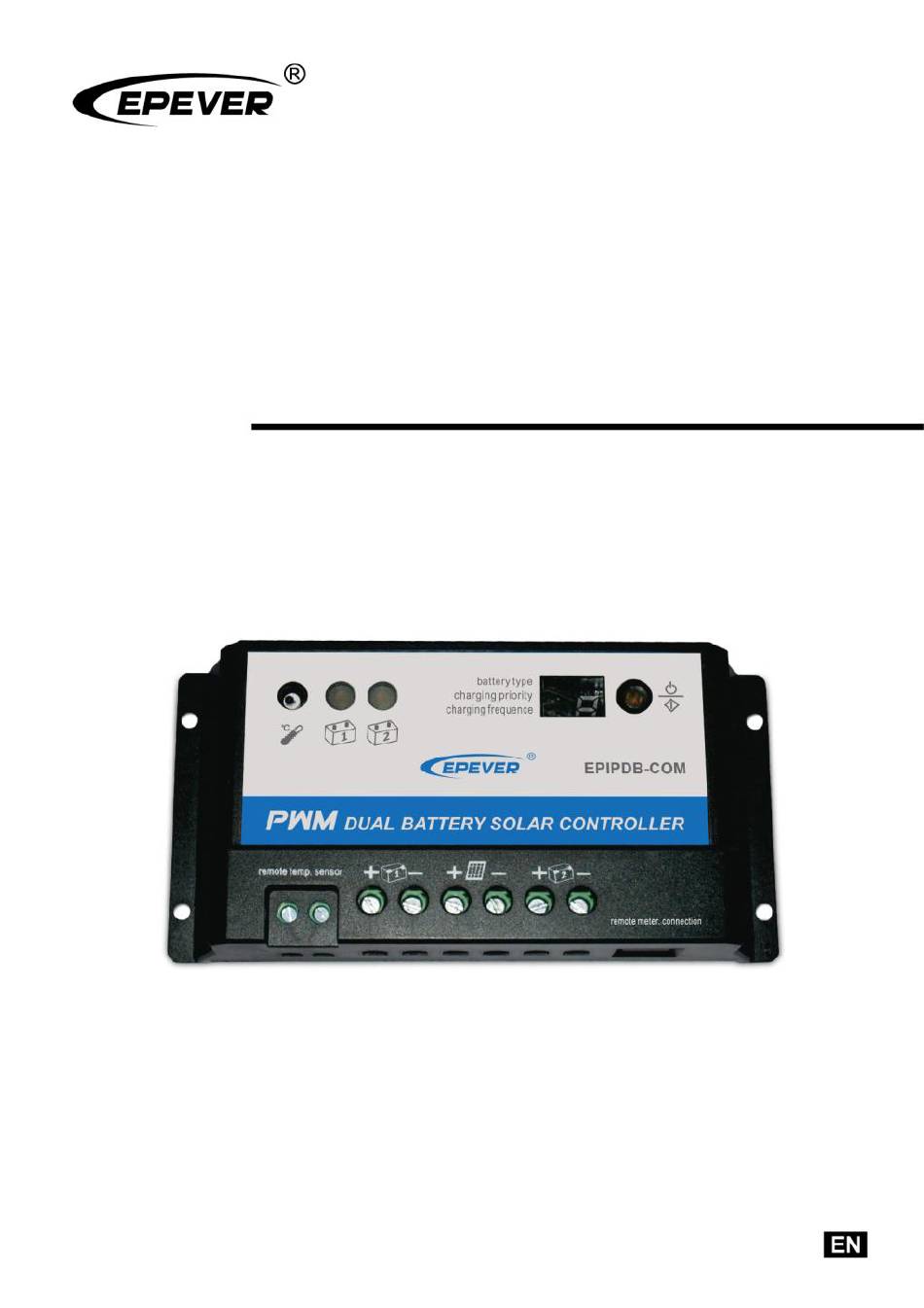

- Page 1 Dual Battery Solar Controller User Manual Models: EPIPDB-COM-10 EPIPDB-COM-20...
-
Page 2: Table Of Contents
CONTENTS 1. Appearance .............. 1 2. Mode setting ............. 2 3. Troubleshooting ............4 4. Technical information ..........4 5. Mechanical drawing ..........5... -
Page 3: Appearance
1. Appearance Do not install the controller in humid, salt spray, corrosion, greasy, flammable, explosive, dust accumulative, or other WARNING severe environments. (Note: connect the components as the 1-6) Icon Function Connect with battery #1. Connect with battery #2. Connect with the PV array. Remote temp. -
Page 4: Mode Setting
Local temp. sensor Measure ambient temperature. Indicate battery #1 charging status and error. For battery 1 For battery 2 Indicate battery #2 charging status and error. Remote meter Connect with a remote meter. connection Note: No RTS; the controller measures ambient temperature by the local temp. - Page 5 the LED according to the following information, and then press the button for 5 seconds until the number flashes. And then, choose one number you need and leave it, and the number will be saved. 1. 1 LED is for the battery type setting. Battery type Sealed battery Gel battery...
-
Page 6: Troubleshooting
LED frequent No charging or any battery is detected. flashing LED OFF No battery or system over voltage. 4. Technical information Model EPIPDB-COM-10 EPIPDB-COM-20 Nominal system voltage 12/24VDC Auto Rated charge current Battery Type Sealed; Gel; Flooded Equalize charging voltage Sealed: 14.6V;... -
Page 7: Mechanical Drawing
Battery voltage range 8 ~ 15V Boost time 120 minutes Self-consumption 4mA at night; 10mA at charging Communication port 8-PIN RJ-45 ℃/ Temp. compensation -5mV/ Terminals Environment temperature -35℃ ~ +55℃ Net weight 250g Note: The above parameters are measured in the condition of a 12V system. - Page 8 HUIZHOU EPEVER TECHNOLOGY CO., LTD. Tel: +86-752-3889706 E-mail: info@epever.com Website: www.epever.com...
