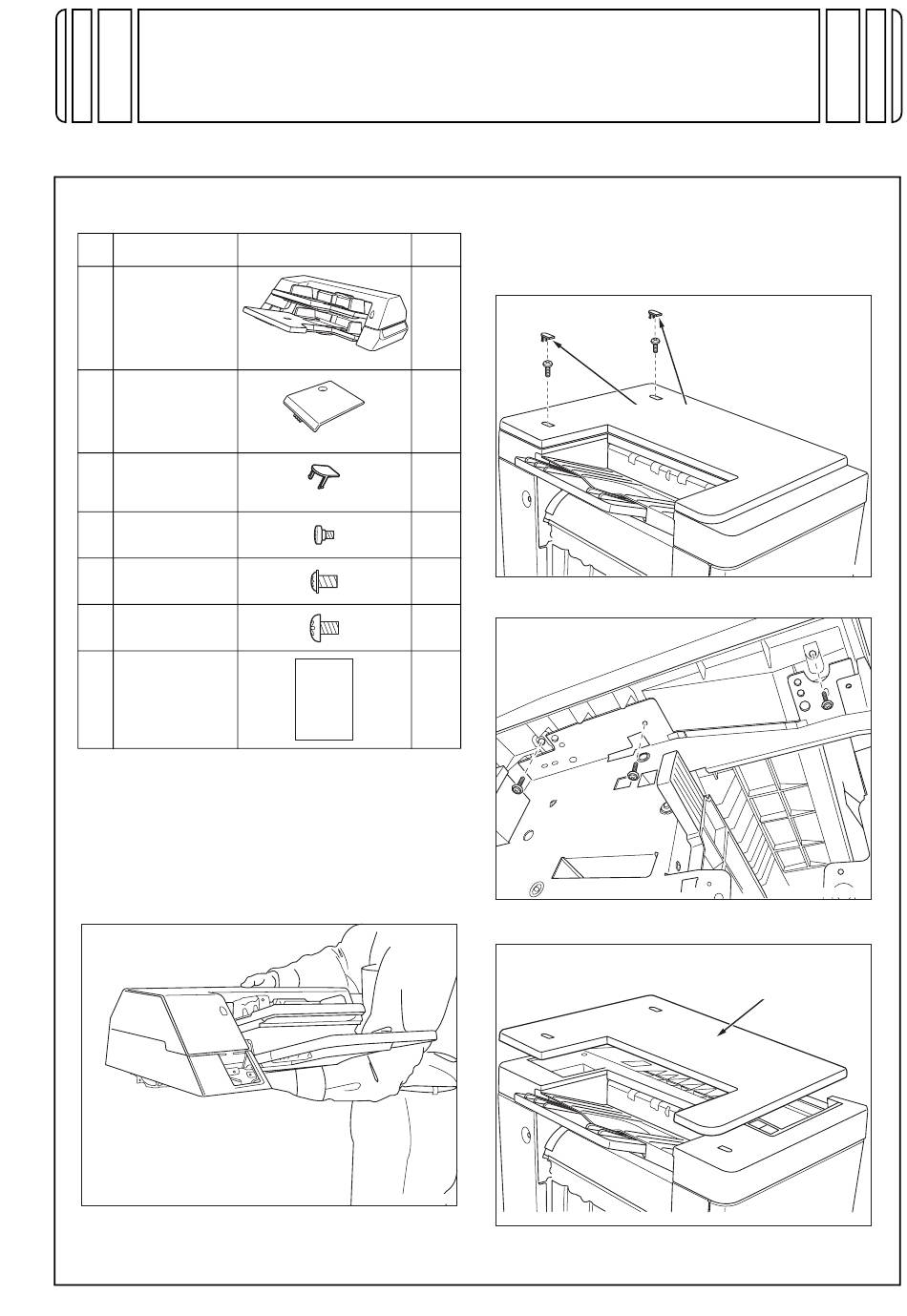

I. Accessory parts
No.
Name
1. PI-501
2. Wire bundle
cover /1
3. Screw cover
4. Positioning
screw
5. TP screw
M4x6
6. Truss screw
M4x6
7. Installation
manual
II. Preliminary preparations
When installing the PI-501 to the Finisher, install the
PI-501 first then install the Finisher to the main body.
Note:
When handling the PI-501, grip it as shown in the
illustration below.
PI-501
INSTALLATION MANUAL
Shape
Q'ty
1
15JFIXC001SA
1
15JFIXC002SA
1
15JFIXC003SA
2
3
1
1
15JFIXC004SA
Post Inserter
Applied Machines: FS-504/FS-602/FS-509/FS-604
III. Installation Procedures
1. Remove the top cover from the Finisher.
(1) Remove the two screw covers at the rear side
of the top cover, then remove the screws.
Screw covers
(2) Open the front door and remove the 3 screws.
(3) Remove the top cover.
E-1
15JFIXE005SA
15JFIXC006SA
Top cover
15JFIXE007SA
15JF97011
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Konica Minolta PI-501
Summary of Contents for Konica Minolta PI-501
- Page 1 M4x6 7. Installation manual II. Preliminary preparations When installing the PI-501 to the Finisher, install the PI-501 first then install the Finisher to the main body. Note: When handling the PI-501, grip it as shown in the 15JFIXC006SA illustration below.
- Page 2 4. Install the PI-501. (1) Install the PI-501 on top of the Finisher. Note: • To lock the PI-501 in place, first align its key- hole slots so that the positioning screws you installed on the Finisher feed through the wide parts of the slots.
- Page 3 13. Verify that each paper size can be properly detected. 15JFIXE012SA [In case of 920] 5. Install the wire bundle cover /1 to the PI-501 Step connector. (Truss screw M4x6) 6. Install the screw cover on the top front of the Fin- 1.
