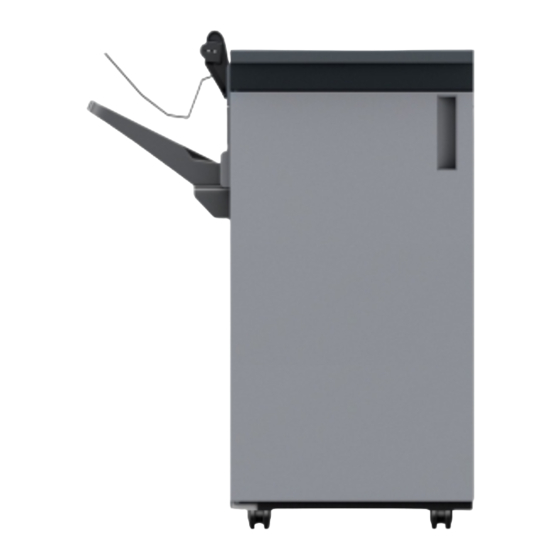

Konica Minolta FS-532 Quick Manual

Konica Minolta FS-532 Quick Manual

Finishing adjustment

Advertisement

Quick Links

Quick Guide
Finishing Adjustment
FS-532/FS-541
(
Table of Contents
1
Introduction
2
Staple Adjustment
Fold and Fold & Staple
3
Adjustment
4
Other Adjustments
5
Specifications
+ PI-502/PK-522/SD-510
- QG No. 04 -
)
Ver. 01.00

Advertisement

loading
Need help?

Need help?

Do you have a question about the FS-532 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Konica Minolta FS-532

  • Page 1 Quick Guide - QG No. 04 - Finishing Adjustment FS-532/FS-541 + PI-502/PK-522/SD-510 Ver. 01.00 Table of Contents Introduction Staple Adjustment Fold and Fold & Staple Adjustment Other Adjustments Specifications...
  • Page 2 Introduction 1-1. FS-532 and FS-541 FS-532 and FS-541 are "Flat binding machine equipped with staple cutting stapler". They have a staple function by themselves. Also, they have three types of sub-options. • PostInserter [PI-502] • Punch Unit [PK-522] • Saddle Stitcher [SD-510]...
  • Page 3 Introduction 1-2. Types of Adjustment Functions FS-532 and FS-541 have various adjustment functions. For details on each adjustment function, refer to Chapters 2, 3, and 4. Misalignment of stapled bundle Staple position and pitch Staple position Pitch Horizontal Vertical direction...
  • Page 4 Staple Adjustment 2-1. Staple Adjustment Items Staple is the FS-532/FS-541 standard function. There are four types of staple-related adjustments. The adjustments described in this chapter are only available for staple (Staple mode). Important Each adjustment value described on this page is obtained by adding A to B (A + B).
  • Page 5 Staple Adjustment Staple position and staple pitch Important Each adjustment value described on this page is obtained by adding A to B (A + B). • A = Offset adjustment value for all sizes (A) • B = Adjustment value for each paper size (B) Staple position Adjustment to use: [Staple Position Adjustment] Adjust the 1-position staple position (front - rear).
  • Page 6 Fold and Fold & Staple Adjustment 3-1. Fold and Fold & Staple Adjustment Items The Multi Half Fold and Fold & Staple functions are available when the saddle stitcher [SD- 510] is mounted. There are eight types of Fold and Fold & Staple adjustments. The adjustments described in this chapter are only available for Multi Half Fold, Fold &...
  • Page 7 Fold and Fold & Staple Adjustment Booklet staple position and pitch Important Each adjustment value described on this page is obtained by adding A to B (A + B). • A = Offset adjustment value for all sizes (A) • B = Adjustment value for each paper size (B) Staple position Adjustment to use: [Fold&Staple Staple Position] Adjust the staple position in Fold &...
  • Page 8 Fold and Fold & Staple Adjustment Misalignment of booklet pages and strength of half-fold booklet Important Each adjustment value described on this page is obtained by adding A to B (A + B). • A = Offset adjustment value for all sizes (A) •...
  • Page 9 Fold and Fold & Staple Adjustment Tri-Fold fold positions Important Each adjustment value described on this page is obtained by adding A to B (A + B). • A = Offset adjustment value for all sizes (A) • B = Adjustment value for each paper size (B) 1st fold (inside) Adjustment to use: [Tri-Fold Position Adjustment] Adjust the 1st fold position in Multi Tri-Fold...
  • Page 10: Other Adjustments

    Other Adjustments 4-1. Punch Hole Adjustment Items The punch function is available when the Punch Kit [PK-525] is mounted. The adjustments described in this chapter are only available in Punch mode. Important Each adjustment value described on this page is obtained by adding A to B (A + B). •...
  • Page 11 4-2. Adjustment Items for the without Folding or Stapling Paper Output (Main Tray) The Main Tray Output function is the standard function of FS-532/FS-541. The adjustments described in this chapter are only available in the mode to output the without folding or stapling paper to the main tray.
  • Page 12: Specifications

    Specifications Name FS-541 FS-532 Type Staple finisher equipped with staple cutting stapler Productivity Straight/offset: 100% up to Straight/offset: 100% up to ppm. ppm. Paper size Standard: (Main tray) Metric system: SRA3 to B6, postcard Inch system: 13 x 19 to 5.5 x 8.5 Custom: Max.: Widthwise 331 mm (13.03") to Lengthwise 487.7 mm (19.2")

This manual is also suitable for:

Fs-541Pi-502Pk-522Sd-510
