Summary of Contents for Dometic SeaLand VacuFlush 5000 Series
Page 1
VacuFlush sanitation systems must ® be installed according to Dometic’s This manual must be read and understood r e c o m m e n d e d p r o c e d u r e s . before adjustment, maintenance, or service...
Holding tank discharge is at a dockside pump or at sea with optional overboard discharge. backed by the best in Service and Quality • The VacuFlush system is from Dometic, the leader in marine sanitation. ® • Worldwide parts availability and technical backup.
bEFORE OPERATION . Fill freshwater tank and add deodorant to holding tank through toilet bowl. (See System Start-Up section, bottom of this page.) 2. Make sure all guests understand the operation of the VacuFlush system and the instruction label is in plain sight and easy for guests to read.

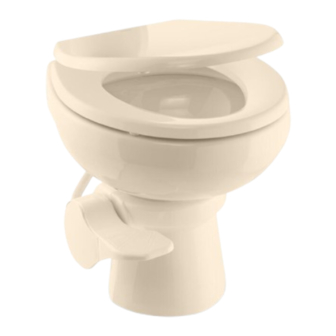

VACuFLuSh SySTEM COMPONENTS VacuFlush Toilet: VacuFlush vacuum toilets operate differently compared to other toilets. The vacuum system uses a small amount of water (a little more Model 5009 than a pint or .5 liter) per flush in addition to a simple VacuFlush vacuum.
Restore the shine with this SeaLand cleaner. If you cannot find it in your area, contact Dometic for your nearest dealer. If the cleaner is not available, you can...
See base assembly, p.8 PARTS ORDERING INFORMATION Dometic is ready to assist you in the event service is required. Before calling, please have the following information available. Your cooperation in having this information ready is appreciated and allows us to better meet your needs. Please refer to Customer Service section on page 2.
Granulated powder formulations have the advantage of requiring less storage space and are less likely to leak if the package is inadvertently damaged. Formaldehyde versus Non-Formaldehyde. Dometic manufactures both types of deodorants. Generally speaking, formaldehyde formulas control odor very effectively at all temperatures and with all degrees of water hardness.
TROubLEShOOTING GuIDE bALL SEAL bOWL 5000 SERIES ADJuSTING NuT SEAL bASE ASSEMbLy FLuSh bALL FLuSh PEDAL bAND CLAMP WATER VALVE ASSEMbLy SPRING TOP VALVE CAP ShAFT CARTRIDGE FILTER SCREEN 5000 SERIES bOWL, REAR VIEW VALVE bODy WATER VALVE SCREWS ChECK VALVE/ hOSE bOWL CONNECTION CONNECTION...
Page 9
TROubLEShOOTING GuIDE (cont’d) Problem Possible Cause Service Instructions 2. Plastic flush ball will not close a. Too much friction between flush a. Lubricate between flush ball completely. ball and ball seal. and ball seal with furniture polish or cooking spray. b.
Page 10
TROubLEShOOTING GuIDE (cont’d) Problem Possible Cause Service Instructions . Vacuum pump will not a. A vacuum leak exists. a. See problem 9b. shut off. b. Insufficient vacuum (pump b. Isolate pump and use vacuum creates less than 0 inches gauge to check vacuum levels. Hg).
TROubLEShOOTING GuIDE (cont’d) Problem Possible Cause Service Instructions 5. Blockage between toilet and a. Collapsed vacuum line. a. Inspect vacuum line for vacuum generator. collapsed condition. Replace if needed. b. Sharp bends or kinks in vacuum b. Inspect vacuum hose for kinks hose.
() year from the date of purchase. If this Dometic product is placed in commercial or business use, it will be warranted, to the original purchaser only, to be free of defects in material and workmanship for a period of ninety (90) days from the date of purchase.
