Operating instructions
GB

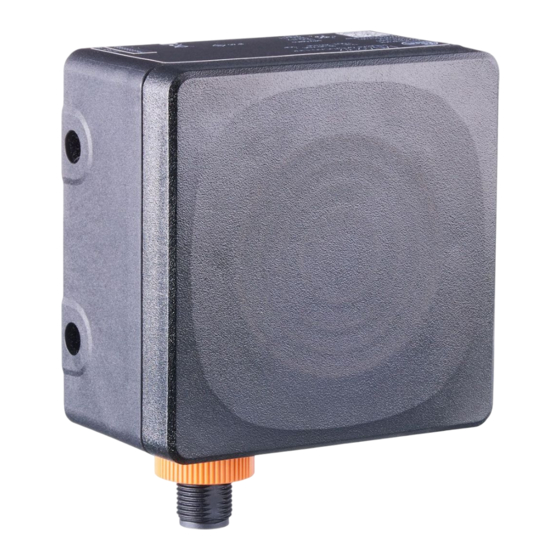

Radar distance sensor CAN
R1Dx

Advertisement

loading
Need help?

Need help?

Do you have a question about the R1D Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IFM R1D Series

  • Page 1 Operating instructions Radar distance sensor CAN R1Dx...
  • Page 2: Table Of Contents

    R1Dx Radar distance sensor CAN Contents Preliminary note ............. Symbols used .
  • Page 3: Preliminary Note

    Radar distance sensor CAN R1Dx 1 Preliminary note You will find instructions, technical data, approvals and further information using the QR code on the unit / packaging or at documentation.ifm.com. 1.1 Symbols used Requirement Instructions Reaction, result [...] Designation of keys, buttons or indications...
  • Page 4 Please note that the firmware for the ifm products is in some cases provided free of charge. The price of the ifm products has then to be paid for the respective device itself (hardware) and not for the firmware. For the latest information on the license agreement for your product please visit www.ifm.com...
  • Page 5: Safety Instructions

    Radar distance sensor CAN R1Dx 2 Safety instructions • The unit described is a subcomponent for integration into a system. – The system architect is responsible for the safety of the system. – The system architect undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system.
  • Page 6: Cyber Security

    R1Dx Radar distance sensor CAN 2.2 Cyber security ATTENTION Unprotected network environment. The device does not include IT security measures according to IEC 62443. w Unauthorised read or write access to data is possible. w Unauthorised manipulation of the device function is possible. u Check and restrict access options to the device.
  • Page 7: Intended Use

    Radar distance sensor CAN R1Dx 3 Intended use 3.1 Application area Based on FMCW radar, the device monitors an area without contact and detects the distance and speed of stationary and moving objects. Target areas and zones (ROI) can be defined. The sensor was designed for industrial use (permanently installed device). However, it can also be used and operated in mobile mode (sensor moves) if the corresponding requirements are met.
  • Page 8: Restrictions Of The Application Area

    R1Dx Radar distance sensor CAN For India: Devices operating at a base frequency of 76 GHz can be used for fixed, mobile or portable applications, regardless of the spe- cific application. The following devices belong to this group: • R1D205 For Japan: Devices operating in the 79 GHz band can be used for fixed, mobile or portable applications, regardless of the specific appli- cation.
  • Page 9: Impermissible Use

    Radar distance sensor CAN R1Dx 3.3 Impermissible use Use that goes beyond the intended use of the device and is outside the technical specification (see data sheet) is not permitted. The device does not comply with the applicable safety standards for machinery and is therefore not approved as a safety component.
  • Page 10: Getting Started

    Vision Assistant. 3. Establish a connection to the device using CANfox. 4. Use the Vision Assistant to make the required settings on the device. The software is required to configure the device. The software can be downloaded at www.ifm.com.
  • Page 11: Function

    5.2 Operating modes The device can only be configured via CAN interface. The software can be downloaded at www.ifm.com. Depending on the device, up to two different operating modes can be set. These differ in the maximum distance, distance resolution, maximum velocity and velocity resolution.
  • Page 12: Overview

    R1Dx Radar distance sensor CAN 5.3 Overview 5.3.1 R1D101 Art. no.: R1D101 Type designation: R1DAAOOKG/US/CAN Angle of aperture: ± 20° horizontal / ± 15° vertical Function: Radar distance sensor Operating frequency: 60…64 GHz Type: rectangular Radiated transmitter power (e.i.r.p.) and spectral densities Ò...
  • Page 13: R1D205

    Radar distance sensor CAN R1Dx 5.3.4 R1D205 Art. no.: R1D205 Type designation: R1DBBOOKG/US/CAN Angle of aperture: ± 20° horizontal / ± 10° vertical Function: Radar distance sensor Operating frequency: 76…77 GHz Type: rectangular Radiated transmitter power (e.i.r.p.) and spectral densities Ò see data sheet (e.i.r.p.): The angle of aperture was determined with a corner reflector (E23013) at a distance of 5 m.
  • Page 14: Mounting

    Provide strain relief for suitable M12 socket. More information on radar sensor accessories can be found at www.ifm.com. If there is a risk of damage to the device, it must be installed in such a way that it can only be accessed for occasional work, such as mechanical adjustments, and cannot be touched by unauthorised persons.
  • Page 15: Mechanical Design

    Radar distance sensor CAN R1Dx Vertical angle of aperture Horizontal angle of aperture 1: ± 15° 2: ± 20° 6.2 Mechanical design Fig. 2: Mechanical design Connection (can be rotated by 270°) Sensing face 6.3 Mounting with clamp u Insert the M5 screws through the through holes of the device and guide them into the threaded M5 holes of the bracket.
  • Page 16: Mounting With Mounting Bracket

    R1Dx Radar distance sensor CAN Fig. 3: Mounting M5 screws Through holes of the radar sensor Bracket Clamp M5 washers Fig. 4: Completed installation 6.4 Mounting with mounting bracket By means of the mounting bracket (E23009) the mounting angle of the sensor can be adjusted. A maximum angle of 45°...
  • Page 17 Radar distance sensor CAN R1Dx Fig. 5: Example By means of the mounting bracket (E23010) the mounting angle of the sensor can be adjusted. A maximum angle of 20° can be set. Fig. 6: Example...
  • Page 18: Electrical Connection

    CAN_L Low bus cable Recommendation: Use pre-configured connection cables / sockets, see accessories at www.ifm.com. The device can be damaged by insufficiently tightened M12 connectors. The IP rating indicated in the data sheet is only guaranteed if the M12 connectors are firmly screwed.
  • Page 19: Installation

    Radar distance sensor CAN R1Dx 8 Installation To be able to make full use of the device’s functions, the ifm Vision Assistant software is required for parameter setting. u Go to the download section at this link and download the ifm Vision Assistant software onto your computer.
  • Page 20: Operating And Display Elements

    Status LED is green Device is connected to the voltage sup- ply and ready for operation Status LED flashing red (1 Hz) Error (correctable by the operator) Trou- bleshooting Status LED is red Serious error u Contact ifm support. Contact at www.ifm.com...
  • Page 21: Set-Up

    10 Set-up After power on, the device is put into operation. After approx. 3 s the device is ready for operation. On delivery, the parameters are set to the factory setting. The device is set using the ifm Vision Assistant software.
  • Page 22: Parameter Setting

    11 Parameter setting The device can be configured using the following options: • ifm Vision Assistant software (→ see software manual at www.ifm.com) The coordinate system The coordinate system is defined according to the right-hand rule. Fig. 8: Schematic illustration in the coordinate system “Roll”...
  • Page 23: R1D101/R1D103 Or R1D201/R1D205

    Radar distance sensor CAN R1Dx Fig. 9: Schematic illustration of the detection range Sensor Detection range Moving objects 11.1 R1D101/R1D103 or R1D201/R1D205 The device has an angle of aperture of ± 20° horizontal and ± 15° vertical (R1D101/R1D103) or ± 10° vertical (R1D201/R1D205). The FOV of the sensor is fixed and cannot be changed. The radar sensor can detect several targets at the same time, but the process values always refer to one specific target.
  • Page 24 R1Dx Radar distance sensor CAN Fig. 10: Top view X axis [m] Y axis [m] Object: pedestrian (-10 dB) Object: reflector 50 mm (0 dB) Object: passenger car (10 dB) -2,5 -7,5 Fig. 11: Side view Z axis [m] X axis [m] Object: pedestrian (-10 dB) Object: reflector 50 mm (0 dB) Object: passenger car (10 dB)
  • Page 25: Selection Rules

    Radar distance sensor CAN R1Dx 11.2 Selection rules You can choose between the following selection rules: Selection rule Description [Shortest distance] The target closest to the sensor is selected. [Strongest power] The target that has the highest reflected energy is selected. [Strongest RCS] The target that has the strongest is selected.
  • Page 26: Troubleshooting

    Adjust supply voltage Supply voltage outside the specification (Ò technical data sheet) If the device behaves unexpectedly or incorrectly: u Download and install the latest firmware and ifm Vision Assistant versions (Ò Installation / 19). Download at documentation.ifm.com. u Disconnect the device from the voltage supply (restart)
  • Page 27: Maintenance, Repair And Disposal

    Radar distance sensor CAN R1Dx 13 Maintenance, repair and disposal If used correctly, the unit is maintenance-free. u Keep the sensing face and any clear spaces free from deposits and foreign bodies. u It is not possible to repair the unit. Only the manufacturer is allowed to repair the unit.
  • Page 28: Approvals / Standards

    Radar distance sensor CAN 14 Approvals / standards For approvals and standards, the following information is available: • Test standards and regulations: documentation.ifm.com • EU declaration of conformity and approvals: documentation.ifm.com • Notes relevant for approval: Package insert of the device and documentation.ifm.com...
  • Page 29: Factory Setting

    Radar distance sensor CAN R1Dx 15 Factory setting The factory settings of the parameters are available at documentation.ifm.com.
  • Page 30: Glossary

    R1Dx Radar distance sensor CAN Glossary RCS stands for Radar Cross Section (radar signature) and is a measure of how well a target is detectable by radar, i.e. how much of the emitted energy is reflected from a target. The higher the RCS value, the better the reflectivity and thus the visibility of the target.
