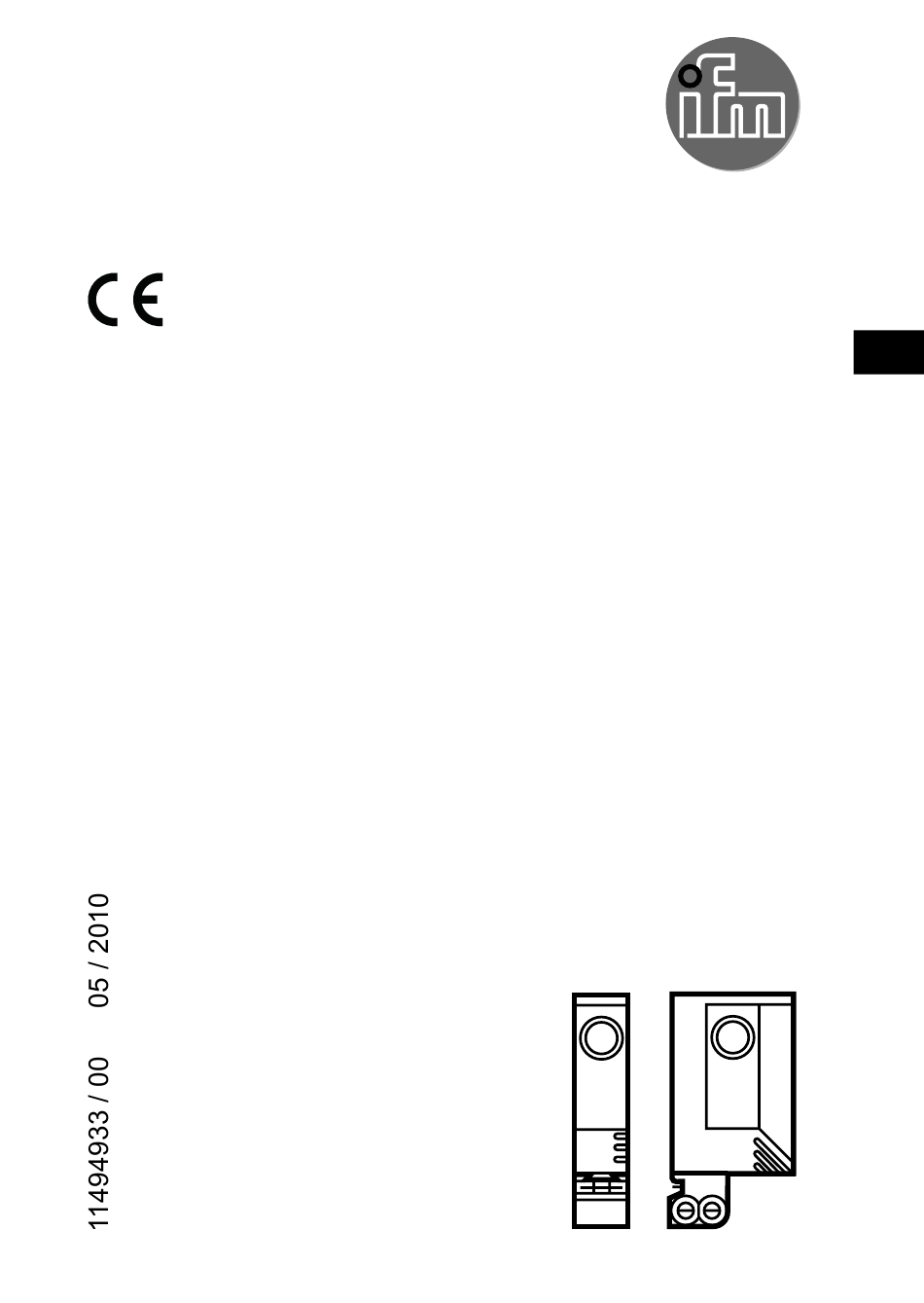

- Page 1 Operating instructions Retro-reflective sensor OJ50xx laser...
-
Page 2: Table Of Contents
Contents 1 Preliminary note3 11 Symbols used 3 2 Safety instructions 3 4 Installation 4 41 Installation of the supplied mounting fixture 5 5 Electrical connection6 6 Setup 6 7 Settings6 71 Setting of the sensitivity with stationary objects* 6 72 Setting of the sensitivity with moving objects* 8 73 Setting of the maximum sensitivity* 9 74 Electronic lock 9... -
Page 3: Preliminary Note3

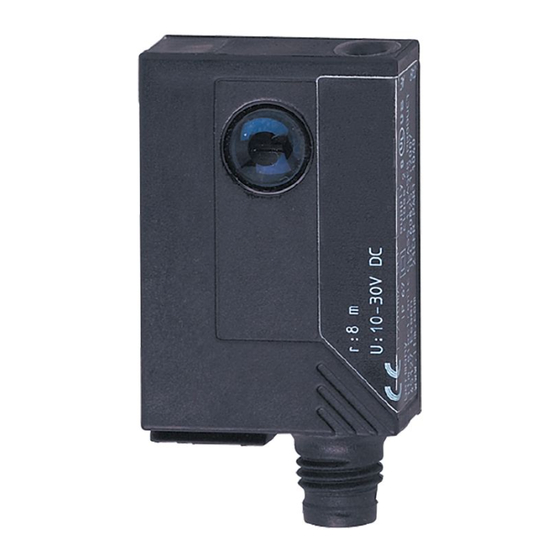

Visible laser light; CLASS 1 LASER PRODUCT IEC 60825-1 : 2007 Complies with 21 CFR 104010 except for deviations pursuant to Laser Notice No 50, dated June 2007 Position of the product label Additional label Example OJ5014... -
Page 4: Installation 4
3 Functions and features In conjunction with a prismatic reflector or reflective tape the retro-reflective sen- sor detects objects and materials without contact and indicates their presence by a switching signal Range: see type label (value referred to prismatic reflector 50 mm x 50 mm) The highly focussed units detect very small objects Therefore a suitable prismatic reflector (eg E20722) has to be used 4 Installation... - Page 5 The optical position of the laser beam may deviate slightly from the mechanical axis Therefore we recommend using the fine adjustment units E20975 (front lens) or E20976 (side lens) when mounting the laser units 4.1 Installation of the supplied mounting fixture ►...
-
Page 6: Electrical Connection6
5 Electrical connection The unit must be connected by a qualified electrician ► The national and international regulations for the installation of electri- cal equipment must be adhered to ► Voltage supply according to EN 50178 ► Disconnect power ► Connect the unit as follows: DC PNP DC NPN teach... - Page 7 Set the sensitivity with object ► Press once > The yellow and green LEDs go out for approx 1 s, then flash again alternately Set the sensitivity without object ► Press once > The yellow and green LEDs go out for approx 1 s After approx 3 s the green LED is on >...
- Page 8 7.2 Setting of the sensitivity with moving objects* Go into the programming mode of the unit ► Press for about 2 s until the red LED flashes > The red LED goes out; the yellow and green LEDs flash alternately >...
- Page 9 If the setting of the sensitivity is not possible (eg object signal and back- ground signal are about the same), the red LED flashes after step 3 for ap- prox 2 s The unit then passes into the operating mode with the sensitivity being unchanged If the setting button is not activated for 15 minutes during the programming process, the unit passes automatically into the operating mode with the...
-
Page 10: Operation 10
► For cleaning do not use any solvents or cleaning agents which could damage the plastic lenses ► Do not try to open the module enclosure There are no user - serviceable components inside Technical data and further information at www.ifm.com → Select your country → Data sheet direct:...
