PXN P3 Manual

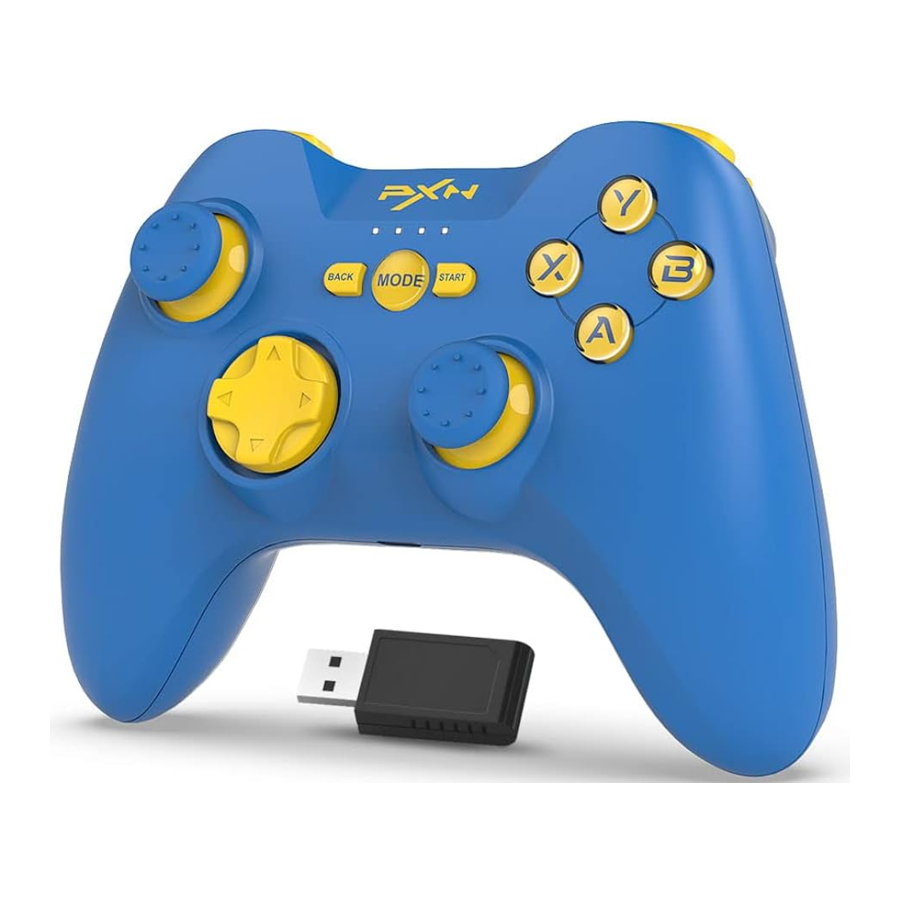

Product Overview

System Requirement

Supported Platforms: PC, Android, iOS, PS3
System Requirement: Windows 7/ 8/ 10/ 11, Android 4.0+, iOS 14.2+, PS3 (Plug and play)

Power ON/OFF

Power ON: short press [ MODE ] for 1 second, after the battery life displaying for 1 second, the controller will power ON.
Power OFF: long press [ MODE ] for 5 seconds to power OFF the controller.

Use on PC

Dongle Connection

1. Plug the Dongle into the USB port of PC.

2. Under OFF state, long press [ MODE ] on controller for 1 second to power ON and connect.
   (When pairing for the first time, long press [ MODE ] for 3 seconds to connect.)

3. LED1 on controller will remain ON when the connection is successful.

BT Connection

1. Under OFF state, long press [ MODE + Y ] on controller for 3 seconds and release the buttons when LED1 flashes to enter pairing.

2. Search [ Controller ] on the BT Setting page of PC to pair and connect.
3. LED1 on controller will remain ON when the connection is successful.

Wired Connection

1. Connect the controller and PC through the USB data cable, the controller is automatically recognized as X-input mode.

2. LED1 on controller will remain ON when the connection is successful.

Note: When wired connect to PC, LED4 on controller flashes slowly means that it is charging while remains ON means that it is fully charged.

The controller is X-input mode in default when connecting to PC, it is applicable to Games for Windows games and steam games that support controller.

Use on Android Device

Dongle Connection

1. Plug the Dongle into the USB port of Android TV.

2. Under OFF state, long press [ MODE ] on controller for 1 second to power ON and connect.
   (When pairing for the first time, long press [ MODE ] for 3 seconds to connect.)

3. LED3 on controller will remain ON when the connection is successful.

Note: When using on mobile phones and tablets, the device should support the OTG function and the OTG adapter should be purchased separately.

BT Connection

1. Under OFF state, long press [ MODE + X ] on controller for 3 seconds. After the battery life displaying, release the buttons when LED3 flashes to enter pairing.

2. Search [ PXN-P3 ] on the BT Setting of Android device to pair and connect.

3. LED3 on controller will remain ON when the connection is successful.

Use on iOS Device

BT Connection

1. Under OFF state, long press [ MODE + Y ] on controller for 3 seconds. After the battery life displaying, release the buttons when LED1 flashes to enter pairing.

2. Search [ controller ] on the BT Setting of iOS device to pair and connect.

3. LED1 on controller will remain ON when the connection is successful.

Use on PS3

Dongle Connection

1. Plug the Dongle into the USB port of PS3.

2. Under OFF state, long press [ MODE ] on controller to power ON and connect. When connecting, the current indicator will remain ON after the battery life is displaying.

3. The corresponding LED on controller will remain ON when the connection is successful.

Joystick Sensitivity Adjustment

Under working state, hold press [ LT + RT + START ] simultaneously, then press [ up ] / [ Left ] / [ Down ] of the D-pad. The default is low sensitivity when the controller is turned on. (No memory function.)

Left Joystick and D-pad Interchange

Under working state, hold press [ LT + RT + START ] simultaneously, then down press the left joystick (L3) to switch the function of left joystick and D-pad. After successful switch, the controller will vibrate once.

Vibration Adjustment

Under working state, hold press [ LT + RT + START ] simultaneously, then toggle the right joystick 3D up and down to adjust the motor vibration intensity. The default is medium vibration (70%).

High Vibration (100%)	Flash
Medium Vibration (70%)	Flash
Low Vibration (30%)	Flash
No Vibration	Flash

Charging Function

Charging Power: standard USB 5V voltage. The controller can be charged by connecting the USB port of the phone fast charger, computer, TV, etc. The controller will take about 2-3 hours to fully charge.

Controller State	Power State	Indicator State
Working State	Low Battery	Flash Quickly
	Charging	Flash Slowly
	Fully Charged	Remain ON
OFF State	Charging	Flash Slowly
	Fully Charged	Remain ON

Note: If no any button / joystick action in 5 minutes when fully charged, the controller will enter sleeping state.

Reset Function

When the controller has functional disorder, freezes or other abnormalities, it can be reset and restarted by pressing the switch in the reset hole on the back of the controller, and the controller will automatically reconnect to the mode before the shutdown.

Sleeping/Reconnect Function

Product Specifications

Precautions

• Avoid strong vibration, do not disassemble, modify or repair by yourself.
• Prevent water or other liquids from entering the controller to avoid damage.
• Avoid storing in humid, high temperature, oily smoke and other places.
• Built-in battery, please do not throw the controller into fire to avoid explosion.
• Children should be under adult's supervision at all times when using this product.
