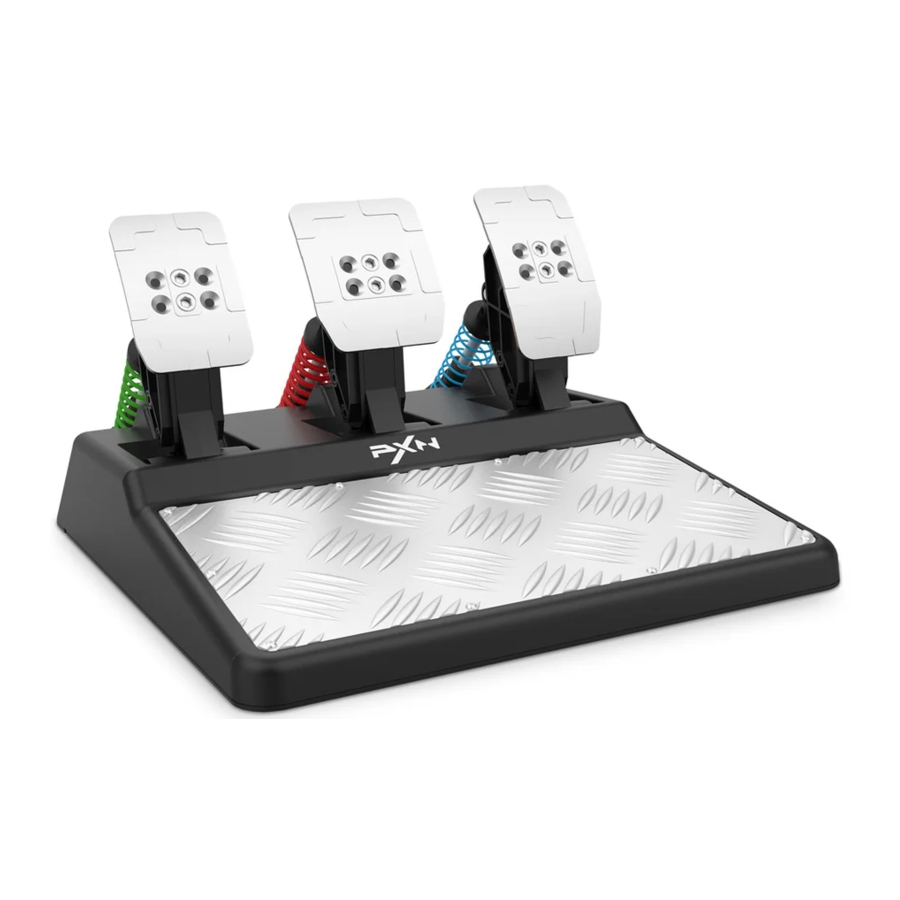

PXN A3 Manual

For PXN Racing Wheels

1. Plug the Pedals into the pedals' port on racing wheel with the registered jack connector cable.
2. The Pedals red indicator will remain ON when connection is successful, and the Pedals can be used now.

For PC

1. Plug the Pedals into PC USB port with the USB to USB-B cable. Plug the Pedals into PC USB port with the USB to USB-B cable.
2. The Pedals red indicator will remain ON when connection is successful, and the Pedals can be used now.
3. The value axis of Pedals correspond to clutch(X-axis)/ brake(Z-axis)/accelerator(Y-axis).

* In the games of D-input category, the games will recognize both racing wheel and pedals separately. The pedals can be used by setting it in the games.

Installation

The Pedals Angle Adjustment

1. Loosen and get the two Allen key screws with Allen wrench.
2. Adjust the Pedals in a needed position and tighten the two Allen key screws.

The Pedals Strength Adjustment

1. Rotate the component as shown to adjust the Foot Pedals' strength.
   Note: Please rotate the component within screw thread.


Clamp the Pedals

1. There are 4 dedicated screw holes for clamping the racing wheel on stand with the screws included.


Product Accessories

• USB to USB-B cable
• Registered Jack Connector Cable
• Allen key screw*4
• Allen wrench*1

Supported Platforms

• Support Windows 7/8/10/11
• PXN Racing Wheels: PXN-V10

Product Specifications

Attention

• Avoid strong vibration and gravity dropping.
• Do not disassemble, modify or repair by yourself.
• Prevent water or other liquids from entering the product to avoid damage.
• Avoid storing in humid, high temperature, oily smoke and other places.
• Please handle it gently when connect and remove the product.
• Children should be under adult's supervision at all times when using this product.
