PXN P6 - Wireless Gaming Controller Manual

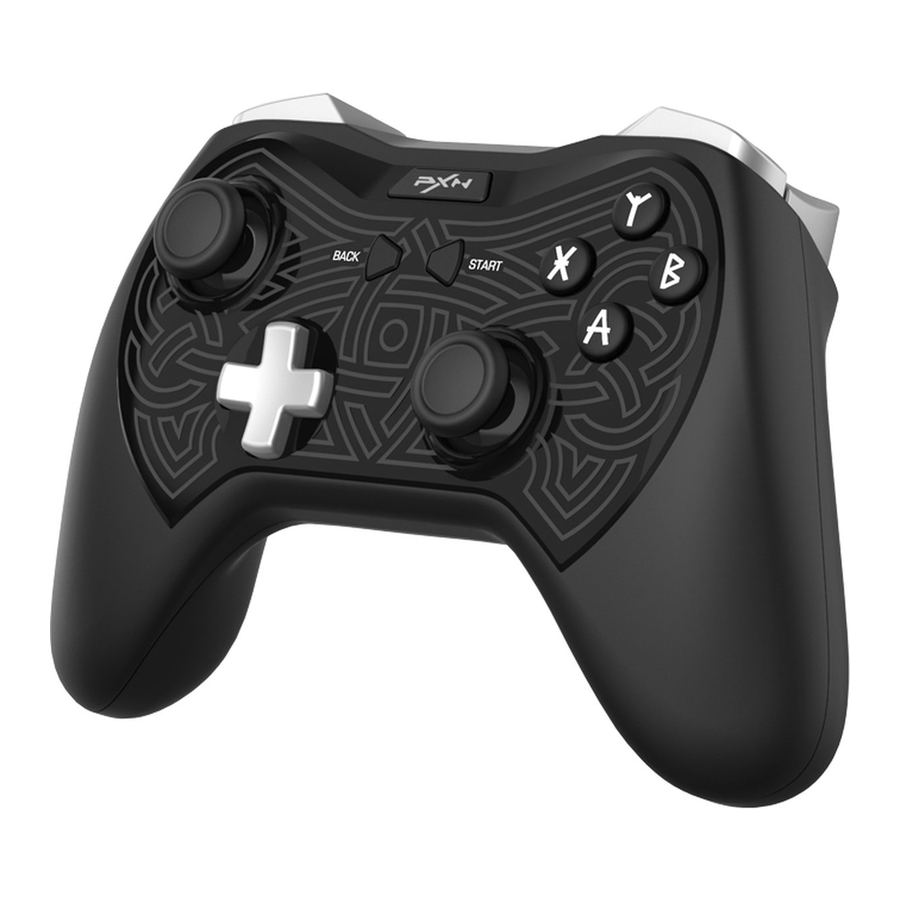

Product Overview

System Requirement

Supported Platforms: PC, Android, iOS
PC Requirement: Windows 7/ 8/ 10/ 11
Android Requirement: Android 4.0 and above (HID Mode) / Android 7.0 and above & Non MediaTek chip (Direct Mode)
iOS Requirement: iOS 14.2 and above

Power ON/OFF

Power ON: Short press [ ] button for 1 second to power ON the controller or enter to reconnect state.
Power OFF: Long press [ ] button for 5 seconds to power OFF the controller.

Dongle Connection

PC X-input Mode

1. Plug the Dongle into the USB port of PC.

2. Under the OFF state, press [ ] button on the controller to power ON and connect. When RGB white indicator on the controller flashes quickly, it will enter the pairing state.

3. The connection is successful when RGB green indicator on the controller remains ON.

PC D-input Mode

1. Plug the Dongle into the USB port of PC.
2. Under X-input mode, press [ ] + [BACK] button for 3 seconds to change to D-input mode. When RGB blue indicator on the controller remains ON, the mode switching is successful.
3. Under D-input mode, press [ ] + [BACK] button for 3 seconds to change to X-input mode.

Android HID Mode

1. Plug the Dongle into the USB port of Android device.(If no USB port, it can be connected by OTG adapter.)

2. Under the OFF state, press [ ] button on the controller to power ON and connect.

3. The connection is successful when RGB red indicator on the controller remains ON.

BT Connection

Android HID Mode

1. Under the OFF state, long press [ ] + [ ] button on the controller for 3 seconds and release the button when RGB indicator flashing to enter pairing state.

2. Search [PXN-P6A] on the BT setting interface in the Android device for pairing and connection. The connection is successful when RGB red indicator on the controller remains ON.


Android Direct Mode

* Android system only supports Android 7.0 and above, and is not compatible with MediaTek chips.

1. Under the OFF state, long press [ ] + [ ] button on the controller for 3 seconds and release the button when RGB indicator flashing to enter pairing state.
2. Search [PXN-P6a] on the BT setting interface in the Android device for pairing and connection. The connection is successful when RGB blue indicator on the controller remains ON.
3. Under Direct mode, APP [ PXN Play ] should be downloaded for using.
   (* Download for Android: Search [ PXN Play ] in Google Play. After connecting the controller to the console, then connect it with APP and set up the functions via APP.)

iOS Mode

* Only support iOS 14.2 and above.

1. Under the OFF state, long press [ ] + [ ] button on the controller for 3 seconds and release the button when RGB indicator flashing to enter pairing state.
2. Search [PXN-P6M] on the BT setting interface in the iOS device for pairing and connection. The connection is successful when RGB green indicator on the controller remains ON.

Wired Connection

When wired connection, it is X-input mode in default. The connection is successful when RGB green indicator remains ON.

Under X-input mode, press [ ] + [BACK] button for 3 seconds to change to D-input mode. When RGB blue indicator remains ON, the mode switching is successful.
Under D-input mode, press [ ] + [BACK] button for 3 seconds to change to X-input mode. When RGB green indicator remains ON, the mode switching is successful.

Note: When wired connect to PC, it is in charging when the RGB indicator on the controller flashes slowly and it is fully charged when the RGB remains ON.

Auxiliary Functions

Joystick Sensitivity Adjustment

Under connecting state, press [ LT + RT + START ] simultaneously, then press [up] / [Left] / [Down] of the D-pad to adjust the sensitivity.

	Joystick High Sensitivity	High Sensitivity when RGB flash once in white
	Joystick Medium Sensitivity	Medium Sensitivity when RGB flash once in light green
	Joystick Low Sensitivity	Low Sensitivity when RGB flash once in green

Vibration Adjustment

Under connecting state, hold press [LT + RT + START] simultaneously, then toggle the right joystick up / down to adjust vibration intensity of the motor.
Four gear can be adjusted: 0 (No vibration) → 30% (Low) → 70% (Medium) → 100% (Strong).

Strong Vibration (100%)	Strong Vibration when RGB flash once in white
Medium Vibration (70%)	Medium Vibration when RGB flash once in light green
Weak Vibration (30%)	Weak Vibration when RGB flash once in green
No Vibration	No Vibration when RGB OFF

Left Joystick and D-pad Interchange

Under connecting state, hold press [ LT + RT + START ] simultaneously, then down press the left joystick (L3) to switch the function of left joystick and D-pad. After successful switch, the controller will vibrate once.

Charging Function

Charging Power: standard USB 5V voltage. The controller can be charged by connecting the USB port of the phone fast charger, computer, TV, etc.

Controller State	Power State	Indicator State
Working State	Low Battery	RGB current color indicator flashes fast
	Charging	RGB current color indicator flashes slowly
	Fully Charged	RGB current color indicator remains ON
OFF State	Charging	RGB white indicator flashes fast
	Fully Charged	RGB white indicator remains ON

After fully charged, if there is no buttons/joystick actions within 5 minutes, the controller will enter sleep state.

Reset Function

When the controller has functional disorder, freezes or other abnormalities, it can be reset and restarted by pressing the switch in the reset hole on the back of the controller.

Attentions

• Avoid strong vibration, do not disassemble, modify or repair by yourself.
• Avoid storing in humid, high temperature, oily smoke and other places.
• Prevent water or other liquids from entering the controller to avoid damage.
• Built-in battery, please do not throw the controller into fire to avoid explosion.
• The charging voltage of this product is USB 4.5-5.5V DC power, otherwise it may not be charged, or may cause damage to the product.
• Children should be under adult's supervision at all times when using this product.
• If you have any problems or suggestions about the product, please contact the seller or the after-services.

Product Specifications
