PXN 9607x - Wireless Controller for Nintendo Switch Manual

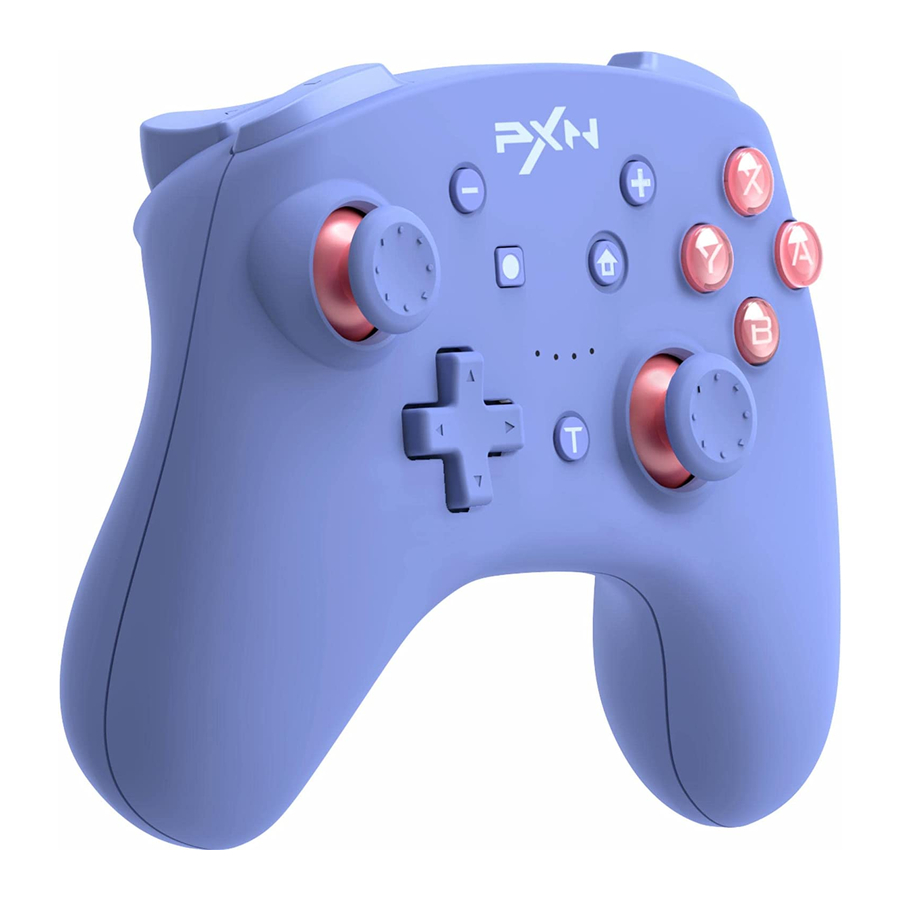

Product Overview

System Requirement

• Compatible Platforms: Switch Console/ PC
• Support System: Windows 7/8/10

Switch Console

Wireless Connection

1. Click [] Controller → Change Grip/Order on Switch screen.

   Controller

   Change Grip/Order
2. Press [] Power button of Controller for 3 seconds to pair, 4 LED indicators flash orderly and enter pairing state.
3. Connect successfully when LED indicator keep ON, then press [] Home button to back to homepage.


Wake-up Switch Console Function

After connect successfully, press [] Home button on Controller can wake up and reconnect the sleep Switch console.

Wired Connection

Click [] Setting on Switch → Controllers and Sensors → then click Pro Controller Wired Connection. Please make sure this option state is ON.

Switch Console

*Before using the wired connection, please make sure the Controller is OFF or in sleeping state.

1. Connect the power-off Controller with Switch console by USB cable with Type-C OTG.

2. Connect successfully when LED indicator flash.

Switch Dock

*Before using the wired connection, please make sure the Controller is OFF or in sleeping state.

1. Connect the power-off Controller with Switch dock by USB cable.

2. Connect successfully when LED indicator flash.

Power and Wake-up

	Button Operation	Function Instruction
Power ON	Press [] Power button for 3 seconds	Power on and enter pairing
Wake-up Controller	Short press [ / / / / L / R / ZL / ZR / / ] button on Controller	Can wake up sleep controller and reconnect
Wake-up Console	Short press [] HOME button on Controller	Can wake up sleep Switch console and reconnect
Power OFF	Short press [] Power button	Press shortly can power OFF the Controller and reset setting Can use wake-up controller/console function to reconnect under Controller OFF state

Using on PC

Wired Connection

*Before using the wired connection, please make sure the Controller is OFF or in sleeping state.

1. Connect the Controller with PC by USB cable.
2. The PC will prompt new hardware and install automatically, connect successfully when LED2 indicator flash.

Controller Inspection on PC

Function inspection is available when connect with computer. The specific steps show below:
Open Control Panel → Devices and Printers → Right mouse click Controller icon → Game Controller Setting, click Properties Testing.

NFC Function

• The Controller is built in NFC reader chip, support to read Amiibo. (Note: Recommend to use genuine Amiibo)


Using Instructions:
When the Controller connected with Switch console by Bluetooth, if the game support Amiibo function, place the Amiibo above the PXN logo can activate the tool.

TURBO Function

Setting buttons for TURBO function: / / / / L / R / ZL / ZR

Under Manual TURBO: The LED indicator flash when hold press setting button.

Under Auto-TURBO: The LED indicator flash quickly.

Adjustable Vibration

	High	High Vibration
	Medium	Medium Vibration
	Low	Weak Vibration
	OFF	No Vibration

• Hold press the [] button on Controller and operate the UP/Down of left joystick at same time to adjust vibration level, default vibration level is medium when connect. Vibration adjustment has memory function.

Controller Calibration Function

• When the Controller occurs disorder or joystick problem, can use calibration function to fix.

1. Press [L3+R] enter calibration mode, 4 LED indicator on Controller flash alternately.

2. Put the Controller on horizon desk, press [] button on Controller.
3. Release button, the Controller will automatically calibrate in 3 seconds.

Charging Function

	Battery State	Indicator State
Working State	Low Battery	Flash
	Charging	Flash
	Fully Charged	Keep ON
Power OFF	Charging	Flash
	Fully Charged	OFF

• Using a standard USB 5V input, the controller will be fully charged time in 2-3 hours

Sleeping Mode

Reset Function

• When the controller has a major function problem, frozen action buttons, dead halt or other abnormalities, please press the Power button on back of Controller to restart.

Attentions

• Avoid strong vibration, don't disassemble, refit or repair on your own.
• Avoid water or other liquid in controller, it may affect the performance of the controller.
• Don't keep in humid, high temperature or soot place.
• Keep away from fire, the built-in Lithium battery has danger of explosion.
• Children should be under adult's supervision to use this product.
• Please connect with after-sales service when you have suggestion or operation problem.

Product Specifications
