PXN V3PRO Manual

System Requirements

Supported Platform: SWITCH, PC, PS3, PS4, XBOX ONE, XBOX SERIES X&S
PC System: Windows 7/ 8/ 10/ 11

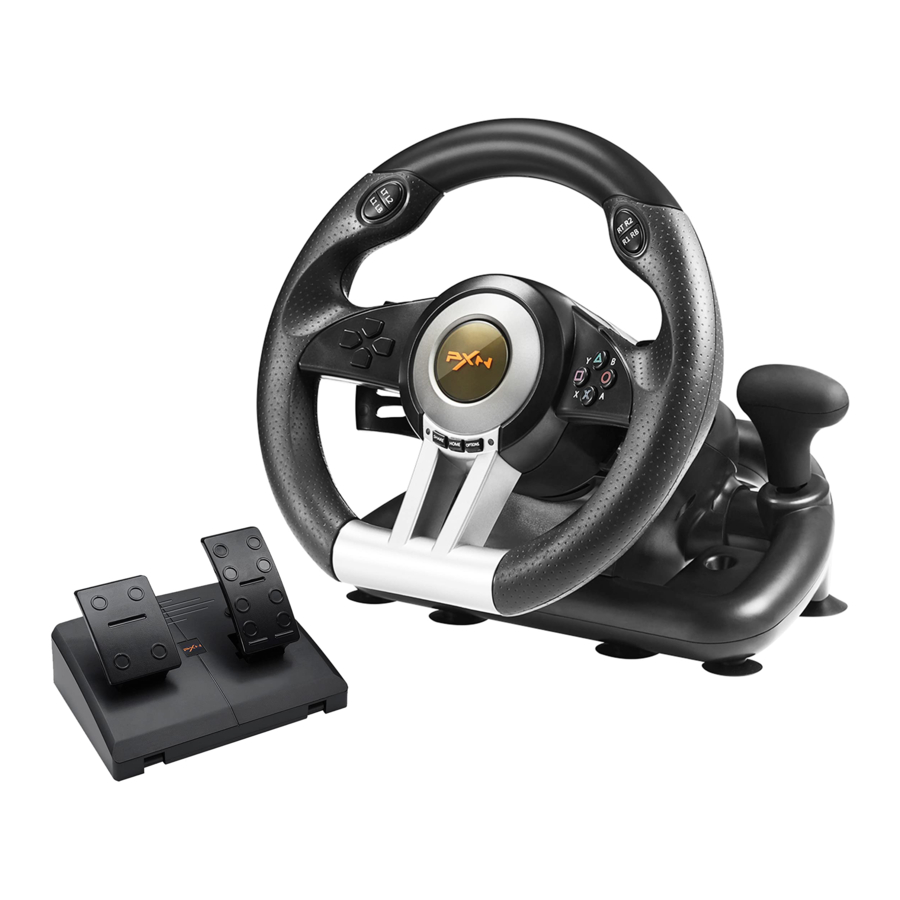

Product Overview

Clamp Installation

The steering wheel is equipped with a screw staff and U-type clamp, which can be directly installed on & desk.

1. Please take out the screw staff and U-type clamp.

2. Install the screw staff into the U-type clamp.

3. Then clip the U-type clamp to the steering wheel, as shown below.

4. Install the steering wheel to the desk, then tighten the screw staff.


Connect with SWITCH

* Enter homepage of SWITCH, Select Setting → Controllers and Sensors → select Pro Controller Wired Connection. Please make sure that the option state is ON.

• Connect with SWITCH Console

  1. Connect the Type-C OTG and the USB cable of steering wheel.
  2. Then plug the Type-C Adapter to SWITCH console.
  3. Red mode indicator will remain ON when connection is successful.
     (*Note: Type-C OTG Adapter is not included )
• Connect with SWITCH Dock

  1. Put the SWITCH console into the SWITCH dock and ensure successful connection
  2. Plug the USB cable of steering wheel into SWITCH dock and power on SWITCH console.
  3. Red mode indicator will remain ON when connection is successful

Connect with PC

1. Plug the USB cable of steering wheel into computer. Mode indicator will remain ON when connection is successful.
2. The steering wheel is X-input mode in default after connection. Hold and press the HOME button to change working mode to D-input.
3. Easily change corresponding working modes when playing different games.

X-input working mode is suitable for games ported from Xbox 360 to PC and it is plug and play.
Recommended games are Need for Speed 13 (or versions above). Dirty series, SnowRunner etc.
D-input mode is compatible with early PC racing games.
Recommended games are Euro Truck Simulator 2, Assetto Corsa series, F1 series etc.

Function Testing on PC
Function inspection of steering wheel is available when connecting with PC, the specific steps show as below: Open Control Panel → Device and Printer → Right mouse click gamepadicon → Game Controller Setting, click Properties Testing

Connect with PS3

1. Plug the USB cable of steering wheel into PS3 and power on PS3 console.

2. Corresponding channel indicator will remain ON when steering wheel is connected successfully with console, then can enter the games to play or set the related functions on console.

Connect with PS4

1. Power OFF the original PS4 controller before connection.
2. Use a Micro USB cable to connect PS4 original controller and the guidance port in the steering wheel.
3. Plug the USB cable of steering wheel into PS4.
4. Press HOME button on steering wheel, red indicator will remain ON when connection is successful

Connect with XBOX

1. Power OFF the original controller of XBOX ONE/XBOX SERIES X&S.
2. Use a Micro USB cable to connect XBOX ONE/XBOX SERIES X&S original controller and the guidance port in the steering wheel.
3. Plug the USB cable of steering wheel into XBOX ONE/XBOX SERIES X&S.
4. Press HOME button on steering wheel, red indicator will remain ON when connection is successful.

Programming Settings

* Original button function can be replaced under programming setting
Programming Buttons: L-paddle, R-paddle, L-pedal, R-pedal, L, R, Shifter
Programming Available Buttons: A, B, X, Y, L, ZL, R, ZR

How to program?

1. Press SHARE + OPTIONS simultaneously for 3 seconds, release the buttons when green programming indicator remains ON.
2. Press the programming button, and the programming indicator will flash in green.
3. Press a programming available button. setting is completed when green programming indicator is OFF.

Clear Programming Setting

1. Press SHARE + OPTIONS simultaneously for 3 seconds, release the buttons when green programming indicator remains ON.
2. Press programming button, and the programming indicator will flash in green.
3. Press programming button again, then green programming indicator will turn OFF, function clearing is completed.
4. Replug and reconnect steering wheel, all settings will be cleared automatically.

How to set pedals as Y axis?

1. Press SHARE + OPTIONS simultaneously for 3 seconds, green programming indicator remains ON.
2. Press left button of D-pad, setting is successful when green indicator is OFF.

10 Sensitivity Adjustment

3 Levels of Sensitivty Adjustments

1. Press SHARE + OPTIONS for 3 seconds. green programming indicator remains ON.
2. Adjust Sensitivity: Press SHARE button to adjust sensitivity - Medium, High, Low for choices. (Defaulted sensitivity level is medium)
3. Save Setting: Press D-pad UP [ ] button to save settings, programming indicator remains OFF.

Product Specifications

Warning

• Avoid strong vibration, do not disassemble, modify or repair by yourself.
• Prevent water or other liquids from entering the steering whee to avoid damage.
• Avoid storing in humid, high temperature, oily smoke and other places.
• Please handle gently when connect of remove the steering wheel.
• Children should be under adult's supervision at all times when using this product.
