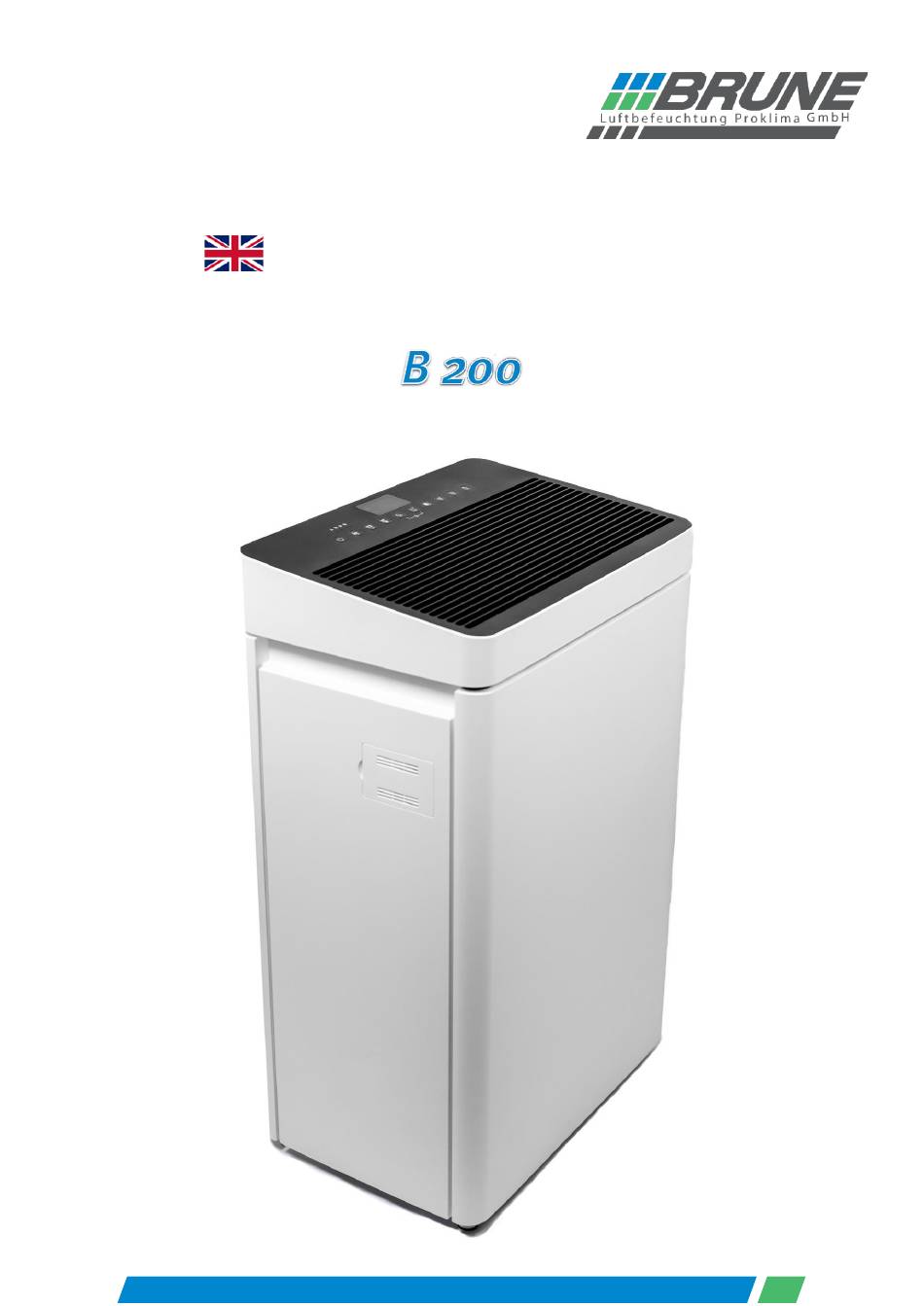

H u m i d i t y S y s t e m s - s i n c e 1928
OPERATING INSTRUCTIONS
Evaporative humidifier
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brune B200

Summary of Contents for Brune B200

  • Page 1 H u m i d i t y S y s t e m s - s i n c e 1928 OPERATING INSTRUCTIONS Evaporative humidifier...
  • Page 2 Use and storage of the instructions Read these instructions carefully before operating the Brune B 200 evaporative humidifier. Failure to observe these instructions may result in injury or damage to the humidifier or the installation site. Keep these instructions in a safe and accessible place near the appliance.

  • Page 3: Table Of Contents

    Table of contents 1. Product description 1.1 Humidifier overview 1.2 Operating and display elements 1.3 Technical data 2. Security 2.1 Symbols in these instructions 2.2 Intended use 2.3 Dangers posed by the humidifier 2.4 Environmental protection 3. Transporting and commissioning 3.1 Transport and set up 3.2 Preparing the humidifier for operation 3.3 Putting the humidifier into operation...

  • Page 4: Product Description

    1. Product description 1.1 Humidifier overview Fig. 1.1.1: Humidifier overview (left: side view; right: rear view) 1. Control panel 11. Portable water tank 12. Water tank indicator Discharge grille 13. Drip tray Upper left part 14. Combination cleaning filter Air quality indicator 15.

  • Page 5: Operating And Display Elements

    Operating and display elements Operation Control elements Icon Description Operation STANDBY / ON / OFF  Switch the humidifier on and off.  Select the fan speed. Auto mode / Silent  Switch on auto mode. mode  Switch on silent mode. ...

  • Page 6: Technical Data

    Technical data Specification Value Unit Empty weight 11,25 Width Height Depth Total tank volume approx. 8 Mains connection Mains frequency Power consumption Operating conditions Specification Value Unit Temperature 5 - 41 °C Relative humidity 20 - 80 2. Security This section provides an overview of all important safety aspects for the protection of persons and for safe and trouble-free operation.

  • Page 7: Intended Use

     Only fill the humidifier with fresh, ordinary tap water (max. 150 CFU/ml).  Do not add essential oils or other flammable liquids.  Only use additives approved by Brune.  Only use filters approved by Brune.  Do not use any fragrances or flavorings outside the Aroma Box and only in small quantities.
  • Page 8 Special groups of people and children WARNING! for use sensory or mental capabilities, or lack of experience and/or knowledge.  Supervise children to ensure that they do not play with the appliance.  Packaging materials must not be used for play. There is a risk of suffocation. ...

  • Page 9: Environmental Protection

    Unsuitable installation location NOTE!  Only install humidifiers on level, sufficiently stable and moisture-resistant floors.  Do not place the appliance near furnishings that absorb water (e.g. curtains, wallpaper, carpets). Environmental protection NOTE! Incorrect handling of environmentally hazardous substances, especially incorrect disposal, can cause considerable damage to the environment.

  • Page 10: Preparing The Humidifier For Operation

    Preparing the humidifier for operation Connection cable Damaged connection cable! If the mains connection cable of this appliance is damaged, it must be replaced with a special connection cable! This can be obtained from the manufacturer or your customer service. NOTE! Remove the protective film from the combi cleaning filter before usage (see chapter "4.3 Changing the combi...

  • Page 11: Putting The Humidifier Into Operation

    Putting the humidifier into operation Switching on the humidifier Press the STANDBY button + Humidifier is switched on. The upper LED lights up white. Standby Press the STANDBY button + Humidifier is on standby. The upper LED is deactivated. Switch off To safely switch off the humidifier during maintenance or long-term shutdown: + Pull out the plug &...
  • Page 12 Automatic fan operation In automatic mode, the humidifier automatically regulates the fan speed depending on the power requirement until the desired relative humidity value is reached. Select the target value for the relative humidity using the HUMIDITY + or HUMIDITY - buttons.
  • Page 13 Only use the aroma box and aroma pads provided by Brune (included in the scope of delivery). Further aroma pads (order number: 2070) are available from via our customer service (...
  • Page 14 As soon as the device is paired, you can make the following settings via the app: Select fan speed Choose between manual control and automatic or sleep mode Humidifier or air purifier mode Dry fan (max. fan speed) Target humidity Timer Switching the device on and off Switching the key lock on and off...

  • Page 15: Cleaning And Care

    4. Cleaning and care WARNING! Disconnect the appliance from the power 4.1 Maintenance table supply before carrying out maintenance work. Maintenance work WARNING! The frequency of maintenance work depends on the air and Rotating water quality at the installation site. If necessary, adjust the fan wheel can cause hand injuries.
  • Page 16 Lift the intake grille at the top of the grille. Use the existing handle to do this. Now slide the intake grille upwards to remove it and place it on its side (Fig. 4.2.2)  Now change the filter ( see chapter "4.5 Changing the combi cleaning filter"...

  • Page 17: Changing The Combi Cleaning Filter

    Changing the combi cleaning filter WARNING! Risk of electric shock if the mains plug is not disconnected! Disconnect the appliance from the power supply before starting. NOTE! You can obtain the appropriate combi cleaning filter (order number: 2080) from our customer service department ...

  • Page 18: Changing The Evaporation Filter

    NOTE! risk of tipping! + When removing the drip tray, make sure that it does not tip over. Reach under the drip tray and carefully pull it out, including the filter holder (Fig. 4.4.2). CAUTION: Allow the drip tray to drain slightly before removing it.

  • Page 19: Changing The Water And Cleaning The Appliance

    Remove the grid of the filter holder (Fig. 4.5.2). Dispose of the old evaporation filter and insert the new one. Make sure that the filter is positioned correctly to ensure proper function. Replace the grille of the filter holder. Make sure that the grille is properly secured by the plastic device.

  • Page 20: Solve Problems

    Solve problems Error code display If the operation of the humidifier is faulty, an error message appears in the display field . Error number Description Remedy  Error with the humidity sensor Contact customer service ( "Customer service" on page 2). ...

  • Page 21: Type Plate

    Type plate The nameplate contains the following information:  Brand  Model number  Electrical power and connected loads  Batch number  Manufacturer Danger to the environment due to 9. Disposal incorrect disposal! Incorrect disposal can If no take-back or disposal agreement has been made, disassembled components must be recycled: ...
  • Page 22 H u m i d i t y S y s t e m s - s i n c e 1928 Luftbefeuchtung Proklima GmbH Schwarzacher Str. 13 74858 Aglasterhausen Germany Phone.: +49 (0) 6262 / 5454 Fax: +49 (0) 6262 / 3255 Mail: mail@brune.info Web: www.brune.info...
