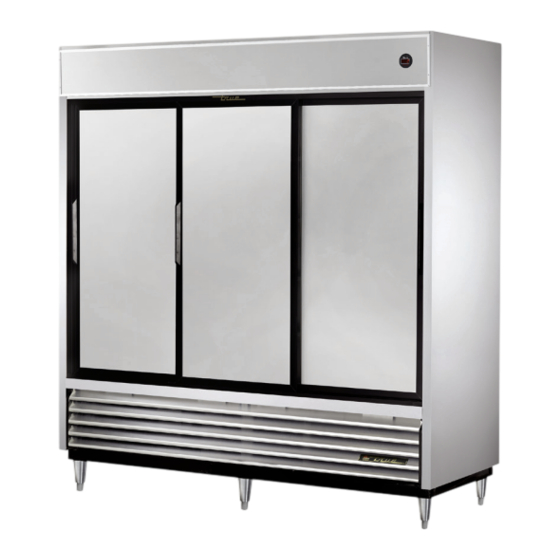

- Page 1 INSTALLATION MANUAL True Manufacturing Co., Inc. ®) traditional reach series TSD-69 T-49-HC T-23-HC USER ACTION! WARNING! TRUE tracks the history of your appliance by its serial number. this Be sure to read and fully understand For easy reference, record your appliances full model name and document before installing, operating, serial number below.
-
Page 2: Table Of Contents
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com T HAN K YO U F O R YO U R PU R C H A S E Congratulations! The primary purpose of this document is to assist the installation, maintenance, and servicing of your TRUE appliance. This document contains information important to safety, operation, maintenance, and servicing. -
Page 3: Preface
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Preface The warning, guidelines, and recommendations within this document are meant to prevent appliance damage, property damage, injury, or death. Please carefully read all warnings, guidelines, and recommendations before proceeding to ensure the continued safe use and maintenance of your TRUE appliance. -
Page 4: Important Safety Information
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Important Safety Information Important Safety Information Basic Safety & Operation Warnings Follow basic safety precautions, including the following, to reduce risk of personal injury, electric shock, fire, or death. WARNING! Be sure to read and fully understand this document before installing, operating, maintaining, or servicing this appliance. Failure to do so can result in appliance failure, property damage, serious injury, or death. -
Page 5: Personal Injury Warnings
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Important Safety Information (cont.) Personal Injury Warnings DANGER! allow children to play with or in the appliance. Child entrapment or personal injury can occur. DO NOT store or use the following in the vicinity of this or any other appliance: DO NOT •... -
Page 6: Appliance Disposal Warnings
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Important Safety Information (cont.) Appliance Disposal Warnings DANGER! Risk of child entrapment! Children can get trapped inside discarded appliances and suffocate. Never dispose of your appliance without taking precautions to prevent child entrapment, even if the appliance only sits unattended for a short period of time. Child entrapment precautions include the following: •... -
Page 7: Electrical Safety Warnings
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Important Safety Information (cont.) Electrical Safety Warnings DANGER! Risk of electric shock, burn, or fire! Failure to comply with these electrical warnings may result in appliance damage, property damage, electrical shock, burns, or fire leading to serious personal injury or death. •... -
Page 8: About Your Appliance & Installation Requirements
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com About Your Appliance & Installation Requirements About Your Appliance & Installation Requirements Appliance Specifications USER ACTION! Some things to know about your appliance are as follows: incurred TRUE is not responsible for damage • Appliance tested to IEC EN 60335-2-89 Climate Class 5 [109°F during shipment. -
Page 9: Clearances
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com About Your Appliance & Installation Requirements (cont.) Clearances NOTICE! MODEL SIDES BACK T-Series Freezer 3" (76.2 mm) 0" (0 mm) 3" (76.2 mm) Warranty is void if ventilation is insufficient. Be sure your appliance has the required T-Series Refrigerator 0"... -
Page 10: Electrical Requirements
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com About Your Appliance & Installation Requirements (cont.) Electrical Installation & Safety Electrical Requirements USER ACTION! DANGER! Find a copy of the wiring diagram with our serial • An extension Never use an extension cord! number lookup at cord is any component that adds length to the truemfg.com/support/serial-number-lookup. -
Page 11: Wiring Instruction Advisement (115V Only)
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com About Your Appliance & Installation Requirements (cont.) Wiring Instruction Advisement (115V only) DANGER! Unplug the Electrical shock or burn hazard! appliance or disconnect power before proceeding. USER ACTION! It is the customer’s responsibility to make sure receptacle wiring meets all local electrical codes. -
Page 12: Installation And Setup
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Installation & Setup Installation & Setup Uncrating DANGER! USER ACTION! Risk of electrical shock or burn! Powering off an electronic control or setting temperature controls to • If the appliance is damaged, note all damage the 0 (off) position does not remove power from all on the delivery receipt, immediately file a claim components. - Page 13 TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Installation & Setup (cont.) Procedure 1. Remove the outer packaging (cardboard and bubble wrap or Styrofoam corner and clear plastic). See fig. 1. Inspect for concealed damage. Immediately file a claim with the freight carrier if there is damage. NOTICE ›...
-
Page 14: Appliance Location
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Installation & Setup (cont.) Appliance Location Procedure – Leveling Screws If leveling screws are not factory installed, then, with access to the • Ensure that the drain hose or hoses are positioned in the pan. appliance bottom, install the leveling screws into the threaded holes in the frame rail or appliance bottom. - Page 15 TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Installation & Setup (cont.) Procedure – 6" (152 mm) Leveling Legs Procedure — Castors USER ACTION! 1. Access the appliance bottom. 2. If present, remove the leveling screws. Install castors with brakes in the front. 3. Thread the leveling legs into the frame rail or appliance bottom.
-
Page 16: Level The Appliance
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Installation & Setup (cont.) Level the Appliance Seal the Appliance to the Floor USER ACTION! WARNING! verify center leveling chemicals. TRUE Tipping hazard! ALWAYS Asphalt floors are susceptible to screws fully contact the floor after leveling the recommends installing a layer of tape between the appliance. -
Page 17: Shelf Installation
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Installation & Setup (cont.) Shelf Installation WARNING! Overloading, incorrectly installing, or improperly can cause loading shelves shelf failure and negatively affect appliance operation, resulting in appliance damage, product damage, or personal injury. when DO NOT use pliers or any crimping tools Fig. -
Page 18: Appliance Operation
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Appliance Operation Appliance Operation Startup WARNING – SPOILAGE! DANGER! The owner is solely responsible ensuring safe holding temperature levels for all food items. Failure to do Risk of electric shock or fire! so may result in unsafe food products. Loss or spoilage of products in your appliance is Before plugging in the appliance, be sure to not covered by warranty. -
Page 19: Temperature Control & Light Switch Location
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Appliance Operation (cont.) Temperature Control & Light Switch Location The light symbol shows the approximate location of the light switch. The electronic temperature control can act as a light switch. To control the light, press the up arrow Electronic Temperature Control On the front of top panel. -
Page 20: Flex Control
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Appliance Operation (cont.) Flex Control The Flex Control shifts the cabinet temperature control settings between that of a cooler and freezer. Flip the switch behind the front louver grill to change between modes. See location in the figures below. Page 20 of 40 12/3/2024 P#975523... -
Page 21: General Sequence Of Operation
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Appliance Operation (cont.) General Sequence of Operation — Refrigerators & Freezers USER ACTION! regarding an appliance's temperature control adjustment or general sequence of operation, For more information please see our Temperature Control Adjustment—Sequence of Operation Manual in our resource library at or scan the truemfg.com/support/manuals/#panel4 code. - Page 22 TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Appliance Operation (cont.) General Sequence of Operation — Refrigerators & Freezers (cont.) When the appliance is in defrost mode… 1. Every appliance requires a defrost event to ensure the evaporator coil remains clear of frost and ice buildup. 2.
- Page 23 TRADITIONAL REACH-INS (T-SERIES®) truemfg.com NOTES TEC_TM_121 | REV. E | EN 12/3/2024 Page 23 of 40...
-
Page 24: Maintenance And Servicing
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Maintenance & Servicing Maintenance & Servicing DANGER! WARNING! Sharp Edges! Risk of electric shock or burn! • Take care when moving, installing, cleaning, • Powering off an electronic control or setting servicing, and maintaining the appliance to avoid temperature controls to the 0 (off) position cuts. -
Page 25: Component Replacement
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Maintenance & Servicing (cont.) NOTICE! • The appliance owner is responsible maintaining the appliance as described in the installation manual. Routine care and maintenance procedures are not covered by TRUE's warranty. • For additional maintenance instruction, please visit the media center at truemfg.com. -
Page 26: Recommended Maintenance
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Maintenance & Servicing (cont.) Recommended Maintenance See recommended maintenance tasks and frequencies below. Some tasks may be required more frequently based on your installation. Maintenance Tasks Monthly Quarterly Annually Verify the appliance maintains product temperature. Inspect power cord for damage; if damaged, replace immediately. Verify the power cord is fully plugged into the wall receptacle Inspect the overall condition of the appliance and its components (such as castors, doors, and hinges). - Page 27 TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Maintenance & Servicing (cont.) Model: Serial Number: Jan. Feb. Mar. Apr. Jun. Jul. Aug. Sep. Oct. Nov. Dec. TEC_TM_121 | REV. E | EN 12/3/2024 Page 27 of 40...
-
Page 28: Condenser Coil Cleaning
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Maintenance & Servicing (cont.) Condenser Coil Cleaning Required Tools DANGER! Required tools include (but may not be limited to) the following: • Phillips screwdriver or bit driver Risk of electric shock or burn! • Unplug the appliance or disconnect power before •... - Page 29 TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Maintenance & Servicing (cont.) Fig. 1. Swing door louver grill screw locations. Fig. 2. Slide door louver grill screw locations. Fig. 3. Carefully remove the grill. Fig. 4. Never brush across the coil fins. Fig. 5. Verify all blockages have been removed. Fig.
-
Page 30: General Surface Care & Cleaning
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Maintenance & Servicing (cont.) General Surface Care & Cleaning Gaskets DANGER! • Clean gaskets with warm soapy water. • DO NOT use sharp tools or knives to scrape a gasket. Risk of electric shock or fire! •... -
Page 31: Stainless Steel Care & Cleaning
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Maintenance & Servicing (cont.) Stainless Steel Care & Cleaning Stainless Steel Cleaning and Restoration USER ACTION Stainless steel cleaners must be free of phosphates, chlorine, chloride, and ammonia. DO NOT USE ANY STEEL WOOL, ABRASIVE, OR CHLORINE-BASED PRODUCTS TO CLEAN True offers environmentally-friendly cleaner and polish through STAINLESS STEEL SURFACES. -
Page 32: Tips To Help Prevent Rust On Stainless Steel
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Maintenance & Servicing (cont.) 8 Tips to Help Prevent Rust on Stainless Steel Maintain the Cleanliness of Your Equipment Rinse Avoid build-up of hard stains by cleaning frequently. Use When using chlorinated cleaners, you must rinse and wipe dry cleaners at the recommended strength (alkaline chlorinated or immediately. -
Page 33: Slide Door Removal
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Maintenance & Servicing (cont.) Slide Door Removal WARNING! Doors are heavy. Be prepared Crush or cut hazard! to support the door's weight. Do not lift or support the door by the handle. USER ACTION Fig. 1. Door channel openings (two-door appliances ONLY). •... - Page 34 TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Maintenance & Servicing (cont.) Slide Door Removal (cont.) 4. Slide the left door to the right and align the right edge with the end of the TRUE Logo at the top of the door frame (see fig. 6). Then lift door out of track same way as fig. 4. 5.
-
Page 35: Slide Door Adjustment
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Maintenance & Servicing (cont.) Slide Door Adjustment Slide Door Hold-Open Feature Only adjust the appliances after it has been installed in its final The hold-open feature keeps the door in the open position. location and correctly leveled. Procedure Procedure 1. -
Page 36: Warranty Information
TRADITIONAL REACH-INS (T-SERIES®) truemfg.com Warranty Information (USA & Canada Only) Warranty Information To view and download the Warranty Information for USA & Canada, please scan the QR code below. Page 36 of 40 12/3/2024 P#975523 TEC_TM_121 | REV. E | EN... - Page 37 TRADITIONAL REACH-INS (T-SERIES®) truemfg.com NOTES TEC_TM_121 | REV. E | EN 12/3/2024 Page 37 of 40...
- Page 38 TRADITIONAL REACH-INS (T-SERIES®) truemfg.com NOTES Page 38 of 40 12/3/2024 P#975523 TEC_TM_121 | REV. E | EN...
- Page 39 TRADITIONAL REACH-INS (T-SERIES®) truemfg.com NOTES TEC_TM_121 | REV. E | EN 12/3/2024 Page 39 of 40...
- Page 40 truemfg.com 12/3/2024 P#975523 TEC_TM_121 | REV. E | EN DF_241372_10.24...
