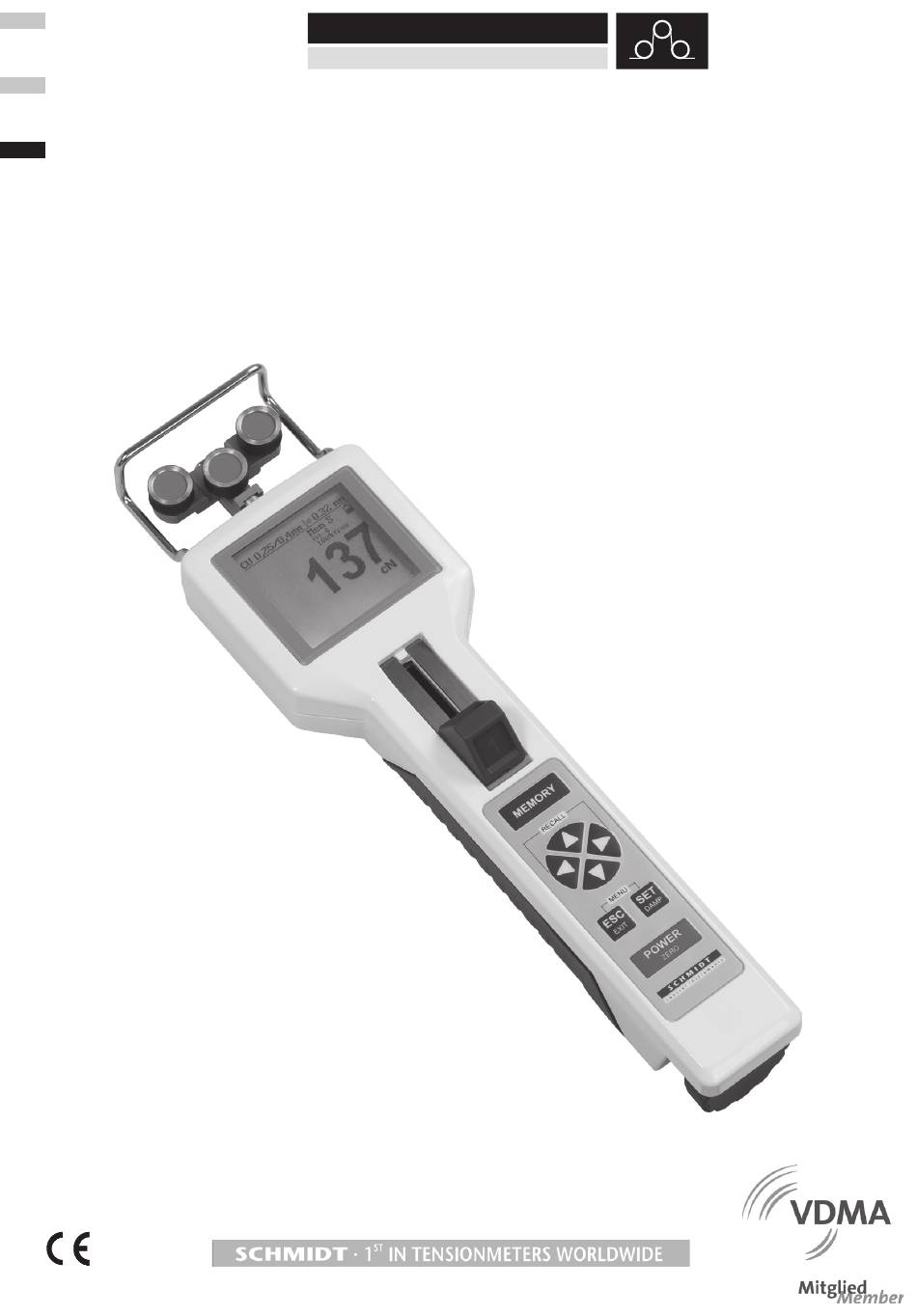

- Page 1 Tension Meter S C H M I D T c o n t r o l i n s t r u m e n t s Edition DTS 01-2.E DT Series Model DTS Instruction Manual DTSB DTSE DTSF Valid as of: 01.06.2017 • Please keep the manual for future reference!
-
Page 2: Table Of Contents
1.9 Declaration of conformity, RoHs II and WEEE registration ........5 2 Available models ...................... 6 2.1 General information ....................6 2.1.1 Available DTS models ..................6 2.1.2 Available DTSL models ..................8 2.1.3 Available DTSF models ..................8 2.1.4 Available DTSE models ..................9 2.1.5 Available DTSB models .................. - Page 3 4 Service and maintenance..................31 4.1 Rollers ........................31 5 Cleaning........................31 6 Verification interval ....................31 7 Correspondence ..................... 32 8 Repairs........................32...
-
Page 4: Warranty And Liability
Warranty: - SCHMIDT tension meters are warranted for 12 months. Parts subject to wear, electronic components and measuring springs are not covered by the warranty. No warranty or liability will be accepted for bodily injury or property damage resulting from one or several of the following causes: - Misuse or abuse of the device. -
Page 5: Informal Safety Measures
1.9 Declaration of conformity, RoHs II and WEEE registration In compliance with the EU Directives 2014/30/EU and 2011/65/EU Hans Schmidt & Co GmbH is registered in compliance with the German Electrical and Electronic Equipment Act (ElektroG) under WEEE Reg. No. DE 48092317. -
Page 6: Available Models
Available models 2.1 General information These instruction manual refer to the DTS model of the DT series; they are also applicable to the following models: DTSB, DTSE, DTSF und DTSL. The individual models of the DT series are also available with the following... - Page 7 30000 tex 1.20 - 2.50 mm Ø DTS-50K 0.5 - 50.00 daN max. 50000 tex 1.40 - 3.00 mm Ø DTS-60K-V1 0.6 - 60.00 daN max. 60000 tex 1.80 - 3.50 mm Ø DTS guide rollers: Line Speed V-grooved Roller Material max.
-
Page 8: Available Dtsl Models
2.1.2 Available DTSL models Tension *Measuring **SCHMIDT Model Ranges Head Width Calibration DTSL-2500 150 - 2500 With convenient material for each DTSL-5000 250 - 5000 roller design or DTSL-10K 1 - 10.00 daN customer supplied DTSL-20K 2 - 20.00 daN samples DTSL-50K-R4 5 - 50.00 daN... -
Page 9: Available Dtse Models
2.5 - 50 daN 7, 10 * Outer distance between outside guide rollers. SCHMIDT calibration - according to measuring range and roller width - with a textile ribbon or thin tape. The model DTSB do not include a material thickness... -
Page 10: Specifications
The requirements of the CE specification are only complied with if the tension meter is equipped and operated with equipment supplied by Hans Schmidt & Co GmbH. Certification to the CE specification does not extend to, and shall be invalid for any other combination. For damage resulting... -
Page 11: Delivery Includes
The ID plate with the CE mark and the serial number as well as the calibration label (optional) are provided on the backside of the instrument, the SCHMIDT quality seal is provided on the surface. Calibration label... -
Page 12: Stationary Mounting Of The Unit (Optional)
3.1.1 Stationary mounting of the unit (optional) (Code MH - with distance bolts) fig. 3.1.1 Distance bolts length 10 mm, Thread size M5 Thread depth max. 5 mm Hole distance 23 mm Optionally, the tension meter can be delivered with distance bolts for stationary use. The dimensions are given in fig. -
Page 13: Operating And Display Elements
3.2 Operating and display elements 1 Filament guide 8 „MEMORY“ key 2 Guide rollers 9 Arrow key 3 Measuring roller 10 „ESC / EXIT“ key 4 Material to be measured 11 „SET / DAMP“ key 5 Display 12 „POWER / ZERO“ key 6 USB interface / power connector 13 Adjustment wheel for material thickness com- 7 Thumbpiece... - Page 14 3.2 Operating and display elements Numeric display Adjusted material Info on material Battery status indicator diameter Damping Memory mode (data stored in the memory) Current reading Measurement unit Min/Max alarm Display with bargraph Adjusted material Info on material Battery status indicator diameter Damping Memory mode (data...
- Page 15 3.2 Operating and display elements Graphic display Adjusted material diameter Battery status indicator Info on material Damping Memory mode (data Tension range stored in the memory) Measured values Max-alarm value as graph Min-alarm value Current reading Measurement unit Min/Max-alarm Alarm values The Y-axis can be scaled with the buttons.
-
Page 16: Setup
Before you connect the AC adapter, verify that the supply voltage is correct (100 V - 240 V). Hans Schmidt & Co. GmbH provides no warranty or liability for any damage resulting from the use of AC adapters from other manufacturers. -
Page 17: Tension Meter Settings
3.4 Tension meter settings Thumbpiece positions Pos. 2 Pos. 0 Pos. 1 fig. 3.4 2 = Measurement position 0 = Adjustment position 1 = Threading position (guide rollers in their forward position) Menu settings can be changed with the thumbpiece in Pos. 0 (Adjustment position). - Page 18 3.4 Tension meter settings Main Menu Submenu Settings Menu Description Material [1] to [5] Chapter 3.4.1 Material-Set-up Cal. — [- 10 %] - [+ 10 %] Chapter 3.5.6 Adjustment • Measured value displayed as number and alarm monitoring [numeric] • Measured value displayed as number, [Bargraph] Display bar graph trend display and alarm...
-
Page 19: Material Menu
To apply a changed password, exit the main menu. Entering 0000 as the password disables the password feature. If you forgot the password, please contact Hans Schmidt & Co GmbH to request the master password. As an alternative, you can perform a factory reset. Please... -
Page 20: Factory Reset
3.4.3 Factory reset A factory reset resets the tension meter to its original manufacturer settings. This proce- dure will delete all settings, including any customer-defined material characteristics (calibrations); the factory calibration, however, will be kept. Customer calibrations will be deleted. Operation procedure Requirements: - Switch the tension meter on (chapter 3.3) -
Page 21: Zero Adjustment Of The Measurement Position
3.5.2 Zero adjustment of the measurement position Each time the measurement position is changed, the tension meter will automatically perform a zero adjustment. If the tension meter does not display zero in its measuring position, perform a manual zero adjustment procedure. For this purpose, no material to be measured must have been inserted yet! Requirements: - The tension meter has been switched on as described in chapter 3.3.2. -
Page 22: Inserting And Removing Material To Be Measured
3.5.3 Inserting and removing material to be measured Guide rollers Guide rollers Material to be measured Filament guide Measuring roller Thumbpiece fig. 3.5.3a Thumbpiece positions Pos. 2 Pos. 0 Pos. 1 fig. 3.5.3b 2 = Measurement position 0 = Adjustment position 1 = Thread in position (the guide rollers extend forward) Inserting the material to be measured: - Push the thumbpiece in the direction of the arrow into its threading position 1... - Page 23 3.5.3 Inserting and removing material to be measured (cont.) fig. 3.5.3d fig. 3.5.3e fig. 3.5.3f Numerical Display Display with bargraph Graphical Display Press the button simultaneously to change the different display modes during the working mode. Do not let the thumbpiece snap back as this could affect the calibration and damage the instrument.
-
Page 24: Damping
3.5.4 Damping Feature to be used for tensions that vary strongly In the Damping menu (chapter 3.4.1), you can specify separate damping factors for each material characteristic. Back in the display mode, press the button to activate or deactivate the damping function. This is recommended if the displayed values vary stron- gly. -
Page 25: Cal. Adjustment
3.5.6 Cal. adjustment By performing a calibration adjustment, you can adjust a material characteristic calibrated for a particular material to a different material or diameter without creating a new material characteristic. Requirements: - Prepare the measuring setup as shown in fig. 3.5.6a. - Make sure that the thumbpiece is in the adjustment position (chapter 3.5.3). -
Page 26: Creating A Material Characteristic
The the materials and diameters are given in chapter 2. Factory calibrations using customer supplied materials follow the same procedure. In this case, however, the calibration on Schmidt material 1 is omitted The material characteristics 1 has been preset in the factory and cannot be overwritten. - Page 27 - The unit for the material thickness must have been set (chapter 3.4) To perform the calibration procedure - Select a new material or edit an existing one (by re-entering the values) from the „material“ menu. - Enter a designation Vertical calibration (standard for SCHMIDT calibrations) Guide roller Measuring roller Guide roller...
- Page 28 3.6.1 Calibration procedure (cont.) Step 2: Set the diameter This step is only required for tension meters with a material thickness compensator Step 3: Perform a zero adjustment with the tension meter in its measuring position Step 4: Calibrate calibration point 1 Insert material to be measured Step 5: Calibrate calibration point 2...
-
Page 29: Verifying The Calibration
The diameters and materials are given in chapter 2. Calibrations of the tension meter are performed accor- ding to the SCHMIDT factory procedure using weights that correspond to 10 %, 50 % and 90 % of the measuring range. -
Page 30: Memory Functions
Memory functions You can store and display the statistics of one measuring series (last measured value, the average, the minimum and maximum measured values, the peaks, the standard deviation). 3.7.1 Save data - Press the button to start recording the measured values. - While recording is in process, “Rec S”... - Page 31 The question of finding the right frequency of calibration accuracy verification depends on several different factors: Operating time and load of the SCHMIDT tension meter Tolerance band defined by the customer Changes to the tolerance band compared to previous calibrations Therefore, the interval between verifications of calibration must be determined by the user‘s Quality Assurance Department, based on the user‘s experience.
- Page 32 Please indicate in your order whether you require an Inspection Certificate 3.1 according to DIN EN 10204. Service address: Hans Schmidt & Co GmbH Schichtstr. 16 D-84478 Waldkraiburg Germany...
