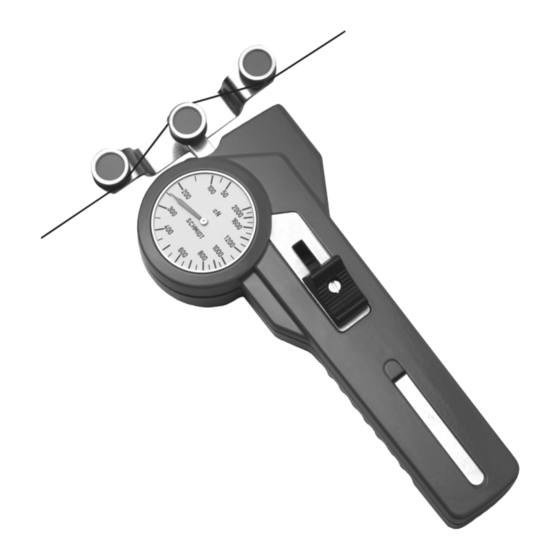

Schmidt DX Series Instruction Manual
Hide thumbs
Also See for DX Series:
- Operating instructions manual (20 pages) ,
- Instruction manual (12 pages)
Related Manuals for Schmidt DX Series
Summary of Contents for Schmidt DX Series
- Page 1 S C H M I D T c o n t r o l i n s t r u m e n t s Edition EDM 02.2.E DX Series Model Instruction Manual Valid as of: 01.09.2006 • Please keep the manual for future reference!
-
Page 2: Table Of Contents
Contents 1 Warranty and liability ..................... 15 1.1 Notices within the instruction manual ..............15 1.2 Responsibilities of the operating company ............15 1.3 Responsibilities of the personnel ................. 15 1.4 Informal safety measures ..................16 1.5 Training of the personnel ..................16 1.6 Intended use ...................... -
Page 3: Warranty And Liability
Warranty: - SCHMIDT tension meters are warranted for 12 months. Parts subject to wear, electronic components and measuring springs are not covered by the warranty. No warranty or liability will be accepted for bodily injury or property damage resulting from one or several of the following causes: - Misuse or abuse of the device. -
Page 4: Informal Safety Measures
The device is intended exclusively to be used as a tension meter. Any other use or any use exceeding this intention will be regarded as misuse. Under no circumstances shall Hans Schmidt & Co GmbH be held liable for damage resulting from misuse. -
Page 5: Available Models
PA: 0.30 mm Ø ** Suitable for 95% of applications. PA = Polyamide Monofilament If the material to be measured differs significant from the SCHMIDT calibration material in diameter, rigidity, shape, etc., we recommend calibration using custom- er material. For this purpose, a material sample of about 5 m should be supplied. -
Page 6: Measuring
100 % may cause permanent damage to the movement and must be avoided under any circumstances. The ID plate with the serial number as well as the calibration label (optional) are provided on the bottom of the instrument, the SCHMIDT Quality Seal are pro- vided on the surface. SCHMIDT quality seal... -
Page 7: Operating Elements Of The Tension Meter
3.3 Operating elements of the tension meter Guide rollers 3.4 Measuring with the tension meter Process material Guide rollers Guide rollers Measuring roller Thumb piece fig. 3.4 Inserting: - Push the thumb piece or special lever as far as it will go in the direction of the arrow to extend the outer rollers. -
Page 8: Verification Of The Dx2 Calibration
Any difference in process material size and rigidity from the standard material may cause a deviation of the accuracy. In 95 % of all industrial applications the SCHMIDT calibration has been proven to provide the best results and is used for comparative purposes. -
Page 9: Service And Maintenance
The question of finding the right frequency of calibration accuracy verification depends on several different factors: Operating time and load of the SCHMIDT tension meter Tolerance band defined by the customer Changes of the tolerance band compared to previous verifications of calibration Therefore, the interval between verifications must be determined by the user`s Quality Assurance Department based on the user`s experience. -
Page 10: Verification Of Calibration And Determination Of Repair Costs
6.1 Verification of calibration and determination of repair costs Flow chart for verifying the calibration of used tension meters, incoming and outgoing verification with Inspection Certificate 3.1 according to DIN EN 10204 Delivery Visual inspection and functional test Unit can be Vertification of the calibrated calibration... -
Page 11: Correspondence
Please indicate in your order whether you require an Inspection Certificate 3.1 according to DIN EN 10204. Service address: Hans Schmidt & Co GmbH Schichtstr. 16 D-84478 Waldkraiburg Germany... - Page 12 Yarn Package Durometer and Shore Durometer Sample Cutter Balance Moisture Meter Leak Tester More than 75 years - Worldwide - Hans Schmidt & Co GmbH Mailing address: P. O. B. 11 54 Phone: e-mail: 84464 Waldkraiburg Germany int. + 49 / (0)8638 / 9410-0 info@hans-schmidt.com...
