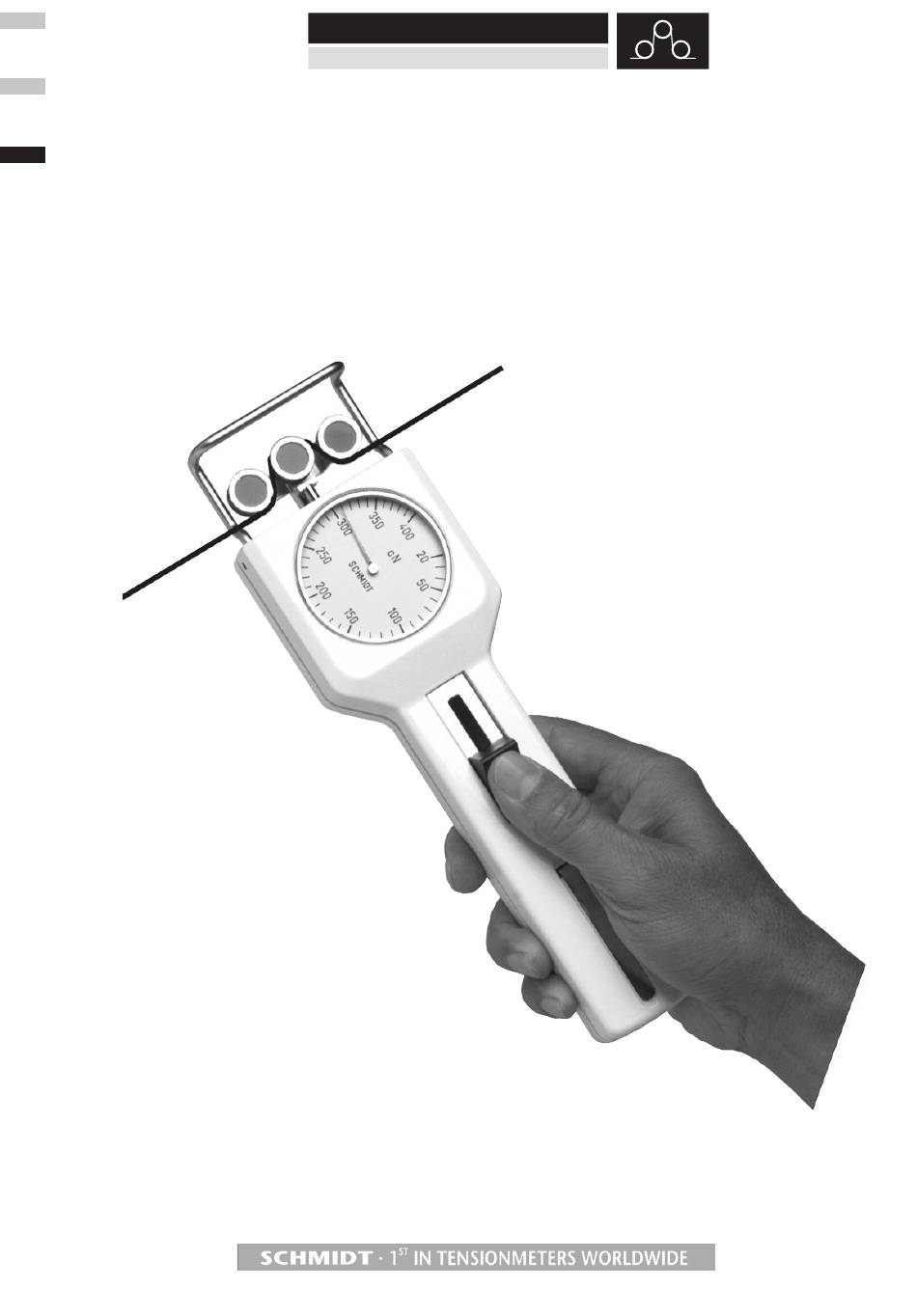

- Page 1 S C H M I D T c o n t r o l i n s t r u m e n t s Edition DN.04.2.E DN Series Model DN1 Instruction Manual Valid as of: 01.04.2006 • Please keep the manual for future reference!
-
Page 2: Table Of Contents
Contents 1 Warranty and liability ....................3 1.1 Notices within the instruction manual ...............3 1.2 Responsibilities of the operating company ............3 1.3 Responsibilities of the personnel ..............3 1.4 Informal safety measures .................4 1.5 Training of the personnel ..................4 1.6 Intended use .....................4 1.7 Dangers in handling the device ................4 1.8 Copyright ......................4 1.9 Declaration of conformity ..................4... -
Page 3: Warranty And Liability
Warranty: - SCHMIDT tension meters are warranted for 12 months. Parts subject to wear, electronic components and measuring springs are not covered by the warranty. No warranty or liability will be accepted for bodily injury or property damage resulting from one or several of the following causes: - Misuse or abuse of the device. -
Page 4: Informal Safety Measures
The device is intended exclusively to be used as a tension meter. Any other use or any use exceeding this intention will be regarded as misuse. Under no circumstances shall Hans Schmidt & Co GmbH be held liable for damage resulting from misuse. The intended use also includes: - Complying with all notices included in the instruction manual and observing all inspection and maintenance works. -
Page 5: Available Models
Available models These instruction manual refer to model DN1 of the DN series. The individual models of the DN series are also available with the following modifications (customized versions): - Special tension ranges - Customized measuring head width for applications with limited access... -
Page 6: Optional Accessories
2.1 Specifications (cont.) Guide rollers: Line Speed V-grooved Roller Material m/min max. Standard 2000 Hard-coated aluminium Code K 3500 Hard-coated aluminium plasma-coated aluminium Code H 5000 (not for Type DN1-30K-L and DN1-50K-L) Code T 1000 Plastic (POM) black Code W 1000 Nickel-plated steel Code ST... -
Page 7: Delivery Includes
100 % may cause permanent damage to the movement and must be avoided under any circumstances. The ID plate with the serial number as well as the calibration label (optional) are provided on the bottom of the instrument, the SCHMIDT Quality Seal are provided on the surface. Calibration label (option) -
Page 8: Operating Elements Of The Tension Meter
3.1 Operating elements of the tension meter Guide rollers Filament guide... -
Page 9: Material Thickness Compensator
3.2 Material thickness compensator (Only used at instruments with material thickness compensator) The 3-roller system for tension measurement relies on the displacement of the middle roller to give an indication of the line tension. As the material thickness changes, there will be a change in the tension reading, even when the line tension has not changed. -
Page 10: Measuring With The Tension Meter
3.3 Measuring with the tension meter Requirement: If necessary, a sample of the material to be measured must be inserted in the thickness compensator as described in chapter 3.2. Process material Guide rollers Filament guide Guide rollers Measuring roller Thumb piece fig. -
Page 11: Verification Of The Dn1 Calibration
Any difference in process material size and rigidity from the standard material may cause a deviation of the accuracy. In 95 % of all industrial applications the SCHMIDT calibration has been proven to provide the best results and is used for comparative purposes. -
Page 12: Air Damping (Optional Accessory Code A)
3.5 Air damping (optional accessory Code A) During operation, as in spooling or winding machines, high frequency tension fluctuation can occur. This process fluctuation can result in rapid pointer swings which make it difficult to read the scale. This effect can be reduced by using the built in Air Dashpot Damping mechanism. -
Page 13: Service And Maintenance
The question of finding the right frequency of calibration accuracy verification depends on several different factors: Operating time and load of the SCHMIDT tension meter Tolerance band defined by the customer Changes of the tolerance band compared to previous verifications of calibration Therefore, the interval between verifications must be determined by the user`s Quality Assurance Department based on the user`s experience. -
Page 14: Verification Of Calibration And Determination Of Repair Costs
4.3.1 Verification of calibration and determination of repair costs Flow chart for verifying the calibration of used tension meters, incoming and outgoing verification with Inspection Certificate 3.1 according to DIN EN 10204 Delivery Visual inspection and functional test Unit can be Vertification of the calibrated calibration... -
Page 15: Correspondence
Please indicate in your order whether you require an Inspection Certificate 3.1 according to DIN EN 10204. Service address: Hans Schmidt & Co GmbH Schichtstr. 16 D-84478 Waldkraiburg Germany... - Page 16 Yarn Package Durometer and Shore Durometer Sample Cutter Balance Moisture Meter Leak Tester More than 75 years - Worldwide - Hans Schmidt & Co GmbH Mailing address: P. O. B. 11 54 Phone: e-mail: 84464 Waldkraiburg Germany int. + 49 / (0)8638 / 9410-0 info@hans-schmidt.com...
