Summary of Contents for Texas Instruments Chipcon CC2400EB

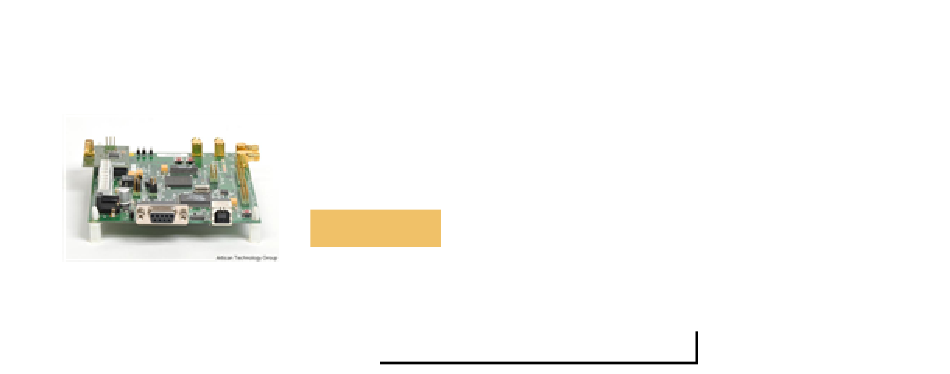

Page 1 Chipcon CC2400EB Evaluation Board 2495 In Stock Qty Available: 1 Used and in Excellent Condition Open Web Page https://www.artisantg.com/81977-1 A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
Page 2 User Manual Rev. 1.1 CC2400DK Development Kit SWRU050 Page 1 of 35...
Page 3 Table of contents INTRODUCTION ........................3 EVALUATION MODULE......................4 ......................4 IRCUIT DESCRIPTION ........................... 4 LAYOUT ..........................10 CHEMATIC EVALUATION BOARD ......................12 ......................12 OWER SUPPLY SECTION ........................14 INTERFACE RS-232 ........................ 14 INTERFACE ..........................14 UMPERS FPGA....................15 ICROCONTROLLER AND ........................
Page 4 Introduction The CC2400 single-chip RF transceiver provides a highly integrated, flexible low-cost solution for applications using the worldwide unlicensed 2.4 GHz frequency band. The CC2400DK development kit is a powerful and flexible tool specifically designed to make it easy for the user to evaluate the RF performance of the CC2400 and to minimize the time spent on evaluation.
Page 5 Evaluation Module The Evaluation Module contains the CC2400 chip together with the needed external circuitry for operation. Not all components are needed in an actual application. Please see the datasheet for a typical application circuit. The CC2400 operates in the 2.4 GHz frequency band. Although this frequency band is usually described as “world-wide”, some countries do not allow unlicensed operation in this band.
Page 6 Figure 2: CC2400EM PCB layout, layer 1 SWRU050 Page 5 of 35...
Page 7 Figure 3: CC2400EM PCB layout, layer 2 SWRU050 Page 6 of 35...
Page 8 Figure 4: CC2400 PCB layout, layer 3 SWRU050 Page 7 of 35...
Page 9 Figure 5: CC2400EM PCB layout, layer 4 SWRU050 Page 8 of 35...
Page 10 Figure 6: CC2400EM component placement, top side (left) and bottom side (right) SWRU050 Page 9 of 35...
Page 11 Schematic SWRU050 Page 10 of 35...
Page 12 Bill of materials, CC2400EM Bill of materials, CC2400EM Reference Description Value Part Capacitor 0603 2.2 µF, 10% C_2U2_0603_X5R_K_10 Capacitor 0402 100 nF, 10% C_100N_0402_X5R_J_10 Capacitor 0402 0.5 pF, ± 0.25 pF C_0P5_0402_NP0_C_50 Capacitor 0402 5.6 pF, ± 0.25 pF C_5P6_0402_NP0_C_50 Capacitor 0402 100 nF, 10% C_100N_0402_X5R_J_10...
Page 13 Evaluation Board The Evaluation Board is used as a motherboard for the Evaluation Modules and provides power and external connections. Jumpers Sockets for EM Power connections Buttons DC jack LEDs SMA connectors Serial port USB port Test port Reset button Figure 7: CC2400EB Evaluation Board Power supply section The power supply section is configured by moving the jumpers located on the board.
Page 14 current measurement loops for these two supplies. If you are not going to measure the currents, short-circuit jumpers must be connected between the terminals, otherwise the Evaluation Module will not be supplied with power. ExtC ExtI 4-7V Figure 8: Power terminal block with amperemeters attached Table 1: Power connector connections Connector and pin Marking...
Page 15 USB interface ® The CC2400EB connects to a PC via a USB interface. SmartRF Studio uses the USB interface to control the CC2400EB. The USB interface can be used both to configure the CC2400 and transfer data. Chipcon provides a Windows driver that is installed as part of the ®...
Page 16 Jumpers Name Default setting Description Between pins Determines how the I/O supply of the CC2400 is supplied 6 and 8 with power. If the jumper is connected between pins 8 and 6, the 1.8V supply is used. If the jumper is connected between pins 8 and 10, the 3.3V supply is used.
Page 17 Connectors The Evaluation Board is furnished with many connectors for easy access to various signals. Test Port 1 (P17) and Test Port 2 (P5) are 2x10 pin pin-row connectors that are connected to the FPGA and can be used to monitor various signals, including all the CC2400 signals. The pin-out of these connectors is compatible with logic analyzer probes from Agilent.
Page 18 PCB layout The Evaluation Board is a 4-layer, 1.6 mm thick FR-4 PCB. Four layers are used because of the routing requirements. Layers 1 and 4 are used for signal routing, layer 2 is a ground plane and layer 3 is used for power routing. The majority of the components are mounted on the top side of the PCB, while a few decoupling capacitors were put on the bottom side.
Page 19 Figure 11: CC2400EB component placement, top side SWRU050 Page 18 of 35...
Page 20 Figure 12: CC2400EB component placement, bottom side SWRU050 Page 19 of 35...
Page 21 Schematics, CC2400EB SWRU050 Page 20 of 35...
Page 22 SWRU050 Page 21 of 35...
Page 23 SWRU050 Page 22 of 35...
Page 24 SWRU050 Page 23 of 35...
Page 25 SWRU050 Page 24 of 35...
Page 26 Bill of Materials, CC2400EB Bill of materials, CC2400EB Evaluation Board Reference Description Value Part Capacitor 1206 2.2 µF, 10% C_2U2_1206_X7R_K_10 Capacitor 0603 27 pF, 5% C_27P_0603_NP0_J_50 Capacitor 0603 27 pF, 5% C_27P_0603_NP0_J_50 Capacitor, tantal 3.3 µF C_3U3_TAN_B Comment [C1]: Capacitor 1206 2.2 µF, 10% C_2U2_1206_X7R_K_10 Capacitor 0603...
Page 27 Bill of materials, CC2400EB Evaluation Board Reference Description Value Part Capacitor 0603 33 nF, 10% C_33N_0603_X7R_K_25 Capacitor 0603 33 nF, 10% C_33N_0603_X7R_K_25 Capacitor 0603 33 nF, 10% C_33N_0603_X7R_K_25 Capacitor 0603 33 nF, 10% C_33N_0603_X7R_K_25 Capacitor 0603 33 nF, 10% C_33N_0603_X7R_K_25 Capacitor 0603 33 nF, 10% C_33N_0603_X7R_K_25...
Page 28 Bill of materials, CC2400EB Evaluation Board Reference Description Value Part C104 Capacitor 0603 100 nF, 10% C_100N_0603_X7R_K_50 C105 Capacitor 0603 33 nF, 10% C_33N_0603_X7R_K_25 Comment [C2]: C106 Capacitor 1206 2.2 µF, 10% C_2U2_1206_X7R_K_10 Schottky diode, 2A 20BQ030, International Rectifier LED, green, SMD LED_CL150GCD, Citizen LED, red, SMD LED_CL150URCD, Citizen...
Page 29 Bill of materials, CC2400EB Evaluation Board Reference Description Value Part Do not mount Low-profile pin row CON6_FEMALE_LP (Preci-DIP 801- connector, 1x6 91-006-10-012) PNP, general-purpose BC857B (Philips) NPN, small-signal BC846B (Philips) Resistor 0603 10 kΩ, 2% R_10K_0603_G Resistor 0603 22 Ω, 2% R_22_0603_G Resistor 0603 22 Ω, 2%...
Page 30 Bill of materials, CC2400EB Evaluation Board Reference Description Value Part Resistor 0603 0 Ω R_0_0603 Do Not Mount Resistor 0603 47 kΩ, 2% R_47K_0603_G Do Not Mount Do Not Mount Do Not Mount Do Not Mount Do Not Mount Do Not Mount Resistor 0603 47 kΩ, 2% R_47K_0603_G...
Page 31 Bill of materials, CC2400EB Evaluation Board Reference Description Value Part 32 kB SRAM IDT71V256SA20YI, IDT 1.8 V low drop-out XC6204B182MR, Torex regulator 1.8 V low drop-out LP3961ES-1.8, National regulator, 800 mA Semiconductor 16 byte I2C EEPROM 24LC00I/SN, Microchip Do Not Mount Do Not Mount Quad NAND gate 74HC00D, Philips...
Page 32 Using the Development Kit The Development Kit is useful for providing hands-on experience with the CC2400 for both software and hardware developers. The plug-in Evaluation Module provides flexibility; it can operate both in a stand-alone fashion and together with the Evaluation Board. Using the Evaluation Board, it is easy to interface the CC2400 with both test equipment and additional application circuitry without having to make a PCB from scratch.
Page 33 Using the CC2400DK for prototyping The CC2400EM module contains the CC2400 and all external components required. All CC2400 signals are available at the SMD connectors on the bottom side of the module. The modules can be easily plugged into a prototype PCB containing the rest of the system. The SMD connectors used on the CC2400EM are manufactured by Samtec (http://www.samtec.com/), please refer to the CC2400EB bill of materials for the part number of the connector that will interface with the connectors on the EM.
Page 34 Troubleshooting It does not work • Make sure that either a jumper or an amperemeter is connected between the IOI and II terminals and the IIC and IOC terminals on the power connector. • Make sure that the power supply is connected to the correct pins on the power connector.
Page 35 Disclaimer Chipcon AS believes the information contained herein is correct and accurate at the time of this printing. However, Chipcon AS reserves the right to make changes to this product without notice. Chipcon AS does not assume any responsibility for the use of the described product.; neither does it convey any license under its patent rights, or the rights of others.
Page 36 Address Information Web site: http://www.chipcon.com E-mail: wireless@chipcon.com Technical Support Email: support@chipcon.com Technical Support Hotline: +47 22 95 85 45 Headquarters: Chipcon AS Gaustadalléen 21 NO-0349 Oslo NORWAY Tel: +47 22 95 85 44 Fax: +47 22 95 85 46 E-mail: wireless@chipcon.com US Offices: Chipcon Inc., Eastern US Sales Office...
