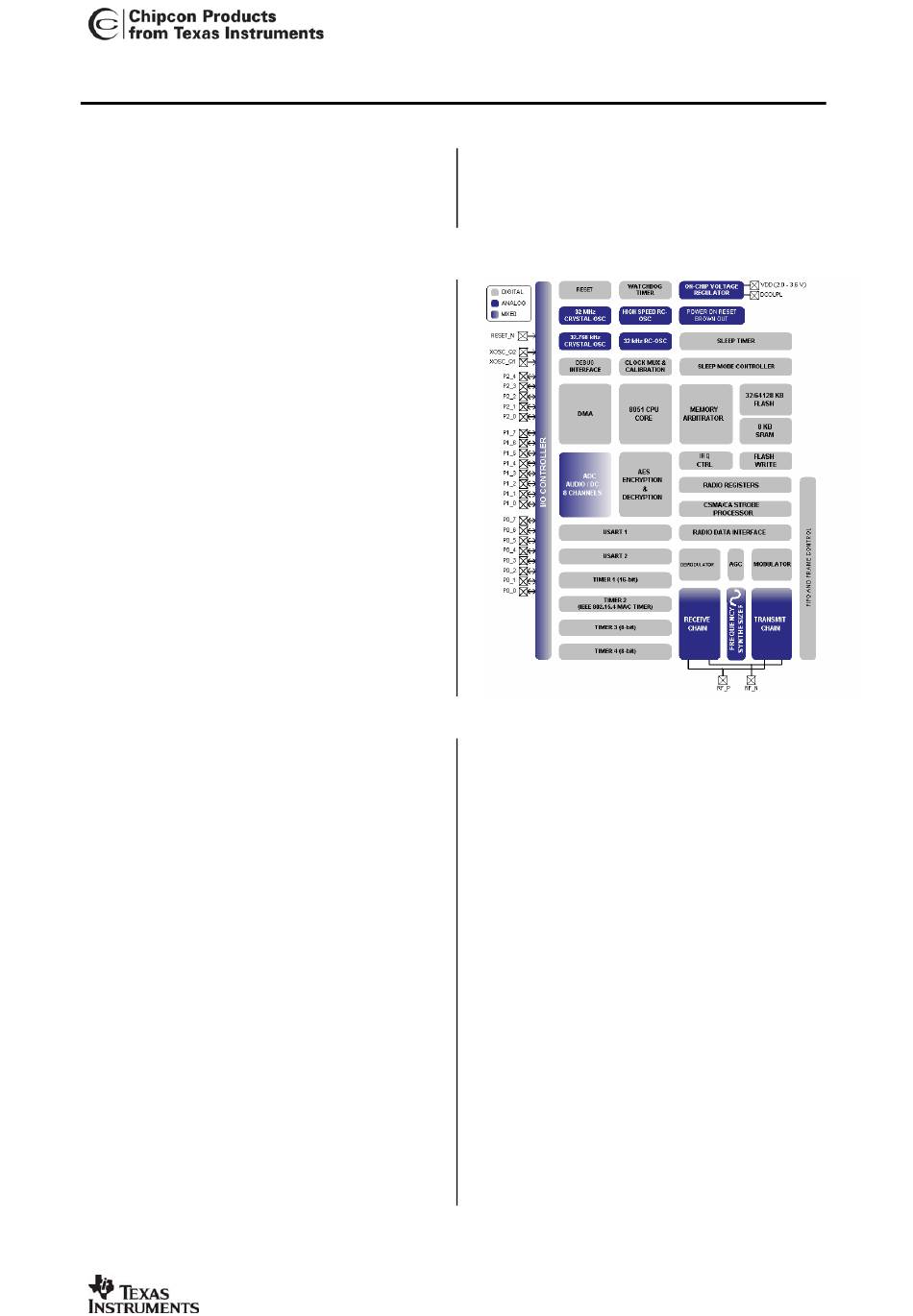

A True System-on-Chip solution for 2.4 GHz IEEE 802.15.4 / ZigBee
Applications
• 2.4 GHz IEEE 802.15.4 systems
®
• ZigBee
systems
• Home/building automation
• Industrial Control and Monitoring
Product Description
CC2430
The
comes in three different flash
versions: CC2430F32/64/128, with 32/64/128
KB of flash memory respectively. The
is a true System-on-Chip (SoC) solution
specifically tailored for IEEE 802.15.4 and
®
ZigBee
applications. It enables ZigBee
nodes to be built with very low total bill-of-
CC2430
material costs. The
excellent performance of the leading
RF transceiver with an industry-standard
enhanced 8051 MCU, 32/64/128 KB flash
memory, 8 KB RAM and many other powerful
features. Combined with the industry leading
®
ZigBee
protocol stack (Z-Stack™) from Texas
CC2430
Instruments, the
most competitive ZigBee
CC2430
The
is highly suited for systems where
ultra low power consumption is required. This
is ensured by various operating modes. Short
transition times between operating modes
further ensure low power consumption.
Key Features
•
RF/Layout
o 2.4 GHz IEEE 802.15.4 compliant RF
transceiver (industry leading CC2420 radio
core)
o Excellent receiver sensitivity and robustness to
interferers
o Very few external components
o Only a single crystal needed for mesh network
systems

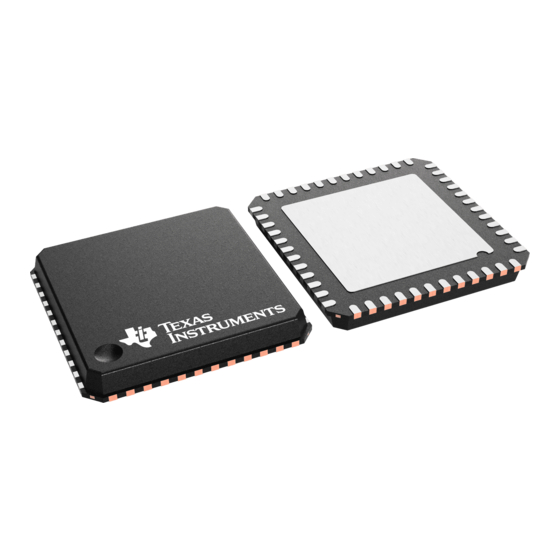

o RoHS compliant 7x7mm QLP48 package
•
Low Power
o Low current consumption (RX: 27 mA, TX: 27
mA, microcontroller running at 32 MHz)
o Only 0.5 µA current consumption in powerdown
mode, where external interrupts or the RTC
can wake up the system
o 0.3 µA current consumption in stand-by mode,
where external interrupts can wake up the
system
o Very fast transition times from low-power
modes to active mode enables ultra low
average power consumption in low dutycycle
systems
o Wide supply voltage range (2.0V - 3.6V)
CC2430
®
combines the
CC2420
provides the market's
®
solution.
CC2430 Data Sheet (rev. 2.1) SWRS036F
• Low power wireless sensor networks
• PC peripherals
• Set-top boxes and remote controls
• Consumer Electronics
•
Microcontroller
o High performance and low power 8051
microcontroller core
o 32, 64 or 128 KB in-system programmable
flash
o 8 KB RAM, 4 KB with data retention in all
power modes
o Powerful DMA functionality
o Watchdog timer
o One IEEE 802.15.4 MAC timer, one general
16-bit timer and two 8-bit timers
o Hardware debug support
•
Peripherals
o CSMA/CA hardware support.
o Digital RSSI / LQI support
o Battery monitor and temperature sensor
o 12-bit ADC with up to eight inputs and
configurable resolution
o AES security coprocessor
o Two powerful USARTs with support for several
serial protocols
o 21 general I/O pins, two with 20mA sink/source
capability
•
Development tools
o Powerful and flexible development tools
available
CC2430
®
Page 1 of 211
