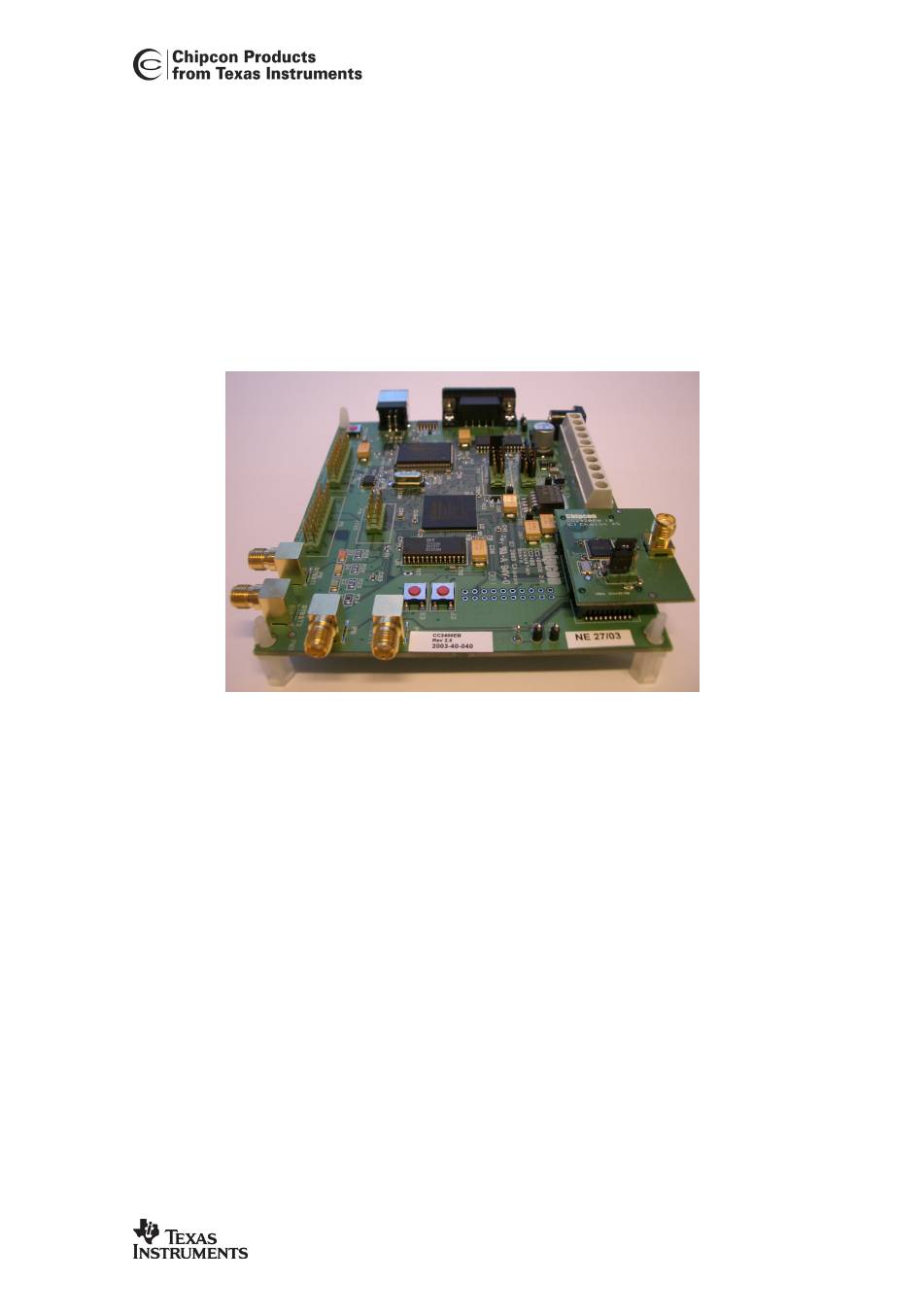

User Manual
Rev. 1.0
CC2420DK Development Kit
SWRU045
Page 1 of 32
This datasheet has been downloaded from
http://www.digchip.com
at this
page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Chipcon CC2420DK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texas Instruments Chipcon CC2420DK

Summary of Contents for Texas Instruments Chipcon CC2420DK

  • Page 1 User Manual Rev. 1.0 CC2420DK Development Kit SWRU045 Page 1 of 32 This datasheet has been downloaded from http://www.digchip.com at this page...

  • Page 2: Table Of Contents

    Table of contents INTRODUCTION ........................3 CC2420 EVALUATION MODULE .................... 4 ......................4 IRCUIT DESCRIPTION , CC2420EM ....................... 4 LAYOUT , CC2420EM ......................8 CHEMATIC , CC2420EM ....................9 ILL OF MATERIALS CC2400 EVALUATION BOARD..................... 10 ......................10 OWER SUPPLY SECTION ........................

  • Page 3: Introduction

    Introduction The CC2420 is a true single-chip 2.4 GHz IEEE 802.15.4 compliant RF transceiver designed for low-power and low-voltage wireless applications. The CC2420DK development kit is a powerful and flexible tool specifically designed to make it easy for the user to evaluate the RF performance of the CC2420 and to minimize the time spent on evaluation.

  • Page 4: Cc2420 Evaluation Module

    CC2420 Evaluation Module The CC2420EM Evaluation Module contains the CC2420 chip together with the external circuitry needed for proper operation. Not all components are needed in an actual application. Please see the data sheet for a typical application circuit. The CC2420 operates in the 2.4 GHz frequency band. Although this frequency band is usually described as “world-wide”, some countries do not allow unlicensed operation in this band.
  • Page 5 Figure 2: CC2420EM PCB layout, layer 1 Figure 3: CC2420EM PCB layout, layer 2 SWRU045 Page 5 of 32...
  • Page 6 Figure 4: CC2420 PCB layout, layer 3 Figure 5: CC2420EM PCB layout, layer 4 SWRU045 Page 6 of 32...
  • Page 7 Figure 6a: CC2420EM component placement, top side Figure 6b: CC2420EM component placement, bottom side SWRU045 Page 7 of 32...

  • Page 8: Schematic, Cc2420Em

    Schematic, CC2420EM Figure 7: CC2420EM schematic SWRU045 Page 8 of 32...

  • Page 9: Bill Of Materials, Cc2420Em

    Bill of materials, CC2420EM Bill of materials, CC2420EM Reference Description Value Part Capacitor 0603 2.2 µF, 10% C_2U2_0603_X5R_K_10 Capacitor 0402 100 nF, 10% C_100N_0402_X5R_J_10 Capacitor 0402 0.5 pF, ± 0.25 pF C_0P5_0402_NP0_C_50 Capacitor 0402 5.6 pF, ± 0.25 pF C_5P6_0402_NP0_C_50 Capacitor 0402 5.6 pF, ±...

  • Page 10: Cc2400 Evaluation Board

    Note: The crystal X1 mounted on the EM board is a 16.000 MHz crystal, with ±10 ppm initial tolerance, ± 10 ppm drift over temperature and a temperature range of -10˚ C to +60˚ C. The crystal is designed for 16 pF load capacitance. In an actual application, the tolerance, drift and temperature range of the crystal must be considered with application requirements in ®...
  • Page 11 FPGA is turned on under software control when the USB controller has been properly configured. A diode prevents permanent damage if wrong polarity is applied to the non-regulated input. There are two power connectors; a 3.5mm DC jack-type connector allows you to connect an unregulated battery eliminator easily (the positive supply is on the center pin), and two 5-pin terminal blocks can be used to connect either an unregulated or regulated power supply.

  • Page 12: Usb Interface

    drawn by the core supply of the CC2420. USB interface ® The CC2400EB connects to a PC via a USB interface. SmartRF Studio uses the USB interface to control the CC2400EB. The USB interface can be used both to configure the CC2420 and transfer data.

  • Page 13: Microcontroller And Fpga

    Jumpers Name Default setting Description Between pins Determines how the I/O supply of the CC2420 is supplied 6 and 8 with power. If the jumper is connected between pins 8 and 6, the 1.8V supply is used. If the jumper is connected between pins 8 and 10, the 3.3V supply is used.

  • Page 14: Connectors

    Connectors The Evaluation Board is furnished with many connectors for easy access to various signals. Test Port 1 (P17) and Test Port 2 (P5) are 2x10 pin pin-row connectors that are connected to the FPGA and can be used to monitor various signals, including all the CC2420 signals. The pin-out of these connectors is compatible with logic analyzer probes from Agilent.

  • Page 15: Pcb Layout, Cc2400Eb

    PCB layout, CC2400EB The Evaluation Board is a 4-layer, 1.6 mm thick FR-4 PCB. Four layers are used because of the routing requirements. Layers 1 and 4 are used for signal routing, layer 2 is a ground plane and layer 3 is used for power routing. The majority of the components are mounted on the top side of the PCB, while a few decoupling capacitors were put on the bottom side.
  • Page 16 Figure 11: CC2400EB component placement, top side SWRU045 Page 16 of 32...
  • Page 17 Figure 12: CC2400EB component placement, bottom side SWRU045 Page 17 of 32...

  • Page 18: Schematics, Cc2400Eb

    Schematics, CC2400EB SWRU045 Page 18 of 32...
  • Page 19 SWRU045 Page 19 of 32...
  • Page 20 SWRU045 Page 20 of 32...
  • Page 21 SWRU045 Page 21 of 32...
  • Page 22 SWRU045 Page 22 of 32...

  • Page 23: Bill Of Materials, Cc2400Eb

    Bill of Materials, CC2400EB Bill of materials, CC2400EB Evaluation Board Reference Description Value Part Capacitor 1206 2.2 µF, 10% C_2U2_1206_X7R_K_10 Capacitor 0603 27 pF, 5% C_27P_0603_NP0_J_50 Capacitor 0603 27 pF, 5% C_27P_0603_NP0_J_50 Capacitor, tantal 3.3 µF C_3U3_TAN_B Capacitor 1206 2.2 µF, 10% C_2U2_1206_X7R_K_10 Capacitor 0603 33 nF, 10%...
  • Page 24 Bill of materials, CC2400EB Evaluation Board Reference Description Value Part Capacitor 0603 33 nF, 10% C_33N_0603_X7R_K_25 Capacitor 0603 33 nF, 10% C_33N_0603_X7R_K_25 Capacitor 0603 33 nF, 10% C_33N_0603_X7R_K_25 Capacitor 0603 33 nF, 10% C_33N_0603_X7R_K_25 Capacitor 0603 33 nF, 10% C_33N_0603_X7R_K_25 Capacitor 0603 33 nF, 10% C_33N_0603_X7R_K_25...
  • Page 25 Bill of materials, CC2400EB Evaluation Board Reference Description Value Part C104 Capacitor 0603 100 nF, 10% C_100N_0603_X7R_K_50 C105 Capacitor 0603 33 nF, 10% C_33N_0603_X7R_K_25 C106 Capacitor 1206 2.2 µF, 10% C_2U2_1206_X7R_K_10 Schottky diode, 2A 20BQ030, International Rectifier LED, green, SMD LED_CL150GCD, Citizen LED, red, SMD LED_CL150URCD, Citizen...
  • Page 26 Bill of materials, CC2400EB Evaluation Board Reference Description Value Part Do not mount Low-profile pin row CON6_FEMALE_LP (Preci-DIP 801- connector, 1x6 91-006-10-012) PNP, general-purpose BC857B (Philips) NPN, small-signal BC846B (Philips) Resistor 0603 10 kΩ, 2% R_10K_0603_G Resistor 0603 22 Ω, 2% R_22_0603_G Resistor 0603 22 Ω, 2%...
  • Page 27 Bill of materials, CC2400EB Evaluation Board Reference Description Value Part Resistor 0603 0 Ω R_0_0603 Do Not Mount Resistor 0603 47 kΩ, 2% R_47K_0603_G Do Not Mount Do Not Mount Do Not Mount Do Not Mount Do Not Mount Do Not Mount Resistor 0603 47 kΩ, 2% R_47K_0603_G...
  • Page 28 Bill of materials, CC2400EB Evaluation Board Reference Description Value Part 32 kB SRAM IDT71V256SA20YI, IDT 1.8 V low drop-out XC6204B182MR, Torex regulator 1.8 V low drop-out LP3961ES-1.8, National regulator, 800 mA Semiconductor 16 byte I2C EEPROM 24LC00I/SN, Microchip Do Not Mount Do Not Mount Quad NAND gate 74HC00D, Philips...

  • Page 29: Using The Development Kit

    Using the Development Kit The CC2420DK Development Kit is useful for providing hands-on experience with the CC2420 for both software and hardware developers. The plug-in Evaluation Module provides flexibility; it can operate both in a stand-alone fashion and together with the Evaluation Board. Using the Evaluation Board, it is easy to interface the CC2420 with both test equipment and additional application circuitry without having to make a PCB from scratch.

  • Page 30: Using The Cc2420Dk For Prototyping

    Using the CC2420DK for prototyping The CC2420EM module contains the CC2420 and all external components required. All CC2420 signals are available at the SMD connectors on the bottom side of the module. The modules can be easily plugged into a prototype PCB containing the rest of the system. The SMD connectors used on the CC2420EM are manufactured by Samtec (http://www.samtec.com/), please refer to the CC2400EB bill of materials for the part number of the connector that will interface with the connectors on the CC2420EM.

  • Page 31: Troubleshooting

    Troubleshooting It does not work • Make sure that either a jumper or an amperemeter is connected between the IOI and II terminals and the IIC and IOC terminals on the power connector. • Make sure that the power supply is connected to the correct pins on the power connector.
  • Page 32 Address Information Web site: http://www.chipcon.com E-mail: wireless@chipcon.com Technical Support Email: support@chipcon.com Technical Support Hotline: +47 22 95 85 45 Headquarters: Chipcon AS Gaustadalléen 21 NO-0349 Oslo NORWAY Tel: +47 22 95 85 44 Fax: +47 22 95 85 46 E-mail: wireless@chipcon.com US Offices: Chipcon Inc., Eastern US Sales Office 35 Pinehurst Avenue...
