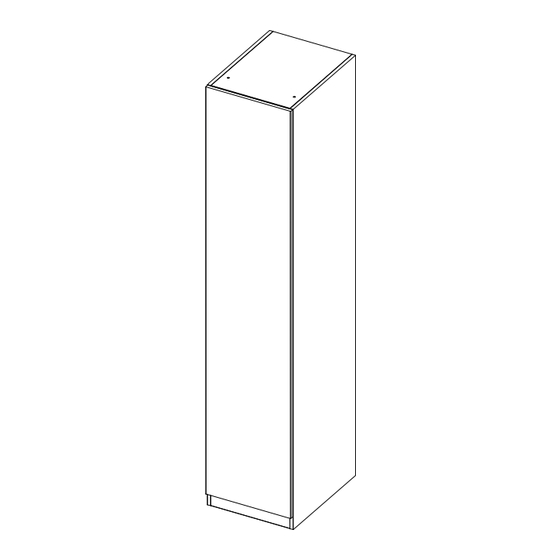

Fitted Bedrooms: Single Wardrobe
Assembly Instructions
Dimensions
Width - 45cm
Depth - 58cm
Height - 219.6cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, return to your local store.
V2_2024
Produced for
HHGL Limited, MK9 1BA; HHGL (ROI) Limited, D02 X576
- Please keep for future reference
IM849_02
Advertisement
Related Manuals for House Beautiful Realm Single Wardrobe
Summary of Contents for House Beautiful Realm Single Wardrobe
- Page 1 Fitted Bedrooms: Single Wardrobe Assembly Instructions - Please keep for future reference Dimensions Width - 45cm Depth - 58cm Height - 219.6cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, return to your local store. Produced for HHGL Limited, MK9 1BA;...
-
Page 2: Handy Hints
Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce the components and tools listed on or put weight on the product, likelihood of damaging this could cause damage. - Page 3 Components - Panels If you have damaged or missing components, return to your local store. Please check you have all the panels listed below Side panels x 2 Door x 1 Back panel x 1 (44.6 x 212.8cm) (58 x 219.6cm) (43 x 211cm) AVAILABLE TO BUY SEPARATELY...
- Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Wooden dowels x 10 Metal dowels x 14 16mm screws x 10 Locking nuts x 14 Euro screws x 4...
- Page 5 Assembly Instructions Step Step 1 Preparing side panels Insert 14 metal dowels into side panels Screw 2 metal plates using 4 screws holes 67/68 Step holes Fitting hinge plates 43/44 Attach 4 hinge plates to side panel holes 28/29 Be sure to use correct holes (Titus plate) (Blum plate) for hinge plates.
- Page 6 Assembly Instructions Step 4 Fit top and bottom panels Insert 4 wooden dowels on top and bottom panels as shown. Then connect these parts to side panel Step 5 Insert 6 locking nuts into top and bottom panels where shown. Use a screwdriver to turn locking nuts clockwise...
- Page 7 Assembly Instructions Step 6 Insert a wooden dowel on rail as shown. Then connect this part to side panel Step 7 Insert a locking nut into rail where shown. Use a screwdriver to turn locking nut clockwise to lock.
- Page 8 Assembly Instructions Step 8 Fitting back panel Slide back panel into the grooves on panels Step 9 Insert 5 wooden dowels on top and bottom panels as shown. Then connect side panel to these parts. Step 10 Insert 7 locking nuts into top and bottom panels and rail where shown.
- Page 9 Assembly Instructions Step 11 Fix 2 feet into bottom panel as shown. Step 12 Carefully fix back panel using 10 back fittings pushing them into the groove on the side panels top and bottom panels Once fitted in place, carefully secure by tightening the screws.
- Page 10 Assembly Instructions Step 14 Fitting shelf Insert 4 shelf holders onto side panels Then carefully slide shelf inside cabinet. Step 15 Fitting door hinges (Titus hinges) (Blum hinges) Attach 4 door hinges to door , using 8 screws Fix 2 bumpers to door Step 16 Fitting door handles...
- Page 11 Assembly Instructions Step 17 Fixing units If you want to fix two or more units together, first level units. Then fix them using clamps (not provided). Drill through side panels next to hinge plates, using a 5mm drill bit and placing a scrap piece of wood on the other side.
- Page 12 Assembly Instructions Step 19 Wall fixing This unit must be secured to the wall. If you have any doubt in installing this unit, you should seek the service of a professional fitter. Firstly drill a 5mm hole through the cabinet back panel, through the holes in the brackets Then place the cabinet in...
- Page 13 Assembly Instructions Step 20 Hanging doors Fix the door to the unit, OPTION 1 (Titus components): following one of the options plates + hinges + soft close below, depending on the type of plates and hinges you have. OPTION 1 (Titus components): plates with hinges.
- Page 14 Assembly Instructions Hinge adjustment To move doors up or down, loosen screws shown and move doors to suit. Once doors are aligned, re-tighten and insert screws into all hinge plates (see illustration A). To move doors in or out, loosen screw shown and move doors to suit.
-
Page 15: Care And Maintenance
A Guide to Wall Mounting & Fixings IMPORTANT: When drilling into walls always check that there are no hidden wires or pipes etc. Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure. HINTS: 1) General Rule: Always use a larger screw and wall plug if you are not sure.
