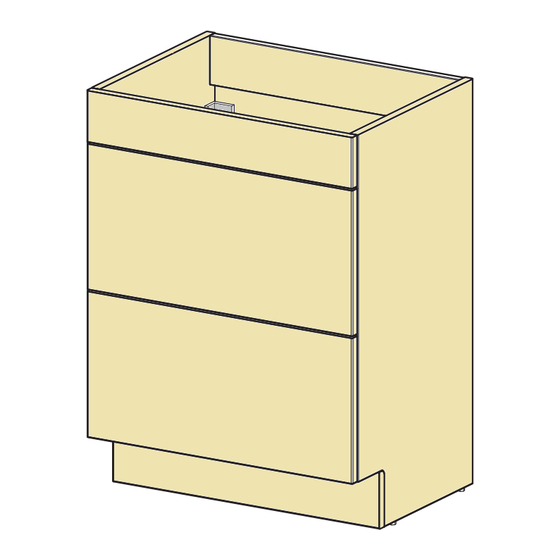

600 Floorstanding Vanity
Assembly Instructions -
Dimensions
Width - 60cm
Depth - 45cm
Height - 82.8cm
Important -
Please read these instructions fully before starting assembly
For all enquiries please contact : 0333 241 2701
Please keep for future reference
609867
609876
Ref. no BTOFST004 Date: 06/2021
Advertisement
Related Manuals for House Beautiful 609867
Summary of Contents for House Beautiful 609867
- Page 1 600 Floorstanding Vanity Assembly Instructions - 609867 Please keep for future reference 609876 Dimensions Width - 60cm Depth - 45cm Height - 82.8cm Important - Please read these instructions fully before starting assembly For all enquiries please contact : 0333 241 2701...
- Page 2 Safety and care advice Getting started - Please read these intructions fully before starting assembly • Check the pack and make • Warning: sure that you have all parts. Serious or fatal crushing If not contact your local store injuries can occur from furni- who will be able to help you.
- Page 3 Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Washer x 2 13mm Screw x 4 Bracket x 2 Cover x 2 Tools required...
- Page 4 Assembly Instructions Step 1 Remove drawers...
-
Page 5: Care And Maintenance
A Guide to Wall Mounting & Fixings IMPORTANT: When drilling into walls always check that there are no hidden wires or pipes etc. Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure. HINTS: 1) General Rule Always use a larger screw and wall plug if you are not sure. - Page 6 Assembly Instructions Step 2 Fix the bracket Step 3 Sign the wall...
- Page 7 Assembly Instructions Step 4 Fix the bracket to the wall x 2 (not included) Step 5 Insert cover...
- Page 8 Assembly Instructions Step 6 Remove protective films and insert wash basin NB. washbasin supplied with silicone along top edges. separately Step 7 Assemble the waste outlet and compact bottle trap (not included with furniture) Basin...
- Page 9 Assembly Instructions Step 8 Insert drawers...
- Page 10 Assembly Instructions Step 9 Remove protective films Step 10 Total max weight of drawer loading 6kg each Total max weight of drawer loading 9kg each...
- Page 11 Assembly Instructions Step 11 Depth drawers adjustment Drawers height adjustment Drawers side adjustment Drawers inclination adjustment...
-
Page 12: Cleaning Instructions
Assembly Instructions That's the Unit completed. Take care of your unit by using a damp cloth to clean it. Please remember to occasionally check that all Cams and Screws are tight. CLEANING INSTRUCTIONS This product has been manufactured using modern manufacturing methods and materials.
