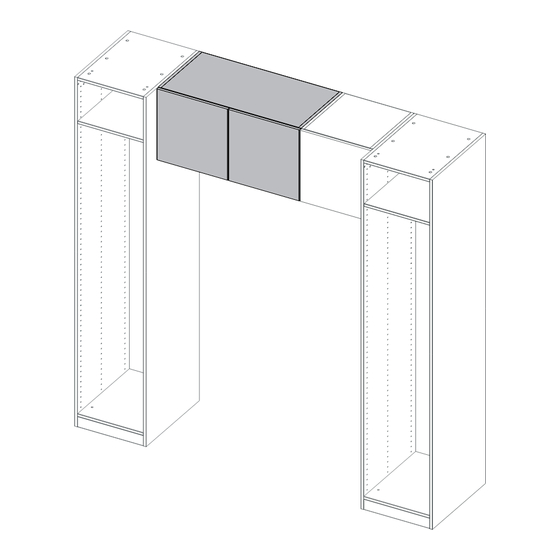

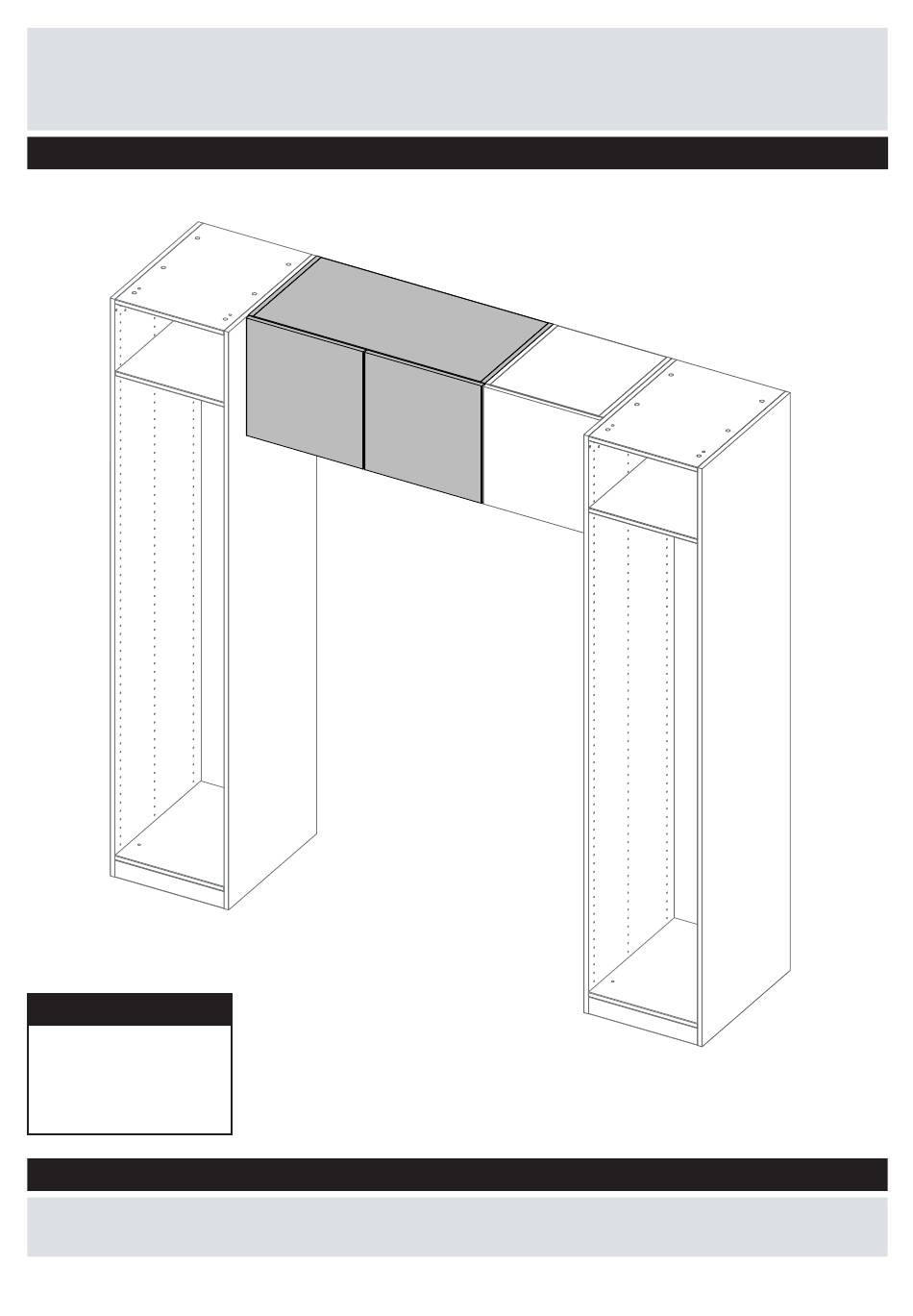

Fitted Bedrooms: 900 Bridging Unit
Assembly Instructions
Dimensions
Width - 90cm
Depth - 46.8cm
Height - 45cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, return to your local store.
V1_2023
Produced for
HHGL Limited, MK9 1BA; HHGL (ROI) Limited, D02 X576
- Please keep for future reference
IM1971_00
Advertisement
Related Manuals for House Beautiful Honest 658421
Summary of Contents for House Beautiful Honest 658421
- Page 1 Fitted Bedrooms: 900 Bridging Unit Assembly Instructions - Please keep for future reference Dimensions Width - 90cm Depth - 46.8cm Height - 45cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, return to your local store. Produced for HHGL Limited, MK9 1BA;...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce the components and tools listed on or put weight on the product, likelihood of damaging this could cause damage.
- Page 3 Components - Panels If you have damaged or missing components, return to your local store. Please check you have all the panels listed below Top/bottom panels x 2 Side panels x 2 (45 x 45cm) (45 x 86.4cm) Doors x 2 Rail x 1 Back panel x 1 (44.6 x 44.6cm)
- Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Wooden dowels x 10 Metal dowels x 10 16mm screws x 8 Euro screws x 4 Back fittings x 6...
- Page 5 Assembly Instructions Step Step 1 Preparing side panels Insert 8 metal dowels into side panels Screw in 2 angle brackets using 4 screws Attach 4 hinge plates side panels Be sure to use correct holes for hinge plates. Step Preparing top and bottom panels Insert 2 metal dowels into top and bottom...
- Page 6 Assembly Instructions Step Step 3 Fit rail Insert 2 wooden dowels into the rail , as shown. Then connect this part to top and bottom panels Step Insert 2 locking nuts into the rail , where shown. Use a screwdriver to turn locking nuts clockwise to lock.
- Page 7 Assembly Instructions Step Step 5 Fit side panel Insert 4 wooden dowels on top and bottom panels , as shown. Then connect side panel to these parts. Step Insert 4 locking nuts into top and bottom panels , where shown. Use a screwdriver to turn locking nuts clockwise...
- Page 8 Assembly Instructions Step Step 7 Fitting back panel Slide back panel into the grooves on panels Step Fit side panel Insert 4 wooden dowels on top and bottom panels , as shown. Then connect side panel to these parts.
- Page 9 Assembly Instructions Step Step 9 Insert 4 locking nuts into top and bottom panels , where shown. Use a screwdriver to turn locking nuts clockwise to lock. Step Fixing back panel Carefully fix back panel using 6 back fittings push them into the grooves on the side panels top and bottom panels Once fitted in place,...
- Page 10 Assembly Instructions Step Step 11 Fitting door hinges Attach 4 door hinges doors , using 8 screws Fix 4 door stops doors Step Fitting door handles Before drilling, check your handle length by placing it close to the pre-drilled holes, so you will be sure to use the 5mm suitable drill bit correct ones.
- Page 11 Assembly Instructions Step Step 13 Wall fixing This unit must be secured to the wall. If you have any doubt in installing this unit, you should seek help from a professional fitter. Firstly drill a 5mm hole through the cabinet back panel, through the holes of 219,6 the angle brackets...
- Page 12 Assembly Instructions Step Step 14 Fixing units If you want to fix two or more units together, first level units. Then fix them using clamps (not provided). Drill through side panels next to hinge plates, using a 5mm drill bit and placing a scrap piece of wood on the other side.
- Page 13 Assembly Instructions Step Step 15 Hanging doors Fix doors to the unit. With help, slot door hinges onto hinge plates until they lock into position, as shown. Step Hinge adjustment To move doors up or down, loosen screws, as shown in illustration A, and move doors to suit.
-
Page 14: Care And Maintenance
A Guide to Wall Mounting & Fixings IMPORTANT: When drilling into walls always check that there are no hidden wires or pipes etc. Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure. HINTS: 1) General rule: Always use a larger screw and wall plug if you are not sure.
