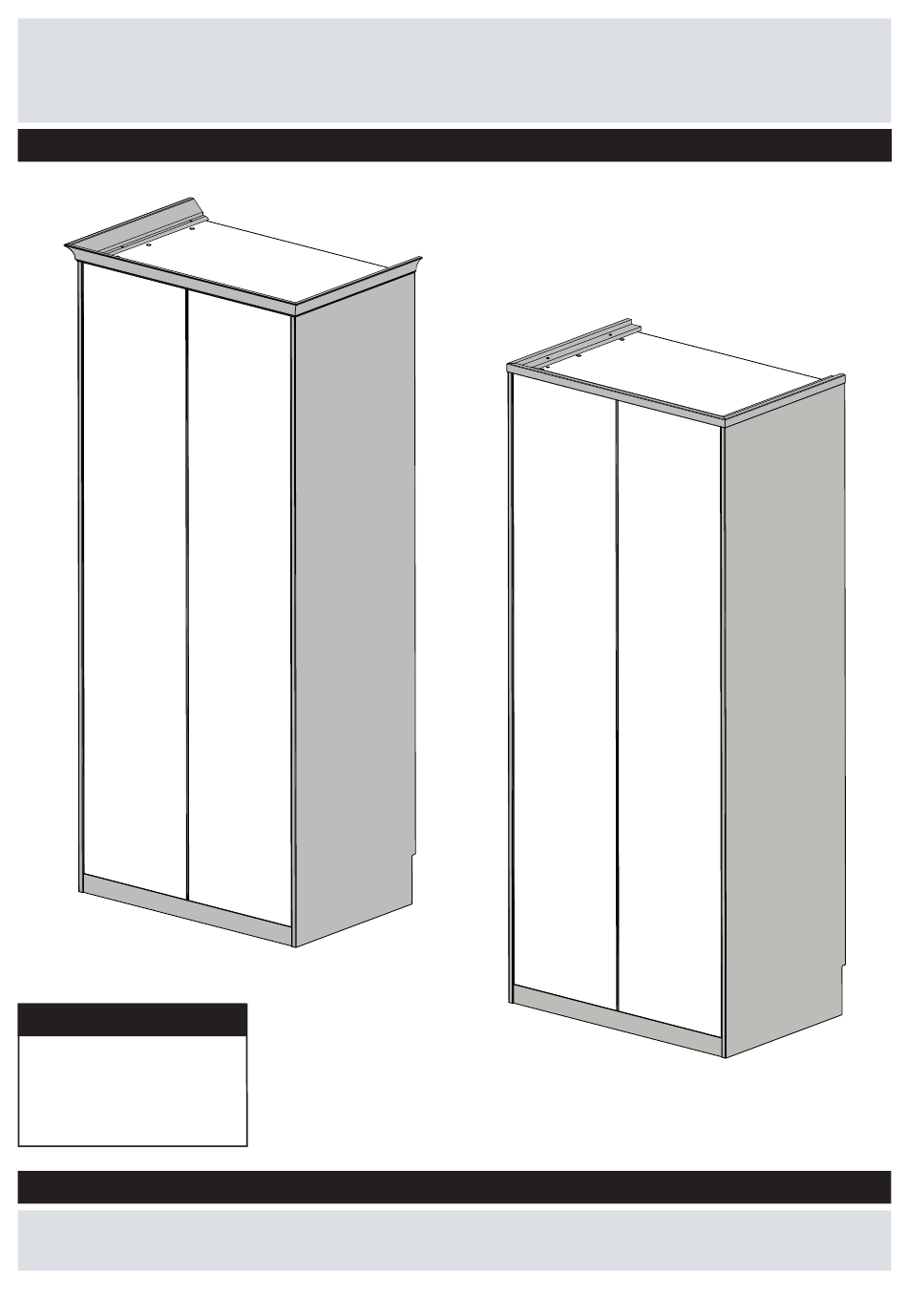

Clad-on Panels / Cornice Panels
Assembly Instructions
Dimensions
Height - 225.5 / 222.6cm
Width - defined by user
Depth - 65.25 / 62.2cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, please return to your local store.
Fitted Bedrooms:
Produced for
HHGL Limited, MK9 1BA; HHGL (ROI) Limited, D02 X576
- Please keep for future reference
IM1337_00
Advertisement
Related Manuals for House Beautiful Realm Fitted Look Double Wardrobe
Summary of Contents for House Beautiful Realm Fitted Look Double Wardrobe
- Page 1 Fitted Bedrooms: Clad-on Panels / Cornice Panels Assembly Instructions - Please keep for future reference Dimensions Height - 225.5 / 222.6cm Width - defined by user Depth - 65.25 / 62.2cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, please return to your local store.
-
Page 2: Handy Hints
Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce the components and tools listed on or put weight on the product, likelihood of damaging this could cause damage. - Page 3 Components - Panels If you have damaged or missing components, please return to your local store. Please check you have all the panels listed below Left side panel x 1 Right side panel x 1 (62 x 219.6cm) (62 x 219.6cm) (section) Cornice panel x 1 - OPTION “TRADITIONAL”...
- Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. 30mm screws x 23 20mm screws x 13 28mm spacers x 2 Tools required Ruler/tape...
- Page 5 Assembly Instructions Step 1 Wall fixing The unit must be secured to the wall. If you have any doubt in installing this unit, please seek the service of a professional fitter. Firstly drill a 5mm hole through the wardrobe back panel, through the holes in the brackets.
- Page 6 Assembly Instructions Step Step 2 Fixing side panels Place left side panel against the wardrobe. PLEASE NOTE: Keep the face with the joint of the covering oriented towards the wardrobe. Fix side panel with 5 screws Place 2 screws in the upper part and 2 screws in the lower part (you can use the 3rd holes up from the base and down...
- Page 7 Assembly Instructions Step Step 4 Preparing plinth panel You have to cut the plinth panel depending on the dimensions of your wardrobe (if single, double, or if there are multiple wardrobes joined). Carefully use a mitre saw and cut the plinth panel following the required dimensions.
- Page 8 Assembly Instructions Step Step 6 OPTION “TRADITIONAL” OPTION “MODERN” Preparing cornice panels You can choose between two types of cornice panels: Each type requires different measurements you must (section) (section) follow while cutting the panels. Page The following instructions refer to the “Traditional”...
- Page 9 Assembly Instructions Step Step 7 Preparing cornice panels Now prepare the front cornice panel: Cut the panel depending on the length of your wardrobe. Cut at 45° angle on both the extremities. Follow the examples and measurements detailed below. (Top view) Check below the different lengths required for the cornice front panel, based on the type of unit / composition: 1001...
- Page 10 Assembly Instructions Step Step 8 Positioning cornice panels Position the side cornice panels over the wardrobe. Carefully align them to the wardrobe as shown below. REAR: Put the cornice panel against the wall, aligned to the clad-on side panel SIDES: (Front view) Align the cornice panel to the clad-on side panel,...
- Page 11 Assembly Instructions Step Step 10 Fixing cornice panels Once the panels have been placed, proceed to fix them: Fix the side cornices with 4 screws (2 per panel). 30mm screws 20mm screws Step 11 Then fix the front cornice with screws PLEASE NOTE: The quantity of screws needed to fix the front cornice depends on the...
- Page 12 Assembly Instructions Step Step 6 OPTION “MODERN” Preparing cornice panels The following instructions refer to the “Modern” cornice: (section) First prepare the two side cornice panels: Use a mitre saw and cut two panels ) 622mm length, with a 45° angle (only on one side), obtaining two specular panels.
- Page 13 Assembly Instructions Step Step 7 Preparing cornice panels Now prepare the front cornice panel: Cut the panel depending on the length of your wardrobe. Cut at 45° angle on both the extremities. Follow the examples and measurements detailed below. (Top view) Check below the different lengths required for the cornice front panel, based on the type of unit / composition: 1390...
- Page 14 Assembly Instructions Step Step 8 Positioning cornice panels Position the side cornice panels over the wardrobe. Carefully align them to the wardrobe as shown below. REAR: Put the cornice panel against the wall, aligned to the clad-on side panel SIDES: Align the cornice panel to (Front view) the clad-on side panel,...
- Page 15 Assembly Instructions Step Step 10 Fixing cornice panels Once the panels have been placed, proceed to fix them: Fix the side cornices with 4 screws (2 per panel). 30mm screws 20mm screws Step 11 Then fix the front cornice with screws Check below the different quantities of screws required to fix the front PLEASE NOTE: The quantity cornice panel, based on the type of unit / composition:...
