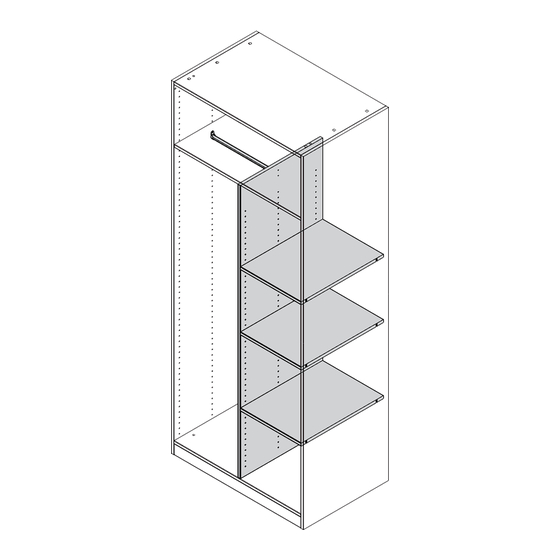

Assembly Instructions
Dimensions
Height - 172.5cm
Width - 43.2cm
Depth - 56.2cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, please return to your local store.
Fitted Bedrooms:
Wardrobe Shelf / Divider Storage
HHGL Limited, MK9 1BA; HHGL (ROI) Limited, D02 X576
- Please keep for future reference
Produced for
IM........
Advertisement
Related Manuals for House Beautiful Realm 658495
Summary of Contents for House Beautiful Realm 658495
- Page 1 Fitted Bedrooms: Wardrobe Shelf / Divider Storage Assembly Instructions - Please keep for future reference Dimensions Height - 172.5cm Width - 43.2cm Depth - 56.2cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, please return to your local store. Produced for IM..
-
Page 2: Handy Hints
Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce the components and tools listed on or put weight on the product, likelihood of damaging this could cause damage. - Page 3 Components - Panels If you have damaged or missing components, please return to your local store. Please check you have all the panels listed below Partition panel x 1 Shelves x 3 (56.2 x 172.5cm) (56.2 x 41.4cm)
- Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Shelf supports x 12 Euro screws x 12 15mm screws x 2 Hanging rail holders x 2...
- Page 5 Assembly Instructions Step Step 1 Preparing partition Fix 6 screws into partition , as shown. Do not overtighten. hole hole hole Step Fix 6 screws into robe side panel, as shown. Do not overtighten. Ensure screws are correctly hole aligned with the holes and are screwed into the partition straight.
- Page 6 Assembly Instructions Step 4 Carefully attach shelves onto partition , as shown. Step 5 Inserting partition Carefully insert shelves and partition into wardrobe, as shown. Step 6 Fitting wardrobe shelf Insert 6 shelf supports (provided with wardrobe fitting bag) onto side panels. Then carefully slide shelf (provided with wardrobe pack) inside cabinet.
- Page 7 Assembly Instructions Step 7 Fixing hanging rail Fix 2 hanging rail holders to side panels using 2 screws Then insert hanging rail into rail holders...
