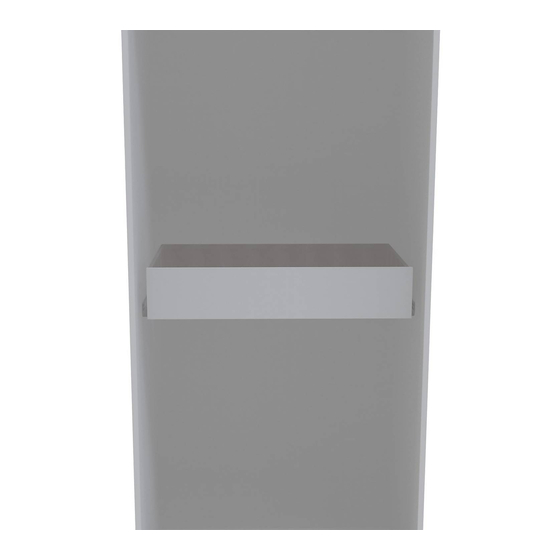

Internal Wardrobe Drawer (Single/Double)
Assembly Instructions
Dimensions
Height - 15.8cm
Width - 35.4 / 80.4cm
Depth - 51.6cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, please return to your local store.
Fitted Bedrooms:
Produced for
HHGL Limited, MK9 1BA; HHGL (ROI) Limited, D02 X576
- Please keep for future reference
IM........
Advertisement
Related Manuals for House Beautiful Internal Wardrobe Drawer Single
Summary of Contents for House Beautiful Internal Wardrobe Drawer Single
- Page 1 Fitted Bedrooms: Internal Wardrobe Drawer (Single/Double) Assembly Instructions - Please keep for future reference Dimensions Height - 15.8cm Width - 35.4 / 80.4cm Depth - 51.6cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, please return to your local store. Produced for IM..
-
Page 2: Handy Hints
Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce the components and tools listed on or put weight on the product, likelihood of damaging this could cause damage. - Page 3 Components - Panels If you have damaged or missing components, please return to your local store. Please check you have all the panels listed below Drawer back panel x 1 Side panels x 2 (14 x 48.8cm) (14 x 35.2cm for internal single robe drawer) (14 x 80.2cm for double internal drawer) 4 Drawer bottom panel x 1 (34.0 x 50.2cm for internal single robe drw)
- Page 4 Assembly Instructions Step Step 1 Preparing panels Screw 8 metal dowels into drawer front panel and back panel Step Fixing drawer structure Insert 2 wooden dowels into drawer side panels Then connect them to drawer back panel Step Insert 4 locking nuts into drawer side panels , as shown.
- Page 5 Assembly Instructions Step 4 Placing bottom panel Slide drawer bottom panel into grooves. Step 5 Fixing front panel Insert 2 wooden dowels on drawer side panels as shown. Then connect it to front panel Step Insert 4 locking nuts into drawer side panels , as shown.
- Page 6 Assembly Instructions Step 7 Fixing bottom panel Carefully fix drawer bottom panel using 4 back fittings . Slot panel into the grooves on drawer back and front panel Once placed carefully secure by tightening the screw. Step 8 DRAWER LAYOUT EXAMPLE: (Front view) Fixing spacer panels for rails...
- Page 7 Assembly Instructions Step 9 Fixing rails Fix rails to spacers , using 2 screws for each.
- Page 8 Assembly Instructions Step 10 Fitting drawer Slide drawer box onto rails until it locks into position. Pull out the locking mechanism to allow the drawer to take position. Be sure that drawer box fits correctly, as shown. Step 11 To prevent the drawer from lifting off the runner it must be secured with the locking mechanism.
- Page 9 Assembly Instructions Step 12 Drawer height adjustment If you want to lift or to lower the drawer, please rotate the specific paddle on the rails. (Make the same gradual adjustment on both the rails).
- Page 10 Assembly Instructions Drawer on divider storage 35.4cm drawers can also be installed on the divider storage unit, once inside the wardrobe. Repeat the previous steps for the drawer installation. (Return to step 8). Avoid installing the drawer spacers any higher than the 5th hole under the shelf, to ensure you don't obstruct the hinges.
