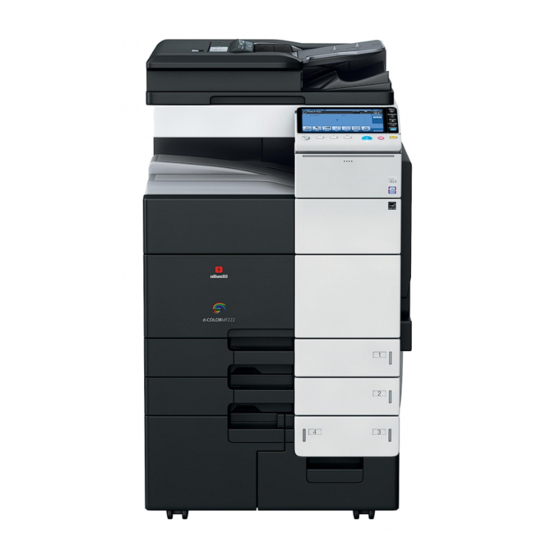

Olivetti d-COLOR MF452 Quick Start Manual

Hide thumbs Also See for d-COLOR MF452:

Manual (59 pages)

Manual (63 pages)

Table Of Contents

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

Quick Links

Download this manual

d-COLOR MF

d-COLOR MF2 2/d-COLOR MF

d-COLOR MF452/d-COLOR MF552

Code: 57

Table of Contents

Need help?

Do you have a question about the d-COLOR MF452 and is the answer not in the manual?

Questions and answers

Summary of Contents for Olivetti d-COLOR MF452

Page 1 MF d-COLOR MF2 2/d-COLOR MF d-COLOR MF452/d-COLOR MF552 Code: 57...
Page 2 Olivetti S.p.A. Gruppo Telecom Italia Via Jervis, 77 - 10015 Ivrea (ITALY) www.olivetti.com Copyright © 2012, Olivetti All rights reserved The mark affixed to the product certifies that the product satisfies the basic quality requirements. The manufacturer reserves the right to carry out modifications to the product described in this manual at any time and without any notice.
Page 3: Table Of Contents
Table of contents Introduction Environmental Information......................1-3 Energy Star®............................1-3 What is an ENERGY STAR® Product? ....................1-3 Environmental benefits of power management ................. 1-3 Recycled Paper..........................1-3 Duplex printing........................... 1-3 Safety information........................... 1-4 Warning and precaution symbols ...................... 1-4 Meaning of symbols...........................
Page 4 Finisher FS-535, Saddle Stitcher SD-512, Punch Kit PK-521 (d-Color MF552)......2-13 Job Separator JS-602 (d-Color MF552) ..................2-15 Z Folding Unit ZU-606 (d-Color MF552) ..................2-16 Post Inserter PI-505 (d-Color MF552)....................2-17 Finisher FS-533, Punch Kit PK-519 ....................2-18 Job Separator JS-506........................2-19 Finisher FS-534, Saddle Stitcher SD-511, Punch Kit PK-520 ............
Page 5 Installing the printer driver ......................... 3-9 Adding and configuring a printer driver ................... 3-10 Printing data............................. 3-10 Scan-to-Send function ......................... 3-11 3.2.1 Various transmission methods......................3-11 Sending data to your computer (SMB Send) ................... 3-11 Transmitting data as E-mail attachment (E-mail TX)................ 3-11 Saving data to the USB memory device (External memory)............
Page 6 3.5.4 Retrieving a registered destination ....................3-52 Retrieving a destination ........................3-52 Specifying a destination........................3-53 Using a USB memory device ....................... 3-54 3.6.1 Printing data in a USB memory device .................... 3-54 Printing data............................. 3-54 3.6.2 Saving the scanned data in the USB memory device (External memory) ........3-56 Specifying functions to be permitted for external memory..............
Page 7: Introduction
Introduction...
Page 9: Environmental Information
Environmental Information Introduction This [Quick Start Guide] uses illustrations to describe operating procedures for the most commonly used functions in an easy-to-understand way. Start by using this manual to become proficient with the useful functions that this machine offers. For details on the various functions, refer to the User’s Guides on the User’s Guide DVD included with this machine.
Page 10: Safety Information
Safety information Safety information This section contains detailed instructions on the operation and maintenance of this machine. To achieve op- timum utility of this device, all operators should carefully read and follow the instructions in this manual. Please read the following section before connecting the machine to the supply. It contains important infor- mation related to user safety and preventing equipment problems.
Page 11 Safety information Power cord • Do not scratch, abrade, place a heavy object on, heat, twist, bend, pull on, or damage the power cord. Use of a damaged power cord (exposed core wire, broken wire, etc.) could result in a fire or breakdown. Should any of these conditions be found, immediately turn OFF the power switch, unplug the power cord from the power outlet, and then call your au- thorized service representative.
Page 12 Safety information Installation WARNING • Do not place a flower vase or other container that contains water, or metal clips or other small metallic objects on this product. Spilled water or metallic objects dropped inside the product could result in a fire, electrical shock, or breakdown.
Page 13 Safety information Actions in response to troubles • The inside of this product has areas subject to high temperature, which may cause burns. When checking the inside of the unit for malfunctions such as a paper mis- feed, do not touch the locations (around the fusing unit, etc.) which are indi- cated by a "Caution HOT"...
Page 14: Regulation Notices
This machine is certified as a Class 1 laser product: This means the machine does not produce hazardous laser radiation. Internal laser radiation Maximum Average Radiation Power: 11.2 μW (d-Color MF552) / 9.4 μW (d-Color MF452) / 7.4 μW (d-Color MF362) / 6.0 μW (d-Color MF282/222) at the laser aperture of the print head unit. d-Color MF552/452/362/282/222...
Page 15: Cdrh Regulations
Regulation notices Wavelength: 770-800 nm This product employs a Class 3B laser diode that emits an invisible laser beam. The laser diode and the scanning polygon mirror are incorporated in the print head unit. The print head unit is NOT A FIELD SERVICE ITEM: Therefore, the print head unit should not be opened under any circumstances.
Page 16: For Denmark Users
Regulation notices For Denmark users 7 ADVARSEL Usynlig laserstråling ved åbning, når sikkerhedsafbrydere er ude af funktion. Undgå udsættelse for stråling. Klasse 1 laser produkt der opfylder IEC60825 sikkerheds kravene. Dette er en halvlederlaser. Laserdiodens højeste styrke er 15 mW og bølgelængden er 770-800 nm. For Finland, Sweden users LOUKAN 1 LASERLAITE KLASS 1 LASER APPARAT...
Page 17: Laser Safety Label
Regulation notices Laser safety label A laser safety label is attached to the outside of the machine, as shown below. * only for the U.S.A. Ozone release Locate the Machine in a Well-Ventilated Room A negligible amount of ozone is generated during normal operation of this machine. An unpleasant odor may, however, be created in poorly ventilated rooms during extensive machine operations.
Page 18: Telephone Cable
Regulation notices Telephone Cable Connect a telephone cable with a ferrite core to the telecommunication port of this machine. (Connect the modular jack on the ferrite-core-equipped end of the telephone cable to the telecommunication port.) 1-12 d-Color MF552/452/362/282/222...
Page 19: Caution Notations And Labels
Caution notations and labels Caution notations and labels Safety precaution notations and labels appear on this machine at the following positions.Be very careful that an accident does not occur when operations such as removing paper jams and staple jams are performed. NOTICE Do not remove caution labels or notations.
Page 20: Special Notice To User
Special Notice to User Special Notice to User For Europe The Facsimile has been approved in accordance with Council Decision 1999/5/ EC for pan-European single terminal connection to the public switched telephone network (PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network terminal point.
Page 21: Space Requirements
Space requirements Space requirements To ensure that machine operation, consumables replenishing, part replacement, and regular maintenance can easily be performed, adhere to the recommended space requirements detailed below. d-Color MF552/452 100-3/8 (2548) 49-1/16 (1246) 7-5/16 9-3/8 16-7/8 34-11/16 (881) 49 (1244) 32-3/16 (818) (185) (238)
Page 22: D-Color Mf362/282/222
Space requirements d-Color MF362/282/222 62-7/8 (1597) 48-13/16 (1240) 16-7/8 26 (660) 36-7/8 (937) 31-15/16 (812) (428) d-Color MF362/282/222 + DF-624 + PC-210 + FS-534 + SD-511 Unit: inch (mm) 48-13/16 (1240) 43-9/16 (1107) 16-7/8 6-11/16 36-7/8 (937) 31-15/16 (812) (428) (170) d-Color MF362/282/222 + DF-624 + PC-210 + FS-533 Unit: inch (mm)
Page 23: Operation Precautions
Operation precautions Operation precautions To ensure the optimum performance of this machine, observe the precautions described below. Power source The power source requirements are as follows. Voltage fluctuation: Maximum ± 10% (at 110 V/120 to 127 V/220 to 240 V AC) Frequency fluctuation: Maximum ±...
Page 24: Legal Restrictions On Copying
Legal restrictions on copying Legal restrictions on copying Certain types of originals must never be copied with the purpose or intent to pass copies of such originals off as the originals. The following is not a complete list, but is meant to be used as a guide to responsible copying. <Financial Instruments>...
Page 25: About This Machine
About This Machine...
Page 27: Introduction To User's Guide
Introduction to User's Guide About This Machine Introduction to User's Guide The user's guide of this product consists of the "User's Guide DVD". The [Quick Start Guide] and [Quick Assist Guide] describe basic machine procedures and frequently asked questions. If you want to learn about more detailed functions or operation methods, refer to the manuals included in the "User's Guide DVD".
Page 28 Introduction to User's Guide Manual title Overview [User's Guide: Network Fax Opera- This manual describes fax operations using a network cable and tions] required preparations. This function facilitates lower communi- cation costs than a fax using a telephone line. [User's Guide: PC-FAX Operations] This manual describes PC-FAX operations and required prepa- rations.
Page 29: Optional Components (D-Color Mf552/452)
About this machine About this machine 2.2.1 Optional components (d-Color MF552/452) Various optional components can be added to meet your office requirements. d-Color MF552/452/362/282/222...
Page 30 About this machine Name Description Main unit Scans the original in the scanner section, and prints a scanned im- age in the printer section. Fax Kit FK-511 Required to use the fax function. Working Table WT-506 is required as a stand. Authentication Unit AU-102 (Biometric Type) Authentication Unit...
Page 31: Optional Components (D-Color Mf362/282/222)
About this machine 2.2.2 Optional components (d-Color MF362/282/222) Various optional components can be added to meet your office requirements. d-Color MF552/452/362/282/222...
Page 32 About this machine Name Description Main unit Scans the original in the scanner section, and prints a scanned im- age in the printer section. Original Cover OC-511 Used to fix the loaded originals. Automatically feeds and scans originals by page. Reverse Automatic Doc- ument Feeder DF-624 Dual Scan Document...
Page 33: Name Of Parts (Mfp) (D-Color Mf552/452)
About this machine 2.2.3 Name of parts (MFP) (d-Color MF552/452) Front side Name Description Use the Touch Panel or buttons on this panel to operate this ma- Control Panel chine. Load the original. Original Tray Stylus Pen Used to operate the Touch Panel. Bypass Tray Used to load custom-size paper or special paper.
Page 34: Rear Side
About this machine Rear side The illustration shows the main unit that contains the Heater and Fax Kit. The shape of the power cord varies depending on the sales region. The Heater is provided as an optional unit depending on the sales areas. Name Telephone Jack 1/2 (LINE PORT 1/2) Jack for connecting a telephone (TEL PORT1/2)
Page 35: Name Of Parts (Mfp) (D-Color Mf362/282/222)
About this machine 2.2.4 Name of parts (MFP) (d-Color MF362/282/222) Front side Name Description Use the Touch Panel or buttons on this panel to operate this ma- Control Panel chine. Load the original. Original Tray Stylus Pen Used to operate the Touch Panel. Bypass Tray Used to load custom-size paper or special paper.
Page 36: Rear Side
About this machine Rear side The illustration shows the main unit that contains the Heater and Fax Kit. The shape of the power cord varies depending on the sales region. The Heater is provided as an optional unit depending on the sales areas. Name Telephone Jack 1/2 (LINE PORT 1/2) Jack for connecting a telephone (TEL PORT1/2)
Page 37: Name Of Parts (Optional Units)
About this machine 2.2.5 Name of parts (Optional units) This section shows the names of distinctive parts for each optional unit that can be installed in this machine. Finisher FS-535, Saddle Stitcher SD-512, Punch Kit PK-521 (d-Color MF552) Name Output Tray Punch Kit Punch Scrap Box Staple Cartridge...
Page 38 About this machine Name Staple Cartridge Folding Output Tray 2-14 d-Color MF552/452/362/282/222...
Page 39: Job Separator Js-602 (D-Color Mf552)
About this machine Job Separator JS-602 (d-Color MF552) Name Output Tray d-Color MF552/452/362/282/222 2-15...
Page 40: Z Folding Unit Zu-606 (D-Color Mf552)
About this machine Z Folding Unit ZU-606 (d-Color MF552) Name Z Folding/Conveyance Unit Punch Scrap Box 2-16 d-Color MF552/452/362/282/222...
Page 41: Post Inserter Pi-505 (D-Color Mf552)
About this machine Post Inserter PI-505 (d-Color MF552) Name Lower Tray Upper Tray Control Panel Reference For details on how to use the Control Panel, refer to the User's Guide DVD. d-Color MF552/452/362/282/222 2-17...
Page 42: Finisher Fs-533, Punch Kit Pk-519
About this machine Finisher FS-533, Punch Kit PK-519 Name Staple Cartridge Punch Kit Output Tray Tray Extension 2-18 d-Color MF552/452/362/282/222...
Page 43: Job Separator Js-506
About this machine Job Separator JS-506 Name Output Tray d-Color MF552/452/362/282/222 2-19...
Page 44 About this machine Finisher FS-534, Saddle Stitcher SD-511, Punch Kit PK-520 Name Output Tray Staple Cartridge Punch Scrap Box Saddle Stitcher 2-20 d-Color MF552/452/362/282/222...
Page 45 About this machine Name Punch Kit Staple Cartridge Folding Output Tray d-Color MF552/452/362/282/222 2-21...
Page 46: Large Capacity Unit
About this machine Large Capacity Unit LU-301/LU-204 Reference For details, refer to the User's Guide DVD. 2-22 d-Color MF552/452/362/282/222...
Page 47: Power Supply
Power supply Power supply This machine provides two power switches: Power key on the Control Panel and Main Power Switch on the machine. Under normal conditions, operate the Power key of the control panel. Use Main Power Switch to restart this machine. 2.3.1 Turning the power on and off Turn the power on and off only when necessary, for example, when the administrative settings are changed...
Page 48: Operating The Power Key
Power supply 2.3.2 Operating the Power key When not operating this machine for a long period of time, for example, after working, press the Power key to shift to the power save mode. The machine mode changes to the following different modes depending on how the Power key is pressed. Pressing the Power key during operation changes to the Sub Power OFF mode.
Page 49: Power Save Function
Power supply 2.3.3 Power save function When a specified amount of time (default setting: 15 minutes) has elapsed without the machine being oper- ated, the Touch Panel will go off, and it automatically enters the power save mode. The Power key flashes blue in the power save mode.
Page 50: Control Panel
Control Panel Control Panel This machine provides a sliding Control Panel. The hard keys required for basic operations are arranged on the front side, and the keys used for settings or registrations on the rear side. 2.4.1 Name of parts Name Description Various screens and messages are displayed.
Page 51 Control Panel Name Description Turns the power on or off. The key lamp lights up or flashes blue Power when the power is turned on, and orange when the power is turned off. • In the Administrator Settings, you can add the function for man- ually switching to the power save mode to the Power key.
Page 52: Touch Panel
Touch Panel Touch Panel 2.5.1 Main Menu Press the Menu key on the Control Panel to display the main menu. In the main menu, you can configure settings such as frequently used functions or a shortcut key for jumping to each mode. Layout of main menu Name Description...
Page 53: Customizing The Main Menu
Touch Panel Customizing the main menu The main menu can be extended to two screens as necessary. Up to 23 keys can be assigned to two main menu screens which can be switched. In addition, you can specify your favorite background pattern. Reference For details, refer to the User's Guide DVD.
Page 54: Flick
Touch Panel Flick Make a slight fillip while sliding your finger on the screen. This action is used to scroll an address or job list and feed thumbnail-view pag- Drag Slide your finger on the screen while touching it. This action is used to move a display position on an application or preview screen.
Page 55: Entering Characters
Touch Panel 2.5.3 Entering characters When entering characters to register an address or program, use the keyboard screen displayed on the Touch Panel. When typing in "Group1": To type in uppercase letters or symbols, tap the [Shift] key. % If you mistyped, tap [ ] or [ ] to move the cursor to the character you want to clear, then tap the [Delete] key.
Page 56: Jobs
Jobs Jobs 2.6.1 Job screen A job refers to an operation such as printing, sending, receiving, or saving. When you tap [Job List] in the main menu or the main screen of each mode, the Job screen appears. In the Job screen, you can view a list or history of a job currently being executed or print a sending-receiving result report.
Page 57: Loading Paper
Loading Paper Loading Paper 2.7.1 Loading paper in Tray 1 to Tray 4 Up to 500 sheets of plain paper can be loaded into each tray.Tray3 and Tray4 are optional. Applicable paper types Plain paper, single-side-only paper, thin paper, special paper, thick paper, letterhead, colored paper, and re- cycled paper How to load paper Pull out the tray.
Page 58: Lct (Built-In)
Loading Paper 2.7.2 LCT (built-in) Up to 2500 sheets of plain paper can be loaded into the LCT (built-in). The LCT (built-in) is an option. Applicable paper types Plain paper, single-side-only paper, thin paper, special paper, thick paper, letterhead, colored paper, and re- cycled paper How to load paper Pull out the tray.
Page 59: Loading Paper Into The Large Capacity Unit
Loading Paper 2.7.3 Loading paper into the Large Capacity Unit Up to 3000 sheets of plain paper can be loaded into Large Capacity Unit LU-301, and up to 2500 sheets of plain paper into Large Capacity Unit LU-204. The Large Capacity Unit is an option. Applicable paper types Plain paper, single-side-only paper, thin paper, special paper, thick paper, letterhead, colored paper, recy- cled paper...
Page 60: Bypass Tray
Loading Paper 2.7.4 Bypass Tray Use the Bypass Tray when printing on a paper size other than for paper trays, or printing on envelopes or transparencies. To use the Bypass Tray, load paper and specify the paper type. Applicable paper types Plain paper, single-side-only paper, special paper, thick paper, postcard (4 e 6 (A6 Card)), transparency, let- terhead, colored paper, envelope, label sheets, index paper, recycled paper, and banner paper Applicable paper sizes...
Page 61 Loading Paper Specify the paper type. Tap [Paper]. Select [#], then tap [Change Tray Setting]. Select the paper type. d-Color MF552/452/362/282/222 2-37...
Page 62 Loading Paper Specify the paper size. % For Auto Detect [Auto Detect] detects the paper size automatically when standard-size paper is loaded into a tray. % For Standard Size [Standard Size] is available when loading a postcard or standard-size paper for overseas. 2-38 d-Color MF552/452/362/282/222...
Page 63 Loading Paper % For Custom Size % For Wide Paper d-Color MF552/452/362/282/222 2-39...
Page 64 Loading Paper 2-40 d-Color MF552/452/362/282/222...
Page 65: Basic Settings And Operations
Basic Settings and Operations...
Page 67: Print Function
Print Function Basic Settings and Operations Print Function 3.1.1 Required settings and basic operations (For Windows OS) Print data created on your computer via the network. This section describes how to configure standard print settings using the installer. Preparation flow The following describes a preparation flow to print data.
Page 68: Checking The Cable Connection
Print Function Checking the cable connection Check that a LAN cable is connected to the LAN port of this ma- chine and the green LED is on. Checking network settings of this machine Tap [Utility], and select [Device Information]. Check that the IP address is displayed. •...
Page 69: Installing The Printer Driver
Print Function Installing the printer driver Use the installer to install the printer driver. This operation requires administrator privileges for your computer. Insert the printer driver DVD-ROM into the DVD-ROM drive of the computer. Click [Printer Install]. Proceed with the procedure according to the on-screen instructions. This automatically searches for the appropriate network and displays printers and MFPs that are com- patible with the printer driver.
Page 70: Types Of Printer Drivers
Print Function Types of printer drivers Select a printer driver that will meet your printing requirements. Driver type Description This is a standard driver for printing general office documents. Among the three drivers, this driver provides the fastest printing speed. This driver is effective to exactly print data that is created using PostScript-com- patible application software from Adobe or other vendors.
Page 71: Operation Flow
Print Function Operation flow The following describes a flow to print data from your computer. For details, refer to page 3-10. Opening original data % Open the data you want to print using the application software. Configuring the printer driver for printing % Select a printer driver, and change the setting if necessary before printing.
Page 72 Print Function Specify the Bonjour name. Tap [Utility], and select [Administrator Settings] - [Network Settings] - [Bon- jour Setting] - [ON]. % For information on the default administrator password, refer to the [Quick Assist Guide]. % The Bonjour name is displayed on the printer driver as a connected device name. For "d-Color MF362 (5A:0C:4B)", "d-Color MF362"...
Page 73: Installing The Printer Driver
Print Function If no IP address is displayed in Step 1, you need to set up the network. Tap [Utility], and select [Administrator Settings] - [Network Settings] - [TCP/IP Settings]. Configure the required settings to suit your environment. For details, refer to the User's Guide DVD. For information on the default administrator password, refer to the [Quick Assist Guide].
Page 74: Adding And Configuring A Printer Driver
Print Function When a prompt message appears to ask you to enter the name and password, type in the name and password of the user with administrator privileges. Click [Close]. Adding and configuring a printer driver Set up your computer so that data can be printed using the installed printer driver. This operation requires administrator privileges for your computer.
Page 75: Scan-To-Send Function
Scan-to-Send function Scan-to-Send function 3.2.1 Various transmission methods The original data scanned by this machine can be sent and saved using a variety of methods. Sending data to your computer (SMB Send) Send scanned data to a computer on the network. Once settings are configured, you can send data easily. For details, refer to page 3-12 and page 3-20.
Page 76: Various Methods For Transmitting And Saving Data
Scan-to-Send function Various methods for transmitting and saving data In addition to the above, data can be sent and saved in various methods. Select the appropriate one to meet your needs. Issuing a scan instruction from a computer (Web service function) Saving data to a User Box on the HDD (Save in User Box) Sending to an FTP server (FTP TX) Sending to a WebDAV server (WebDAV Send)
Page 77: Preparation Flow
Scan-to-Send function Preparation flow The following describes a preparation flow for sending scanned data. For details, refer to the relevant page. This preparation is not required the second time or subsequent times. Checking the cable connection (Administrator) % Check that this machine is correctly connected to the network cable. For details, refer to page 3-13. Checking network settings of this machine (Administrator) % Check the network settings of this machine.
Page 78: Checking Network Settings Of This Machine
Scan-to-Send function Checking network settings of this machine Tap [Utility], and select [Device Information]. Then, check that the IP address is displayed. • For IPv4 environment • For IPv6 environment If no IP address is displayed, you need to configure the network. Tap [Utility], and select [Administrator Settings] - [Network Settings] - [TCP/IP Settings].
Page 79: Checking Computer Information
Scan-to-Send function Checking computer information Check the host address and user ID, and write them down. From the Start menu, select [Computer] - [System Properties]. % In Windows XP, open the Start menu, and right-click on [My Computer], and select [Properties]. Check the computer name, and write it down in the Host address column of the checklist.
Page 80: Registering Destinations
Scan-to-Send function Registering destinations While checking the created checklist, register the folder for receiving the scanned data as an address book of this machine. Tap [Utility], and select [One-Touch/ User Box Reg.] - [Create One-Touch Destination] - [Address Book (Public)] - [PC (SMB)]. Tap [New].
Page 81 Scan-to-Send function While checking the checklist, enter the user ID and password you wrote down. While checking the checklist, enter the host address and file path you wrote down. % When not specifying a folder, enter a slash "/" for the file path. When specifying a folder, enter only the folder name without slash "/".
Page 82: Sending The Original
Scan-to-Send function Sending the original Load the original. Tap [Scan/Fax]. Select a destination. 3-18 d-Color MF552/452/362/282/222...
Page 83 Scan-to-Send function Check the setting if necessary. % Tap [Check Setting] to check the setting. % You can also check the setting using the keys displayed on the Touch Panel. % To change the setting, tap the desired key on the Touch Panel. Settings Description [Simplex/Duplex]...
Page 84: Sending Data To Your Mac Computer (Smb Send)
Scan-to-Send function 3.2.3 Sending data to your Mac computer (SMB Send) Send scanned data to a computer on the network. Once settings are configured, you can send data easily. Preparation flow The following describes a preparation flow for sending scanned data. For details, refer to the relevant page. This preparation is not required the second time or subsequent times.
Page 85: Checking The Cable Connection
Scan-to-Send function Checking the cable connection Check that a LAN cable is connected to the LAN port of this ma- chine and the green LED is on. Checking network settings of this machine Tap [Utility], and select [Device Information]. Check that the IP address is displayed. •...
Page 86: Checklist
Scan-to-Send function Checklist While making notes in the checklist shown below, check computer information and configure settings for preparation. The completed checklist is used for Store Address. Name Entry column Detail Host Address IP address to which the scanned data is sent page 3-22 File Path Name of the dedicated folder to receive the scanned data...
Page 87: Registering Destinations
Scan-to-Send function Registering destinations While checking the created checklist, register the folder for receiving the scanned data as an address book of this machine. Tap [Utility], and select [One-Touch/ User Box Reg.] - [Create One-Touch Destination] - [Address Book (Public)] - [PC (SMB)]. Tap [New].
Page 88 Scan-to-Send function While checking the checklist, enter the user ID and password you wrote down. While checking the checklist, enter the host address and file path you wrote down. % When not specifying a folder, enter a slash "/" for the file path. When specifying a folder, enter only the folder name without slash "/".
Page 89: Sending The Original
Scan-to-Send function Sending the original Load the original. Tap [Scan/Fax]. Select a destination. d-Color MF552/452/362/282/222 3-25...
Page 90 Scan-to-Send function Check the setting if necessary. % Tap [Check Setting] to check the setting. % You can also check the setting using the keys displayed on the Touch Panel. % To change the setting, tap the desired key on the Touch Panel. Settings Description [Simplex/Duplex]...
Page 91: Transmit The Scanned Data Via E-Mail (E-Mail Tx)
Scan-to-Send function 3.2.4 Transmit the scanned data via E-mail (E-mail TX) Send scanned data as an E-mail attachment. This function allows you to receive data at an outside location, which is useful when a quick measure is re- quired. Preparation flow The following describes a preparation flow for sending scanned data.
Page 92: Checking The Cable Connection
Scan-to-Send function Checking the cable connection Check that a LAN cable is connected to the LAN port of this ma- chine and the green LED is on. Checking network settings of this machine Tap [Utility], and select [Device Information]. Check that the IP address is displayed. •...
Page 93: Configuring The E-Mail Transmission Environment
Scan-to-Send function Configuring the E-mail transmission environment Tap [Utility], and select [Administrator Settings] - [Network Settings] - [E-Mail Settings]. % For information on the default administrator password, refer to the [Quick Assist Guide]. Tap [E-Mail TX (SMTP)]. Select [ON] to enable E-mail TX (SMTP) settings and E-mail TX function. d-Color MF552/452/362/282/222 3-29...
Page 94: Configuring Administrator Information
Scan-to-Send function Enter the SMTP server address. Configuring administrator information Tap [Utility], and select [Administrator Settings] - [Administrator/Machine Settings] - [Administrator Reg- istration]. Enter the required information, then tap [OK]. 3-30 d-Color MF552/452/362/282/222...
Page 95: Sending The Original
Scan-to-Send function Sending the original Load the original. Tap [Scan/Fax]. Enter a destination. d-Color MF552/452/362/282/222 3-31...
Page 96 Scan-to-Send function Check the setting if necessary. % Tap [Check Setting] to check the setting. % You can also check the setting using the keys displayed on the Touch Panel. % To change the setting, tap the desired key on the Touch Panel. Settings Description [Simplex/Duplex]...
Page 97: Fax Function
Fax Function Fax Function 3.3.1 Required settings and basic operations This section describes the settings required to send and receive a fax via a telephone line as well as the basic operations. Preparation flow The following describes a preparation flow to send a fax. For details, refer to the relevant page. This preparation is not required the second time or subsequent times.
Page 98: Checking The Cable Connection
Fax Function Checking the cable connection Check that a modular cable is connected to the LINE port of this ma- chine. Registering transmission information Tap [Utility], and select [Administrator Settings] - [Fax Settings] - [Header Information]. Enter the sender information, then tap [OK]. •...
Page 99: Selecting The Dialing Method
Fax Function Reference For information on the default administrator password, refer to the [Quick Assist Guide]. Selecting the dialing method Tap [Utility], and select [Administrator Settings] - [Fax Settings] - [Line Parameter Setting]. Tap [Dialing Method]. d-Color MF552/452/362/282/222 3-35...
Page 100: Sending The Original
Fax Function For the push-button type, select [PB], and for the dial-pulse type, select [10pps]. If you do not know the type of the dialing method: If you do not know the type of the dialing method, operate push buttons of your phone. When you hear "beep boop beep", set [Dialing Method] to [PB].
Page 101 Fax Function Enter a destination. Check the setting if necessary. % Tap [Check Setting] to check the setting. % You can also check the setting using the keys displayed on the Touch Panel. % To change the setting, tap the desired key on the Touch Panel. [Color], [File Type], and [E-mail Settings] are not available when sending to a fax number.
Page 102: Sending A Fax Directly From A Pc (Pc-Fax Tx)
Fax Function Press the Start key. 3.3.2 Sending a fax directly from a PC (PC-FAX TX) You can send a fax to the destination fax machine in the same manner as you print out data created on your computer. Advantages to send a fax directly from a computer Realizing paper saving Completing fax operations without leaving your desk Offering clear images by sending data directly from a computer...
Page 103: Operation Flow
Fax Function Operation flow The following describes a flow to send a fax. For details, refer to page 3-42. Creating data % Create data to be sent using application software. Configuring the fax driver % Select a fax driver, and change the setting if necessary. Entering a destination to send data % Enter a destination to send data.
Page 104: Checking Network Settings Of This Machine
Fax Function Checking network settings of this machine Tap [Utility], and select [Device Information]. Check that the IP address is displayed. • For IPv4 environment • For IPv6 environment If no IP address is displayed, you need to configure the network. Tap [Utility], and select [Administrator Settings] - [Network Settings] - [TCP/IP Settings].
Page 105: Installing The Fax Driver
Fax Function Installing the fax driver Use the installer to install the fax driver. This section describes how to configure the standard print settings. This operation requires administrator privileges for your computer. Insert the printer driver DVD-ROM into the DVD-ROM drive of the computer.
Page 106: Sending Data
Fax Function Sending data Create data to be sent using application software. From the [File] menu, select [Print]. Select the fax driver of this machine, and click [Print]. % Clicking [Preferences] can change the setting of the printer driver as required. % If user authentication is enabled in this machine, specify the required data such as the user name and password.
Page 107: Copy Function
Copy Function Copy Function Basic operations The following describes the basic operations to make a copy. If user authentication is enabled, the login screen appears. Tap the keyboard icon, enter the required items, then tap [Login] or press Access. % If IC card or biometric authentication is enabled, refer to page 3-45. Load the original.
Page 108 Copy Function Check the basic settings. % Check the output image configured as specified while viewing the output illustrations displayed on the Touch Panel. % Tapping [Check Setting] can check detailed settings. % To change the setting, tap the desired key on the Touch Panel. Settings Description [Original Type]...
Page 109: User Authentication
Copy Function User authentication You can perform authentication by user or group in this machine. Installing optional units enables IC card or biometric authentication. If IC card authentication is enabled, pass or place the IC card over or on the card reader of the authentication unit. If biometric authentication is enabled, put your finger on the finger vein reader of the authentication unit.
Page 110: Registering A Destination
Registering a destination Registering a destination 3.5.1 Registering an address book The fax and scan-to-send functions can register the frequently used destinations as address books. This sec- tion explains an example to register an address book to which a fax is sent. Using the Control Panel to register an address book Select a destination type, and register destination information.
Page 111 Registering a destination Enter the destination name you want to register. % Tap [Name], and enter the destination name using the displayed keyboard. % For [Sort Character], enter the same name as [Name]. % This sets the appropriate index for the name, which you entered into [Name], to [Index]. To change the setting, tap [Index].
Page 112: Using A Computer To Register A One-Touch Destination
Registering a destination What is an index? This is used as an index of a registered destination. Tap the Index key to narrow down a target desti- nation. If [Favorite] is selected as an index, the destination appears in the basic screen of the transmission screen after it has been registered in the address book;...
Page 113: Information Required To Register A Destination
Registering a destination Select [Store Address] and click [New Registration]. Select the type of the destination you want to register. Enter the required information such as the name, fax number, and index. 3.5.2 Information required to register a destination The items to be entered or the number of screens required to register a destination vary depending on the transmission type.
Page 114: Registering A Group
Registering a destination 3.5.3 Registering a group Several address books can be registered as a group. This function is useful when you have jobs involving sending data to specified members at periodic intervals. Registering a new group Tap [Utility], and select [One-Touch/ User Box Reg.] - [Create One-Touch Destination] - [Group]. Tap [New].
Page 115 Registering a destination Select destinations to be grouped. Display and select the target address book on the destination selection screen. The following two meth- ods can be used to search for a destination. % Search by index: Searches for the target destination name using an index. % Search by registration number: Searches for the target destination using a registration number.
Page 116: Retrieving A Registered Destination
Registering a destination 3.5.4 Retrieving a registered destination Retrieve an address book or group to specify it as a destination to which data is sent. Retrieving a destination Tap [Scan/Fax]. The destinations, which are categorized into [Favorite] when registering indexes, are displayed on the basic screen.
Page 117: Specifying A Destination
Registering a destination Specifying a destination In addition to retrieving a registered destination, a destination can be specified in various methods. Direct Input Directly enter a destination using the keyboard screen or keypad. Job History Specify a target destination in the job history (latest five destinations) on the scan/fax screen.
Page 118: Using A Usb Memory Device
Using a USB memory device Using a USB memory device 3.6.1 Printing data in a USB memory device Data saved in the USB memory device can be printed. This function is useful when printing data created on a computer that is not connected to the network. Available USB memory device Compatible with USB version 2.0/1.1 interface Formatted in FAT32...
Page 119 Using a USB memory device Select data to be printed, and tap [Print]. Check print settings. d-Color MF552/452/362/282/222 3-55...
Page 120: Saving The Scanned Data In The Usb Memory Device (External Memory)
Using a USB memory device Press the Start key. NOTICE Do not disconnect the USB memory device during data printing. 3.6.2 Saving the scanned data in the USB memory device (External memory) The data scanned on this machine can be saved to the USB memory device, so it is convenient when printing data created on a computer that is not connected to the network.
Page 121 Using a USB memory device Tap [External Memory Functional Settings]. Select [Save Document] and [ON]. Tap [OK]. Reference For information on the default administrator password, refer to the [Quick Assist Guide]. d-Color MF552/452/362/282/222 3-57...
Page 122: Saving Data In The Usb Memory Device
Using a USB memory device Saving data in the USB memory device Load the original. Connect a USB memory device to this machine. NOTICE Do not insert the USB memory device into the USB port close to the rear panel of this machine. Do not use a USB device other than a flash-memory device.
Page 123 Using a USB memory device Check the file name. If necessary, check the setting to save data. % Tap [Check Setting] to check the setting. % To change a file name, tap the keyboard icon. % You can also check the setting using the keys displayed on the Touch Panel. % To change the setting, tap the desired key on the Touch Panel.
Page 124: Using The Guidance Function
Using the guidance function Using the guidance function 3.7.1 Guidance screen This machine provides the guidance function to display the description of a function on the screen and view an operation procedure with moving images. If you have any questions during operation, try to use this guidance function. Getting help on the currently displayed screen: Select [Function] on the Help Menu to display the guidance screen.
Page 125 Using the guidance function Narrow down the information you want to know. d-Color MF552/452/362/282/222 3-61...
Page 126: Getting Help On The Desired Function Or Procedure
Using the guidance function Name Description [Exit] Returns to the main menu. [To Menu] Returns to the Help Menu. [Close] Returns to the preceding screen. Getting help on the desired function or procedure: Open the Help Menu, and select a menu depending on an objective to display the guidance screen. Press the Guidance key.
Page 127 Using the guidance function Narrow down the information you want to know. d-Color MF552/452/362/282/222 3-63...
Page 128: Help Menu List
Using the guidance function Tapping [Go to function] opens the setting screen of a target function, enabling you to configure the settings immediately. Help Menu list The Help Menu provides the following information: Name Description [Function] Tap this button to display the guidance menu that has been sorted ac- cording to the function names to be displayed on the screen.
Page 129: Advanced Functions
Advanced Functions...
Page 131: Using Advanced Functions
Using advanced functions Advanced Functions Using advanced functions 4.1.1 What are advanced functions? Various functions for further enhancement of the MFP operability are expressed as advanced functions in this manual. This machine provides the following advanced functions. Tips To use an advanced function, you need to register i-Option or associate with the My Panel Manager application.
Page 132: Registering The I-Option License
Using advanced functions 4.1.3 Registering the i-Option license To add an optional function to this machine, you need to purchase i-Option and register its license. Tips The Upgrade Kit UK-204 is required to use i-Option. For details on how to purchase or install an optional unit, contact your service representative. Preparation flow The following describes a preparation flow to use advanced functions.
Page 133: Enabling The I-Option Function
Using advanced functions Enabling the i-Option function Register the license and function codes in this machine. Tap [Utility], and select [Administrator Settings] - [Forward] - [License Settings] - [Install License]. % For information on the default administrator password, refer to the [Quick Assist Guide]. Enter the license and function codes you wrote down.
Page 134 Using advanced functions d-Color MF552/452/362/282/222...
