AU: 1800 029 701
N Z: 0800 466 444
For construction in non-cyclonic areas
Wind rating: N2 as per AS4055-2012
When laying concrete slab, ensure there
is a rebated edge 25mm deep around the
perimeter. This will help water egress from
the base of the shed.
shed. For further assistance please visit our detailed
MANU FA CT URED
IN A US TR ALIA
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
SNAPTiTE
Assemb ly
ABSCO INDUSTRIES
Absco Industries
Assembly Instruction Manual

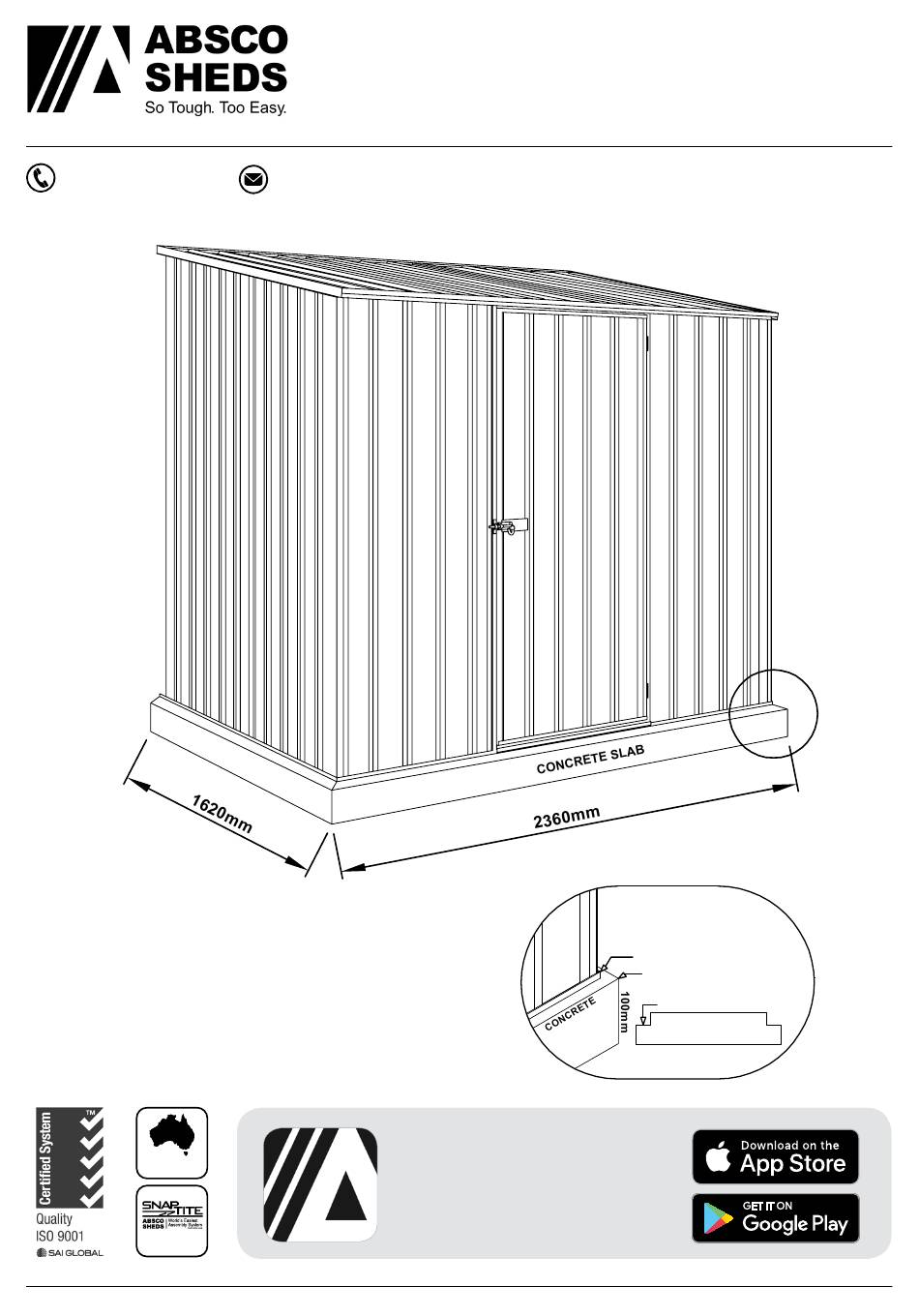

ABSCO SPACE SAVER SHED
MODEL: 23151SK
2.26mW x 1.52mD x 1.80mH, 2.08mH
admin@absco.com.au
www.abscosheds.com.au
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
We thank you for choosing an Australian made
instructional video library at
Http://www.abscosheds.com.au/watch-videos
of our instructions. Feedback makes us better.
feedback@absco.com.au
ASSEMBLY INSTRUCTION MANUAL
Absco Industries
Premier Shed Model: 23151GK
Download the Absco
Sheds Assembly App
for instructional videos
SHED MODEL: 23151GK
Model: 23151SK
FRONT: 2.26m
SIDE:
1.52m
HEIGHT: 1.95m
BOTTOM CHANNEL
REBATED EDGE
75mm WIDE REBATE
CONCRETE SLAB
21-11-2017
14/08/18
1.2
PAGE 01
1
Advertisement
Related Manuals for ABSCO SHEDS 23151SK
Summary of Contents for ABSCO SHEDS 23151SK
- Page 1 ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH AU: 1800 029 701 admin@absco.com.au N Z: 0800 466 444 www.abscosheds.com.au Absco Industries Premier Shed Model: 23151GK FRONT: 2.26m SIDE: 1.52m HEIGHT: 1.95m WHEN LAYING YOUR CONCRETE For construction in non-cyclonic areas...
- Page 2 ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH GENERAL INSTRUCTIONS • Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. • Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on "COMPONENTS PACKING LIST"...
- Page 3 ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH COMPONENT PACKING LIST Check off all components. PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION STEEL SHEET STEEL SHEET 261R 2045 X 773mm 2045mm X 773mm STEEL SHEET...
- Page 4 ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH COMPONENT PACKING LIST Check off all components. PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION 81CL 81CR CHANNEL CHANNEL L = 1126.5mm L = 1126.5mm 54AL 54AR CHANNEL CHANNEL L = 1126.5mm...
- Page 5 ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH COMPONENT PACKING LIST Check off all components. PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION JAMB L= 1785mm JAMB L= 1120mm LIP TRIM L= 1610mm JAMB L= 1785mm JAMB L= 788mm INSTRUCTIONS &...
- Page 6 ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH SNAPTiTE ASSEMBLY GUIDE The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for tools and fasteners. To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
- Page 7 ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH Guide on Joining Spliced Channels The text marked on all parts must be shown on the same side as each other JOIN>> JOIN>> <<JOIN JOIN>> Step 1. Step 2.
- Page 8 ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH PRE-ASSEMBLY OF SPLICED CHANNELS Join together 12x channel sections using 6x channel joiners (Part CSJ) NOTE: Some channels may have holes in them - You will need to redrill holes where CSJ joining channel covers them.
- Page 9 ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH OVERVIEW OF ROOF COMPONENTS Absco Industries Assembly Instruction Manual Model: 23151SK 14/08/18...
- Page 10 ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH OVERVIEW OF WALL COMPONENTS Absco Industries Assembly Instruction Manual Model: 23151SK 14/08/18...
-
Page 11: Rear Panel Assembly
ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH REAR PANEL ASSEMBLY 1x required Absco Industries Assembly Instruction Manual Model: 23151SK 14/08/18... -
Page 12: Side Panel Assembly
ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH SIDE PANEL ASSEMBLY 1x LEFT SIDE PANEL 1x RIGHT SIDE PANEL 260R 261R 261L 260L Absco Industries Assembly Instruction Manual Model: 23151SK 14/08/18... - Page 13 ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH ROOF PANEL ASSEMBLY Absco Industries Assembly Instruction Manual Model: 23151SK 14/08/18...
-
Page 14: Front Panel Assembly
ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH FRONT PANEL ASSEMBLY Absco Industries Assembly Instruction Manual Model: 23151SK 14/08/18... - Page 15 ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH DOOR PANEL ASSEMBLY SINGLE DOOR Vertical door channels are installed in the opposite orientation compared to the horizontal door channels. Long Short fl ange fl ange of of channel...
-
Page 16: Door Panel Assembly
ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH DOOR PANEL ASSEMBLY SINGLE DOOR PANEL NOTE: Nuts and bolts are also supplied and may be used instead of rivets. Use a 4mm drill bit to enlarge these holes in the jamb NOTE: The holes to fasten the padbolt hasp are not pre-punched to allow for proper alignment. - Page 17 ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH PANEL CONSTRUCTION NOTE: Take care to ensure that all wall panels are not upside down. The top channels of each panel are pre-punched for attaching roof sheeting. The base channels are not pre-punched.
- Page 18 ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH FINAL CONSTRUCTION ANCHORING OF SHED Location of 12 concrete anchors Bolt and Nut* M10 4.6/S Wall Sheet Steel Angle* 35 x 35 x 3 Each anchor consists of one nut, bolt, M10 dynabolt and steel angle.
- Page 19 ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH Absco Skillion Roof Shed Notes General • 1.G This instruction manual shall be read in conjunction with other consultants drawings, specifi cations and written instructions provided by Absco and/or their representatives.
- Page 20 ABSCO SPACE SAVER SHED MODEL: 23151SK 2.26mW x 1.52mD x 1.80mH, 2.08mH Absco Skillion Roof Shed Notes Steelwork • 1.S All structural steelwork shall have a corrosion protection system applied consistent with AS/NZS 2312- 2002. • 2.S All structural steelwork detailed within this installation manual shall be minimum Grade 550 for roll formed sections (including roof and wall sheeting) and Grade 250 for angle sections.
- Page 21 Absco Sheds Storage Guidelines • Absco Sheds are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fi xings etc., may exhibit minor deformations which may allow some water entry. These areas should be checked regularly to ensure that maximum strength and protection is maintained.
- Page 22 2.26mW x 1.52mD x 1.80mH, 2.08mH Australia Product Warranty Against Defects • Absco Sheds, including garden sheds, garden beds, aviaries, storage units, garages, awnings and carports are made using high quality Australian made steel. • We are pleased to advise we warrant that the steel coating will not rust, crack, fl ake peel or blister for 30 years from date of purchase, when installed within Australia.
