ABSCO SHEDS 23151EZK Manual

Ezislider shed
Hide thumbs

Advertisement

Table of Contents

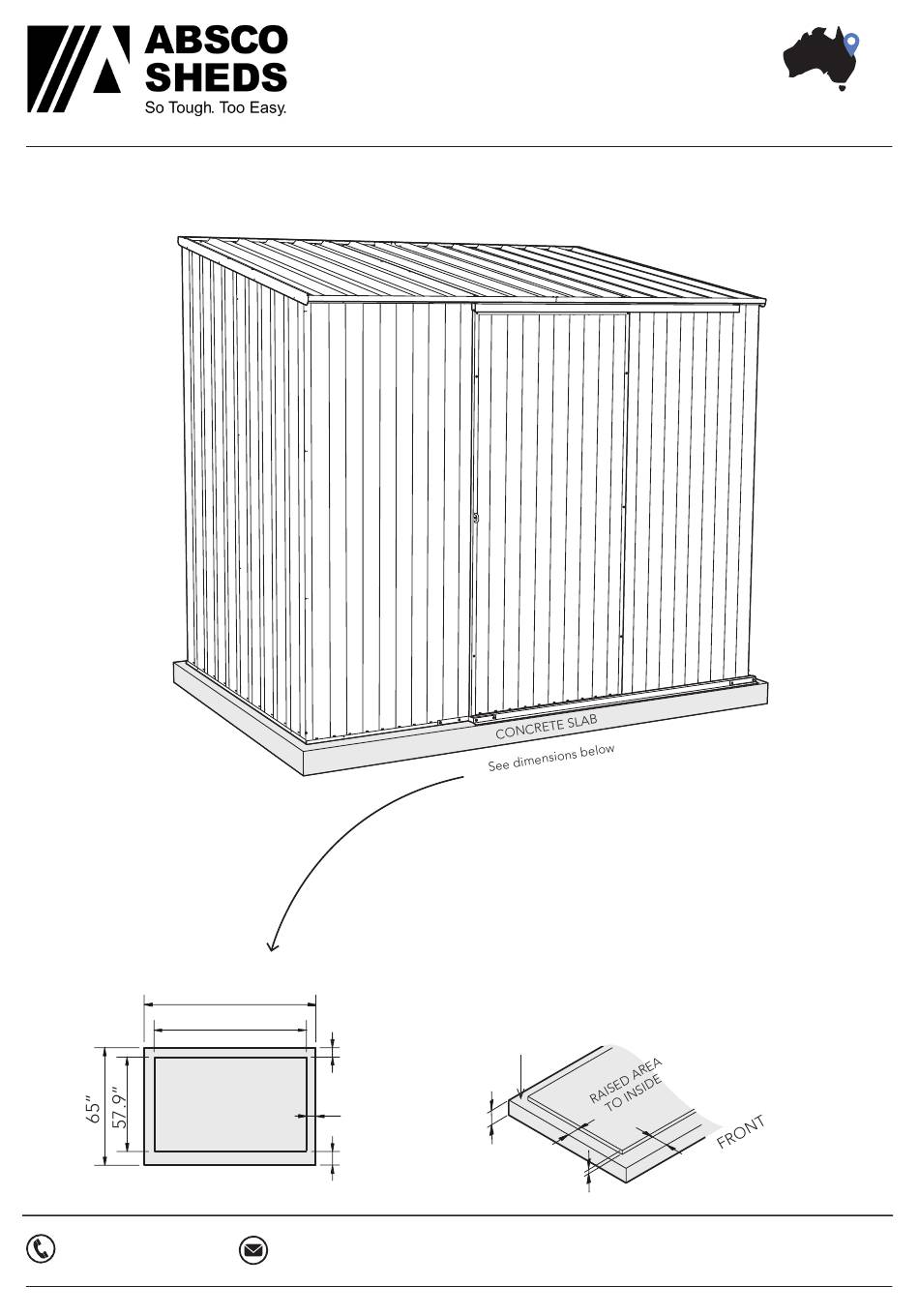

CONCRETE SLAB
93" W x 65" D x 4" H
65" W x 57.9" D x 1" H
AU: 1800 029 701
+1 (866) 788 3046
+1 (866) 788 3046
N Z: 0800 466 444
Absco Industries
Assembly Instruction Manual

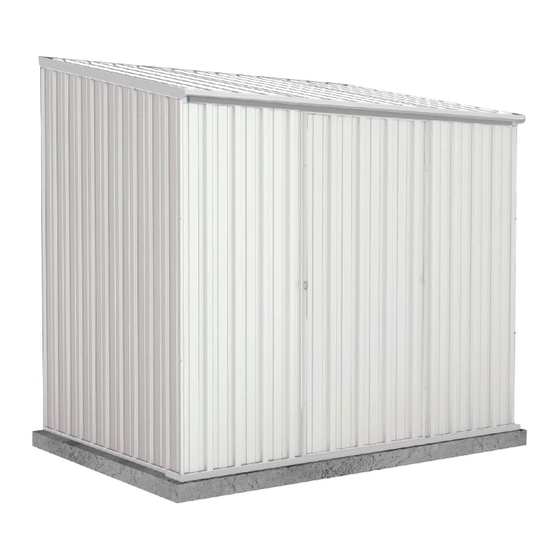

ABSCO EZISLIDER SHED
MODEL: 23151EZK
7'5" W x 5' D x 6'10" H
93"
87"
3"
BASE
3"
REBATE
4.1"*
FRONT
admin@absco.com.au
admin@absco.com.au
www.abscogardensheds.com
www.abscosheds.com.au
When laying a concrete slab for your shed, it is
best practise to have a rebated edge to prevent
water ingress.
Rebated edge is 3" wide x 1" tall to the sides and
rear, *the front rebate is 4.1" wide to allow for the
track.
SHED & TRACK
SIT ON THIS LEVEL
4"
3"
1"
PLEASE LEAVE A REVIEW
www.abscosheds.com.au/review
Model: 23151EZK-PTX
Australian Made
Overall slab base
dimensions for this
model are as shown
above.
Illustration not to
4.1"*
scale.
27/11/23
1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 23151EZK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ABSCO SHEDS 23151EZK

Summary of Contents for ABSCO SHEDS 23151EZK

  • Page 1 ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made When laying a concrete slab for your shed, it is best practise to have a rebated edge to prevent water ingress. Rebated edge is 3” wide x 1” tall to the sides and rear, *the front rebate is 4.1”...
  • Page 2 ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made Australian Made GENERAL INSTRUCTIONS SAFETY NOTES • Before commencing any assembly, read • Some parts may have sharp edges. It is through these instructions in detail to gain...

  • Page 3: Components List

    ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made COMPONENTS LIST Nominal sheet widths are shown +/- 1/8” is within tolerance DESCRIPTION PART # DESCRIPTION PART # STEEL SHEET STEEL SHEET 261R 78” TO MIDPOINT 80”...
  • Page 4 ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made COMPONENTS LIST DESCRIPTION PART # DESCRIPTION PART # FAST END STOP C-HANDLE BOTTOM M4 x 25 mm FAST BRACKET PAN HD SCREW CHANNEL 4 WHEEL...
  • Page 5 ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made COMPONENT PACKING LIST Check off all components. DESCRIPTION PART # DESCRIPTION PART # CHANNEL CHANNEL 54QL 54QR 44.5” 44.5” CHANNEL CHANNEL 54VL 54VR 44.5” 44.5”...
  • Page 6 ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made SNAPTiTE ASSEMBLY GUIDE The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for tools and fasteners. To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
  • Page 7 ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made Guide on Joining Spliced Channels The text marked on all parts must be shown on the same side as each other JOIN>> JOIN>> <<JOIN JOIN>>...
  • Page 8 ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made PRE-ASSEMBLY OF SPLICED CHANNELS Join together 12x channel sections using 6x channel joiners (Part CSJ) NOTE: Some channels may have holes in them - You will need to redrill holes where CSJ joining channel covers them.

  • Page 9: Component Overview

    ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made COMPONENT OVERVIEW 261L 260L 261R 260R 1375 1520 Absco Industries Assembly Instruction Manual Model: 23151EZK-PTX 27/11/23...

  • Page 10: Rear Panel Assembly

    ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made REAR PANEL ASSEMBLY 1x required 1. Layout and overlap the three sheets by one rib as shown. You’ll need to turn one 262 around 180 degrees so the five edge holes are to both sides.
  • Page 11 ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made REAR PANEL ASSEMBLY CONTINUED 4. Now both channels are attached, fasten their L&R pieces to the CSJ with a self tapping screw FAST001 in each top hole - four screws total.
  • Page 12 ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made LEFT PANEL ASSEMBLY 1. Layout and overlap the two sheets by one rib as shown. orientate them so the three rib holes overlap and angled end of the sheets are both to the top.
  • Page 13 ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made RIGHT PANEL ASSEMBLY 1. Layout and overlap the two sheets by one rib as shown. orientate them so the three rib holes overlap and angled end of the sheets are both to the top.
  • Page 14 ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made ROOF PANEL ASSEMBLY Absco Industries Assembly Instruction Manual Model: 23151EZK-PTX 27/11/23...

  • Page 15: Front Panel Assembly

    ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made FRONT PANEL ASSEMBLY FRONT PANEL ASSEMBLY 1. Take a 30D sheet and orientate it as shown with the four edge holes to the right. The 80C channel will cover the edge, with the longer 0.8”...
  • Page 16 ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made FRONT PANEL ASSEMBLY CONTINUED 5. To the top and bottom of the doorway. Orientate the shorter, 0.6” side of a 54G channel so it goes into the existing channel.

  • Page 17: Door Panel Assembly

    ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made DOOR PANEL ASSEMBLY DOOR PANEL ASSEMBLY BOTTOM CHANNEL TOP CHANNEL Take the supplied 6mm drill bit and drill out the two outermost Take a door slide FAST001 prepunched holes as shown.
  • Page 18 ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made DOOR PANEL ASSEMBLY 1x required BOTTOM Make sure you have the longer 0.8” side of the 58B channels over the front of the sheeting. NOTE: There are no pre-drilled holes for the 58B channels in the SL1 sheet.
  • Page 19 ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made PANEL CONSTRUCTION Take care to ensure that all wall panels are not upside down. The top channels of each panel are pre-punched for attaching roof sheeting.
  • Page 20 ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made FINAL CONSTRUCTION Fastening the roof panel. 1 Through sheet pans into top of wall channels. TIP: Start in corner, align holes and work along aligning and fixing.
  • Page 21 ABSCO EZISLIDER SHED MODEL: 23151EZK 7’5” W x 5’ D x 6’10” H Australian Made BOTTOM DOOR TRACK Position the track against the bottom slides of the door and the front wall as shown. 1. Secure the track to the shed at the right end with a BKT260 bracket and 4x tek screws.
  • Page 22 THE CUSTOMER SERVICE MANAGER, ABSCO SHEDS, PO BOX 119 ACACIA RIDGE QLD AUSTRALIA 4110 PHONE: +61 1800 029701 EMAIL: warranty@absco.com.au...
  • Page 23 Absco Sheds Storage Guidelines • Absco Sheds are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fi xings etc., may exhibit minor deformations which may allow some water entry. These areas should be checked regularly to ensure that maximum strength and protection is maintained.
