ABSCO SHEDS 23221RK Assembly Instructions Manual

Regent shed
Hide thumbs Also See for 23221RK:

Advertisement

Quick Links

Download this manual
We thank you for choosing an Australian made shed. For further assistance please
visit our detailed instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be number ONE, so please let us
know what you think of our instructions. Feedback makes us better.
feedback@absco.com.au
ABSCO INDUSTRIES

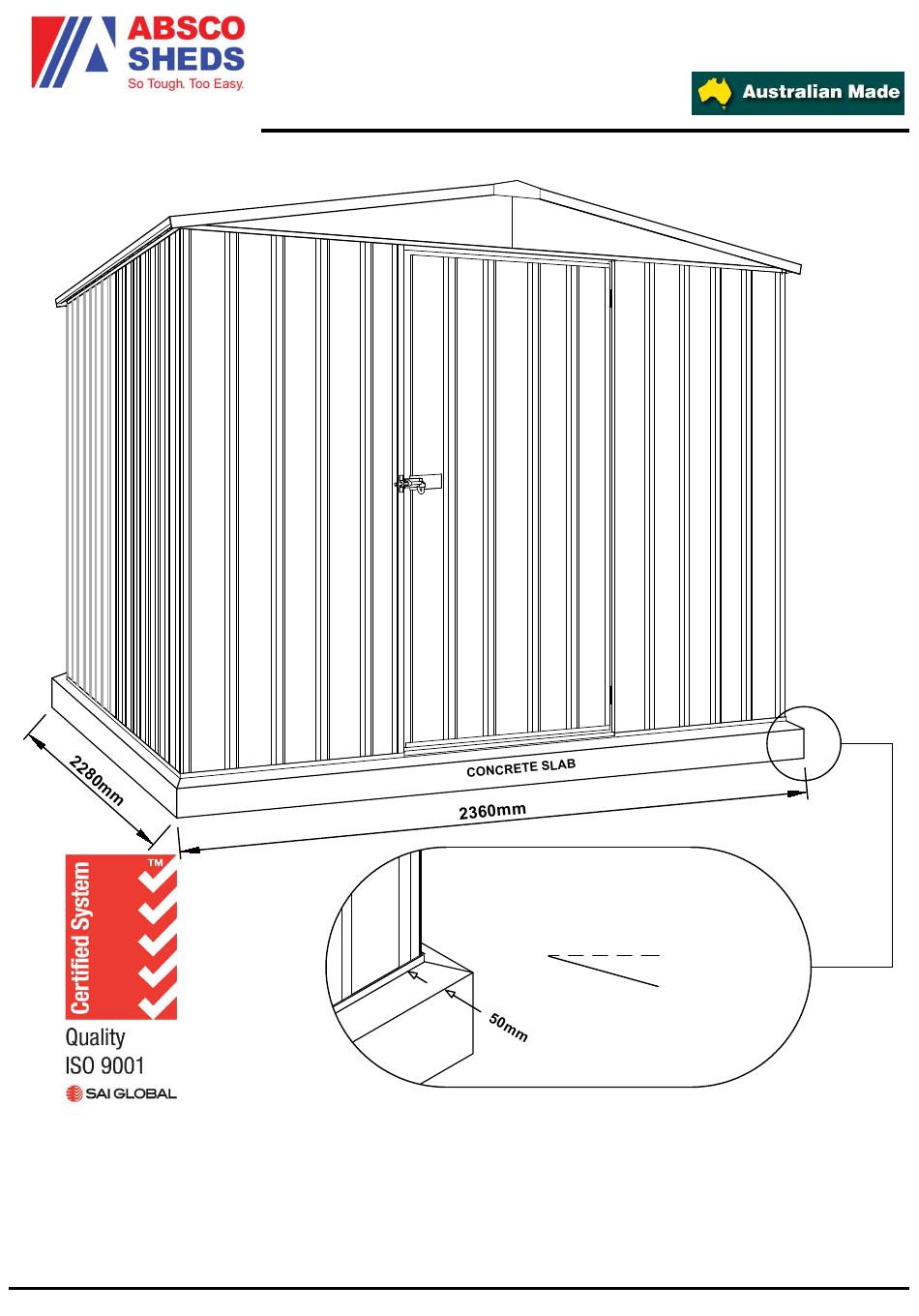

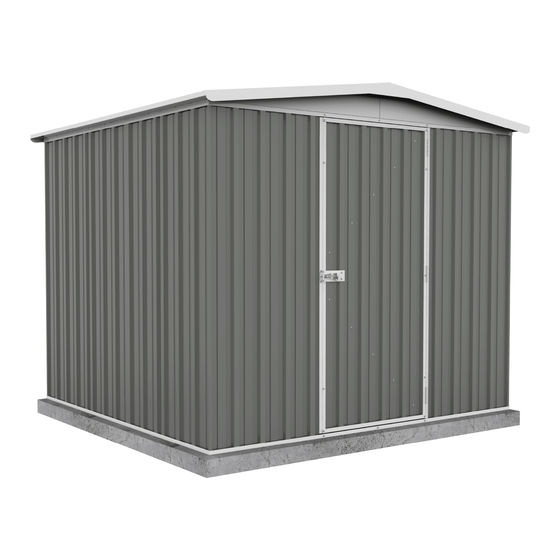

Absco Regent Shed
Assembly Instructions
Model: 23221RK
ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17
WHEN LAYING YOUR CONCRETE
SLAB, CHAMFER THE 50mm EDGES
DOWNWARDS BY 10mm.
50mm
THIS WILL ENSURE THAT
WATER RUN OFF IS KEPT
CLEAR FROM YOUR SHED
FRONT: 2.26m
SIDE:
2.18m
HEIGHT: 1.96m
10mm
PAGE 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 23221RK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ABSCO SHEDS 23221RK

Summary of Contents for ABSCO SHEDS 23221RK

  • Page 1 Http://www.abscosheds.com.au/watch-videos At ABSCO Industries we are always looking to be number ONE, so please let us know what you think of our instructions. Feedback makes us better. feedback@absco.com.au ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17 PAGE 1...

  • Page 2: General Instructions

    Do not erect your shed in windy conditions, ensure that the shed is securely anchored to a solid foundation immediately after construction is completed. · It is highly recommended to erect the shed with two or more people. ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17 PAGE 2...
  • Page 3 L = 1725mm STEEL SHEET 1170mm X 773mm CHANNEL L = 1725mm STEEL SHEET 1785mm X 731mm CHANNEL L = 773mm STEEL SHEET 1725mm X 773mm CHANNEL L = 788mm ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17 PAGE 3...
  • Page 4 CHANNEL CHANNEL L = 1126.5mm L = 1126.5mm 81HL 81HR CHANNEL CHANNEL L = 1089.5mm L = 1089.5mm RIDGE RIDGE 97BL 97BR BEAM BEAM L = 1152mm L = 1152mm ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17 PAGE 4...
  • Page 5 TO DOOR SELF DRILLING HEX HEX TEK SCREW HEAD TEK SCREWS (NO DRIVER BIT HOLE REQUIRED) 4mm (0.16") NUT & BOLT SET SECURE ASSEMBLY ONE PADBOLT TO INSTRUCTIONS DOOR SHEET ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17 PAGE 5...
  • Page 6 CSJ positioned equally inside of the joined channels. (on an angle). Push the CSJ into the channel until you here a 'click'. CHANNEL HIGH-SIDE LOW-SIDE 20mm (0.79") 15mm (0.59") CHANNEL ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17 PAGE 6...
  • Page 7 1 X 54CL 2 x 81H 1 X 76AR 1 X 76AL 1 X 76BR 1 X 76BL 2 X 59BR 2 X 59BL 2 X 81HR 2 X 81HL ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17 PAGE 7...
  • Page 8 STAGE 3: TURN RIDGE CAP OVER AND MEASURE 250mm FROM THE END OF EACH RIDGE CAP. PLACE TEK SCREWS IN 50mm INCREMENTS FROM SAID END. REPEAT THIS PROCESS FOR THE OPPOSING HALF OF RIDGE BEAM ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17 PAGE 8...
  • Page 9 QTY. = 2 PARTS 97BL & 97BR QTY. = 1 PART ZARSP - 450mm (17.7") LONG ZARSP THE TOP SECTIONS OF CAPPING WILL OVERLAP EACH OTHER AT THE JOIN BY 50mm (2.0"). ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17 PAGE 9...
  • Page 12 Do not join components together at this location yet, as the screw may obstruct further assembly of other components ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17 PAGE 12...
  • Page 13 Absco Regent Shed - Model: 23221RK DOOR PANEL ASSEMBLY 6. DOOR PANEL ASSEMBLY ALL VERTICAL DOOR CHANNELS ARE INSTALLED IN THE REVERSE DIRECTION IN COMPARISON TO HORIZONTAL DOOR CHANNELS 20mm FLANGE 15mm FLANGE ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17 PAGE 13...

  • Page 14: Rear Panel Assembly

    Absco Regent Shed - Model: 23221RK REAR PANEL ASSEMBLY SIDE PANEL ASSEMBLY (2 Required) SMALL PAN SMALL PAN ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17 PAGE 14...
  • Page 15 Absco Regent Shed - Model: 23221RK ROOF PANEL ASSEMBLY (2 Required) 2 x PRE-PUNCHED HOLES TO THIS END OF EACH SHEET WITH PART NO. 81C FITTED ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17 PAGE 15...

  • Page 16: Front Panel Assembly

    Absco Regent Shed - Model: 23221RK FRONT PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17 PAGE 16...
  • Page 17 NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment. position each hasp centrally over the padbolt shaft, and drill 3mm holes and secure with screws ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17 PAGE 17...
  • Page 18 The bottom channels are not pre-punched. SIDE WALL PANEL CHANNELS FIT INTO THE NOTCHED FRONT AND CHANNEL TYPE REAR WALL PANEL CHANNELS 78B THIS END CHANNEL TYPE 81C THIS END ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17 PAGE 18...
  • Page 19 TO THE RIDGE BEAM AND FRONT WALL AS SHOWN. YOU WILL HAVE TO REMOVE AND REPLACE EXISTING SCREWS AT FIXING LOCATIONS. REPEAT THIS PROCEDURE FOR THE REAR WALL REGENT BRACE ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17 PAGE 19...
  • Page 20 - EACH ANCHOR CONSISTS OF ONE NUT, BOLT, STEEL DYNABOLT AND STEEL ANGLE ANGLE - DRILL A 10mm HOLE INTO SLAB THE WALL SHEET - DRILL A 10mm HOLE INTO THE DYNABOLT CONCRETE ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 23221RK 24/03/17 PAGE 20...
