Input frequency
Max. power
Operating temperature range
Ambient humidity
Dimension (H x W x D) (mm)
Weight (kg)
Protective class
Ingress protection
Mounting
Table 3. 2
Datasheet
9
50/60 Hz
50 W
-25℃ to +60℃ (-13℉ to +140℉)
5% – 95% (non-condensing)
300 x 400 x 170
7.5
I
IP65
Wall-mounted

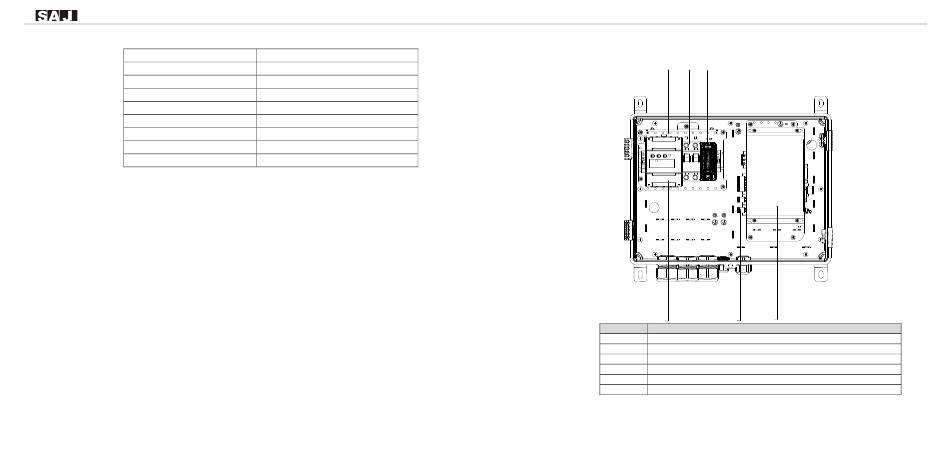

2.6. Internal Structure
4
Figure 5. 1
Internal structure
3
Callout Description
1 EMS control module (eManager-C1-1)
2 EMS power module (eManager-C1-2)
3 Smart meter
4 Switch
5 Circuit breaker
6 DC-DC power module
Table 5. 1
eManager-C1-1
eManager-C1 Pro
5
6
1
2
