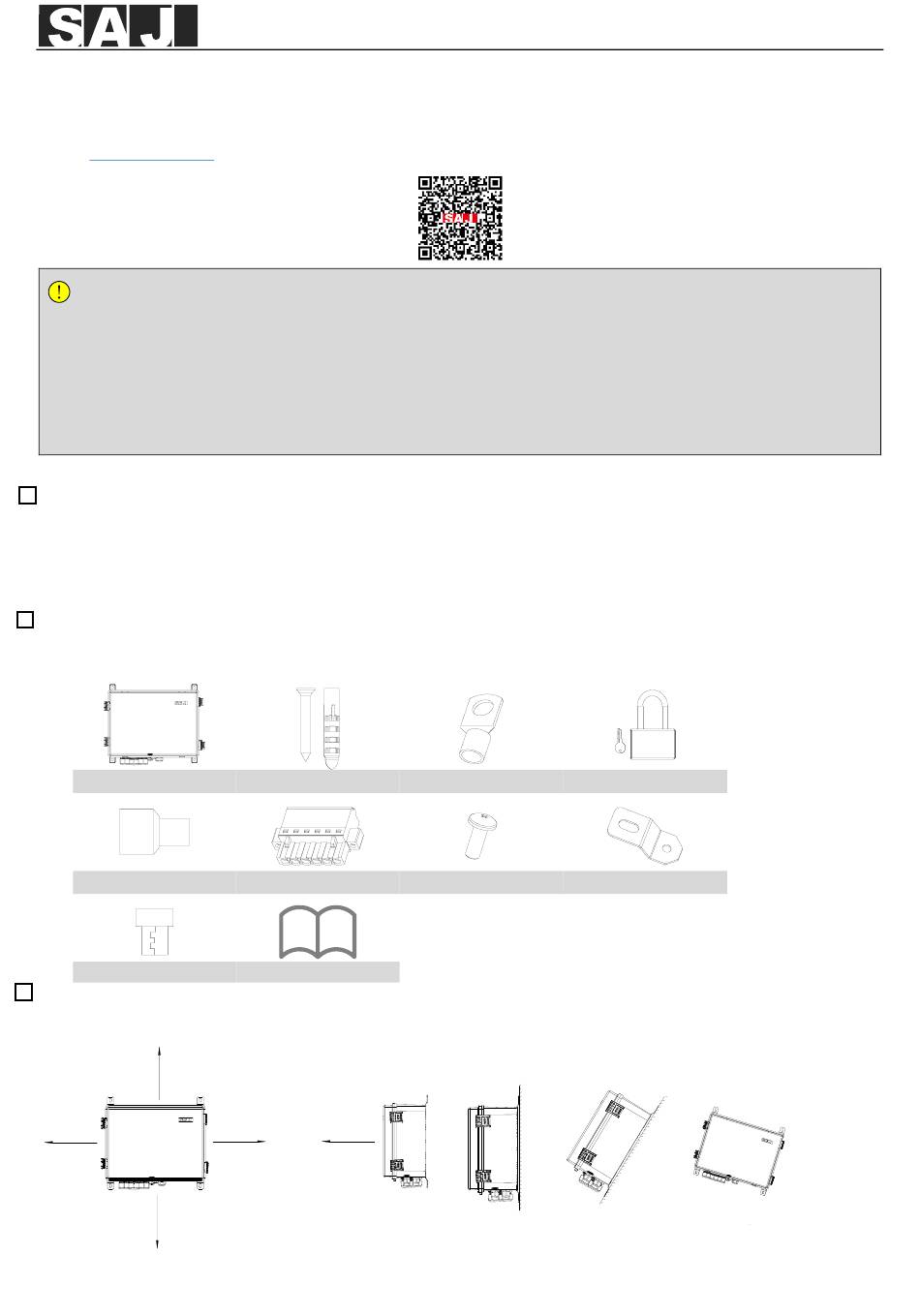

eManager-C1 Pro Smart Communication Box Quick Installation Guide
This quick guide provides installation operations. For safety precautions and detailed product information, refer to the
Website www.saj-electric.com. You can scan the below QR code to access all the product documentation.
NOTICE
⚫
Before installation, operation, and maintenance, read the product documentation carefully.
⚫
ONLY qualified and trained electricians who have read and fully understood all safety regulations contained in this manual can install,
maintain, and repair the equipment. The operation personnel should understand the system, its working principles, and relevant national
and regional standards.
⚫
During operations, wear protective equipment and use dedicated tools.
1. Check the outer packing
1.
Check the outer packing package for any damage, such as holes and cracks.
2.
Check the equipment model.
If any serious damage is found or the model is not what you requested, do not unpack the product, and contact your dealer as soon as
possible.
2. Check the product packages
Contents in your shipment are order-dependent. Not all packages listed below may be in your shipment.
Place the connectors separately after unpacking to avoid confusion for connection of cables.
eManager-C1 Pro *1
Cable terminal *4
Wi-Fi module *1
3. Install the eManager box
1.
Follow the required installation manner to determine the installation location.
≥200 mm
≥200 mm
≥500 mm
V0.0
Expansion bolt *4
Six-pin connector *1
Printed document *2
Top ------- 200 mm
Bottom ------- 500 mm
Front ------- 500 mm
Both sides ------- 200 mm
≥200 mm
≥500 mm
Grounding OT terminal *1
ST4.8 screw *4
√
1
User Manual
Lock with a key *1
Mounting lug *4
×
×
