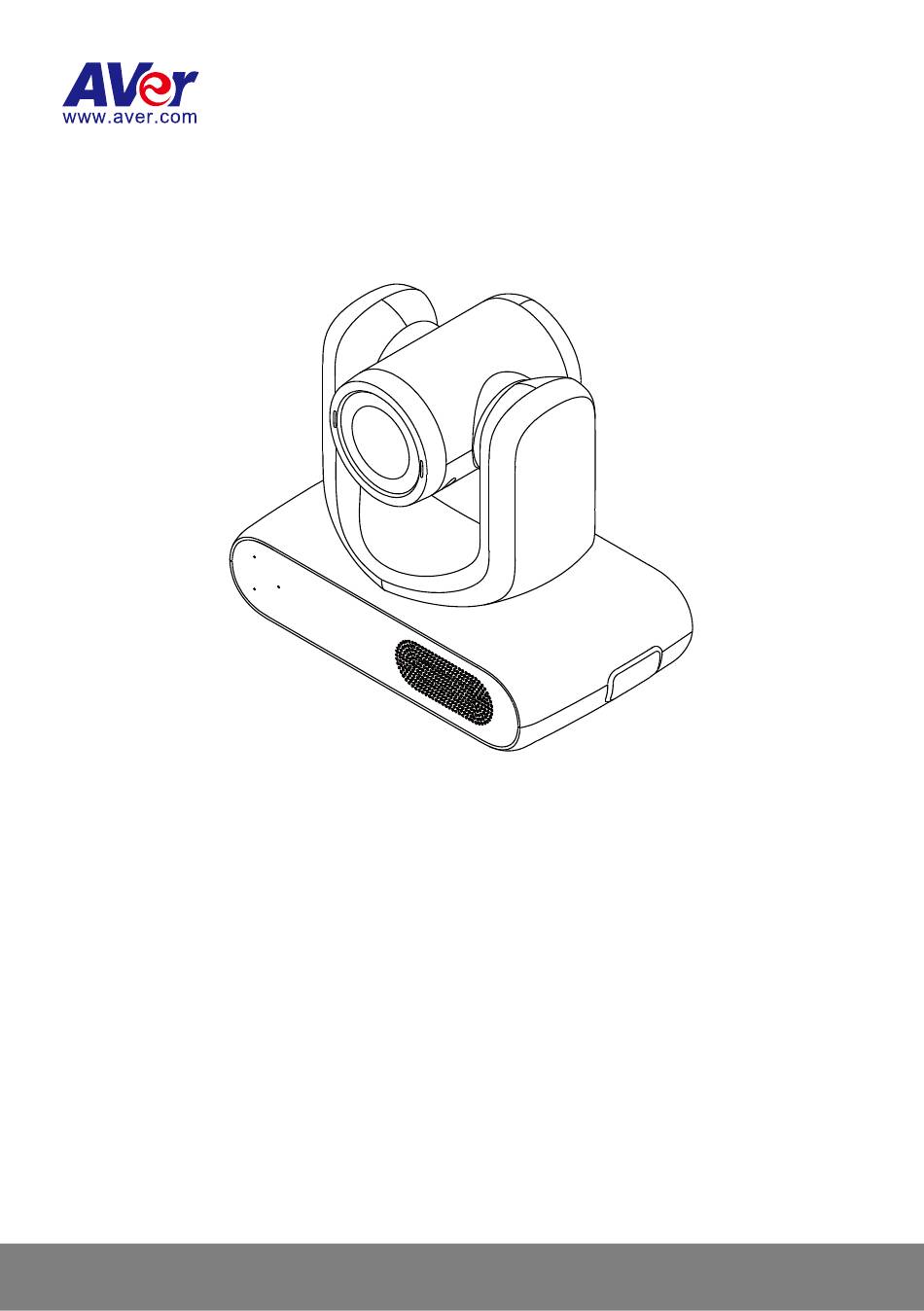

- Page 1 MD720UIS All-in-One PTZ Camera User Manual — —...
- Page 2 How to Clean and Disinfect Warning Do not use cleaning agents containing phenol. Phenol may cause skin Risk of personal burns if not rinsed thoroughly and does not contain sufficient cleaning injury or disinfectant properties. Caution 1. The camera is designed for easy cleaning and disinfection. 2.
-
Page 3: Precautions For Use
Precautions for Use AVer does not accept any responsibility for accident or damage during installation if users do not follow the procedures described in this manual. The AVer MD720UIS Tracking Camera is a high definition medical grade camera designed for physicians and caregivers, and suitable for use in a hospital examination room, patient monitoring and similar medical environments. - Page 4 - Do not use this unit in a location with high temperature and humidity levels, which may cause its parts to deteriorate and shorten its service life. - Do not subject the device to sudden changes in temperature. Keep a cooling unit or heating unit away from this unit.
-
Page 5: Maintenance
Maintenance - The device does not have a power switch. Disconnect the device from a power outlet before maintenance. - Designate personnel to clean the device. Please refer to the <How to Clearn and Disinfect> chapter. - When the device surface is stained, please refer to the <How to Clearn and Disinfect> chapter. - Page 6 Symbols on this Product The symbols on this product, including the accessories, represent the following. The WEEE symbol. This symbol indicates that this product must not be disposed of with your other household waste. Instead, you need to dispose of the waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
- Page 7 Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. The PoE++ port is connected only to PoE networks without routing to the outside plant. PSTI Statement of Compliance Please refer to the following website: https://www.aver.com/product-security-advisory...
- Page 8 ©2024 AVer Information Inc. All rights reserved. | October 9, 2024 All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or...
-
Page 9: Contact Information
Tel: +81 (0) 3 5989 0290 お客様サポートセンター（固定電話のみ）: +81 (0) 120 008 382 Vietnam Branch Office Korea Office Công ty TNHH AVer Information (Việt Nam) 한국 에버 인포메이션 (주) Tầng 5, 596 Nguyễn Đình Chiểu, 서울시 종로구 새문안로 92 (신문로 1 가, 광화문오피시아빌딩) 1831, 1832 호... -
Page 10: Table Of Contents
Device Connection ......................11 Set up your Camera......................12 OSD Menu ........................12 IP Address Setup ......................12 OSD Menu Tree ......................13 Access the Web Interface ....................15 AVer IPCam Utility ..................... 15 AVer ViewCare ......................17 Web Interface ........................18... - Page 11 Live View ........................18 Camera Control ......................18 Preset ........................19 AI Setting ........................20 Eyes Tracking ......................20 AI Video Detection ....................21 Camera Settings ......................23 Exposure ........................23 Image Process ......................24 Layout ..........................25 Video & Audio ........................ 26 Network .........................
-
Page 12: Overview
Overview The MD720UIS Tracking Camera is a medical grade camera designed for patient monitoring. It features infrared night vision and UV-resistant casing. Package Contents Camera Power Adapter & Remote Control Cable Fixing Plate Power Cord Cable Tie (x6) M2 x 4mm... -
Page 13: Parts Info
Parts Info Front View Privacy Indicator Infrared Night Vision LED* Microphone Array** Voice Command Indicator Status Indicator IR Remote Control Sensor Speaker Side View USB 3.0 Type-A Port USB 3.0 Type-C Port Back View 10. Kensington Lock 11. DC 12V Power Jack 12. -
Page 14: Led Indicators
LED Indicators Privacy Indicator Color Status Solid purple Monitoring No light Privacy mode / power off Voice Command Indicator Color Status Solid lake blue Standby Slow flashing lake blue Waiting to receive voice control Quick flashing lake blue Perform voice control Status Indicator Color Status... -
Page 15: Dimensions
Dimensions... -
Page 16: Ceiling Mount
Ceiling Mount... -
Page 17: Wall Mount
Wall Mount... -
Page 18: Pan And Tilt Angle
Pan and Tilt Angle... -
Page 19: Remote Control
Remote Control To open the OSD menu, press and hold the Menu button or 3 seconds. • To disable the remote control, open the OSD menu or web interface and go to System > Camera • Selector > Disable Remote. To resume the remote control, open the web interface and go to System >... -
Page 20: Shortcuts
Shortcuts Press Menu for 3 seconds Open the OSD menu. Menu Close the OSD menu. Close the OSD menu and return the camera to the Home Home position. Menu then Zoom Switch between Day mode and Night mode. Menu then Zoom Switch between Day mode and Auto mode. -
Page 21: Installation
Installation Cable Fixing Plate 1. Secure the cable fixing plate using the included M2 x 4mm screws. 2. Plug in the cables. 3. Secure the cables and the cable fixing plate with cable ties. -
Page 22: Device Connection
Device Connection 1. TV/Monitor & Nursing Station: Connect the camera to a TV/Monitor or Nursing Station via HDMI Out/In port for HDMI video output. 2. Wi-Fi Dongle: Connect the Wi-Fi Dongle to the camera to receive Wi-Fi signal. 3. Diagnostic Scope: Connect the diagnostic scope to the camera’s USB Type-C port on the left side for a closer examine on the patients’... -
Page 23: Set Up Your Camera
Set up your Camera Configure camera settings through the OSD menu or the web interface. OSD Menu To access the OSD menu, connect the camera to a monitor or TV using an HDMI cable, and then use the supplied remote control to operate the OSD menu. Press and hold Menu for 3 seconds to open the OSD menu. -
Page 24: Osd Menu Tree
OSD Menu Tree 1st level 2nd level 3rd level 4th level PTZ Control PTZ Control Panel Camera Setting Exposure Mode Full Auto Shutter Priority Iris Priority Manual White Balance Auto ON / OFF Indoor Outdoor One Push Manual R Gain: 0-255 B Gain: 0-255 Pan Tilt Zoom Preset Speed... - Page 25 Tracking Site Save Tracking Type Full Face / Eyes Tracking Range Close / Medium / Wide Timeout to Site 3 / 5 / 7/ 10 sec AI Video Detection AI Video Detection ON / OFF Detection Type All Type / Fall / Egress Android System Setting...
-
Page 26: Access The Web Interface
Access the Web Interface To access the MD720UIS web interface, use any of the following software to find its IP address: AVer IPCam Utility • • AVer ViewCare Note: The camera’s default network setting is DHCP. AVer IPCam Utility... - Page 27 • Make sure your MD720UIS is connected to the internet. • The IPCam Utility and your camera must be on the same LAN. 3. Double-click your MD720UIS’s IP address in the IPv4 Address column to open the web interface in your browser.
-
Page 28: Aver Viewcare
AVer ViewCare 1. Download ViewCare from AVer Download Center (https://www.aver.com/download-center) launch the software. 2. Log in with the ViewCare default username and password admin/admin. 3. Go to Setup > Device > Add, then click Auto Search to see available devices on the same local area network (LAN). -
Page 29: Web Interface
Web Interface Live View Camera Control Item Description Pan Tilt Zoom Controls Position the camera with the directional buttons. • • Click to move the camera to the Home position. Click to zoom in and out. •... -
Page 30: Preset
Focus + / - : Automatic focus. • : Manual focus. Adjust the focus with ＋- buttons. • One-Push Focus: Click to automatically focus once. • Focus Near Limit Set up the nearest focus limit. Zoom / Pan / Tilt Speed Select a speed option or drag the slider to adjust the zoom, pan and tilt speed. -
Page 31: Ai Setting
AI Setting Eyes Tracking Manually adjusting pan, tilt and zoom controls during Facial Tracking will turn off the function. 1. Please set up the Tracking Site with camera pan, tilt and zoom controls and then click Save to save a Tracking Site. The default is the Home position. 2. -
Page 32: Ai Video Detection
4. Toggle on eyes tracking. One person: The camera automatically tracks and zooms in on the face. • Multiple people: The camera frames all faces in bounding boxes. Click a square to select a • face you want to track and zoom in on. AI Video Detection To set up AI video detection: 1. - Page 33 safety and which relate to clinical diagnosis, patient care or treatment must remain in place. If fall detection fails to respond as described, take appropriate action immediately. The fall detection is intended as an assistive tool and is not part of a medical device. It is not a patient monitor and cannot be used to make a medical or clinical decision.
-
Page 34: Camera Settings
Camera Settings Exposure Item Description Select an exposure mode. Exposure Mode IR Cut Filter Mode Select Day or Night mode to switch infrared night vision on or off. Select Auto mode and then adjust IR Cut Sensitivity. IR Cut Sensitivity Select Auto for IR Cut Filter Mode to adjust IR Cut sensitivity. -
Page 35: Image Process
Adjust exposure, shutter, iris and gain. Exposure Value Shutter Speed Iris Level Gain Level Gain Limit Level Image Process Item Description White Balance Select Day in IR Cut Filter Mode, and then select a white • balance mode. When Manual is selected, you can also adjust the R Gain and B Gain. -
Page 36: Layout
Layout Type Select from Single, PIP(Picture-in-Picture), or POP(Picture-on- Picture) for multiple video sources display. Single Source Select a video input source from HDMI, UVC or the MD720UIS camera. PIP Setting When the system detects two video sources, you may switch the... -
Page 37: Video & Audio
Video & Audio Video Setting Item Description Power Frequency (Hz) Select 50Hz, 59.94Hz or 60Hz based on your country or region. Video Out Resolution Select a video output. resolution RTSP: Max. 4K/30fps HDMI: Max. 4K 30Hz Theme Mode Select a video overlay to prioritize UVC or HDMI output. Stream Video Output Select a streaming output resolution for the live view. -
Page 38: Network
Network Item Description The default network is DHCP. Click on the toggle to switch between Network Setting DHCP and Static IP. DHCP: Turn on DHCP and click Confirm to save the setting. • The camera will be assigned IP settings automatically. Static IP: Turn off DHCP, enter IP Address, Netmask, •... - Page 39 1. Enter your camera’s RTSP URL and username/password into the media player. 2. RTSP URL: rtsp://[username:password]@[camera IP address]/live_st1 Example: rtsp://1:1@192.168.1.100/live_st1 Username/password: camera’s username/password (web interface login)
-
Page 40: System
Display camera information. Camera Information To upgrade the firmware: Upgrade Firmware 1. Download the latest firmware from the AVer Download Center (https://www.aver.com/download-center/). 2. On the Web interface, go to System > Upgrade firmware. 3. Click Browse to select the firmware. - Page 41 Language Change the web interface language. Reset Reset the camera to factory default settings. System Reboot Restart your camera. Enable to display preset status on the HDMI output during functions Status OSD such as saving, loading and canceling presets. Turn on to move the camera to the defined position after powering Power Up to Preset Click the toggle to turn on >...
-
Page 42: Specifications
Specifications Operation System Operating System Android™ Camera Image Sensor 1/2.8” CMOS Effective Picture Elements 8 Megapixels 4K/30p, 1080p/60, 1080p/30, 1080p/25, 720p/60, Output Resolutions Minimum Illumination 0.5 lux (IRE50, F1.6, Max. AGC, 1/30) S/N Ratio ≥ 50 dB Gain Auto, Manual Shutter Speed 1/1 to 1/10,000 sec Exposure Control... - Page 43 Net Weight Application Indoor Privacy indicator light Security Kensington Slot Remote Control Infrared Temperature : 0 °C to +40 °C Operating Conditions Humidity : 20% to 80% Temperature : -30 °C to +60 °C Storage Conditions Humidity : 20% to 95% Audio Embedded Speaker Microphone...
- Page 44 ViewCare Supports Windows® 7 or later PTZ Management Supports Windows® 7 or later PTZ Control Panel Supports iOS & iPadOS® 11 or later Warranty Camera 3 Years Accessories 1 Year Specifications are subject to change without prior notice.
-
Page 45: Troubleshooting
Troubleshooting How to open the on-screen display (OSD) menu? 1. Make sure the HDMI cable is connected to your camera and display. 2. On the remote control, press and hold Menu for 3 seconds to open the OSD menu. 3. After opening the OSD menu, the LED indicator will appear solid purple. -
Page 46: Appendix
Appendix Voice Command List Activate voice control. “Hi, AVer” “Watch TV” Switch image input source to HDMI. “Go to TV” “Go to home screen” Go to home screen “Go to homepage” “Go Privacy Mode” Enter Privacy Mode “Go to Privacy Mode”...
