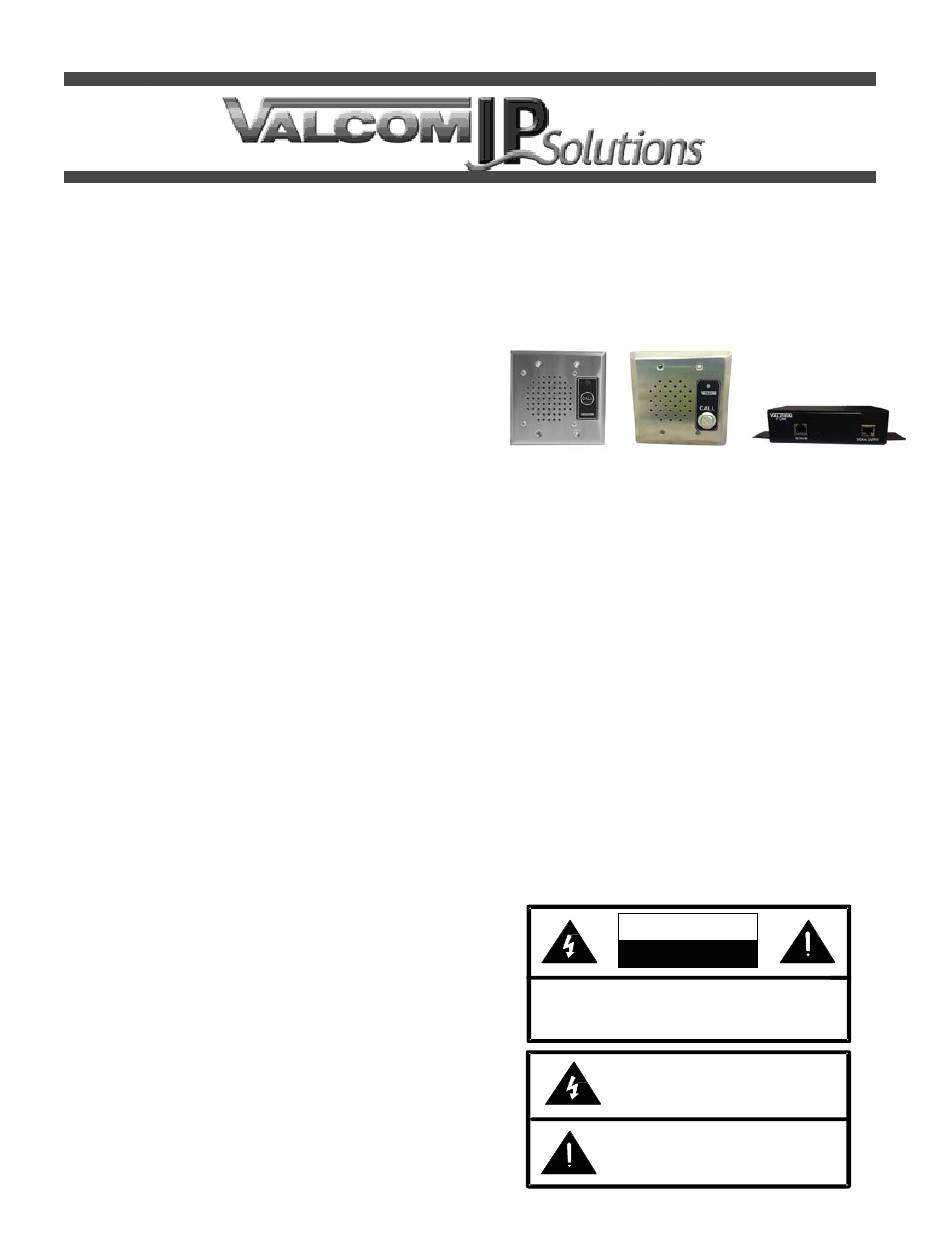

Valcom Revolution VIP-172AL Quick Start Installation

VIP-172AL Revolution® Compliant
IP DoorPhone/Intercom
INTRODUCTION
The VIP-172AL Revolution® compliant IP
Talkback DoorPhone/Intercom allows
communication via the Intrado Revolution server,
SIP based telephone systems or to Valcom IP
gateways over an IP-based network. The -ST
model includes a standard stainless steel
faceplate, while the -VRSS model includes a
heavier stainless steel faceplate and additional
vandal resistant features.
SPECIFICATIONS
Access Methods
•
Intrado Revolution server
•
SIP – enabled telephone system
•
Standalone phones using Valcom gateways
•
Valcom M Cast Page Group
Features
•
1 Form C relay
•
Network activity LEDs
•
Power over Ethernet (PoE) 802.3af
compatible
Dimensions/Weight:
VIP-172AL-VRSS-SA
•
4.5" H x 4.5" W x 1.75" D
(11.43cm H x 11.43cm W x 4.45cm D)
•
Weight: 1.68 lbs. (0.76 kg)
VIP-172AL-ST-SA
•
4.5" H x 4.5" W x 1.3" D
(11.43cm H x 11.43cm W x 3.3cm D)
•
Weight: 0.55 lbs. (0.25 kg)
Network Interface
•
1.62" H x 5.63" W x 3.45" D
(4.11 cm) x (14.30 cm) x (8.73 cm)
•
with brackets – 8.22" W (20.87 cm)
•
Weight: 2.10 lbs. (0.95 kg)
VIP-172AL-ST
Nominal Specifications
Input Impedance:
Input Level:
Output Impedance:
Output Level:
Relay Current:
Nominal Power Requirements
Via 802.3af PoE Ethernet Switch:
Environment
Network Interface:
Temperature:
Humidity:
VIP-172AL Door plate:
Suitable for indoor or outdoor installation
Precautionary Designations
RISK OF ELECTRIC SHOCK
CAUTION: To reduce the risk of electric shock,
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
1
VIP-172AL-VRSS Network Interface
600 Ohms
600 Ohms
-10dBm nominal
1 AMP @ 24VDC
0 to +40° C
0 to 85% non-precipitating
CAUTION
DO NOT OPEN
Do not remove cover.
947839
ISSUE 1
-10dBm
Class 3
