Valcom Revolution VIP-172AL Quick Start Installation page 4

VIP-172AL
NETWORK
INTERFACE
Step 4
Step 3
Step 1. An optional relay output is provided for activating
electric door controls, strike plates, gates, etc. A
Normally Open (NO) and Normally Closed (NC)
connection is available. Consult the door equipment
manufacturer's documentation for connections to
their device. The relay can be activated by pressing
the # key on the answering telephone.
Step 2. Connect the Door Plate to the VIP172-RLY with
standard CAT5 T568A or T568B straight-through
cabling.
Step 3. Connect the punchdown block on the VIP172-RLY
to the SIGNAL OUTPUT on the Network Interface
with standard CAT5 cabling. RJ-45 connector at
Network Interface should be wired using T568B
standard.
VIP-172AL High Security Relay
Quick Start Installation Guide
350' MAXIMUM DISTANCE
Step 2
Pin 8
BROWN
WHITE/BROWN
GREEN
WHITE/GREEN
ORANGE
WHITE/ORANGE
BLUE
WHITE/BLUE
Pin 1

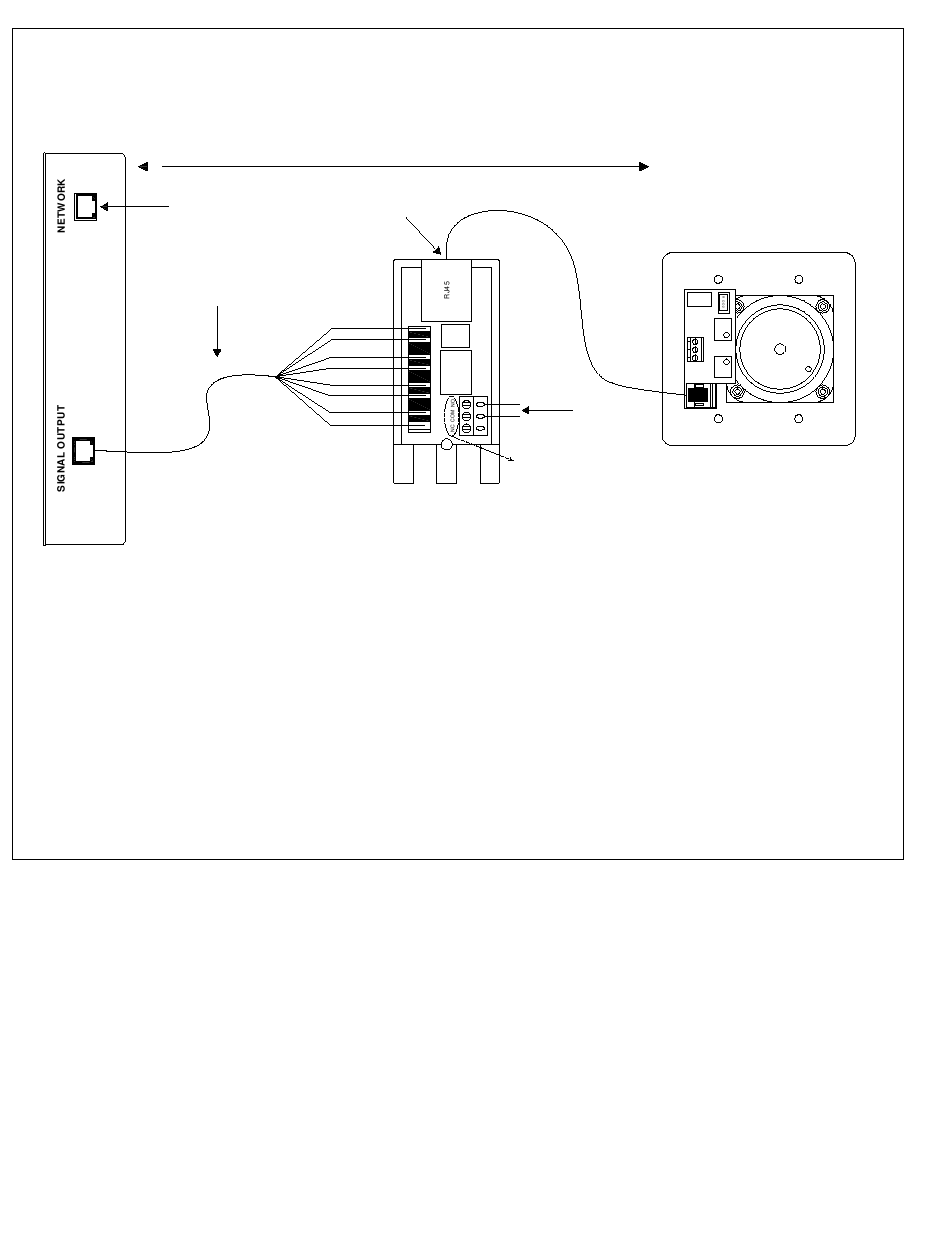

Figure 2. Higher Security Wiring Connections
Step 1
NO = NORMALLY OPEN
COM = COMMON
NC = NORMALLY CLOSED
VIP172-RLY
Step 4. Connect the RJ45 cable from the network. This
device is powered via Power over Ethernet (PoE).
If PoE is unavailable from the network switch then
an inline power injector will be required.
Step 5. Program the VIP-172AL using the VIP-102B IP
Solutions Setup Tool.
The VIP172-RLY External Relay adapter increases
security for door unlock mechanisms. By installing the
VIP172-RLY in a protected area, the relay connections
can be protected from tampering. When installed inline
as shown in this drawing, the relay connections on the
Door Plate are not functional.
4
VIP-172AL
DOOR PLATE
N/C
COM
N/O
