Valcom Revolution VIP-172AL Quick Start Installation page 3

SETUP
The VIP-172AL will automatically acquire an IP
address (using DHCP) and connect to the
Revolution server when connected to the
network and powered up. Information specific to
your application will need to be programmed into
the Revolution server. Refer to the Revolution
documentation for further information.
Additional setup may be required using the
Valcom IP Solutions Setup Tool. The Setup
Tool may be downloaded from the Valcom web
site at http://www.valcom.com/vipsetuptool.
TECHNICAL ASSISTANCE
Assistance in troubleshooting is available from
the factory. Call (540) 563-2000 and press 1 for
Technical Support or via email at
support@valcom.com.
NETWORK
FIGURE A
INTERFACE
Step 3
Step 1
Step 2
350' MAXIMUM DISTANCE
NETWORK
INTERFACE
Step 3
RJ45
BROWN
WHITE/BROWN
GREEN
WHITE/GREEN
ORANGE
WHITE/ORANGE
BLUE
WHITE/BLUE
VM-186
VIP-172AL
DOOR PLATE
N/C
COM
N/O
Step 2
BROWN
BROWN
WHITE/BROWN
GREEN
WHITE/GREEN
CAT 3/5/6 UTP
ORANGE
WHITE/ORANGE
BLUE
WHITE/BLUE
BLUE
VM-186 COLOR CODES - FUNCTION
BROWN & WHITE/BROWN - AUDIO
GREEN & WHITE/GREEN - RELAY CONTROL
ORANGE & WHITE/ORANGE - LED
BLUE & WHITE/BLUE - CALL SWITCH
350' MAXIMUM DISTANCE

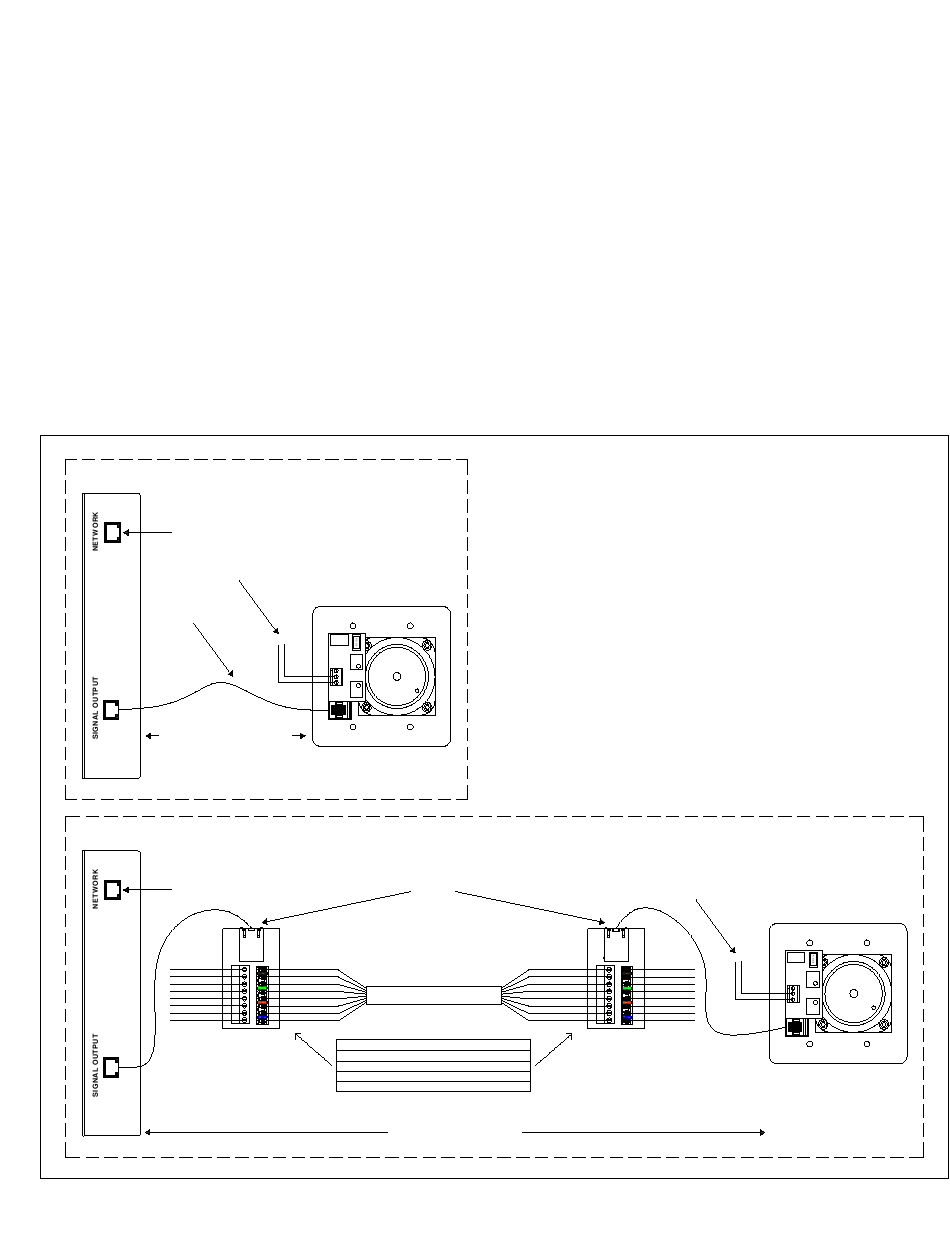

Figure 1. Quick Start Installation
When requesting assistance, you should include
all available information. General information
and troubleshooting procedures are available on
the Valcom website at www.valcom.com.Valcom
equipment is not field repairable. Valcom, Inc.
maintains service facilities in Roanoke, VA.
Should repairs be necessary, attach a tag to the
unit clearly stating your company name,
address, phone number, contact person and the
nature of the problem.
Send the unit to:
Valcom, Inc.
Repair & Return Dept.
5614 Hollins Road
Roanoke, Va. 24019-5056
WARRANTY
Warranty information may be found on our
website at www.valcom.com/warranty
VIP-172AL Quick Start Installation
Step 1. An optional relay output is provided for activating electric door controls,
strike plates, gates, etc. A Normally Open (NO) and Normally Closed (NC)
connection is available. Consult the door equipment manufacturer's
documentation for connections to their device. The relay can be activated
by pressing the # key on the answering telephone.
Step 2. Connect the Door Plate to the Network Interface. If the Door Plate is close
to the Network Interface, a standard Patch Cable may be used to connect
between them (Figure A). For longer distances, the VM-186 RJ45 Junction
Boxes can be used to extend up to 350' between the Door Plate and Network
Interface (Figure B).
Step 3. Connect the RJ45 cable from the network. This device is powered via
Power over Ethernet (PoE). If PoE is unavailable from the network
switch then an inline power injector will be required.
Step 4. Program the VIP-172AL using the VIP-102B IP Solutions Setup Tool.
FIGURE B
RJ45
BROWN
BROWN
WHITE/BROWN
GREEN
WHITE/GREEN
ORANGE
WHITE/ORANGE
BLUE
WHITE/BLUE
BLUE
VM-186
3
Step 1
VIP-172AL
DOOR PLATE
BROWN
WHITE/BROWN
GREEN
N/C
WHITE/GREEN
COM
ORANGE
WHITE/ORANGE
N/O
BLUE
WHITE/BLUE
