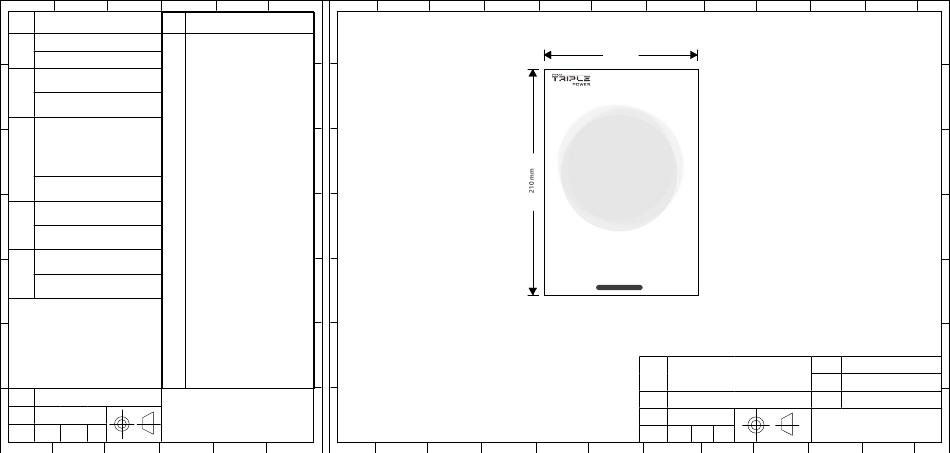

143 mm

T-BAT-SYS-HV-S50E

Installation Manual

Version **

eManual in the QR code or at

http://kb.solaxpower.com/

www.solaxpower.com

描述

说明书 XX series 英文版 SolaX

材料

双胶纸

料号

320101XXXX00

单位

页次

设计

某某某 2022/XX/XX

审核

某某某 2022/XX/XX

核准

施鑫淼 2022/XX/XX

浙江艾罗网络能源技术股份有限公司

Table of Contents

Troubleshooting

Need help?

Do you have a question about the T-BAT-SYS-HV-S50E and is the answer not in the manual?

Questions and answers

Summary of Contents for Solax T-BAT-SYS-HV-S50E

Page 1 2. 装订方式：胶装或骑马钉，内页大于 60 页时须胶装； 3. 未注尺寸公差按 ±3 mm； 4. 图面、字体印刷清晰、无偏移、无毛边、不起边、油墨不脱落；设计某某某 2022/XX/XX 5. 黑色字体颜色为 PANTONE BLACK C, 无边框，底色为白色；描述说明书 XX series 英文版 SolaX 6. 符合 ROHS 要求。审核某某某 2022/XX/XX 描述说明书 XX series 英文版 SolaX 材料核准...
Page 3 T-BAT-SYS-HV-S50E Installation Manual Version ** www.solaxpower.com eManual in the QR code or at http://kb.solaxpower.com/...
Page 5 No part of this manual may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means without the prior written permission of SolaX Power Technology (Zhejiang) Co., Ltd. Trademarks and other symbol or design (brand name, logo) that distinguishes the products or services offered by SolaX has been trademark protected.
Page 6: About This Manual
About This Manual Scope of Validity This manual is an integral part of T-BAT Series. It describes the installation, electrical connection, commissioning, maintenance and troubleshooting of the product. Please read it carefully before operating. Battery Module TBMS-MCS0800E TP-HS50E Note: In the case of one tower, there are 3 parts of the T-BAT system, which includes BMS, battery module(s) and Base.
Page 7: Change History
Conventions The symbols that may be found in this manual are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, DANGER will result in death or serious injury. Indicates a hazardous situation which, if not avoided, WARNING could result in death or serious injury.
Page 8: Table Of Contents
Table of Contents Safety ......................1 1.1 General Safety ........................1 1.2 General Safety Precautions ....................2 1.3 Battery Handling Guide....................2 1.4 Response to Emergency Situations ................3 Product Overview ..................5 2.1 System Description ......................5 2.2 Appearance .........................5 2.2.1 Weight and Dimensions ..................6 2.2.2 BMS (TBMS-MCS0800E) ..................7 2.2.3 Battery module (TP-HS50E) ................9 2.2.4 Base ..........................9 2.2.5 Series Box .......................10...
Page 9 6.3 Battery Capacity Expansion ....................50 Wiring......................51 7.1 Details of Cables ........................51 7.2 Wiring Procedure .......................52 7.3 Installation of Cover ......................57 System Commissioning ................58 8.1 Checking before Power-on ....................58 8.2 Powering on the System ....................58 Troubleshooting and Maintenance ............59 9.1 Power off the System .......................59 9.2 Troubleshooting .........................60 9.3 Maintenance ........................62 Decommissioning ..................63...
Page 11: Safety
And the safety instructions in this document are only supplements to local laws and regulations. SolaX shall not be liable for any consequences caused by the violation of the storage, transportation, installation, and operation regulations specified in this document, including, but not limited to: •...
Page 12: General Safety Precautions
Safety General Safety Precautions • Overvoltage or wrong wiring may damage the battery module and cause combustion which may be extremely dangerous; • Leakage of electrolytes or flammable gas may be occurred due to any type of product breakdown; • Do not install the battery module in places where flammable and combustible materials are stored, and in which an explosive atmosphere is present;...
Page 13: Response To Emergency Situations
Safety penetrating with a sharp object. Otherwise, it may cause a fire or leakage of electrolytes; • DON'T touch the device if liquid spill on it. There is a risk of electric shock; • DON'T step on the packaging or the device may be damaged; •...
Page 14 DON'T use the submerged battery module again, and contact the qualified personnel for assistance. • DO contact SolaX immediately for assistance if the user suspects that the battery module is damaged. WARNING! • Do not crush or impact battery, and always dispose of it according to relevant safety regulations.
Page 15: Product Overview
Product Overview System Description A battery management system (hereinafter referred to as BMS) is an electronic system that manages a rechargeable battery. A battery module is a type of electrical battery which can charge or discharge loads. Series Box is designed to connect the second tower in series through BMS wiring. In case of a tower, the whole system mainly comprises a BMS, battery module(s) and Base.
Page 16: Weight And Dimensions
Product Overview 2.2.1 Weight and Dimensions Table 2-2 Weight and Dimension Battery module Base Series Box (TBMS-MCS0800E) (TP-HS50E) Length (mm) Width (mm) Height (mm) 91.5 Net weight (kg) 47.0 Figure 2-2 Dimension: BMS (TBMS-MCS0800E) Figure 2-3 Dimension: Battery module (TP-HS50E) Figure 2-4 Dimension: Base 91.5 Figure 2-5 Dimension: Series Box...
Page 17: Bms (Tbms-Mcs0800E)
Product Overview 2.2.2 BMS (TBMS-MCS0800E) HEAT Left side Right side Figure 2-6 BMS (TBMS-MCS0800E) Table 2-3 Description of ports Item Description The connector is connected to the inverter. The connector interface is connected to the battery module. BAT BUTTON: Start system. BAT SWITCH: A switch for battery's input and output.
Page 18 Product Overview NOTICE! • The mark "*" indicates that when stacking the inverter onto the BMS, the inverter- battery grounding and communications are connected directly through the connector. Hence, no additional external wiring is required. DIP Switch A DIP Switch is equipped on the BMS. After opening HEAT...
Page 19: Battery Module (Tp-Hs50E)
Product Overview 2.2.3 Battery module (TP-HS50E) A hot-plug interface that is connected to the bottom of the battery module or the BMS. A hot-plug interface that is connected to the bottom of the battery module or the Base. Figure 2-8 Details: Battery Module (TP-HS50E) 2.2.4 Base A hot-plug interface that is connected...
Page 20: Series Box
Product Overview 2.2.5 Series Box The Series Box shall be installed in case the battery modules purchased exceed 4 sets (including 4). Figure 2-10 Details: Series Box Table 2-5 Description of ports Item Description GND: Connect to the grounding port of the BMS. COM: Connect to the COM port of the BMS.
Page 21: Indicators
Product Overview 2.2.6 Indicators The power indicators show the current battery percentage. There are five indicators on the BMS, one status light and four SOC power indicators. Status 100% Light HEAT SOC1 SOC2 SOC3 SOC4 Figure 2-11 Indicators Table 2-6 Definition of indicators Status Description Startup...
Page 22 Product Overview Table 2-7 Indicator information while charging SOC value Status light SOC1 SOC2 SOC3 SOC4 0% ≤ SOC < 25% Green Flash Light off Light off Light off SOC < 50% Green Light on Flash Light off Light off SOC <...
Page 23 Product Overview NOTICE! In case of pressing and holding BMS BUTTON, there are two circumstances as follows: • Press and hold BMS BUTTON for more than 5 seconds but less than 20 seconds, the system will enter a startup mode of inverter. •...
Page 24: Symbols On The Label
Product Overview 2.2.7 Symbols on the Label Table 2-10 Description of symbols Symbol Description CE mark. The rechargeable battery complies with the requirements of the applicable CE guidelines. TUV certified. RCM certified. The battery system must be disposed of at a proper facility for environmentally-safe recycling.
Page 25: Features
Product Overview Features The T-BAT SYS-HV is one of the most advanced energy storage systems on the market today, using state-of-the-art technology, and having the characteristics of high reliability and convenient control. Characteristics are shown as follows: • 90% DOD; •...
Page 26: Transportation And Storage
Transportation and Storage If the rechargeable battery are not put into use immediately, the transportation and storage requirements needs to be met: Transportation • Observe the caution signs on the packaging of battery before transportation. • Pay attention to the weight of the rechargeable battery. Be cautious to avoid injury when carrying battery module (net weight: 47 KG).
Page 27: Preparation Before Installation
Preparation before Installation Selection of Installation Location The installation location selected for the rechargeable battery is quite critical in the aspect of the guarantee of machine safety, service life and performance. • Flaunting an IP66 enclosure, the battery can be used outdoors and indoors. •...
Page 28: Installation Carrier Requirement
Preparation before Installation -30°C-+55°C 5-95%RH Near combustibles Near antenna IP6 6 Avoid direct sunlight Avoid rain exposure Avoid snow lay up 4.1.2 Installation Carrier Requirement The mounting location must be suitable for the weight and dimensions of the product and the support surface for installation must be made of a non-flammable material.
Page 29: Clearance Requirement
Preparation before Installation 4.1.3 Clearance Requirement To guarantee proper heat dissipation and ease of disassembly, the minimum space around the rechargeable battery must meet the standards indicated below. • At least a distance not less than 710 mm high shall be provided to give access to install the inverter.
Page 30: Tools Requirement
Preparation before Installation Tools Requirement Installation tools include but are not limited to the following recommended ones. If necessary, use other auxiliary tools on site. Hammer drill Cross screwdriver Measuring tape Marker Rubber mallet Torque wrench Spirit level Safety gloves Safety boots Safety goggles Anti-dust mask...
Page 31: Unpacking And Inspection
Unpacking and Inspection The number of cartons will be different due to different modes of mounting. Therefore, please check whether the number of cartons received are correct before unpacking. For details, please refer to the following table. Table 5-1 Number of cartons One Tower Two Towers A BMS carton, and carton(s) of...
Page 32 Unpacking and Inspection Figure 5-2 Unpacking the battery module • Be careful when dealing with all package materials which may be reused for storage and relocation of the rechargeable battery in the future. • Upon opening the package, check whether the appearance of the rechargeable battery is damaged or lack of accessories.
Page 33: Scope Of Delivery
Unpacking and Inspection Scope of Delivery BMS (TBMS-MCS0800E) Base Angle bracket Angle bracket M5×14 Phillips cheese Angle bracket Angle bracket head screw Rotation wrench Adjustable bracket Adjustable bracket Adjustable bracket Adjustable bracket System performance label Expansion bolt Expansion screw Self-tapping screw Document Table 5-1 Packing list of BMS Item No.
Page 34 Unpacking and Inspection Item No. Description Quantity (Unit: pc) Self-tapping screw System performance label Document NOTICE! • The accessory with the mark "*" indicates that there are 4 totalling plastic bags, with 1 piece in each bag. One Battery Module (TP-HS50E × 1) M5×14 Phillips cheese Battery module head screw...
Page 35 Unpacking and Inspection M5×14 Phillips cheese Adjustable bracket Adjustable bracket head screw Expansion screw Expansion bolt Self-tapping screw Power cable (red) Power cable (black) Communication cable Heater cable Grounding cable Document Table 5-3 Packing list of Series Box Item No. Description Quantity (Unit: pc) Base...
Page 36 Unpacking and Inspection NOTICE! • The accessory with the mark "*" indicates that there are 4 totalling plastic bags, with 1 piece in each bag. Base Support (For wall mounting only) M5×20 Phillips Base support Transverse plate Expansion screw countersunk head screw M5×8 Phillips countersunk head screw Table 5-4 Packing list of base support...
Page 37 Unpacking and Inspection RNB14-5 ring terminal Item No. Description Quantity (Unit: pc) Positive power y cable (2000 mm) Negative power y cable (2000 mm) Male Phoenix terminal Female Phoenix terminal RNB14-5 ring terminal NOTICE! User • As for the installation steps for power y cables, please refer to the inverter’s Manual •...
Page 38: Mechanical Installation
Mechanical Installation Installation Options One Tower Table 6-1 Height and weight Option A Option B Option C Option D Height (mm) 1194 1512 Net Weight (kg) 60.2 107.2 154.2 201.2 NOTICE! • The above-mentioned net weight just includes the weight of the BMS, battery module(s), and Base, not the base support and other accessories.
Page 39 Mechanical Installation Two Towers Table 6-2 Height and weight Option E Option F Option G Option H Left Right Left Right Left Right Left Right tower tower tower tower tower tower tower tower Height (mm) 1194 1194 1194 1127 Net Weight (kg) 107.2 100.5 154.2...
Page 40: Installation Procedure
Mechanical Installation Installation Procedure WARNING! • Only the qualified personnel can perform the mechanical installation following the local standards and requirements. • Check the existing power cables or other piping in the wall to prevent electric shock or other damage. CAUTION! •...
Page 41: Floor Mounting
Mechanical Installation NOTICE! • The connector of the BMS is completely insulated through insulating head. • No circuit presents on male terminals until female terminals or another module connected. • Access to directly touch female terminals by fingers is not available as they are IP2X rated.
Page 42 Mechanical Installation Figure 6-4 Determining whether the Base is level Step 3: Rotate the adjustment screws clockwise to ensure that it is even. Turn clockwise to lower the Base, and turn anticlockwise to raise the Base. Figure 6-5 Rotating adjustment screws NOTICE! •...
Page 43 Mechanical Installation Step 4: Locate the Base 90 mm away from the wall, accurately mark the location of the Base on both side with a marker. Mark the location Figure 6-6 Placing the Base Step 5: Attach the angle bracket (Part A) and adjustable bracket (Part D) together by using M5×14 Phillips cheese head screw (Part B), but do not fully tighten them.
Page 44 Mechanical Installation Step 6: Place the assembled bracket on the wall, align the hole to the hole on the battery module; and circle along the inner ring of the holes on the angle brackets. Totalling 2 assembled brackets need to be installed. Don't fully tighten it Figure 6-8 Circling inner ring of holes...
Page 45 Mechanical Installation Step 8: Insert the expansion bolt (Part E) (× 2 pcs) into two holes, tighten the self-tapping screw (Part G) (× 2 pcs) to secure the assembled bracket on the wall (torque: 8-10 N·m), and then tighten M5×14 screws on both sides (torque: 2.2-2.5 N·m). Figure 6-10 Inserting the expansion bolt Self-tapping screw...
Page 46 Mechanical Installation Step 9: Place a battery module on the Base. Figure 6-12 Placing the battery module NOTICE! • At least two persons are required to move the battery module. • Please ensure that the side with "R" shall be against the wall. Step 10: Insert and tighten M5×14 Phillips cheese head screw (Part A1) (×...
Page 47 Mechanical Installation Step 11: Place the second and third battery modules, and make sure that the corners and edges of the battery modules are aligned. Step 9 Steps 9 to 10 Figure 6-14 Placing battery modules Step 12: Secure the assembled brackets on the wall. 1.
Page 48 Mechanical Installation As for securing brackets, refer to Steps 5 to 8. Figure 6-15 Securing assembled bracket NOTICE! • An electric drill dust collector is recommended. • To prevent dust from being released into the hot plug when drilling holes, users may use the package bag of the device or other materials to fully cover the battery module.
Page 49 Mechanical Installation Step 13: Place the BMS, and then tighten the M5×14 screws on both sides (torque: 2.2-2.5 N·m) Figure 6-16 Placing the BMS M5×14 2.2-2.5 N·m Figure 6-17 Tightening M5 screws NOTICE! • Please make sure that the corners and edges of the BMS and battery module are aligned before tightening screws.
Page 50 Mechanical Installation Two Tower for Floor Mounting NOTICE! • Take the installation procedure for option H as an example. Step 1: As for the installation steps for the following figure, please refer to the installation procedure for “One Tower for Floor Mounting” (Steps 1 to 13).
Page 51: Wall Mounting
Mechanical Installation NOTICE! • The side of the Series Box with "R" shall be against the wall. • The cover that covers on the Series Box shall be installed after finishing wiring. As for the installation procedure of the cover, please refer to the section of “Installation of Cover”.
Page 52 Mechanical Installation Step 3: Place the assembled base support and transverse plate on the wall, check the cylindrical plastic bubble spirit level on the transverse plate. If the bubble isn't in the centre, slightly bow it to the horizontal. Then circle along the inner ring of the four holes. cylindrical plastic bubble spirit level Ground...
Page 53 Mechanical Installation NOTICE! • An electric drill dust collector is recommended. • To prevent dust from being released into the hot plug when drilling holes, users may use the package bag of the device or other materials to fully cover the Base. Step 5: Place the assembled base support and transverse plate on the wall again, and check whether the bubble is in the centre.
Page 54 Mechanical Installation Step 7: Place the battery module on the Base. Figure 6-26 Placing battery module NOTICE! • At least two persons are required to move the battery module. • Make sure that the side of the Series Box with "R" shall be against the wall. Step 8: Insert and tighten M5×14 M5×14 Phillips cheese head screw (Part A1) (×...
Page 55 Mechanical Installation NOTICE! • Please make sure that the corners and edges of the Base and battery module are aligned before tightening screws. Step 9: Place the second and third battery modules, and make sure that the corners and edges of the battery modules are aligned. Step 8 Steps 7 to 8...
Page 56 Mechanical Installation Step 11: Place the assembled bracket on the wall, align the hole to the hole on the battery module; and circle along the inner ring of two holes on the angle brackets. Totalling 2 assembled brackets need to be installed. Don't fully tighten it Figure 6-30 Circling inner ring of holes...
Page 57 Mechanical Installation NOTICE! • An electric drill dust collector is recommended. • To prevent dust from being released into the hot plug when drilling holes, users may use the package bag of the device or other materials to fully cover the battery module.
Page 58 Mechanical Installation Step 14: Place the BMS, and tighten the M5×14 screws on both sides (torque: 2.2-2.5 N·m) Figure 6-34 Placing the BMS M5×14 2.2-2.5 N·m Figure 6-35 Tightening M5 screws...
Page 59 Mechanical Installation NOTICE! • Please make sure that the corners and edges of the BMS and battery module are aligned before tightening screws. Two Towers for Wall Mounting NOTICE! • Take the installation procedure for six battery modules as an example. Step 1: As for the installation steps for the following figure, please refer to the installation procedure for...
Page 60: Battery Capacity Expansion
Mechanical Installation Step 2: Place the Series Box, insert and tighten M5×14 screws, with totalling 4 screws (torque: 2.2-2.5 N·m). M5×14 2.2-2.5 N·m Figure 6-37 Placing the Series Box NOTICE! • The side of the Series Box with "R" shall be against the wall. •...
Page 61: Wiring
Wiring Details of Cables Communication cable: There are two terminals at both ends. One connects to the COM port of the BMS, and the other connects to the COM port of the Series Box. Figure 7-38 Communication cable Heater cable: There are two terminals at both ends. One connects to the HEAT port of the BMS, and the other connects to the HEAT port of the Series Box.
Page 62: Wiring Procedure
Wiring Wiring Procedure WARNING! • Only the qualified personnel can perform the wiring. • Follow this manual to wire connection. The device damage caused by incorrect cabling is not in the scope of warranty. CAUTION! • Use insulated tools and wear individual protective tools when connecting cables. NOTICE! •...
Page 63 Wiring Figure 7-1 Removing short power cable Step 2: Rotate the waterproof cap anti-clockwise to remove it. And rotate the short- circuit plug anti-clockwise. When the arrow on the rotating ring is aligned with the arrow on the panel, the short-circuit plug can be remove. Waterproof short-circuit plug...
Page 64 Wiring Step 3: Connect B+ of the BMS to B+ of the Series Box with power cable (red) (Part H2); Connect B- of the BMS to B- of the Series Box with power cable (black) (Part I2); Connect COM port of the BMS to COM port of the Series Box with communication cable (Part J2) and tighten it by rotation wrench (Part C);...
Page 65 Wiring Step 4: Pull cables through pipes after connecting cables to the BMS. Pull the power cable (red) and heater cable through pipe 1, and pull the power cable (black), communication cable and grounding cable through pipe 2. Pipe 2 Pipe 1 Figure 7-5 Pulling cables NOTICE!
Page 66 Wiring Step 6: Firstly rotate the rotating ring until the arrow on it is aligned with the arrow on the panel before removing the short-circuit plug, and then insert the heater cable into the HEAT port and rotate clockwise to close it. Align the groove according to the arrows...
Page 67: Installation Of Cover
Wiring Installation of Cover After finishing wiring, push the cover to the Series Box, and tighten M5×14 screws on both sides to secure the cover (torque: 2.2-2.5 N·m). M5×14 2.2-2.5 N·m Figure 7-8 Tightening M5 screws NOTICE! • Please make sure that the corners and edges of the cover and battery module are aligned before tightening screws.
Page 68: System Commissioning
System Commissioning Checking before Power-on Check the device installed correctly and securely; Make sure that all the BAT BUTTON and BAT SWITCH are OFF; All cables are connected correctly and securely; All unconnected port are covered; Powering on the System Step 1: Switch the BAT SWITCH to the "ON"...
Page 69: Troubleshooting And Maintenance
Troubleshooting and Maintenance Power off the System Step 1: Press and hold the BAT BUTTON. Step 2: Switch the BAT SWITCH to the "OFF" position. Figure 9-1 Power off WARNING! • After the battery powers off, there will still be the remaining electricity and heat which may cause electric shocks and body burns.
Page 70: Troubleshooting
T-BAT system's BMS will periodically report its operating state to the inverter. Therefore, when a warning is reported, the inverter will stop working immediately. Contact SolaX Customer Service for further assistance. Please be prepared to describe the details of your system installation and provide the model and serial number of the rechargeable battery.
Page 71 Troubleshooting and Maintenance Error Code Fault Diagnosis and Solution BMS_TemHigh High temperature The temperature of the BMS is too high. of BMS • Cool down the BMS to normal temperature, and then restart it. • Contact the after-sales personnel of our company.
Page 72: Maintenance
• Batteries typically do not require maintenance by the installer or end user. If a battery is reporting an error message, SolaX can view the error message via Cloud online monitoring and then arrange for an on-site technical support engineer to go to the...
Page 73: 10 Decommissioning
10 Decommissioning 10.1 Disassembling the Battery WARNING! • When disassembling the battery, strictly follow the steps as below. Step 1: Press the BAT BUTTON to shut down the system. Step 2: Switch the BAT SWITCH to "OFF" position. Figure 10-1 Pressing button and rotating switch Step 3: Press and hold the lock button on the terminals to unplug the short power cable in the case of one tower;...
Page 74 Decommissioning Press and hold the lock button to remove power cables Figure 10-2 Unplugging cables Step 6: Unscrew the screws to remove the grounding cable. 2.2-2.5 N·m Figure 10-3 Removing grounding cable NOTICE! • The above steps for disconnecting cables apply to both the BMS and Series Box.
Page 75: Packing
Decommissioning 10.2 Packing • Load the BMS and battery modules into the original packing material if possible. • If the original packing material is not available, you can also use the packing material which meets the following requirements: » Suitable for the weight of product. »...
Page 76: 11 Technical Data
11 Technical Data • Configuration List Model Battery Module Nominal Energy (kWh) Operating Voltage (Vdc) T-BAT HS 5 TBMS-MCS0800E × 1 TP-HS50E × 1 90-116 T-BAT HS 10 TBMS-MCS0800E × 1 × 2 10.2 180-232 TP-HS50E T-BAT HS 15 TBMS-MCS0800E × 1 ×...
Page 77 Technical Data NOTICE! 1. Test conditions: 25°C, 100% depth of discharge (DoD), 0.2C charge & discharge. 2. System usable energy may vary with inverter different setting. 3. Discharge: In case of battery cell's temperature range of -20°C ~ 10°C and 45°C ~ 53°C, the discharge current will be reduced;...
