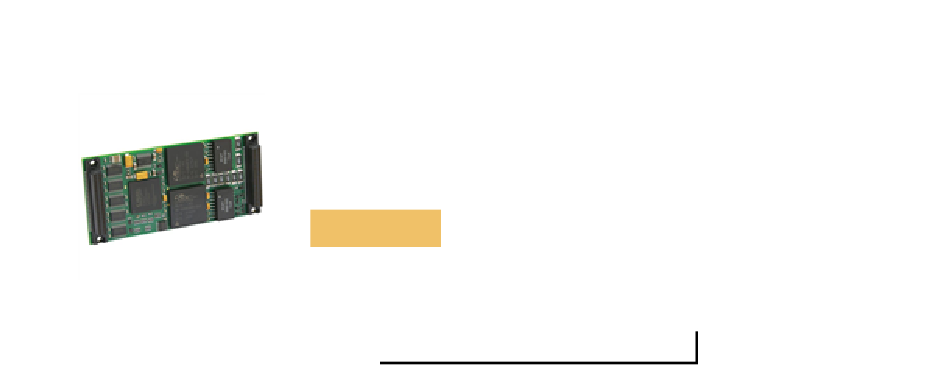

  • Page 1 Acromag IP571 MIL-STD-1553 Bus Interface Module Limited Availability Used and in Excellent Condition Open Web Page https://www.artisantg.com/55638-1 A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
  • Page 2 MIL-STD-1553A/B Bus Interface Module USER’S MANUAL ACROMAG INCORPORATED 30765 South Wixom Road P.O. BOX 437 Wixom, MI 48393-7037 U.S.A. Tel: (248) 295-0310 Fax: (248) 624-9234 Copyright 2010, Acromag, Inc., Printed in the USA. Data and specifications are subject to change without notice. 8500-892-B12A021...
  • Page 3 BUS CONNECTION ......................16 DIRECT COUPLING METHOD..................16 TRANSFORMER COUPLING METHOD ..............16 SERVICE AND REPAIR .......................16 PRELIMINARY SERVICE PROCEDURE .................17 WHERE TO GET HELP ....................17 SPECIFICATIONS ........................17 PHYSICAL ........................17 Connectors ........................17 INDUSTRIAL I/O PACK COMPLIANCE ................18 ________________________________________________________________________ Acromag, Inc. Tel:248-295-0310 Fax:248-624-9234 Email:solutions@acromag.com www.acromag.com...
  • Page 4 Further, Acromag, Inc. assumes no responsibility for any errors that may appear in this manual and makes no commitment to update, or keep current, the information contained in this manual.
  • Page 5 High Speed - Access times for all data transfer cycles are described in terms of "wait" states. For the supplied IP module example, wait states are minimized for all read and write operations (see specifications for detailed information). ________________________________________________________________________ Acromag, Inc. Tel:248-295-0310 Fax:248-624-9234 Email:solutions@acromag.com www.acromag.com...
  • Page 6 Acromag provides a software product (sold separately) consisting of board VxWorks software. This software (Model IPSW-API-VXW) is composed of VxWorks (real time operating system) libraries for all Acromag IP modules and Carriers, PCI I/O Cards, and ________________________________________________________________________ Acromag, Inc. Tel:248-295-0310 Fax:248-624-9234 Email:solutions@acromag.com...
  • Page 7 ________________________________________________________________________ CompactPCI I/O Cards. The software is implemented as a library of “C” functions which link with existing user code to make possible simple control of all Acromag PCI boards. IP MODULE LINUX SOFTWARE Acromag provides a software product (available on website) consisting of board Linux®...
  • Page 8 P2 pin assignments are unique to each IP model (see Table 3) and normally correspond to the pin numbers of the field I/O interface connector on the carrier board (you should verify this for your carrier board). ________________________________________________________________________ Acromag, Inc. Tel:248-295-0310 Fax:248-624-9234 Email:solutions@acromag.com www.acromag.com...
  • Page 9 VME carrier board model AVME9668. The cable includes Twin-ax connectors for each of the four transformer coupled channels: CH0A, CH0B, CH1A, CH1B, and a 15 pin DSUB connector for access to the remote terminal address lines and TAG clock I/O. Figure 2 5028-570 Cable ________________________________________________________________________ Acromag, Inc. Tel:248-295-0310 Fax:248-624-9234 Email:solutions@acromag.com www.acromag.com...
  • Page 10 Table 5. Note that the base-address for the IP module ID space (see your carrier board instructions) must be added to the addresses shown to properly access the ID space. Execution of an ID space read requires 1 wait state. ________________________________________________________________________ Acromag, Inc. Tel:248-295-0310 Fax:248-624-9234 Email:solutions@acromag.com www.acromag.com...
  • Page 11 Channel 1 uACE RAM Memory 16 bit only I/O SPACE ADDRESS MAP This board is addressable in the Industrial Pack I/O space to provide access to control registers, a status register, and interrupt vector registers. ________________________________________________________________________ Acromag, Inc. Tel:248-295-0310 Fax:248-624-9234 Email:solutions@acromag.com www.acromag.com...
  • Page 12 1 – built in self test will be enabled after hardware reset Remote Terminal Address Latch: controls the μ-ACE's internal RT address latch. (see μ- ACE hardware manual for further description) Interrupt enable: 0 – interrupts disabled 1 – interrupts enabled ________________________________________________________________________ Acromag, Inc. Tel:248-295-0310 Fax:248-624-9234 Email:solutions@acromag.com www.acromag.com...
  • Page 13 The 32 Micro ACE registers are located at IP memory space base address + (channel * 0x40000) + (register address * 2). The Micro ACE also includes 64 K 16 bit words of memory. The memory region is located at IP memory space base address + (channel * ________________________________________________________________________ Acromag, Inc. Tel:248-295-0310 Fax:248-624-9234 Email:solutions@acromag.com www.acromag.com...
  • Page 14 Interrupt Mask Register #2 (RD/WR) 0003C Interrupt Status Register #2 (RD) 0003E BC General Purpose Queue Pointer /RT-MT Interrupt Status Queue Pointer Register (RD/WR) 20000 Channel 0 RAM first word Channel 0 RAM last word 3FFFE ________________________________________________________________________ Acromag, Inc. Tel:248-295-0310 Fax:248-624-9234 Email:solutions@acromag.com www.acromag.com...
  • Page 15 The interface to the carrier board allows complete control of all IP57x functions. IP INTERFACE LOGIC IP interface logic of the IP57x is included in the FPGA. This logic includes: address decoding, I/O and ID read/write control circuitry, and ID PROM implementation. ________________________________________________________________________ Acromag, Inc. Tel:248-295-0310 Fax:248-624-9234 Email:solutions@acromag.com www.acromag.com...
  • Page 16 To select the FPGA generated 100 KHz clock as the Micro ACE time tag clock: write bits TTR2:0 in configuration register #2 with the bit pattern “111”. Write the tag clock source (bit 7) of the IP I/O space control register with the value 0. ________________________________________________________________________ Acromag, Inc. Tel:248-295-0310 Fax:248-624-9234 Email:solutions@acromag.com www.acromag.com...
  • Page 17 SERVICE AND REPAIR Surface-Mounted Technology (SMT) boards are generally difficult to repair. It is highly recommended that a non-functioning board be returned to Acromag for repair. The board can be easily damaged unless special SMT repair and service tools are used. Further, Acromag has automated test equipment that thoroughly checks the performance of each board.
  • Page 18 CAUTION: POWER MUST BE TURNED OFF BEFORE REMOVING OR INSERTING BOARDS WHERE TO GET HELP If you continue to have problems, your next step should be to visit the Acromag worldwide web site at http://www.acromag.com. Our web site contains the most up-to-date product and software information.
  • Page 19 IPAH is used to indicate 32MHz operation (8MHz operation is also supported). Memory Space: 16-bit and 8-bit. Interrupts: The INTREQ0 and INTREQ1 signals are used to request interrupts provided by the Micro ACE. DMA: Not implemented. ________________________________________________________________________ Acromag, Inc. Tel:248-295-0310 Fax:248-624-9234 Email:solutions@acromag.com www.acromag.com...
  • Page 20 <= 3.3 V +/- 1 leakage current TAG_CLK_OUT low-level output = 50 µA voltage high-level output = -2 mA voltage output frequency Power Requirements Model IP571 Model IP572 +12V not used -12V not used ________________________________________________________________________ Acromag, Inc. Tel:248-295-0310 Fax:248-624-9234 Email:solutions@acromag.com www.acromag.com...
